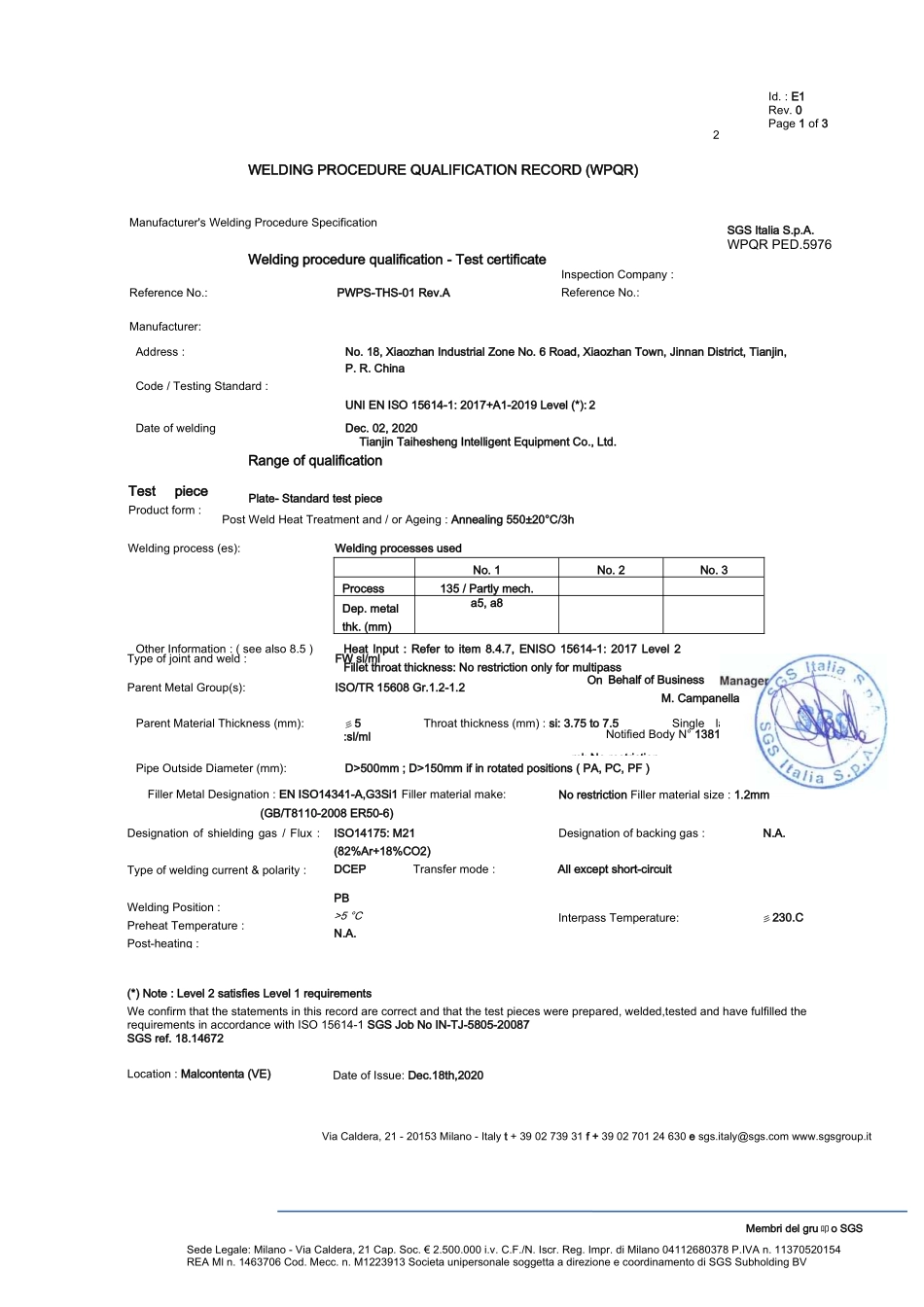

Id. : E1Rev. 0Page 1 of 32SGS Italia S.p.A.WPQR PED.5976Membri del gru 叩 o SGSSede Legale: Milano - Via Caldera, 21 Cap. Soc. € 2.500.000 i.v. C.F./N. Iscr. Reg. Impr. di Milano 04112680378 P.IVA n. 11370520154REA Ml n. 1463706 Cod. Mecc. n. M1223913 Societa unipersonale soggetta a direzione e coordinamento di SGS Subholding BVWELDING PROCEDURE QUALIFICATION RECORD (WPQR)Welding procedure qualification - Test certificateAddress :No. 18, Xiaozhan Industrial Zone No. 6 Road, Xiaozhan Town, Jinnan District, Tianjin,P. R. ChinaCode / Testing Standard :UNI EN ISO 15614-1: 2017+A1-2019 Level (*): 2Date of weldingDec. 02, 2020Range of qualificationPlate- Standard test piecePost Weld Heat Treatment and / or Ageing : Annealing 550±20°C/3hOther Information : ( see also 8.5 )Heat Input : Refer to item 8.4.7, ENISO 15614-1: 2017 Level 2 Fillet throat thickness: No restriction only for multipass(*) Note : Level 2 satisfies Level 1 requirementsWe confirm that the statements in this record are correct and that the test pieces were prepared, welded,tested and have fulfilled the requirements in accordance with ISO 15614-1 SGS Job No IN-TJ-5805-20087SGS ref. 18.14672Location : Malcontenta (VE)Via Caldera, 21 - 20153 Milano - Italy t + 39 02 739 31 f + 39 02 701 24 630 e sgs.italy@sgs.com www.sgsgroup.itManufacturer's Welding Procedure SpecificationReference No.:PWPS-THS-01 Rev.AInspection Company :Reference No.:Manufacturer:Test piece Product form :Welding process (es):No. 1No. 2No. 3Process135 / Partly mech.Dep. metalthk. (mm)a5, a8Type of joint and weld :Parent Metal Group(s):FW sl/mlISO/TR 15608 Gr.1.2-1.2Parent Material Thickness (mm):彡5Throat thickness (mm) : si: 3.75 to 7.5Single layer / multi-run :sl/mlml: No restrictionPipe...
