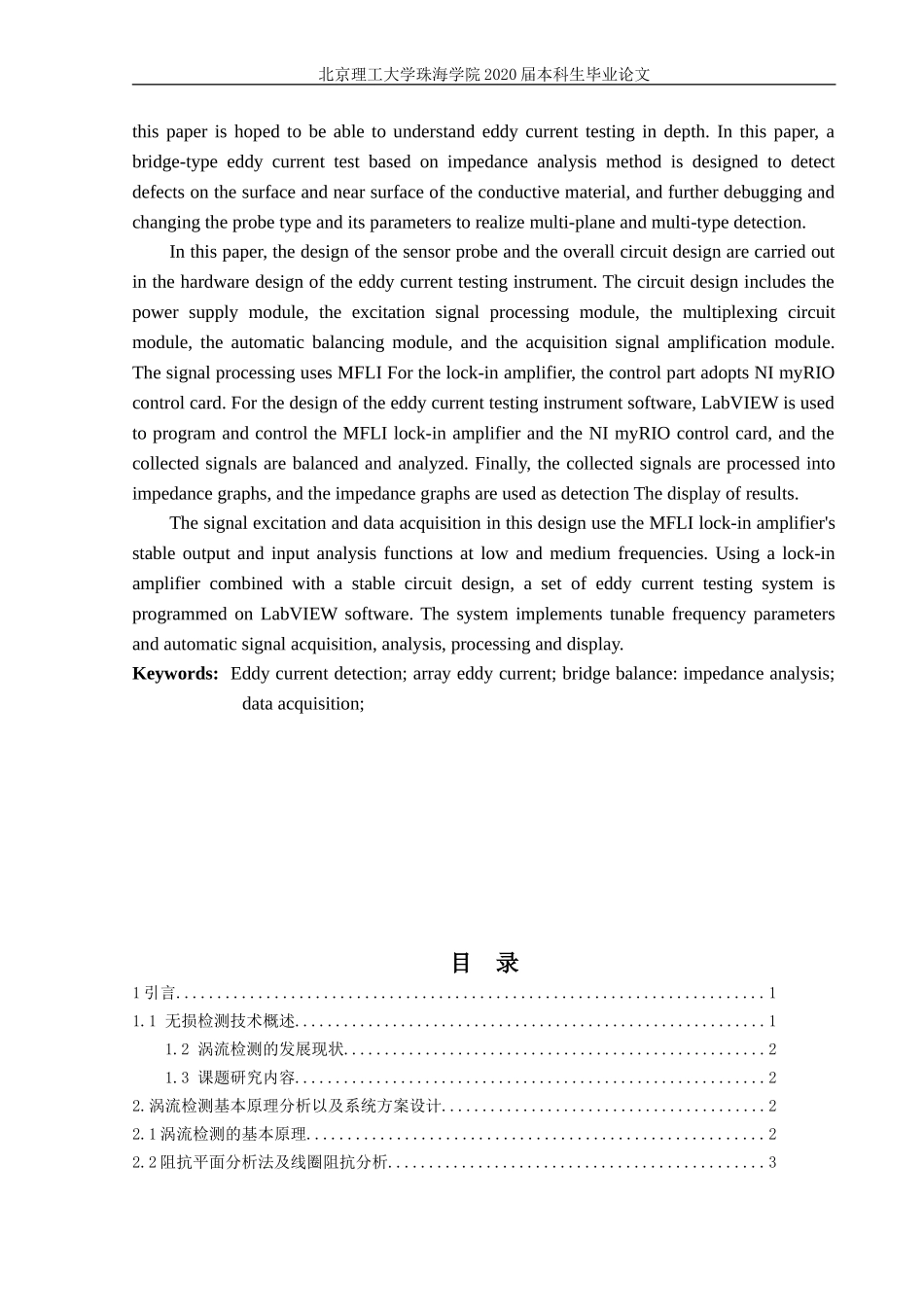

北京理工大学珠海学院 2020 届本科生毕业论文单频电磁涡流仪电路设计单频电磁涡流仪电路设计摘 要高度发展的社会,市场上对无损检测的要求是越来越高,无损检测的研究也是越来越深入。本文研究的单频电磁涡流仪是希望能够深入了解涡流检测而开展的。本文设计北京理工大学珠海学院 2020 届本科生毕业论文基于阻抗分析法的电桥式涡流检测实现导电材质表面以及近表面的缺陷检测,在进一步进行调试以及改变探头类型及其参数实现多平面多类型的检测。本文对涡流检测仪器硬件设计中进行传感器探头设计以及整体电路设计,电路设计中包括电源模块,激励信号处理模块,多路复用电路模块,自动平衡模块,采集信号放大模块,其中信号处理采用 MFLI 锁相放大器,控制部分采用 NI myRIO 控制卡。对于涡流检测仪器软件设计中,利用 LabVIEW 对 MFLI 锁相放大器以及 NI myRIO 控制卡进行编程控制,对于采集到的信号进行平衡与分析,最后将采集到的信号处理为阻抗图,以阻抗图作为检测结果的显示。本设计中的信号激励以及数据采集利用 MFLI 锁相放大器在中低频率稳定的输出以及输入分析功能。利用锁相放大器结合稳定的电路设计,在 LabVIEW 软件上进行编程设计一套涡流检测系统,系统实现可调试频率参数以及自动信号采集、分析、处理与显示。关键词:涡流检测;阵列涡流;电桥平衡:阻抗分析;数据采集;Single-frequency electromagnetic eddy current circuit designAbstractIn a highly developed society, the requirements for non-destructive testing in the market are getting higher and higher, and the research on non-destructive testing is becoming more and more in-depth. The single-frequency electromagnetic eddy current instrument studied in 北京理工大学珠海学院 2020 届本科生毕业论文this paper is hoped to be able to understand eddy current testing in depth. In this paper, a bridge-type eddy current test based on impedance analysis method is designed to detect defects on the surface and near surface of the conductive material, and further debugging and changing the probe type and its parameters to realize multi-plane and multi-type detection.In this paper, the...
