绕线贴片功率电感—SDRHD系列VIP免费

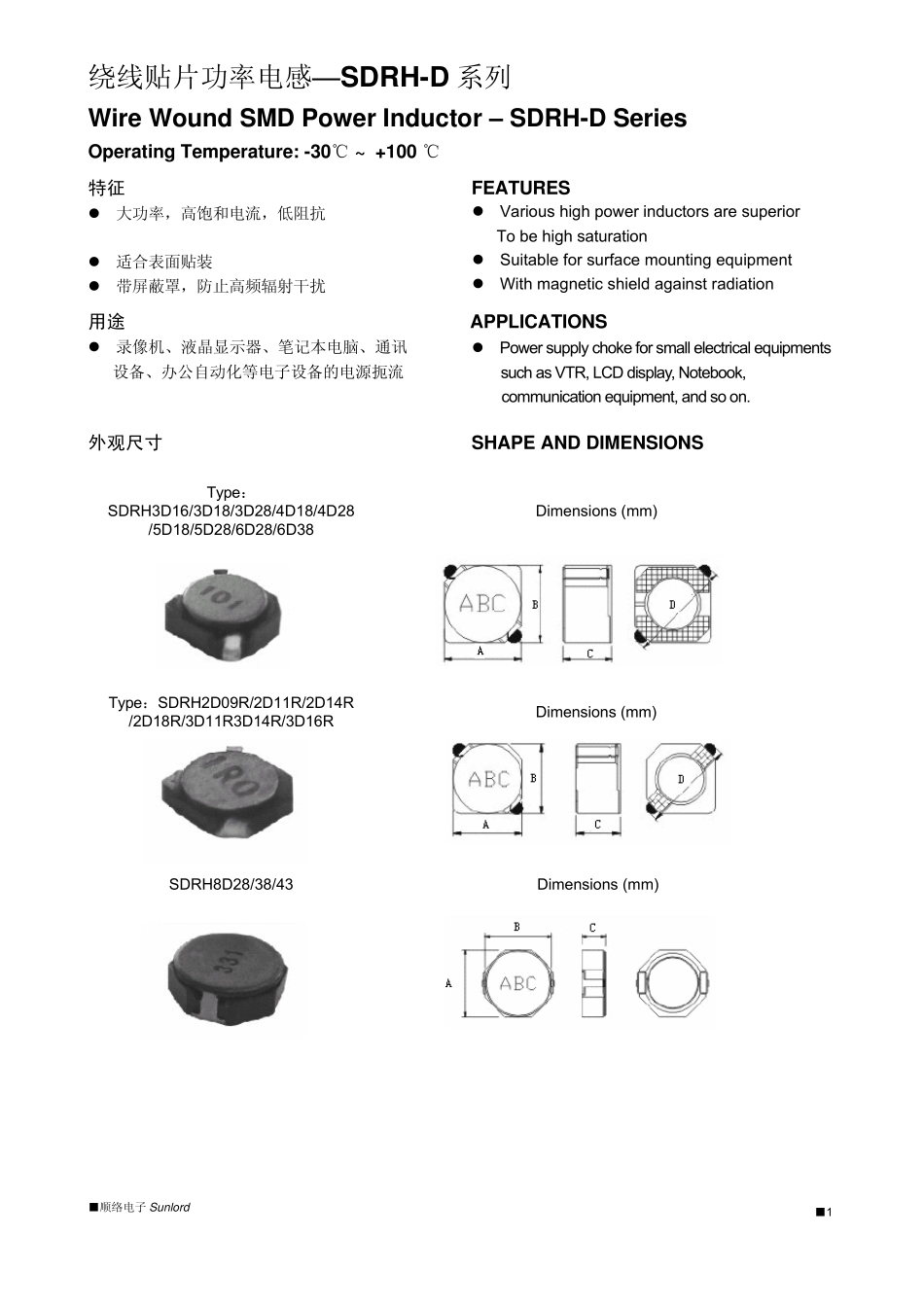

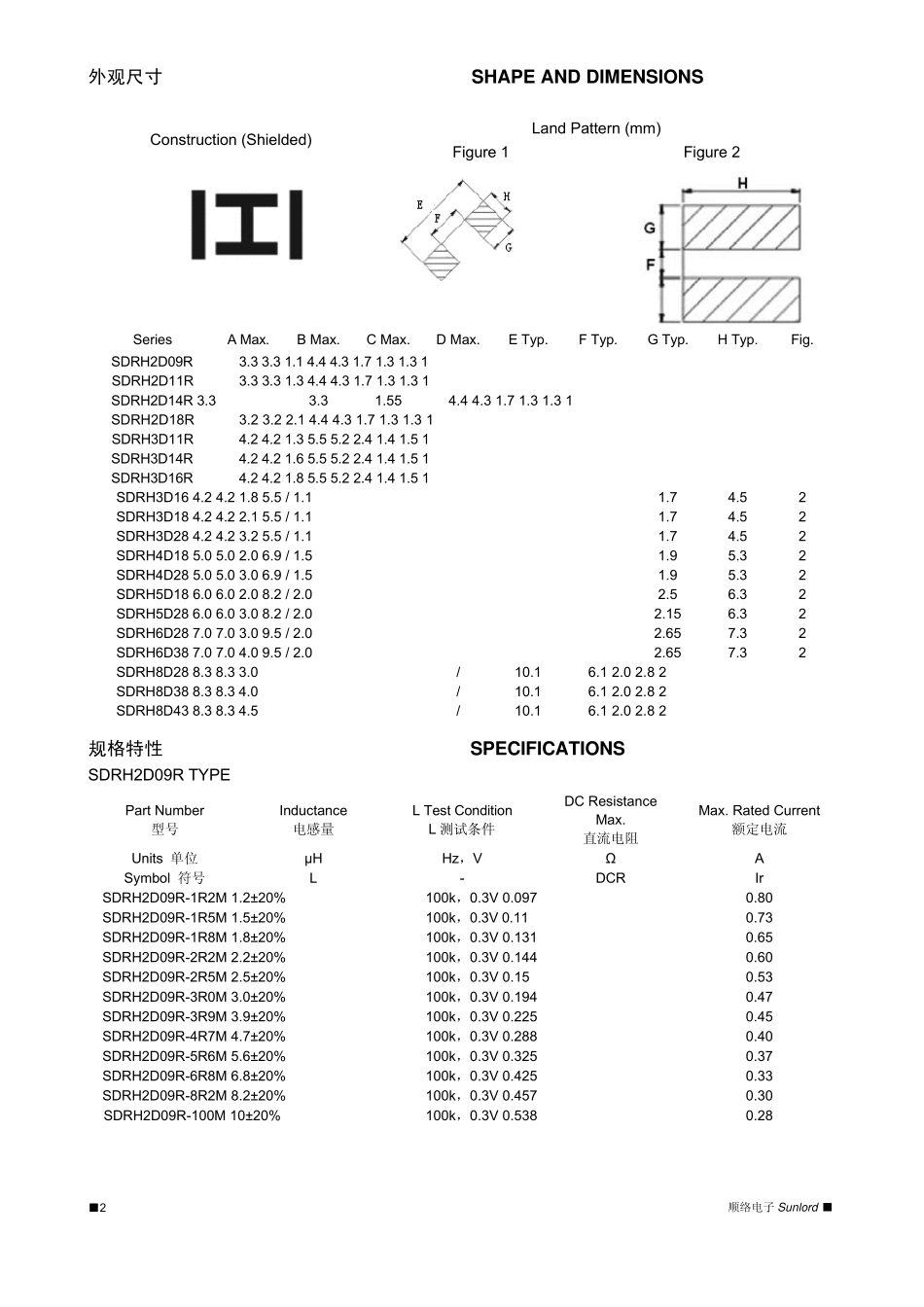

■顺络电子Su nlord ■1绕线贴片功率电感—SDRH-D 系列 Wire Wound SMD Power Inductor – SDRH-D Series Operating Temperature: -30℃ ~ +100 ℃ 特征 FEATURES z 大功率，高饱和电流，低阻抗 z 适合表面贴装 z 带屏蔽罩，防止高频辐射干扰 用途 APPLICATIONS z 录像机、液晶显示器、笔记本电脑、通讯 设备、办公自动化等电子设备的电源扼流 外观尺寸 SHAPE AND DIMENSIONS Type：SDRH3D16/3D18/3D28/4D18/4D28 /5D18/5D28/6D28/6D38 Dimensions (mm) Type：SDRH2D09R/2D11R/2D14R /2D18R/3D11R3D14R/3D16R Dimensions (mm) SDRH8D28/38/43 Dimensions (mm) z Power supply choke for small electrical equipments such as VTR, LCD display, Notebook, communication equipment, and so on. z Various high power inductors are superior To be high saturation z Suitable for surface mounting equipment z With magnetic shield against radiation 顺络电子Su nlord ■ ■2 外观尺寸 SHAPE AND DIMENSIONS Land Pattern (mm) Construction (Shielded) Figure 1 Figure 2 Series A Max. B Max. C Max.D Max.E Typ. F Typ. G Typ. H Typ. Fig. SDRH2D09R 3.3 3.3 1.1 4.4 4.3 1.7 1.3 1.3 1 SDRH2D11R 3.3 3.3 1.3 4.4 4.3 1.7 1.3 1.3 1 SDRH2D14R 3.3 3.3 1.55 4.4 4.3 1.7 1.3 1.3 1 SDRH2D18R 3.2 3.2 2.1 4.4 4.3 1.7 1.3 1.3 1 SDRH3D11R 4.2 4.2 1.3 5.5 5.2 2.4 1.4 1.5 1 SDRH3D14R 4.2 4.2 1.6 5.5 5.2 2.4 1.4 1.5 1 SDRH3D16R 4.2 4.2 1.8 5.5 5.2 2.4 1.4 1.5 1 SDRH3D16 4.2 4.2 1.8 5.5 / 1.1 1.7 4.5 2 SDRH3D18 4.2 4.2 2.1 5.5 / 1.1 1.7 4.5 2 SDRH3D28 4.2 4.2 3.2 5.5 / 1.1 1.7 4.5 2 SDRH4D18 5.0 5.0 2.0 6.9 / 1.5 1.9 5.3 2 SDRH4D28 5.0 5.0 3.0 6.9 / 1.5 1.9 5.3 2 SDRH5D18 6.0 6.0 2.0 8.2 / 2.0 2.5 6.3 2 SDRH5D28 6.0 6.0 3.0 8.2 / 2.0 2.15 6.3 2 SDRH6D28 7.0 7.0 3.0 9.5 / 2.0 2.65 7.3 2 SDRH6D38 7.0 7.0 4.0 9.5 / 2.0 2.65 7.3 2 SDRH8D28 8.3 8.3 3.0 / 10.1 6.1 2.0 2.8 2 SDRH8D38...
