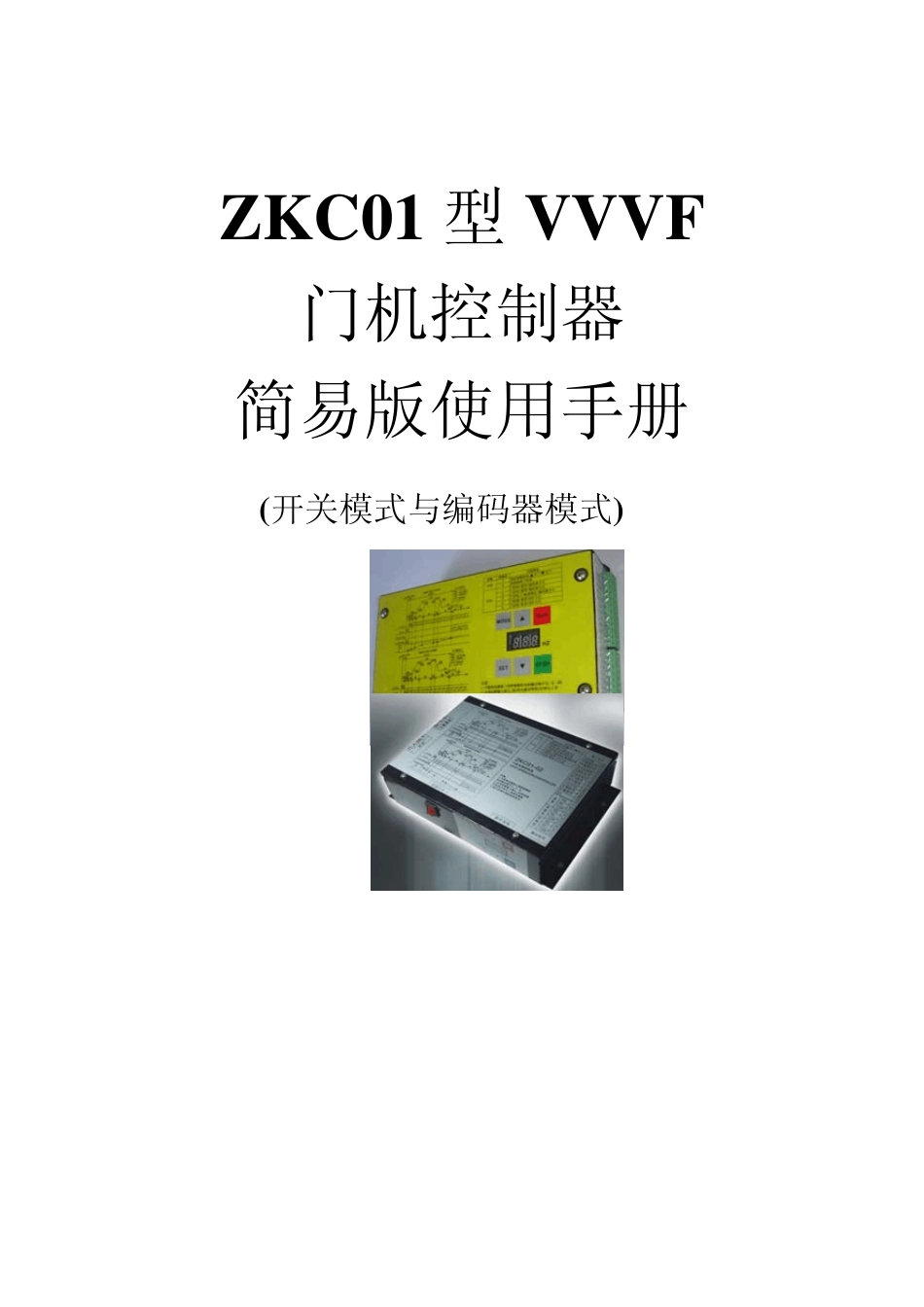

ZKC01门机变频器简易版使用说明书(中文自学习补充说明)VIP免费

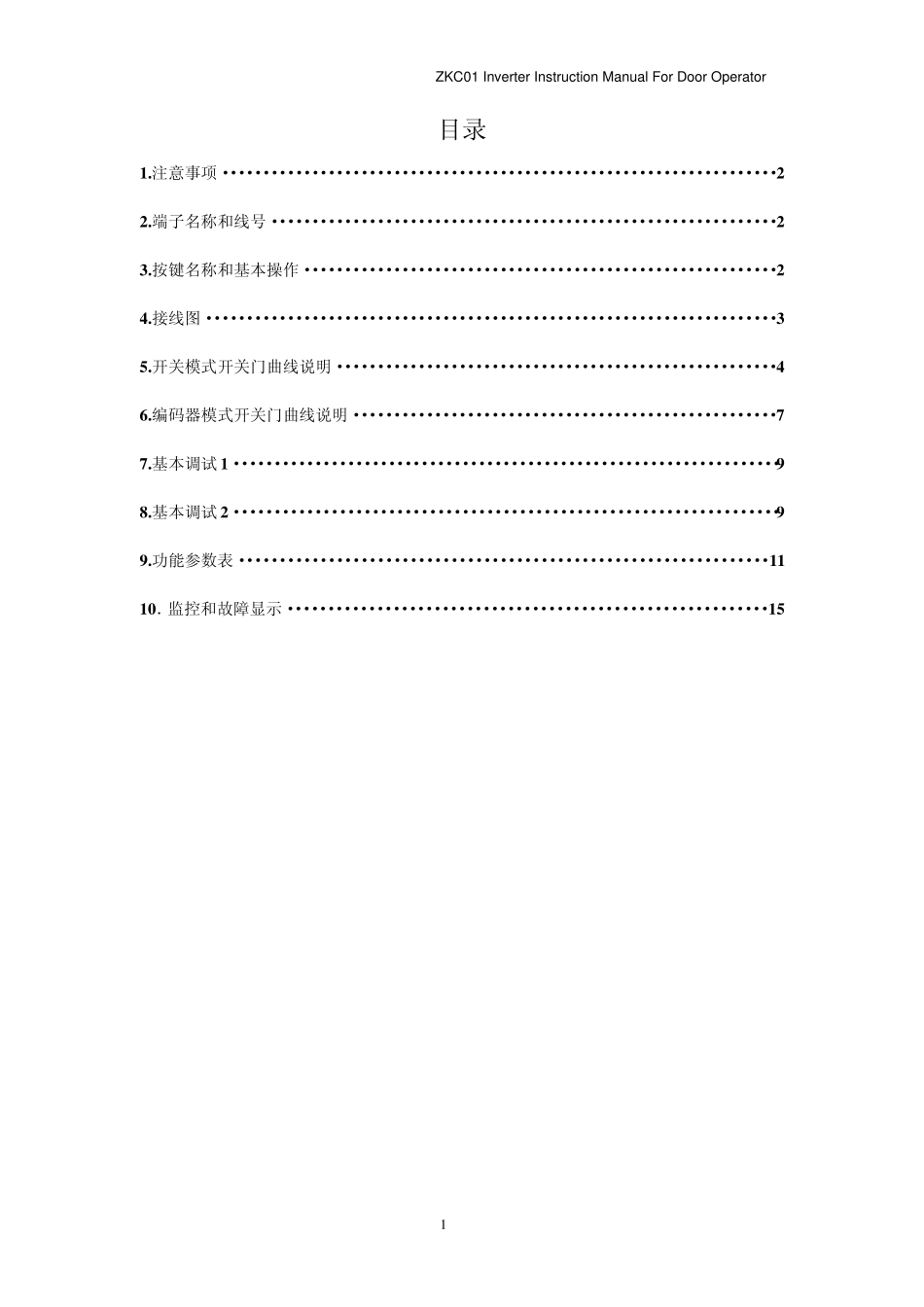

ZKC01 型VVVF 门机控制器 简易版使用手册 (开关模式与编码器模式) ZKC01 Inverter Instruction Manual For Door Operator 目录 1 .注意事项····································································2 2 .端子名称和线号······························································2 3 .按键名称和基本操作··························································2 4 .接线图······································································3 5 .开关模式开关门曲线说明······················································4 6 .编码器模式开关门曲线说明····················································7 7 .基本调试 1 ···································································9 8 .基本调试 2 ···································································9 9 .功能参数表·································································1 1 1 0 ．监控和故障显示···························································1 5 1 ZKC01 Inverter Instruction Manual For Door Operator 1 注意事项 1．1 必须由具有专业资格的人员才能对控制器进行调试、维修和检查。操作前请仔细阅该使用手册。 1．2 确认输入电源处于完全断开的情况下，才能进行配线作业。 1．3 不要把输入端子（L，N）与输出端子（U，V，W ）混淆,否则会损坏控制器。 1．4 将控制器的接线地端子可靠接地，否则有触电危险。 1．5 通电情况下，不要用手触摸控制端子，否...
