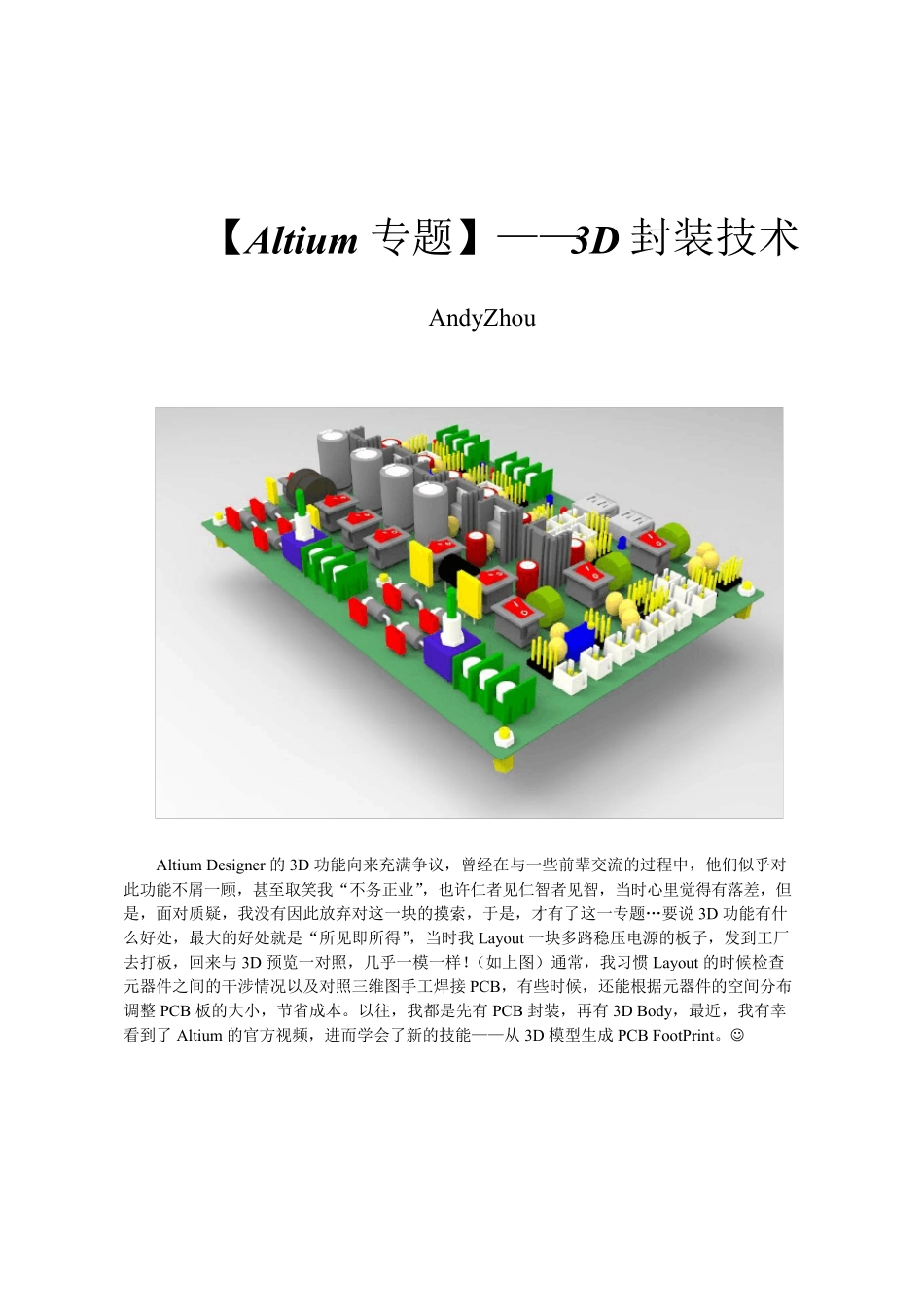

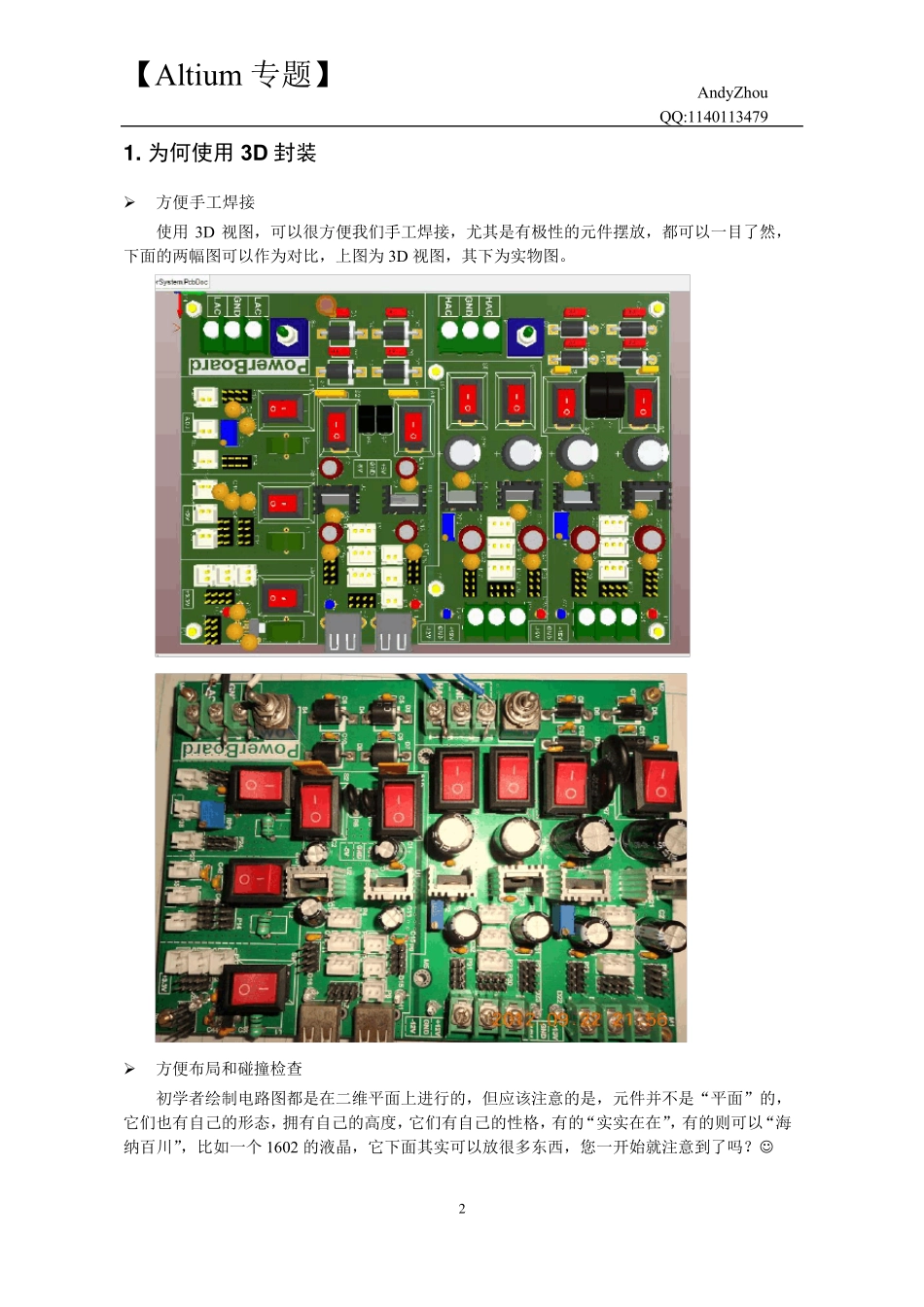

【Altiu m 专题】——3D 封装技术 AndyZhou Altium Designer 的 3D 功能向来充满争议，曾经在与一些前辈交流的过程中，他们似乎对此功能不屑一顾，甚至取笑我“不务正业”，也许仁者见仁智者见智，当时心里觉得有落差，但是，面对质疑，我没有因此放弃对这一块的摸索，于是，才有了这一专题…要说 3D 功能有什么好处，最大的好处就是“所见即所得”，当时我 Layout 一块多路稳压电源的板子，发到工厂去打板，回来与 3D 预览一对照，几乎一模一样！（如上图）通常，我习惯 Layout 的时候检查元器件之间的干涉情况以及对照三维图手工焊接 PCB，有些时候，还能根据元器件的空间分布调整 PCB 板的大小，节省成本。以往，我都是先有 PCB 封装，再有 3D Body，最近，我有幸看到了 Altium 的官方视频，进而学会了新的技能——从 3D 模型生成 PCB FootPrint。☺ 【Altium 专题】 AndyZhou QQ:1140113479 1 目录 1. 为何使用3D 封装 ··········································································· 2 2. “自力更生” ················································································ 5 2.1 准备二维封装 ················································································ 5 2.1.1 测量数据················································································· 5 2.1.2 绘制丝印················································································· 5 2.2 面动成体······················································································· 7 2.2.1 使用 3D Body 管理器 ·········································...
