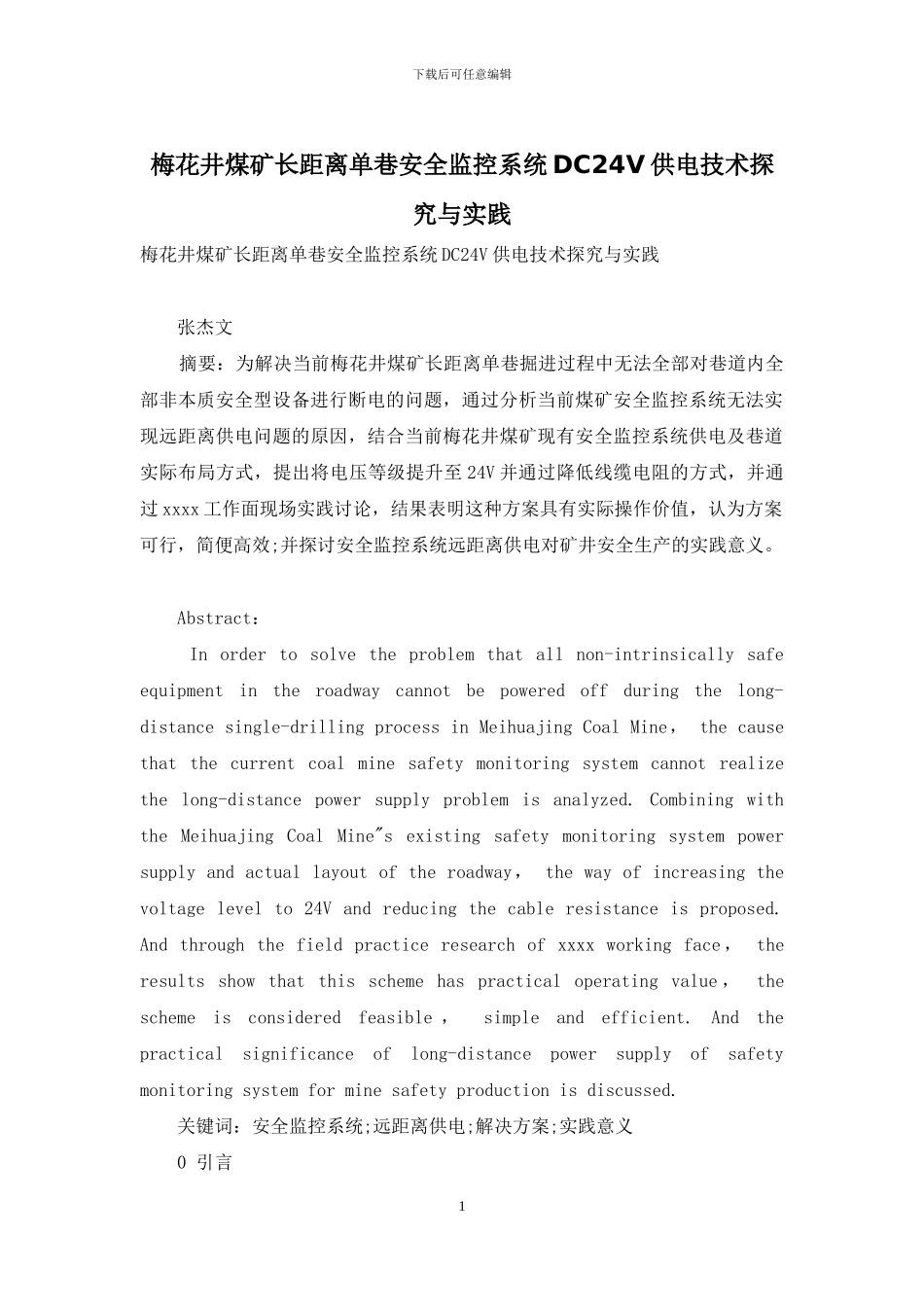

下载后可任意编辑梅花井煤矿长距离单巷安全监控系统 DC24V 供电技术探究与实践梅花井煤矿长距离单巷安全监控系统 DC24V 供电技术探究与实践 张杰文 摘要：为解决当前梅花井煤矿长距离单巷掘进过程中无法全部对巷道内全部非本质安全型设备进行断电的问题，通过分析当前煤矿安全监控系统无法实现远距离供电问题的原因，结合当前梅花井煤矿现有安全监控系统供电及巷道实际布局方式，提出将电压等级提升至 24V 并通过降低线缆电阻的方式，并通过 xxxx 工作面现场实践讨论，结果表明这种方案具有实际操作价值，认为方案可行，简便高效;并探讨安全监控系统远距离供电对矿井安全生产的实践意义。 Abstract： In order to solve the problem that all non-intrinsically safe equipment in the roadway cannot be powered off during the long-distance single-drilling process in Meihuajing Coal Mine， the cause that the current coal mine safety monitoring system cannot realize the long-distance power supply problem is analyzed. Combining with the Meihuajing Coal Mine"s existing safety monitoring system power supply and actual layout of the roadway， the way of increasing the voltage level to 24V and reducing the cable resistance is proposed. And through the field practice research of xxxx working face ， the results show that this scheme has practical operating value ， the scheme is considered feasible ， simple and efficient. And the practical significance of long-distance power supply of safety monitoring system for mine safety production is discussed. 关键词：安全监控系统;远距离供电;解决方案;实践意义 0 引言 1下载后可任意编辑 梅花井煤矿安全监控系统与国内大部分矿井一致，主要采纳 18V 直流供电方式对传感器进行供电;当掘进工作面超过 20XXm 时，由于巷道内传感器较多，线缆压降导致迎头传感器无法全部拖动，需在巷道中部单独加装供电电源进行升压供电;遇到甲烷超限时，系统会将整个巷道内电源断掉，迎头传感器只能依靠巷道中部后备电源供电，由于距离过长，且电池供电能力有限，存在安全运行风险[1]。 1 现状分析...
