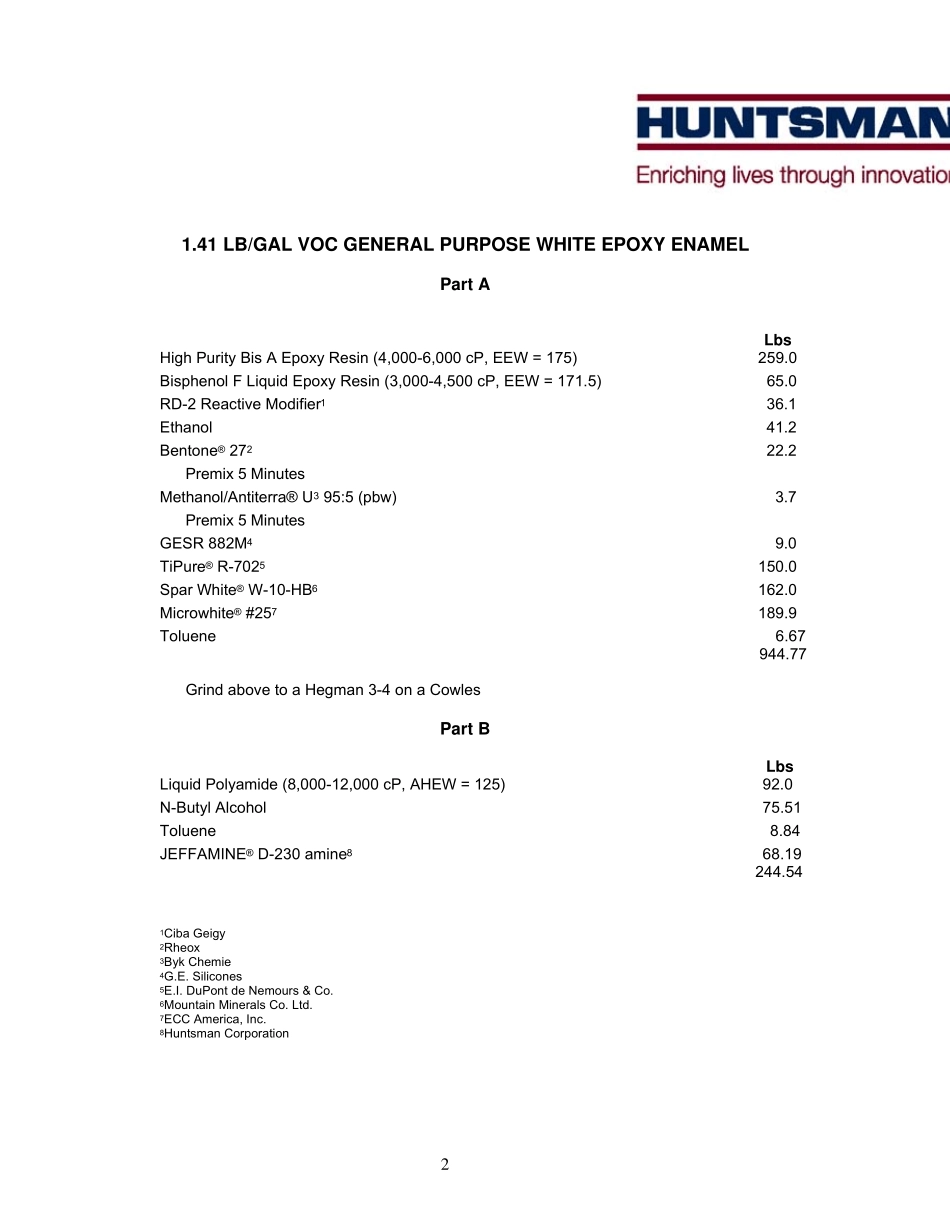

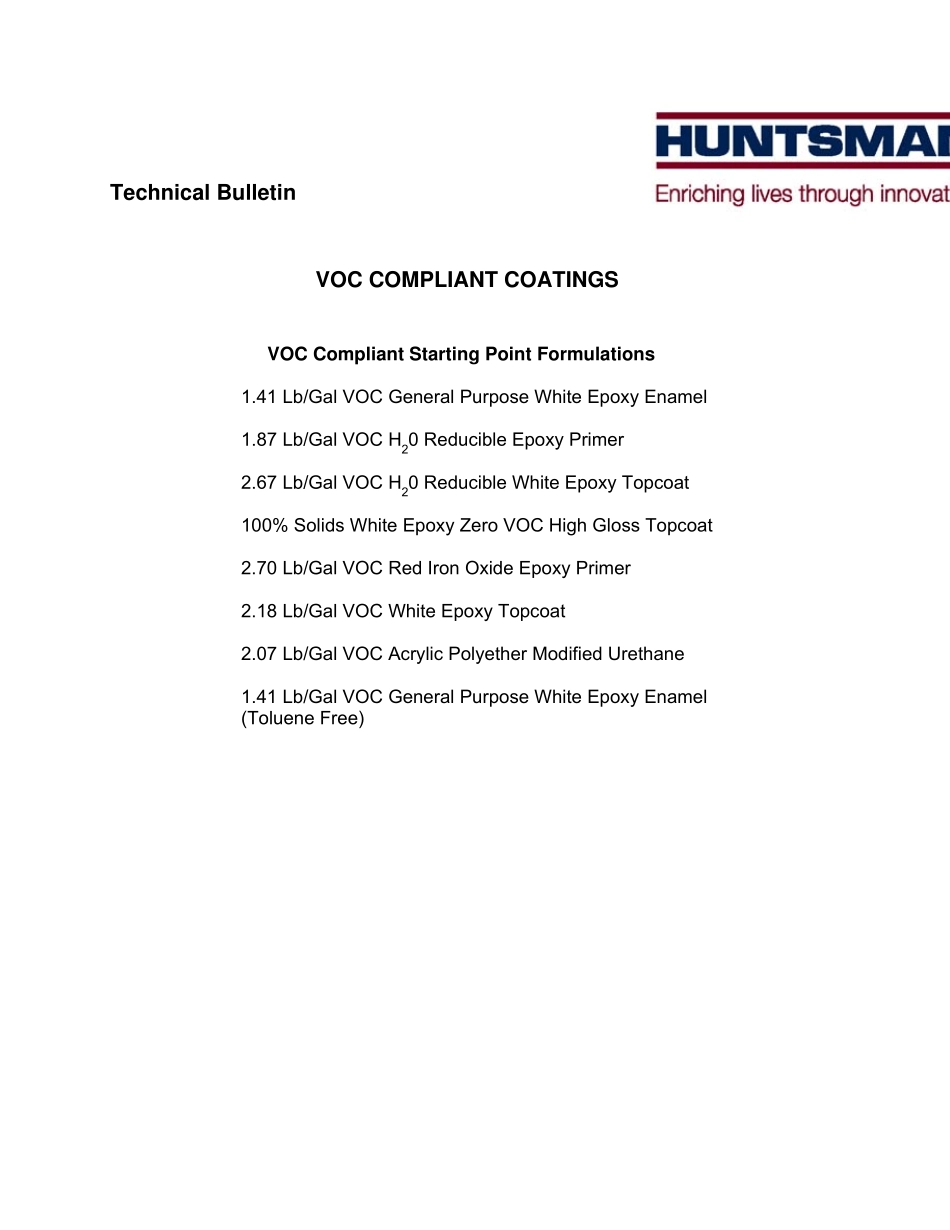

Technical Bu lletin VOC COMPLIANT COATINGS VOC Compliant Starting Point Formu lations 1.41 Lb/Gal VOC General Purpose White Epoxy Enamel 1.87 Lb/Gal VOC H20 Reducible Epoxy Primer 2.67 Lb/Gal VOC H20 Reducible White Epoxy Topcoat 100% Solids White Epoxy Zero VOC High Gloss Topcoat 2.70 Lb/Gal VOC Red Iron Oxide Epoxy Primer 2.18 Lb/Gal VOC White Epoxy Topcoat 2.07 Lb/Gal VOC Acrylic Polyether Modified Urethane 1.41 Lb/Gal VOC General Purpose White Epoxy Enamel (Toluene Free) 2 1.41 LB/GAL VOC GENERAL PURPOSE WHITE EPOXY ENAMEL Part A Lbs High Purity Bis A Epoxy Resin (4,000-6,000 cP, EEW = 175) 259.0 Bisphenol F Liquid Epoxy Resin (3,000-4,500 cP, EEW = 171.5) 65.0 RD-2 Reactive Modifier1 36.1 Ethanol 41.2 Bentone® 272 22.2 Premix 5 Minutes Methanol/Antiterra® U3 95:5 (pbw) 3.7 Premix 5 Minutes GESR 882M4 9.0 TiPure® R-7025 150.0 Spar White® W-10-HB6 162.0 Microwhite® #257 189.9 Toluene 6.67 944.77 Grind above to a Hegman 3-4 on a Cowles Part B Lbs Liquid Polyamide (8,000-12,000 cP, AHEW = 125) 92.0 N-Butyl Alcohol 75.51 Toluene 8.84 JEFFAMINE® D-230 amine8 68.19 244.54 1Ciba Geigy 2Rheox 3Byk Chemie 4G.E. Silicones 5E.I. DuPont de Nemours & Co. 6Mountain Minerals Co. Ltd. 7ECC America, Inc. 8Huntsman Corporation 3 1.41 LB/GAL VOC GENERAL PURPOSE WHITE EPOXY ENAMEL Coating Properties Mixed Viscosity, 24°C 72-73 KU Application – Sprayable with HVLP Gun Yes Pot Life > 1 hr Appearance No blush Gloss @ 60° Geometry 63 degrees Crosshatch @ 7 Day Cure 100% pass VOC 1.41 lb/gal PVC 32.74% Weight % Solids (theoretical) 88.36% Dry Time (4.5 DFT) Set to Touch 4 hrs Surface Dry 9 hrs Through Dry 17 hrs Gardner Impact < 10 rev/20 direct One Inch Mandrel @ 7 Day Cure No crack Pencil Hard...
