物体维尺寸测量试验报告

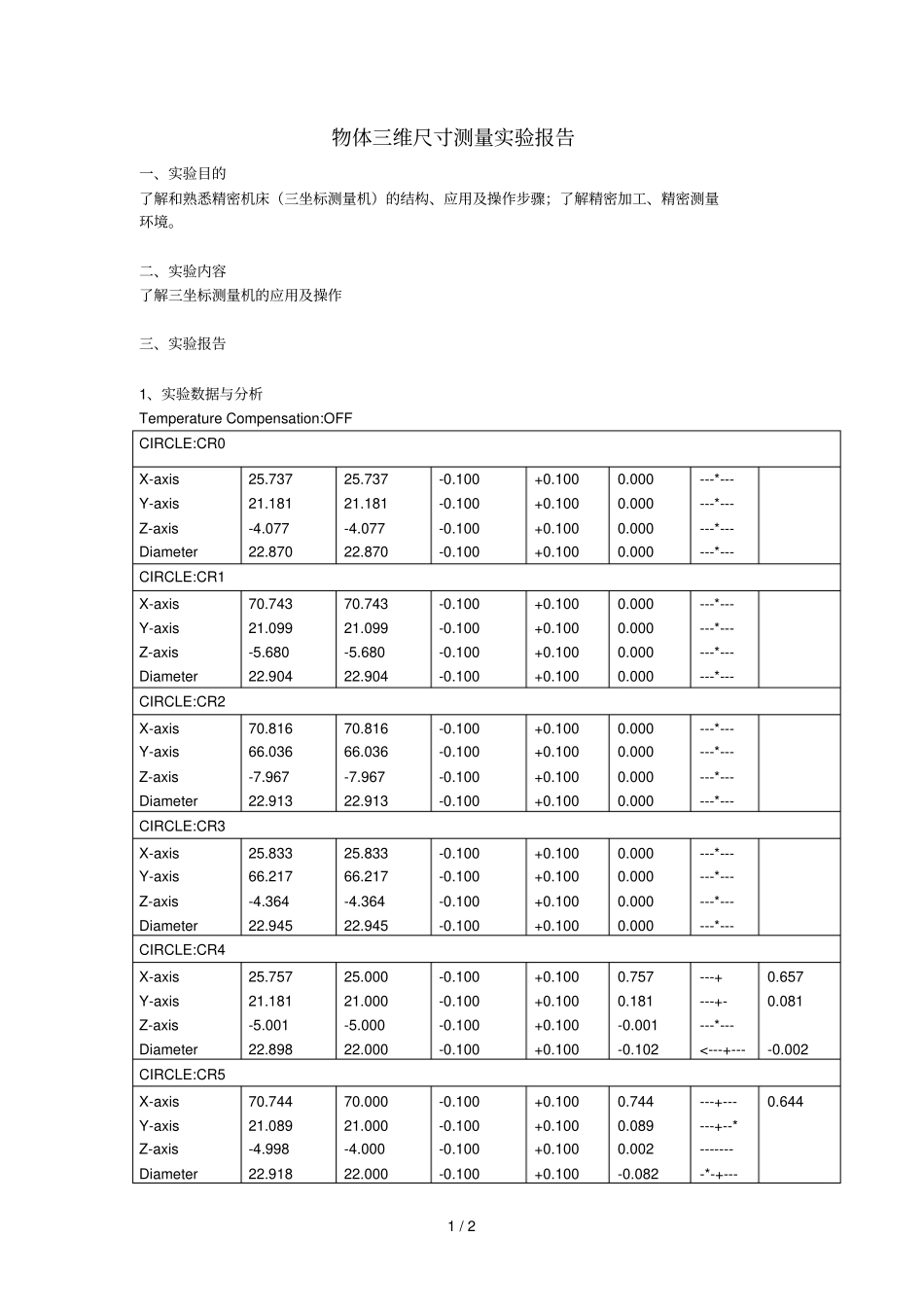

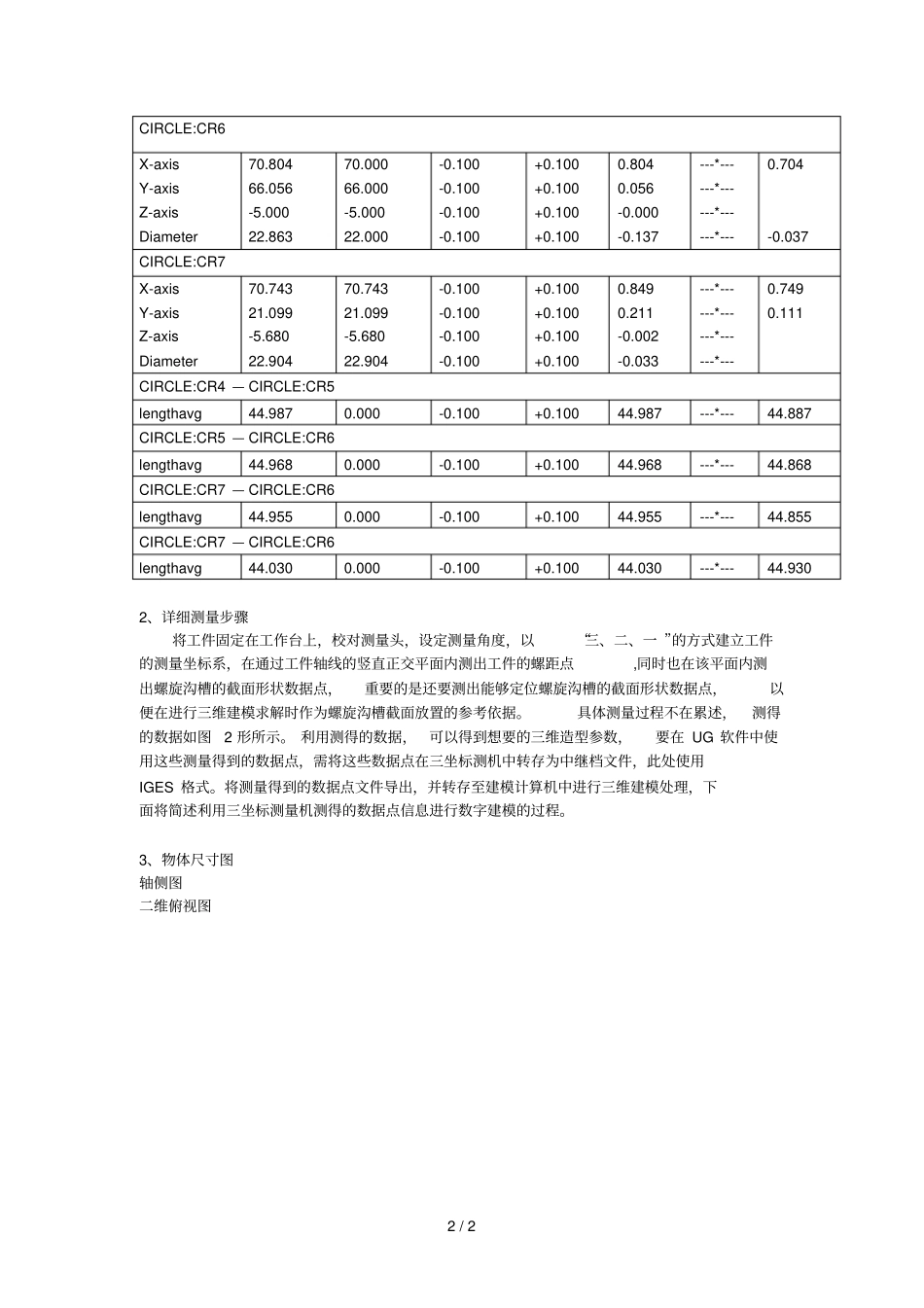

1 / 2 物体三维尺寸测量实验报告一、实验目的了解和熟悉精密机床（三坐标测量机）的结构、应用及操作步骤；了解精密加工、精密测量环境。二、实验内容了解三坐标测量机的应用及操作三、实验报告1、实验数据与分析Temperature Compensation:OFF CIRCLE:CR0 X-axis Y-axis Z-axis Diameter 25.737 21.181 -4.077 22.870 25.737 21.181 -4.077 22.870 -0.100 -0.100 -0.100 -0.100 +0.100 +0.100 +0.100 +0.100 0.000 0.000 0.000 0.000 ---*--- ---*--- ---*--- ---*--- CIRCLE:CR1 X-axis Y-axis Z-axis Diameter 70.743 21.099 -5.680 22.904 70.743 21.099 -5.680 22.904 -0.100 -0.100 -0.100 -0.100 +0.100 +0.100 +0.100 +0.100 0.000 0.000 0.000 0.000 ---*--- ---*--- ---*--- ---*--- CIRCLE:CR2 X-axis Y-axis Z-axis Diameter 70.816 66.036 -7.967 22.913 70.816 66.036 -7.967 22.913 -0.100 -0.100 -0.100 -0.100 +0.100 +0.100 +0.100 +0.100 0.000 0.000 0.000 0.000 ---*--- ---*--- ---*--- ---*--- CIRCLE:CR3 X-axis Y-axis Z-axis Diameter 25.833 66.217 -4.364 22.945 25.833 66.217 -4.364 22.945 -0.100 -0.100 -0.100 -0.100 +0.100 +0.100 +0.100 +0.100 0.000 0.000 0.000 0.000 ---*--- ---*--- ---*--- ---*--- CIRCLE:CR4 X-axis Y-axis Z-axis Diameter 25.757 21.181 -5.001 22.898 25.000 21.000 -5.000 22.000 -0.100 -0.100 -0.100 -0.100 +0.100 +0.100 +0.100 +0.100 0.757 0.181 -0.001 -0.102 ---+---+----*--- <---+--- 0.657 0.081 -0.002 CIRCLE:CR5 X-axis Y-axis Z-axis Diameter 70.744 21.089 -4.998 22.918 70.000 21.000 -4.000 22.000 -0.100 -0.100 -0.100 -0.100 +0.100 +0.100 +0.100 +0.100 0.744 0.089 0.002 -0.082 ---+--- ---+--* ------- -*-+--- 0.644 2 / 2 CIRCLE:CR6 X-axis Y-axis Z-axis Diameter 70.804 66.056 -5.000 22.863 70.000 66.000 -5.000 22.000 -0.100 -0.100 -0.100 -0.100 +0.100 +0.100 +0.100 +0.100 0.804 0.056 -0.000 -0.137 ---*--- ---*--- ---*--- ---*--- 0.704 -0.037 CIRCLE:CR7 X-axis Y-axis Z-axis Diameter 70.7...
