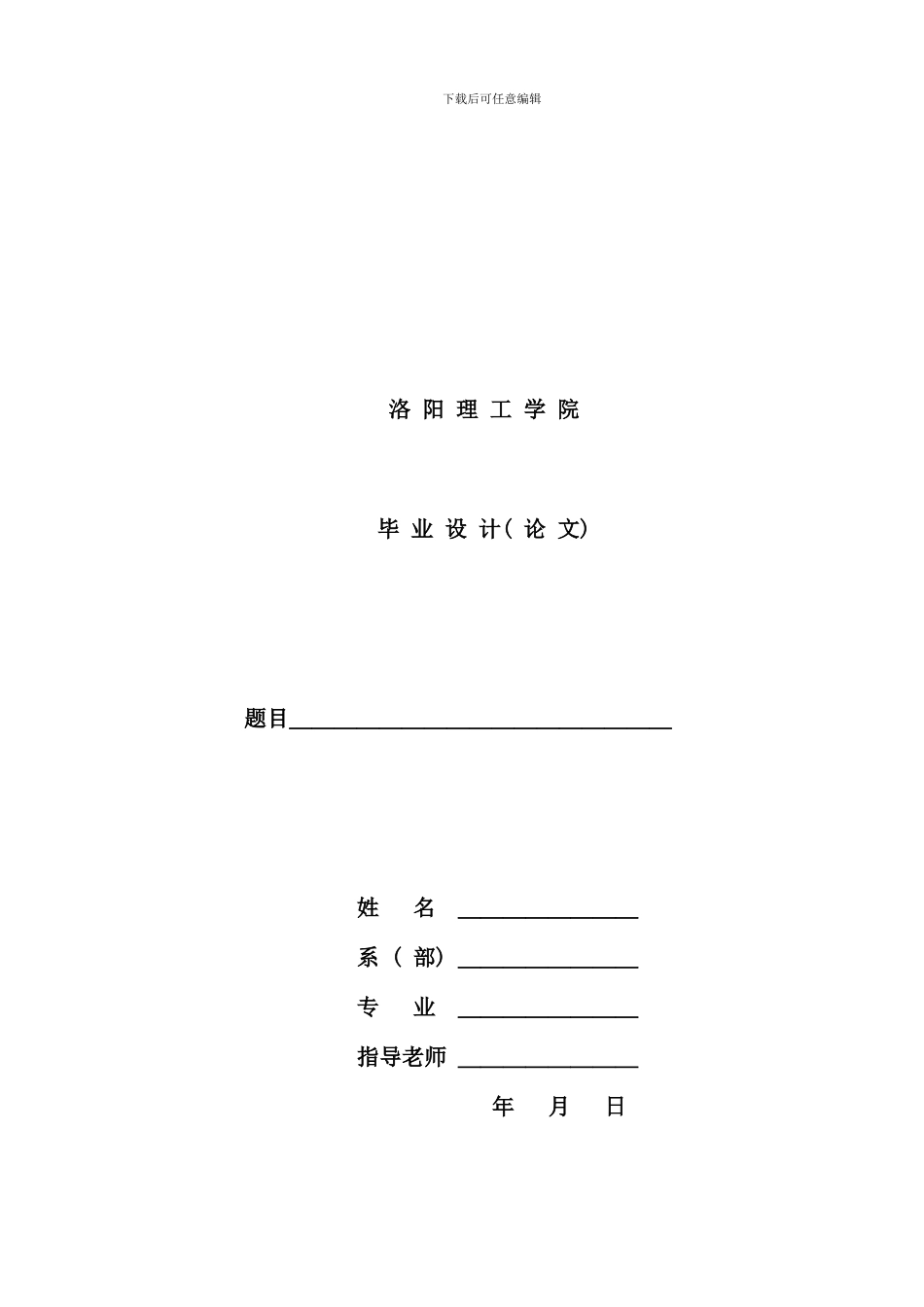

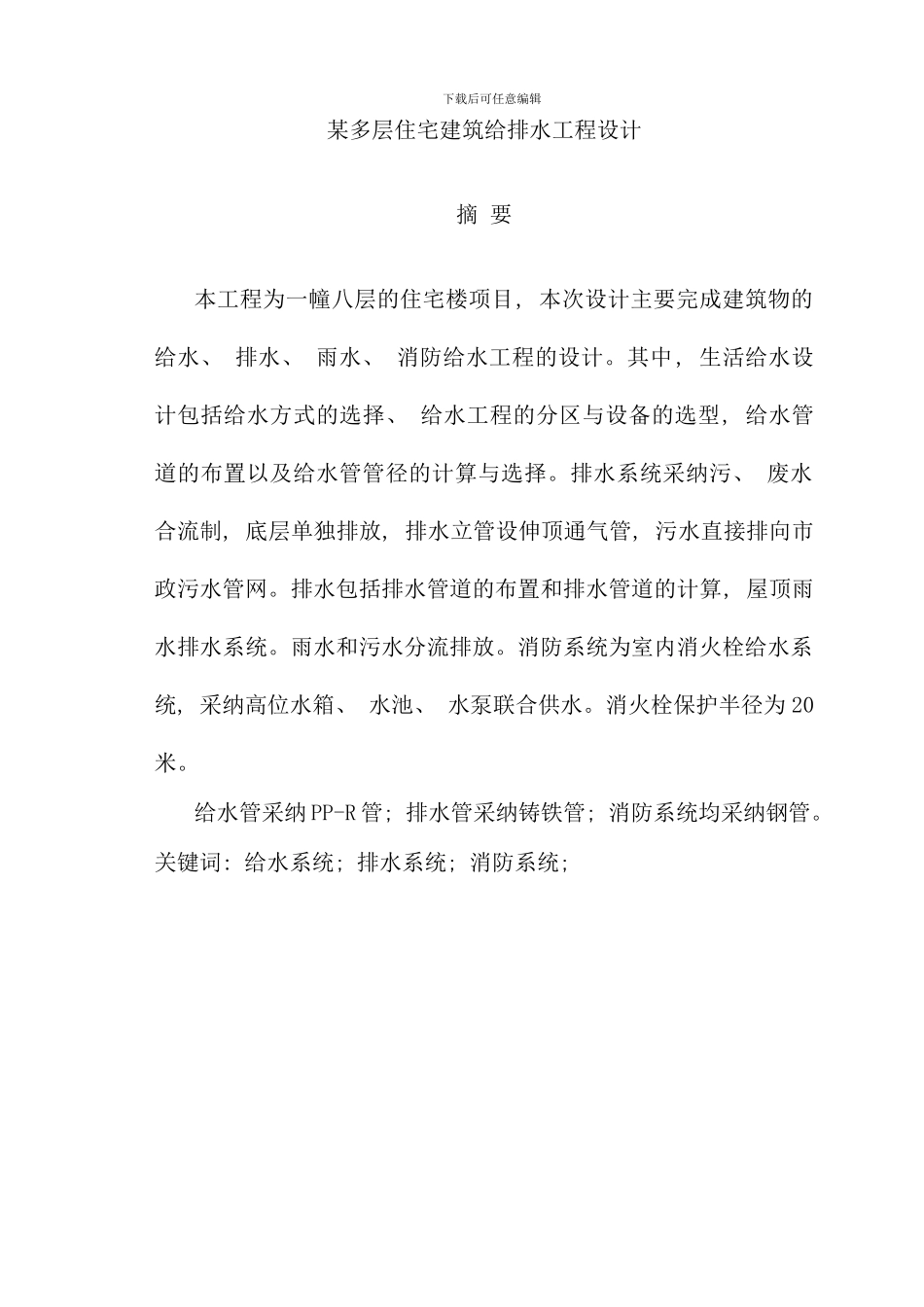

下载后可任意编辑洛 阳 理 工 学 院毕 业 设 计( 论 文) 题目＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿姓 名 ＿＿＿＿＿＿＿＿系 ( 部) ＿＿＿＿＿＿＿＿专 业 ＿＿＿＿＿＿＿＿指导老师 ＿＿＿＿＿＿＿＿年 月 日下载后可任意编辑某多层住宅建筑给排水工程设计摘 要本工程为一幢八层的住宅楼项目, 本次设计主要完成建筑物的给水、 排水、 雨水、 消防给水工程的设计。其中, 生活给水设计包括给水方式的选择、 给水工程的分区与设备的选型, 给水管道的布置以及给水管管径的计算与选择。排水系统采纳污、 废水合流制, 底层单独排放, 排水立管设伸顶通气管, 污水直接排向市政污水管网。排水包括排水管道的布置和排水管道的计算, 屋顶雨水排水系统。雨水和污水分流排放。消防系统为室内消火栓给水系统, 采纳高位水箱、 水池、 水泵联合供水。消火栓保护半径为 20米。给水管采纳 PP-R 管; 排水管采纳铸铁管; 消防系统均采纳钢管。关键词: 给水系统; 排水系统; 消防系统; 下载后可任意编辑Multi-Storey Residential Building To the Design Of Drainage WorksABSTRACTThis project is a eight residential building project, the design of the main building water supply, drainage, complete water, fire water supply engineering design, the design of living water supply, including the selection of water supply way, piping layout and pipe diameter calculation and selection. Drainage system using sewage, waste water sewage system, the separate discharge, vertical draining pipe set stack vent, sewage directly discharged into the municipal sewage pipe network. Drain 下载后可任意编辑includes a drain piping layout and drainage pipes, roof rainwater drainage system. Rainwater and sewage diversion discharge. Fire fighting system for indoor fire hydrant water supply system, the water supply. Fire protection radius of 20meters.Water supply pipe with PP-R pipe; pipe using iron pipe; steel tubes are used for fire fighting system.KEY WORDS: water supply system; drainage system; fire control sy...
