葫芦,手动类起重机说明书资料

葫芦,手动类起重机说明书资料_第1页
1/31
葫芦,手动类起重机说明书资料_第2页
2/31
葫芦,手动类起重机说明书资料_第3页
3/31

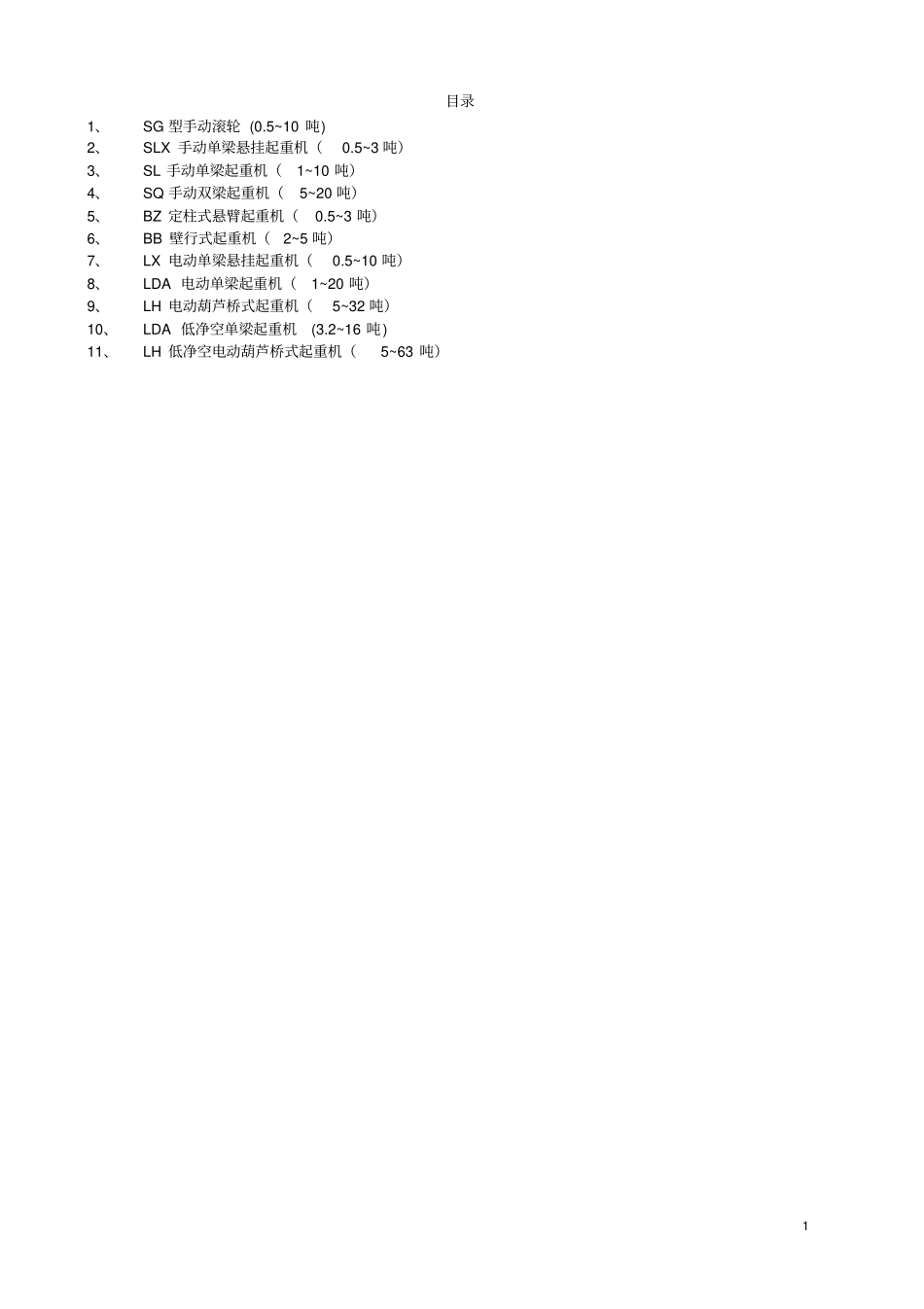

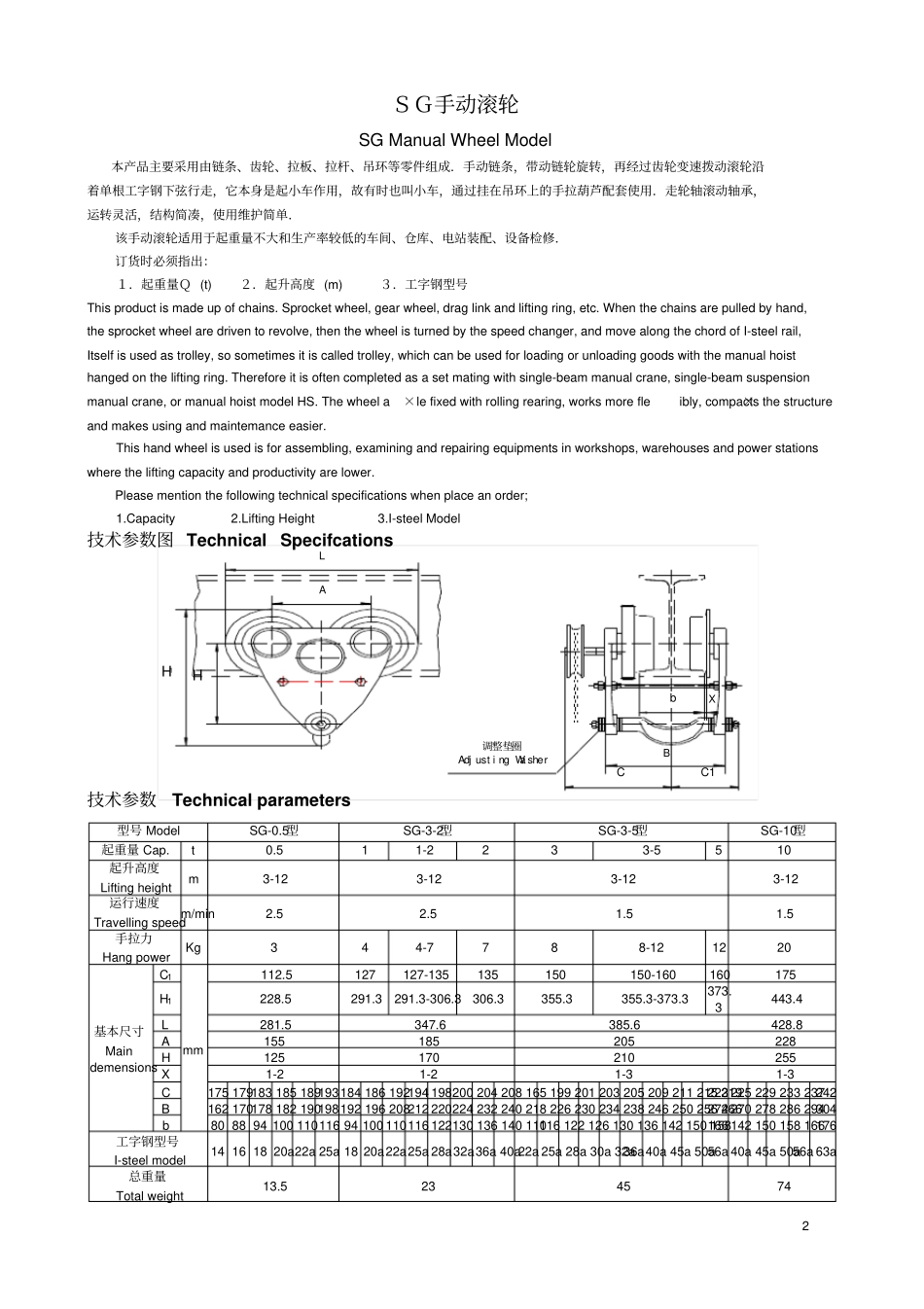

1 目录1、SG 型手动滚轮 (0.5~10 吨) 2、SLX 手动单梁悬挂起重机(0.5~3 吨)3、SL 手动单梁起重机(1~10 吨)4、SQ 手动双梁起重机(5~20 吨)5、BZ 定柱式悬臂起重机(0.5~3 吨)6、BB 壁行式起重机(2~5 吨)7、LX 电动单梁悬挂起重机(0.5~10 吨)8、LDA 电动单梁起重机(1~20 吨)9、LH 电动葫芦桥式起重机(5~32 吨)10、LDA 低净空单梁起重机(3.2~16 吨) 11、LH 低净空电动葫芦桥式起重机(5~63 吨)2 bCC1LAHB调整垫圈Adj ust i ng Wa sherH1XSG手动滚轮SG Manual Wheel Model 本产品主要采用由链条、齿轮、拉板、拉杆、吊环等零件组成.手动链条,带动链轮旋转,再经过齿轮变速拨动滚轮沿着单根工字钢下弦行走,它本身是起小车作用,故有时也叫小车,通过挂在吊环上的手拉葫芦配套使用.走轮轴滚动轴承,运转灵活,结构简凑,使用维护简单.该手动滚轮适用于起重量不大和生产率较低的车间、仓库、电站装配、设备检修.订货时必须指出:1.起重量Q (t) 2.起升高度 (m) 3.工字钢型号This product is made up of chains. Sprocket wheel, gear wheel, drag link and lifting ring, etc. When the chains are pulled by hand, the sprocket wheel are driven to revolve, then the wheel is turned by the speed changer, and move along the chord of I-steel rail, Itself is used as trolley, so sometimes it is called trolley, which can be used for loading or unloading goods with the manual hoist hanged on the lifting ring. Therefore it is often completed as a set mating with single-beam manual crane, single-beam suspension manual crane, or manual hoist model HS. The wheel a×le fixed with rolling rearing, works more fle×ibly, compacts the structure and makes using and maintemance easier. This hand wheel is used is for assembling, examining and repairing equipments in workshops, warehouses and power stations where the lifting capacity and productivity are lower. Please mention the following technical specifications when place an order; 1.Capacity 2.Lifting...
