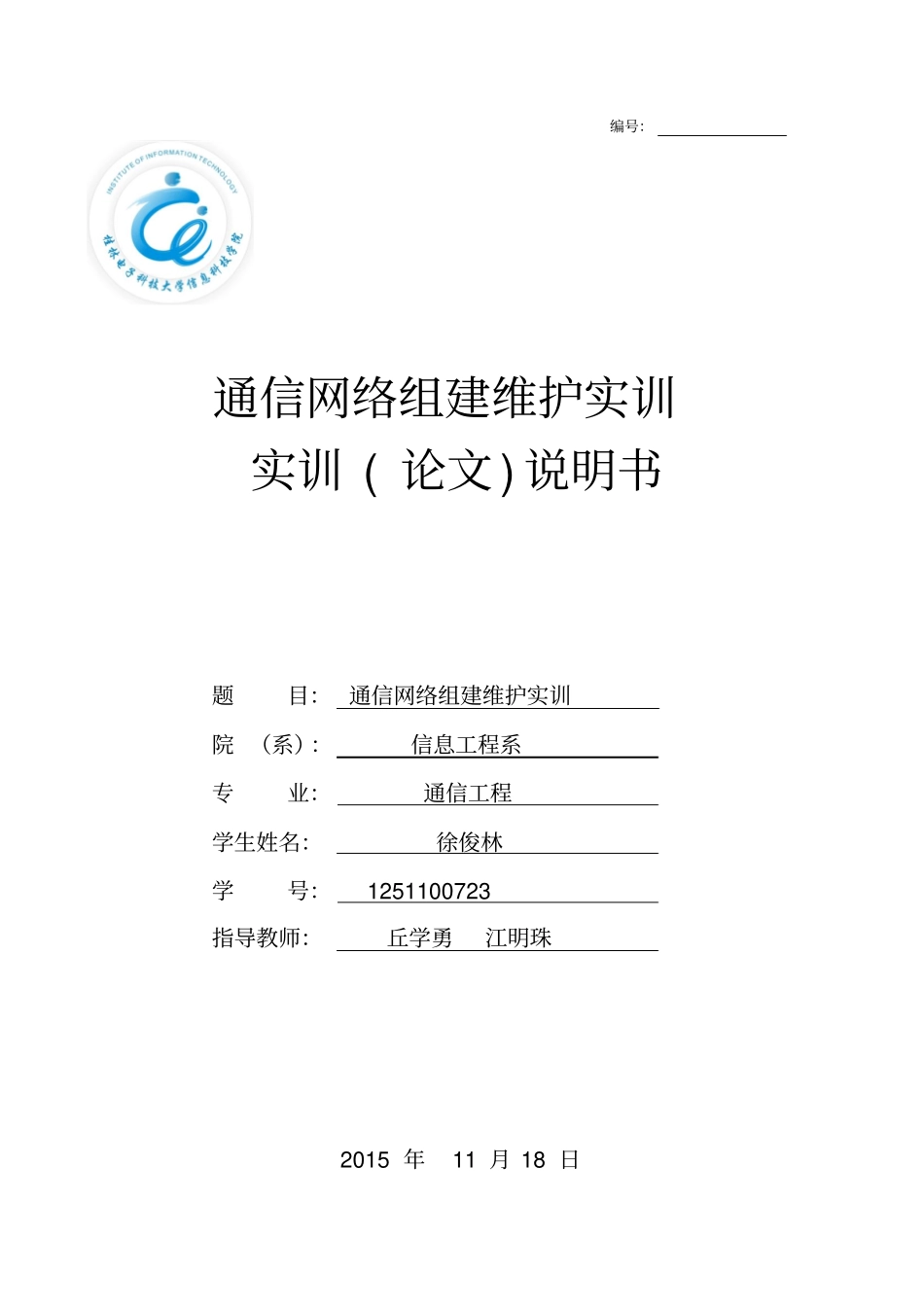

编号：通信网络组建维护实训实训 ( 论文) 说明书题目： 通信网络组建维护实训院 （系）：信息工程系专业：通信工程学生姓名：徐俊林学号： 1251100723 指导教师：丘学勇江明珠2015 年11 月 18 日通信网络组建维护实训摘要通信网络系统实验室是桂林电子科技大学信息科技学院重点投资实验室项目，该实验室有多产品通信实验平台，主要用于本科生教学、教师与研究生在通信技术方面的研究和开发。整个实验室包括了程控交换平台、光传输平台、宽带接入平台三大系统，从而构建了整个大通信网的缩影。而本次实训包括了网络组建与维护管理两个部分。在网络组建中包括了2M业务配置和 ET1。涉及到了小交群虚拟网。号码变换与报警电话，还有七号信令TUP中继信令。通信网络维护管理实训针对的是在通信网络施工和使用中可能会出现的线路中断的维护与管理，主要包括两个方面的内容：探测故障点与熔接光纤两个内容。其中需要用的第一个设备名为 OTDR（光时域反射仪），我们使用的型号为AV6416；第二个设备名为光纤熔接机，我们使用的型号为AV6471A。关键词 : 通信网络，程控交换，光传输，宽带接入，光纤熔接Abstract The communication network system laboratory is the Key Laboratory of information science and technology of Guilin University of Electronic Technology. It is mainly used in the research and development of undergraduate teaching, teachers and graduate students in communication technology. The whole lab includes three parts: seven parts: network construction and maintenance management. The training includes two parts: 2M service configuration and ET1.. Signaling relay. Communication network maintenance management training for the interrupt that may occur in the communication network construction and use of line maintenance and management, mainly includes two aspects of content: the contents of two of the fiber grounding fault detection point and melting, the need to use the first device called OTDR (light time domain reflectometry), we use the model for AV6416; a second device called optical fiber fusion spli...
