CAD制图标准(中英文)

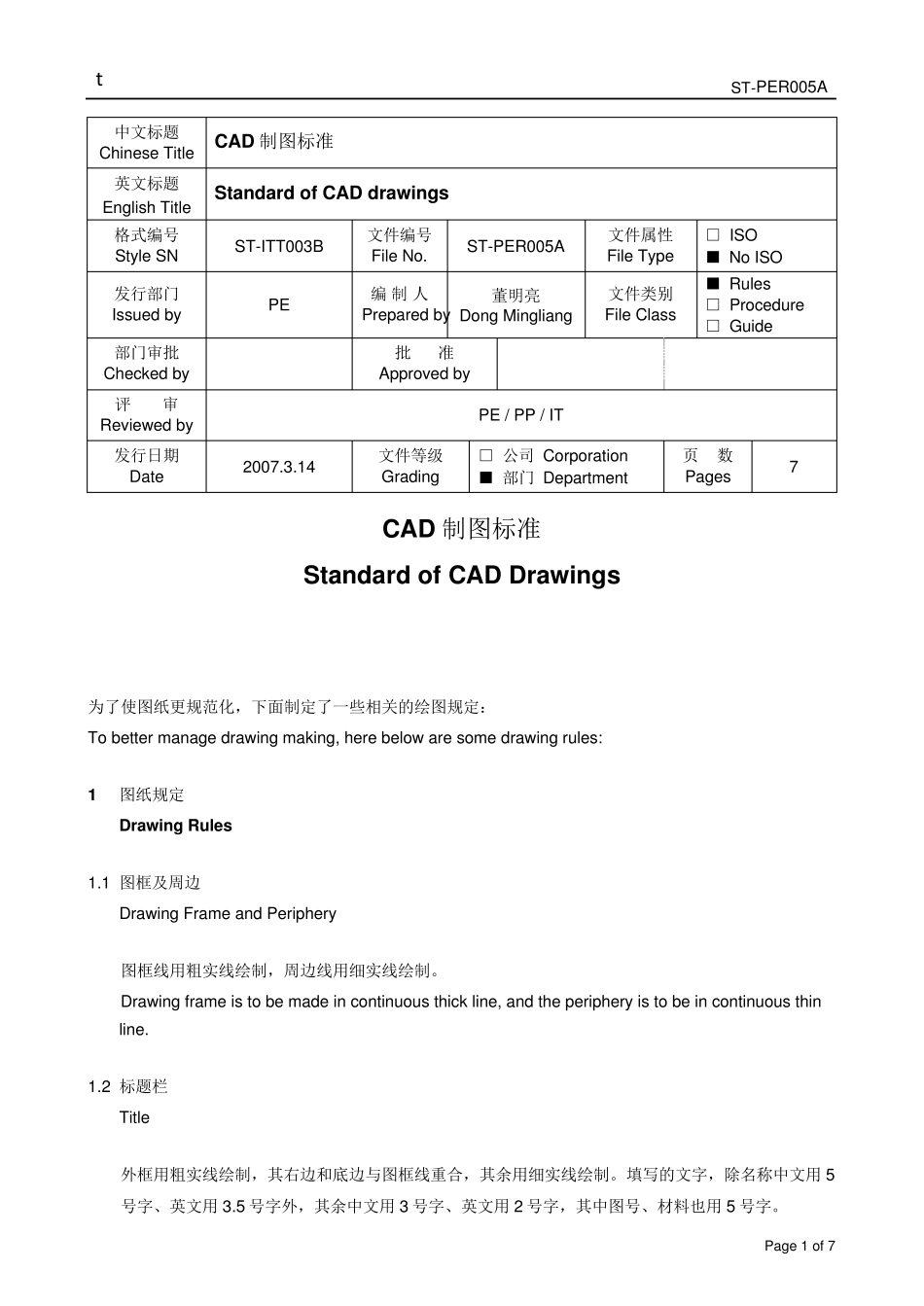

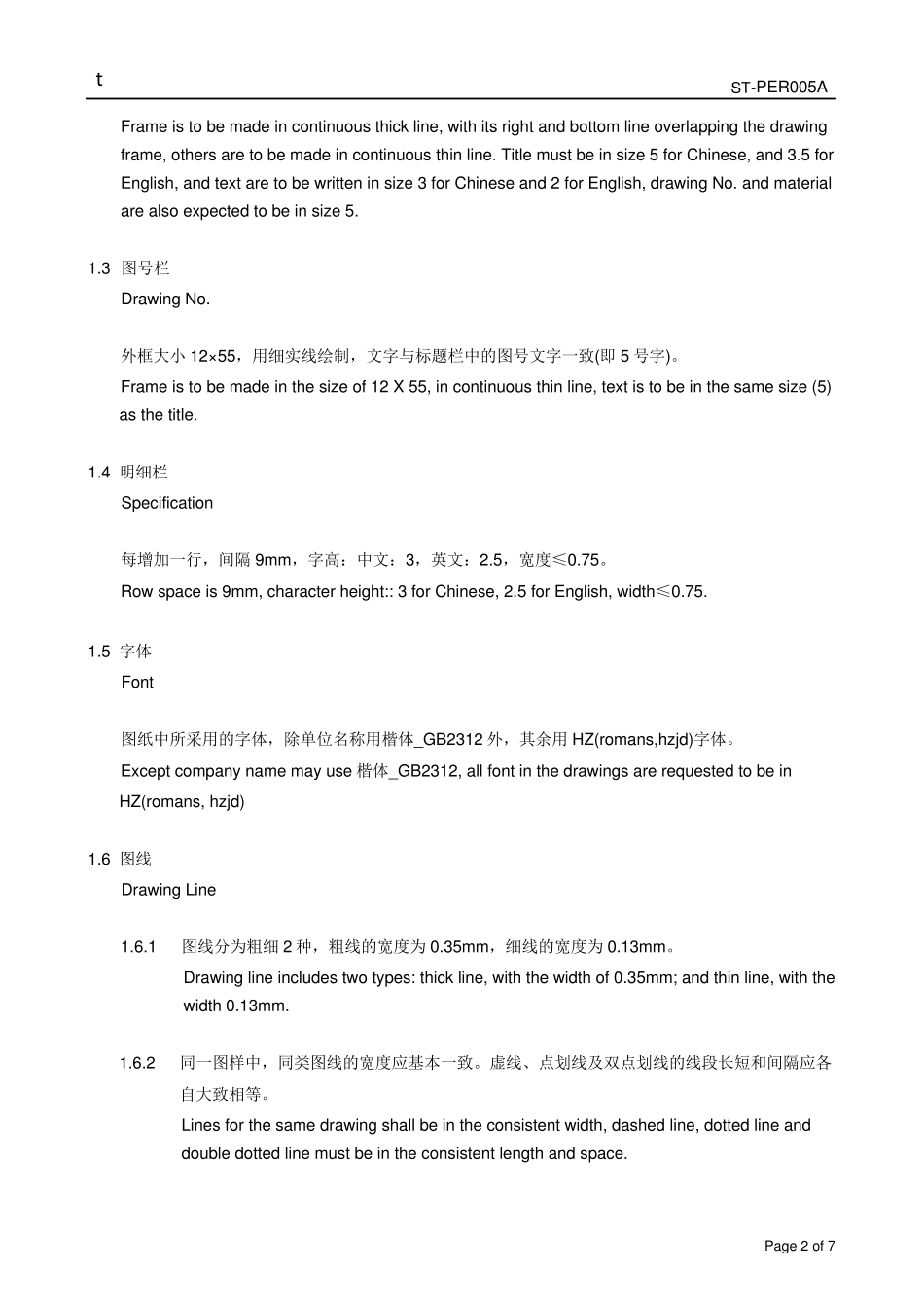

t ST-PER005A Page 1 of 7 中文标题 CAD 制图标准 Chinese Title 英文标题 Standard of CAD draw ings English Title 格式编号 ST-ITT003B 文件编号 ST-PER005A 文件属性 □ ISO Style SN File No. File Type ■ No ISO 发行部门 PE 编 制 人 董明亮 Dong Mingliang 文件类别 ■ Rules □ Procedure □ Guide Issued by Prepared by File Class 部门审批 批 准 Checked by Approved by 评 审 PE / PP / IT Reviewed by 发行日期 2007.3.14 文件等级 □ 公司 Corporation 页 数 7 Date Grading ■ 部门 Department Pages CAD 制图标准 Standard of CAD Draw ings 为了使图纸更规范化，下面制定了一些相关的绘图规定： To better manage drawing making, here below are some drawing rules: 1 图纸规定 Draw ing Rules 1.1 图框及周边 Drawing Frame and Periphery 图框线用粗实线绘制，周边线用细实线绘制。 Drawing frame is to be made in continuous thick line, and the periphery is to be in continuous thin line. 1.2 标题栏 Title 外框用粗实线绘制，其右边和底边与图框线重合，其余用细实线绘制。填写的文字，除名称中文用 5号字、英文用 3.5 号字外，其余中文用 3 号字、英文用 2 号字，其中图号、材料也用 5 号字。 t ST-PER005A Page 2 of 7 Frame is to be made in continuous thick line, with its right and bottom line overlapping the drawing frame, others are to be made in continuous thin line. Title must be in size 5 for Chinese, and 3.5 for English, and text are to be written in size 3 for Chinese and 2 for English, drawing No. and material are also expected to be in size 5. 1.3 图号栏 Drawing No. 外框大小12×55，用细实线绘制，文字与标题栏中的图号文字一致(即5 号字)。 Frame is to be made in the size of 12 X 55, in continuous thin line, text is to be in the same size (5) as the title. 1.4 明细栏 Specification 每增加一行，间隔9mm，字高：中文：3，英文：2.5，宽度≤0.75。 Row space is 9mm, c...
