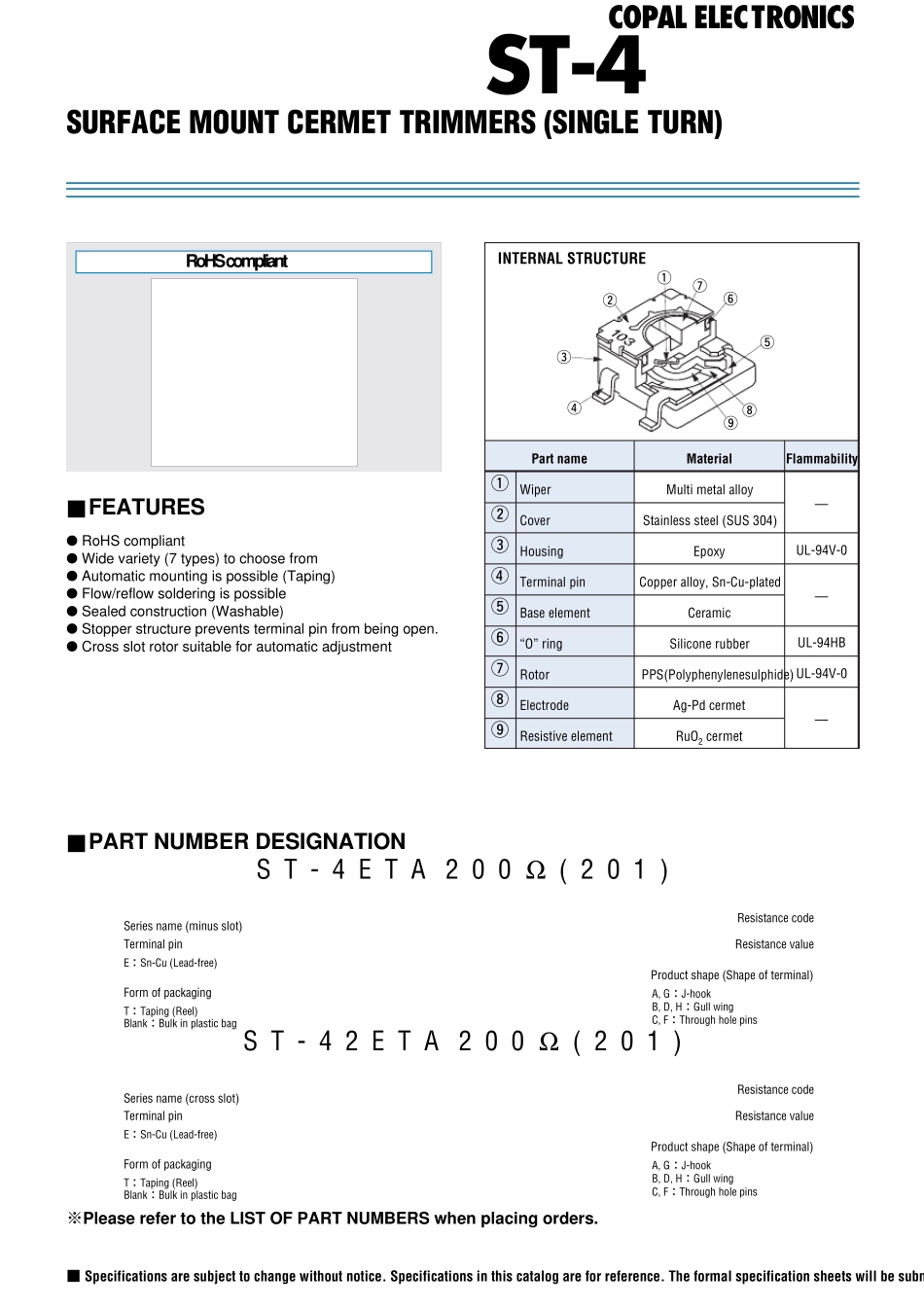

 Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.COPAL ELECTRONICSSURFACE MOUNT CERMET TRIMMERS (SINGLE TURN)● RoHS compliant● Wide variety (7 types) to choose from● Automatic mounting is possible (Taping)● Flow/reflow soldering is possible● Sealed construction (Washable)● Stopper structure prevents terminal pin from being open.● Cross slot rotor suitable for automatic adjustmentFEATURESPart nameMaterialFlammability123456789WiperCoverHousingTerminal pinBase element“O” ringRotorElectrodeResistive elementMulti metal alloy—Stainless steel (SUS 304)EpoxyUL-94V-0Copper alloy, Sn-Cu-plated—CeramicSilicone rubberUL-94HBPPS(Polyphenylenesulphide) UL-94V-0Ag-Pd cermet—RuO2 cermetINTERNAL STRUCTUREPART NUMBER DESIGNATIONPlease refer to the LIST OF PART NUMBERS w hen placing orders.S T - 4 E T A 2 0 0 Ω ( 2 0 1 )Series name (minus slot)Form of packagingTTaping (Reel)BlankBulk in plastic bagTerminal pinESn-Cu (Lead-free)Form of packagingTTaping (Reel)BlankBulk in plastic bagTerminal pinESn-Cu (Lead-free)Resistance codeResistance valueProduct shape (Shape of terminal)A, GJ-hookB, D, HGull wingC, FThrough hole pinsS T - 4 2 E T A 2 0 0 Ω ( 2 0 1 )Series name (cross slot)Resistance codeResistance valueProduct shape (Shape of terminal)A, GJ-hookB, D, HGull wingC, FThrough hole pinsST-4168439572RoHS compliant Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.COPAL ELECTRONICSNominal resistance rangeST-4SURFACE MOUNT TRIMMERSNot manufacturedThe above part numbers are all available with the r...
