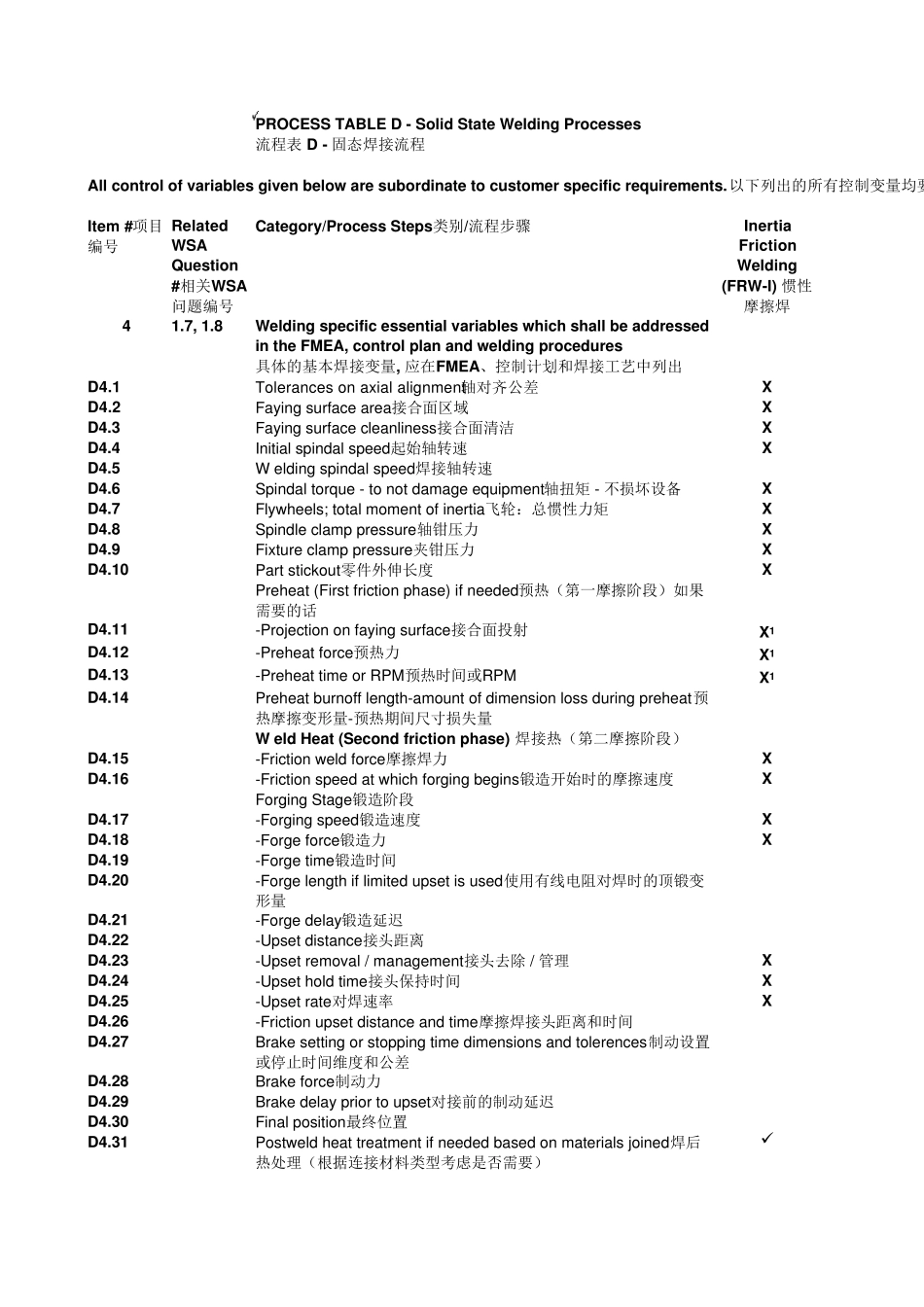

PROCESS TABLE D - Solid State Welding Processes流程表 D - 固态焊接流程Item #项目编号RelatedWSAQuestion#相关WSA问题编号Category/Process Steps类别/流程步骤InertiaFrictionWelding(FRW-I) 惯性摩擦焊41.7, 1.8Welding specific essential variables which shall be addressedin the FMEA, control plan and welding procedures具体的基本焊接变量, 应在FMEA、控制计划和焊接工艺中列出D4.1Tolerances on axial alignment轴对齐公差XD4.2Faying surface area接合面区域XD4.3Faying surface cleanliness接合面清洁XD4.4Initial spindal speed起始轴转速XD4.5W elding spindal speed焊接轴转速D4.6Spindal torque - to not damage equipment轴扭矩 - 不损坏设备XD4.7Flywheels; total moment of inertia飞轮：总惯性力矩XD4.8Spindle clamp pressure轴钳压力XD4.9Fixture clamp pressure夹钳压力XD4.10Part stickout零件外伸长度XPreheat (First friction phase) if needed预热（第一摩擦阶段）如果需要的话D4.11-Projection on faying surface接合面投射X1D4.12-Preheat force预热力X1D4.13-Preheat time or RPM预热时间或RPMX1D4.14Preheat burnoff length-amount of dimension loss during preheat预热摩擦变形量-预热期间尺寸损失量W eld Heat (Second friction phase) 焊接热（第二摩擦阶段）D4.15-Friction weld force摩擦焊力XD4.16-Friction speed at which forging begins锻造开始时的摩擦速度XForging Stage锻造阶段D4.17-Forging speed锻造速度XD4.18-Forge force锻造力XD4.19-Forge time锻造时间D4.20-Forge length if limited upset is used使用有线电阻对焊时的顶锻变形量D4.21-Forge delay锻造延迟D4.22-Upset distance接头距离D4.23-Upset removal / management接头去除 / 管理XD4.24-Upset hold time接头保持时间XD4.25-Upset rate对焊速率XD4.26-Friction upset distance and time摩擦焊接头距离和时间D4.27Brake setting or stopping time dimensions and tolerences制动设置或停止时间维度和公差D4.28Brake force制动力D4.29Brake delay prior to upset对接前的制动延迟D4.30Final position最终位置D4.31Postweld heat treatment if needed based on materials joined焊后热处...
