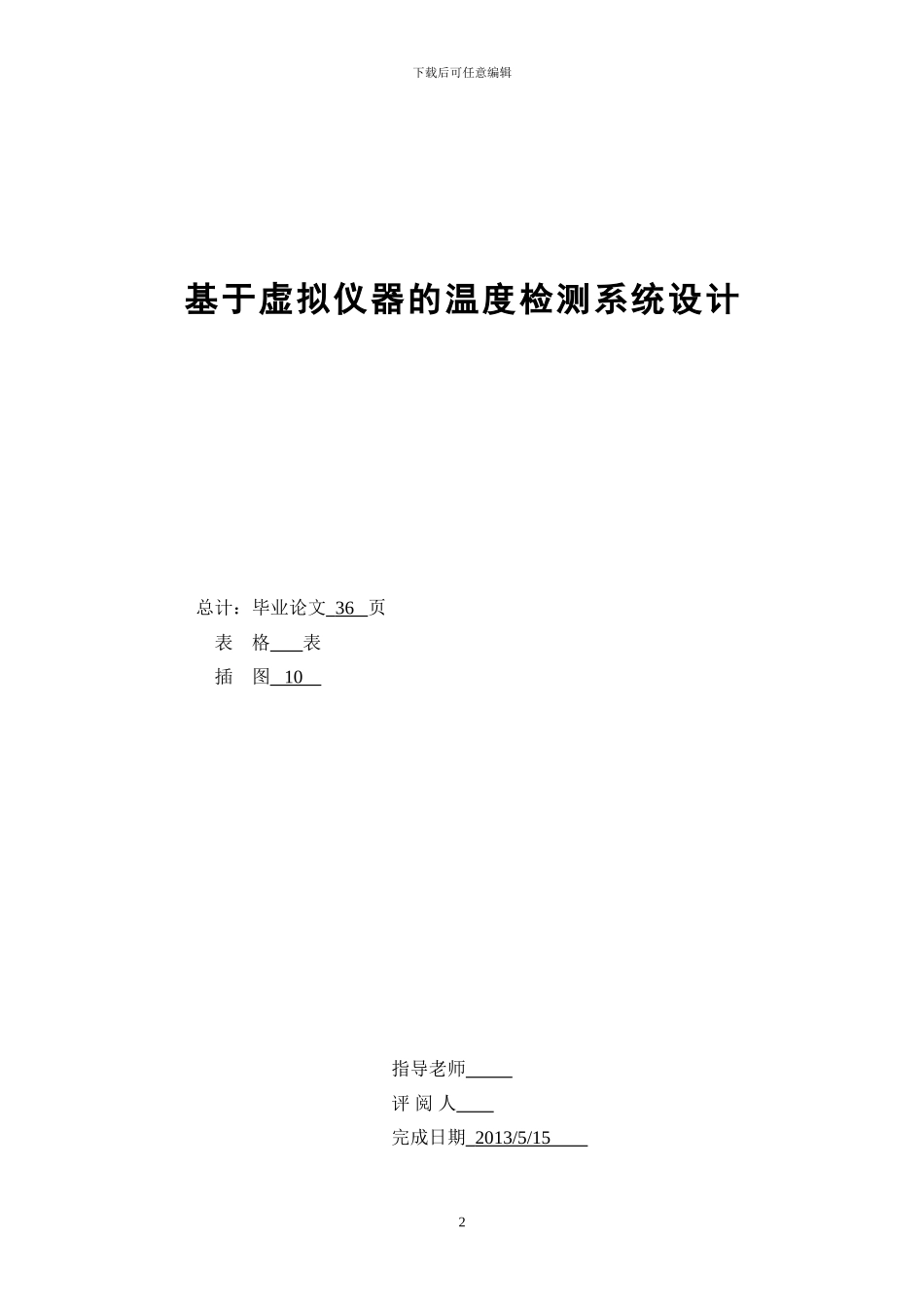

大连大学2024 届毕业论文(设计)题目名称: 基于虚拟仪器的温度测量系统 所 在 学 院 : 信息工程学院 专业(班级): 自动化 学 生 姓 名 : 指 导 老 师 : 评 阅 人 : 院 长 : DALIAN UNIVERSITY下载后可任意编辑基于虚拟仪器的温度检测系统设计总计:毕业论文 36 页 表 格 表 插 图 10 指导老师 评 阅 人 完成日期 2013/5/15 2下载后可任意编辑3下载后可任意编辑摘 要本文介绍了利用虚拟仪器开发平台 LabVIEW, 进行温度控制系统设计, 其中包括了该系统硬件和软件部分的设计。针对传统测温系统存在的若干问题,基于虚拟仪表技术,以 LabVIEW 为软件平台设计温度测量系统。将传感器测量到的数据通过数据采集卡采集到计算机,再利用虚拟仪器开发软件 LabVIEW 进行编程,有效地运用了 LabVIEW 虚拟仪器技术,将诸多重要步骤都在配备硬件的普通 PC 电脑上完成,使得整个测量的重点转向软件的设计,是虚拟仪器技术应用于温度测量领域的一个典型范例。 结果表明系统结构简单、界面良好、易于操作,测量准确、稳定可靠、温度控制精度高,系统交互性好,性价比高,可以满足工业测试的需要。关键词:温度测量; LabVIEW; 虚拟仪器;PC-DAQ; I下载后可任意编辑ABSTRACTThe paper introduced how to use the virtual instrument platform LabVIEW, designing the temperature control system , In view of traditional temperature measurement existence questions , it uses LabVIEW as software platform , the temperature measuring system based on virtual instrument technique is designed.It can realize the data acquisition of temperature as well as data transmission,analysis and display,with the development software of virtura instrumrents LabVIEW.The LabVIEW virtual instrument technology is eficiently used to complete many important processes in common PC computer which is integrated of hard wares.So it makes the key point of the measurement move to software design , and it is a typical example of applying virtual instrument technology into temperature measurement field . Experimental resul...
