HCPL0600(安华高)

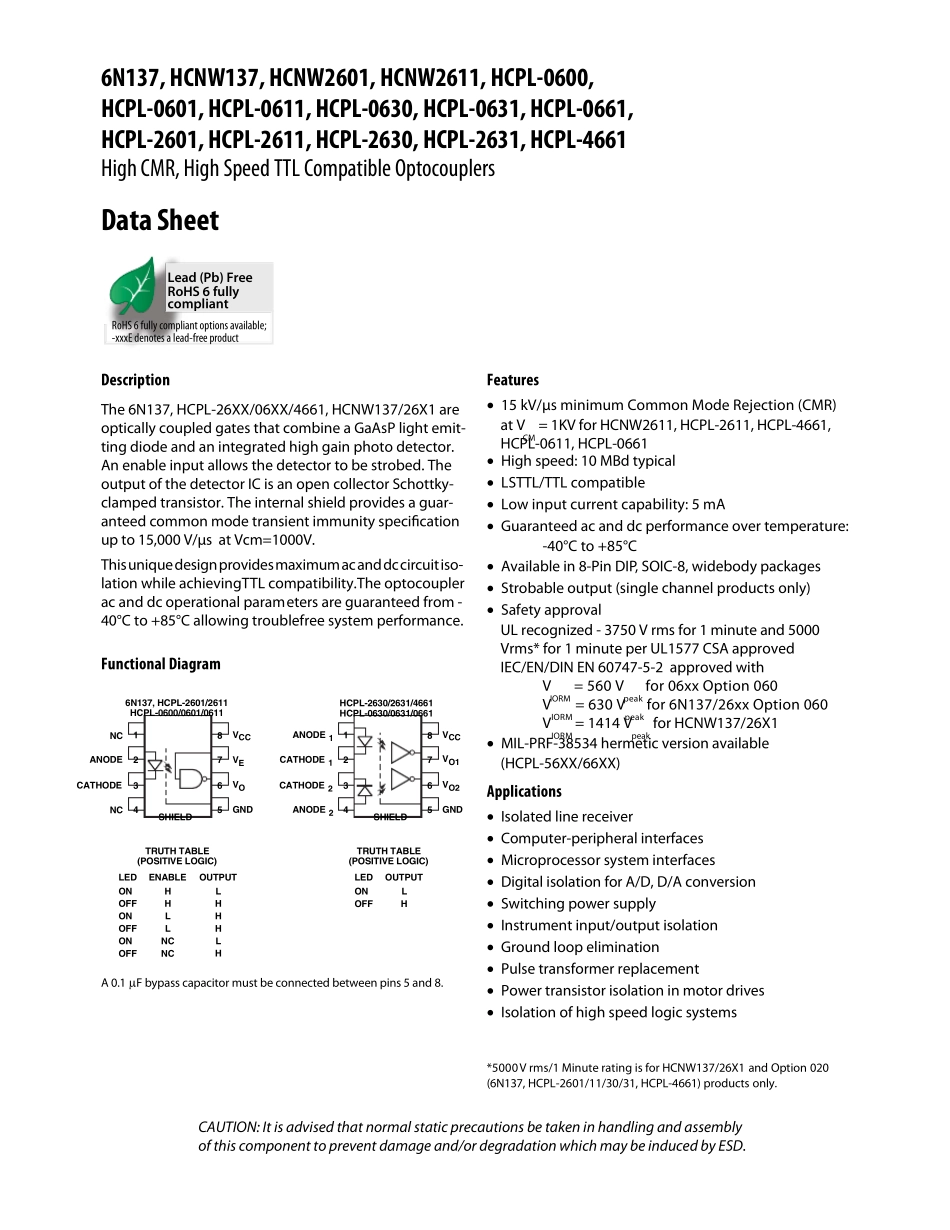

HCPL0600(安华高)_第1页
1/22

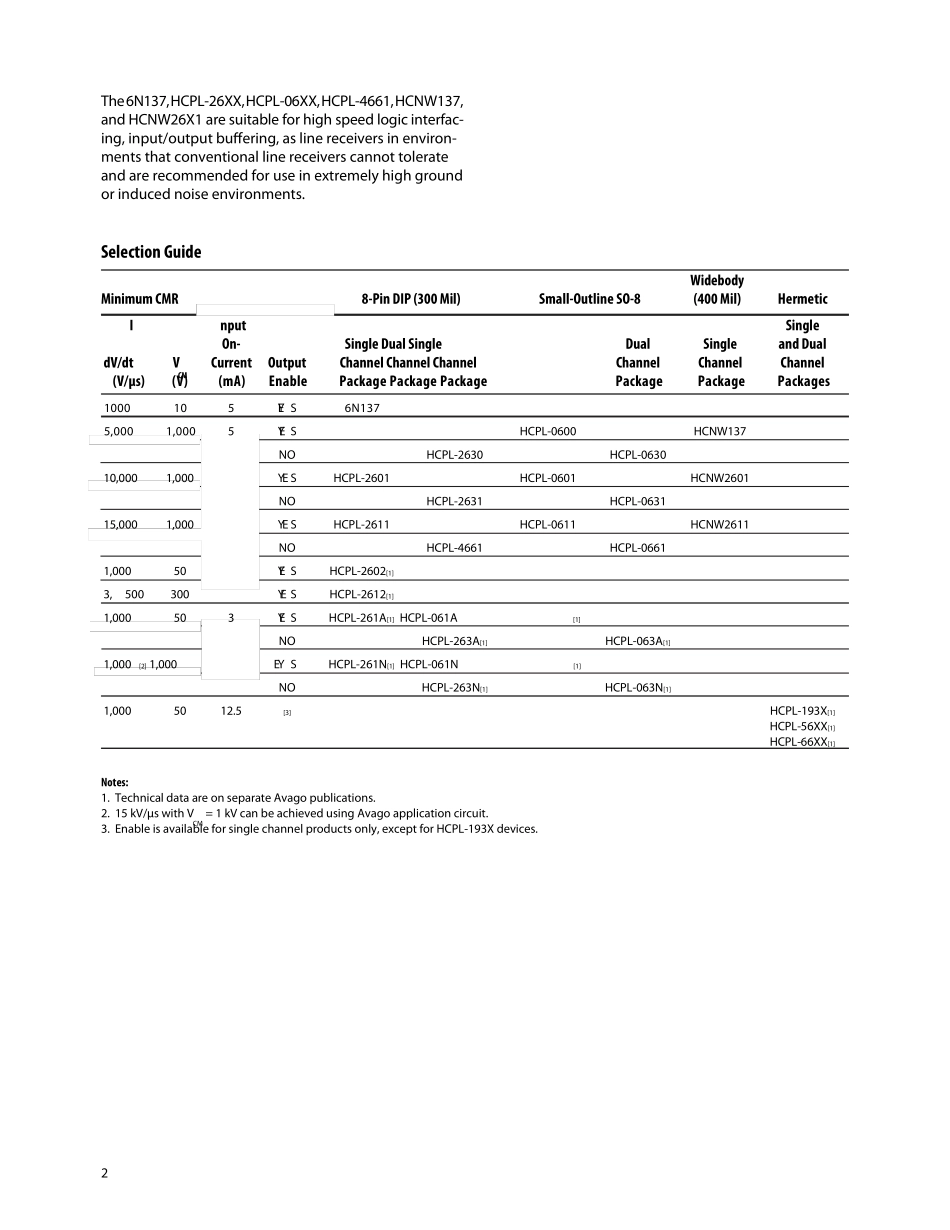

HCPL0600(安华高)_第2页
2/22

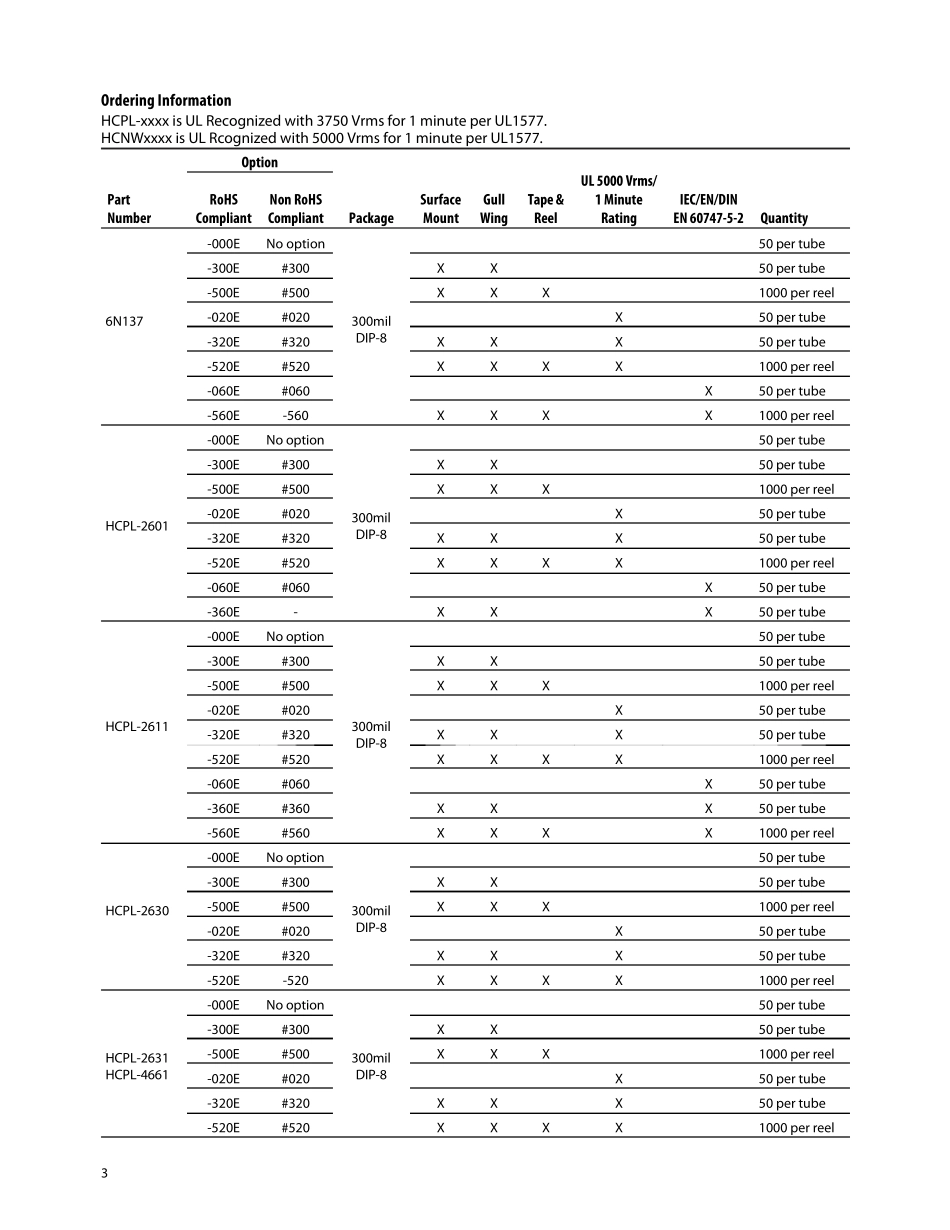

HCPL0600(安华高)_第3页
3/22
CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD.Featuresx 15 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1KV for HCNW2611, HCPL-2611, HCPL-4661, HCPL-0611, HCPL-0661x High speed: 10 MBd typicalx LSTTL/TTL compatiblex Low input current capability: 5 mAx Guaranteed ac and dc performance over temper ature: -40°C to +85°Cx Available in 8-Pin DIP, SOIC-8, widebody packagesx Strobable output (single channel products only)x Safety approvalUL recognized - 3750 V rms for 1 minute and 5000 Vrms* for 1 minute per UL1577 CSA approved IEC/EN/DIN EN 60747-5-2 approved with VIORM = 560 V peak for 06xx Option 060 VIORM = 630 V peak for 6N137/26xx Option 060 VIORM = 1414 V peak for HCNW137/26X1x MIL-PRF-38534 hermetic version available (HCPL-56XX/66XX)Applicationsx Isolated line receiverx Computer-peripheral interfacesx Microprocessor system interfacesx Digital isolation for A/D, D/A conversionx Switching power supplyx Instrument input/output isolationx Ground loop eliminationx Pulse transformer replacementx Power transistor isolation in motor drivesx Isolation of high speed logic systemsFu nctional Diagram*5000V rms/1 Minute rating is for HCNW137/26X1 and Option 020(6N137, HCPL-2601/11/30/31, HCPL-4661) products only.A 0.1 PF bypass capacitor must be connected between pins 5 and 8.12348765CATHODEANODEGNDVVCCO12348765ANODE 2CATHODE 2CATHODE 1ANODE 1GNDVVCCO2VEVO16N137, HCPL-2601/2611HCPL-0600/0601/0611HCPL-2630/2631/4661HCPL-0630/0631/0661NCNCLEDONOFFONOFFONOFFENABLEHHLLNCNCOUTPUTLHHHLHTRUTH TABLE(POSITIVE LOGIC)LEDONOFFOUTPUTLHTRUTH TABLE(POSITIVE LOGIC)SHIELDSHIELD6N137, HCNW137, HCNW2601, HCNW2611, ...
