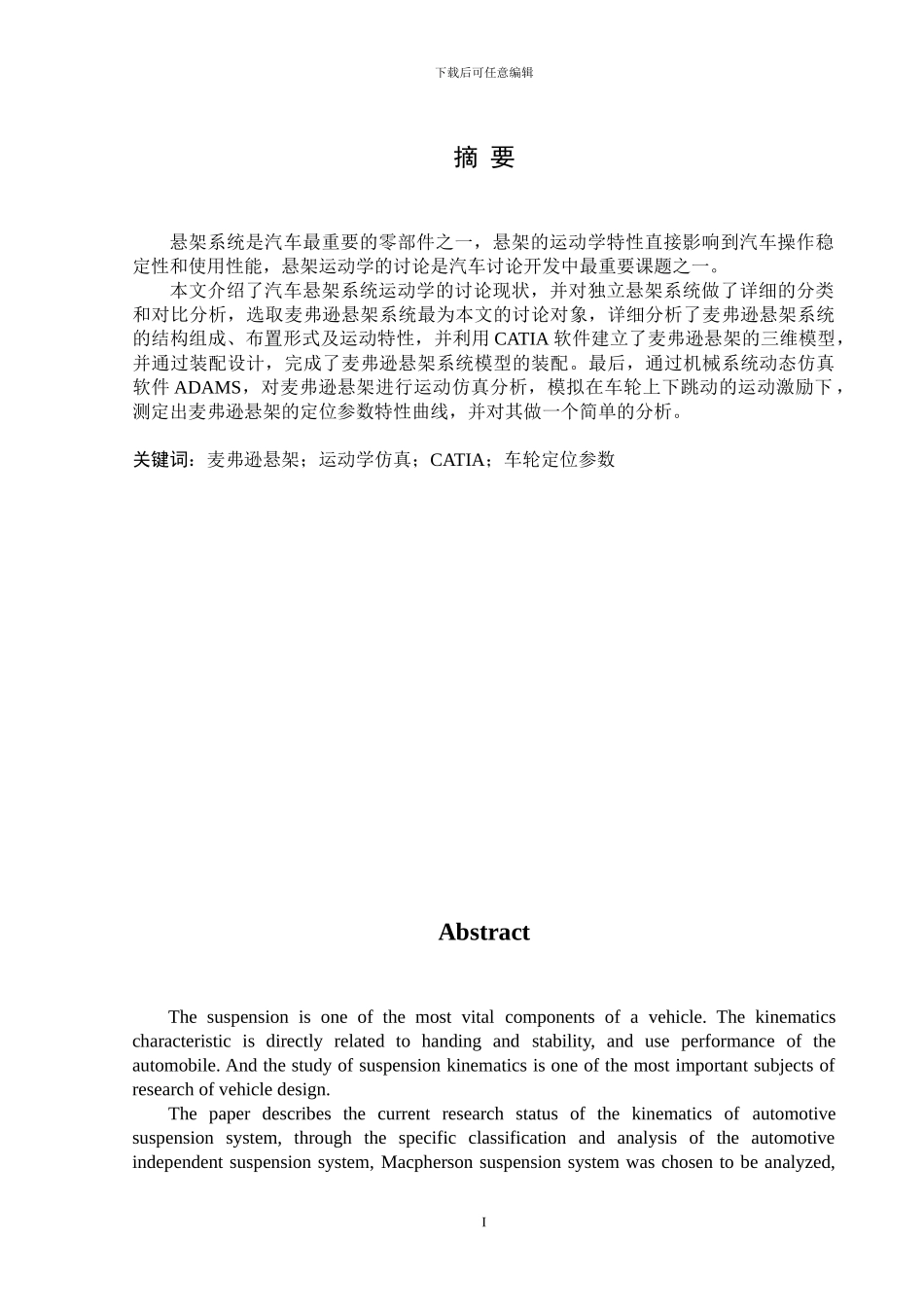

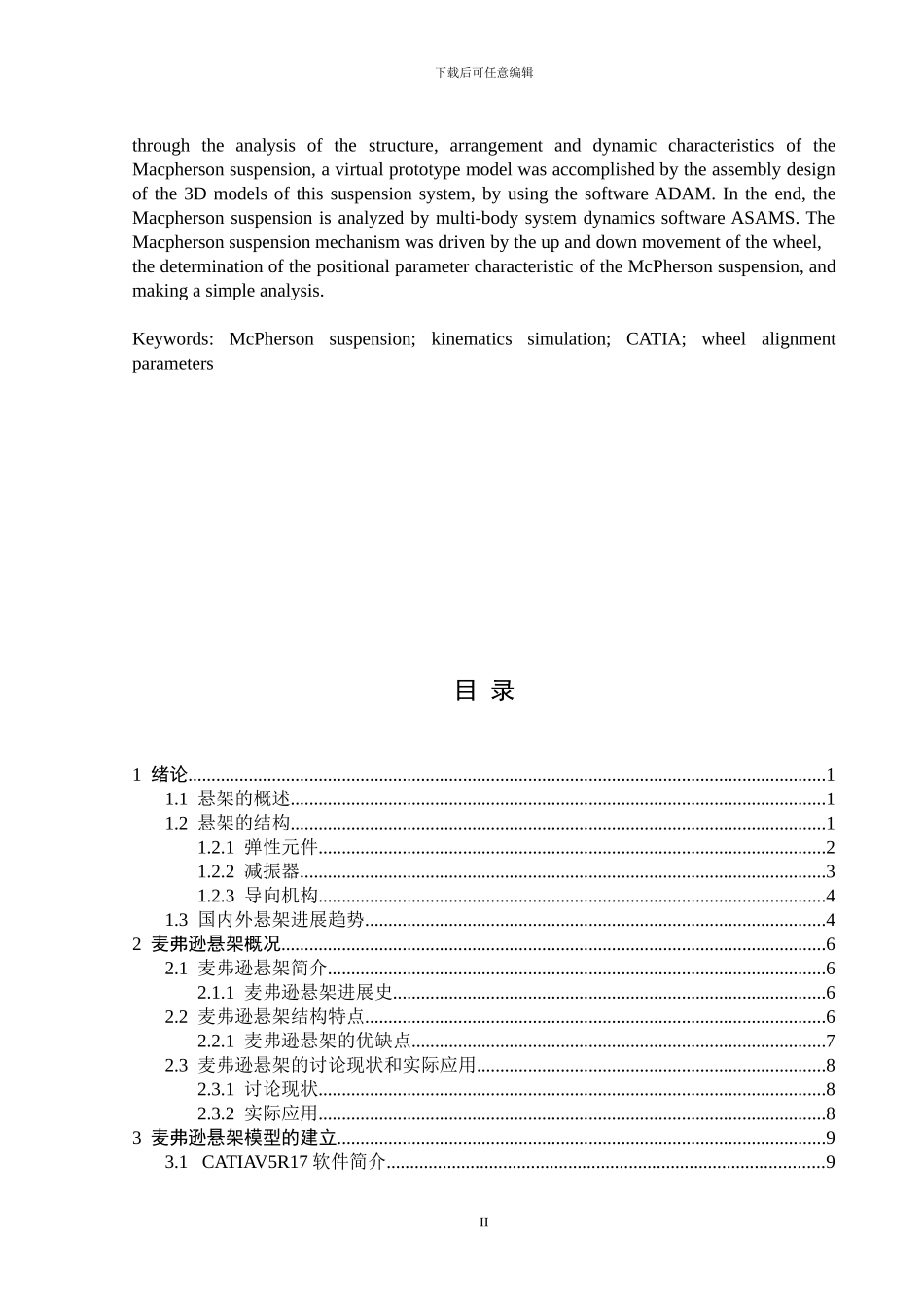

下载后可任意编辑摘 要悬架系统是汽车最重要的零部件之一，悬架的运动学特性直接影响到汽车操作稳定性和使用性能，悬架运动学的讨论是汽车讨论开发中最重要课题之一。本文介绍了汽车悬架系统运动学的讨论现状，并对独立悬架系统做了详细的分类和对比分析，选取麦弗逊悬架系统最为本文的讨论对象，详细分析了麦弗逊悬架系统的结构组成、布置形式及运动特性，并利用 CATIA 软件建立了麦弗逊悬架的三维模型，并通过装配设计，完成了麦弗逊悬架系统模型的装配。最后，通过机械系统动态仿真软件 ADAMS，对麦弗逊悬架进行运动仿真分析，模拟在车轮上下跳动的运动激励下 ，测定出麦弗逊悬架的定位参数特性曲线，并对其做一个简单的分析。关键词：麦弗逊悬架；运动学仿真；CATIA；车轮定位参数AbstractThe suspension is one of the most vital components of a vehicle. The kinematics characteristic is directly related to handing and stability, and use performance of the automobile. And the study of suspension kinematics is one of the most important subjects of research of vehicle design.The paper describes the current research status of the kinematics of automotive suspension system, through the specific classification and analysis of the automotive independent suspension system, Macpherson suspension system was chosen to be analyzed, I下载后可任意编辑through the analysis of the structure, arrangement and dynamic characteristics of the Macpherson suspension, a virtual prototype model was accomplished by the assembly design of the 3D models of this suspension system, by using the software ADAM. In the end, the Macpherson suspension is analyzed by multi-body system dynamics software ASAMS. The Macpherson suspension mechanism was driven by the up and down movement of the wheel,the determination of the positional parameter characteristic of the McPherson suspension, and making a simple analysis.Keywords: McPherson suspension; kinematics simulation; CATIA; wheel alignme...
