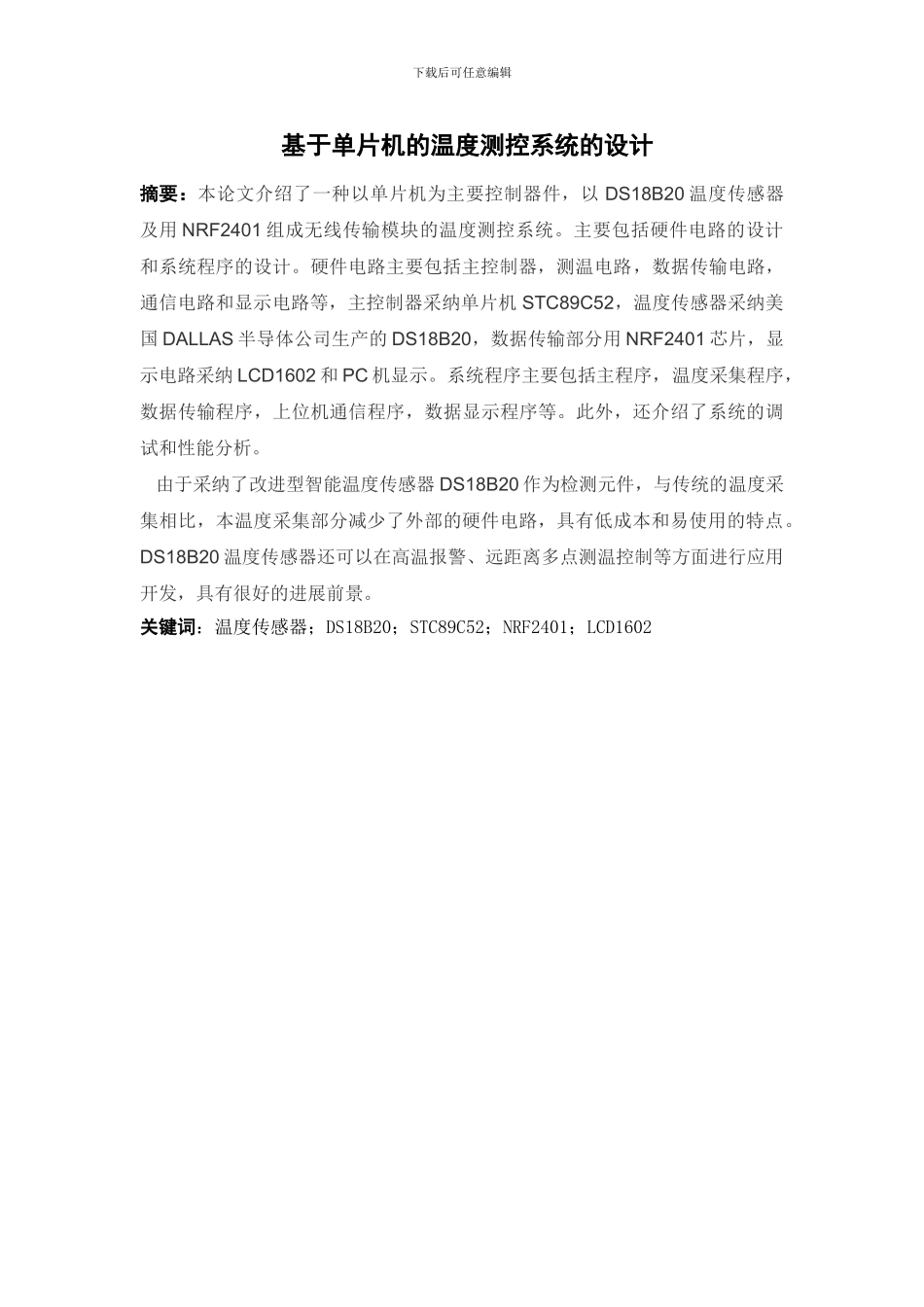

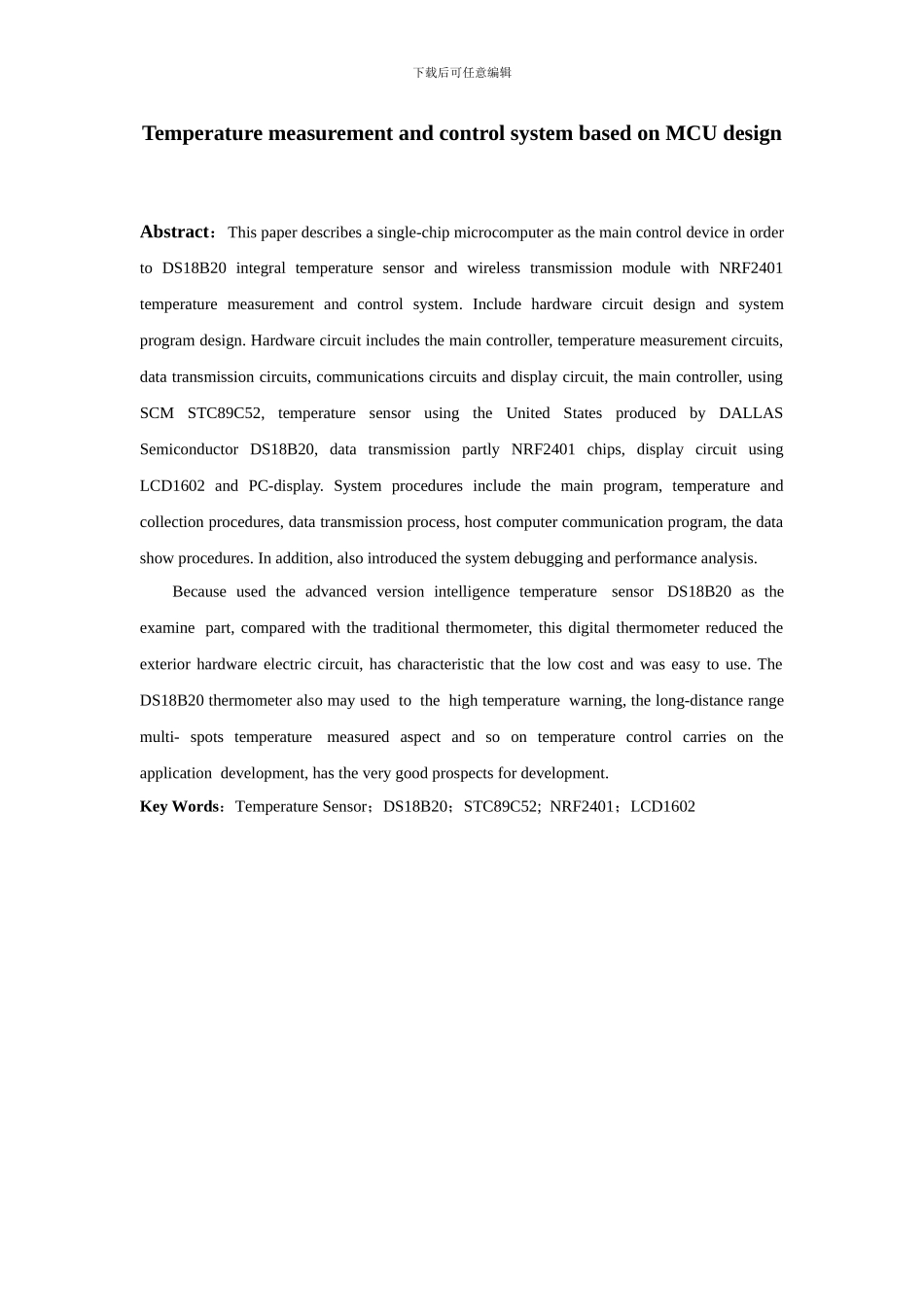

教学单位 信息工程系学生学号 2061224218孝感学院新技术学院本科毕业论文(设计)题 目 基于单片机的温度测控系统的设计学生姓名 王 卓专业名称 电子信息科学与技术指导老师 王 新 民老师职称 教 授2024 年 9 月 10 日下载后可任意编辑 基于单片机的温度测控系统的设计摘要:本论文介绍了一种以单片机为主要控制器件,以 DS18B20 温度传感器及用 NRF2401 组成无线传输模块的温度测控系统。主要包括硬件电路的设计和系统程序的设计。硬件电路主要包括主控制器,测温电路,数据传输电路,通信电路和显示电路等,主控制器采纳单片机 STC89C52,温度传感器采纳美国 DALLAS 半导体公司生产的 DS18B20,数据传输部分用 NRF2401 芯片,显示电路采纳 LCD1602 和 PC 机显示。系统程序主要包括主程序,温度采集程序,数据传输程序,上位机通信程序,数据显示程序等。此外,还介绍了系统的调试和性能分析。 由于采纳了改进型智能温度传感器 DS18B20 作为检测元件,与传统的温度采集相比,本温度采集部分减少了外部的硬件电路,具有低成本和易使用的特点。DS18B20 温度传感器还可以在高温报警、远距离多点测温控制等方面进行应用开发,具有很好的进展前景。关键词:温度传感器;DS18B20;STC89C52;NRF2401;LCD1602下载后可任意编辑Temperature measurement and control system based on MCU designAbstract:This paper describes a single-chip microcomputer as the main control device in order to DS18B20 integral temperature sensor and wireless transmission module with NRF2401 temperature measurement and control system. Include hardware circuit design and system program design. Hardware circuit includes the main controller, temperature measurement circuits, data transmission circuits, communications circuits and display circuit, the main controller, using SCM STC89C52, temperature sensor using the United States produced by DALLAS Semiconductor DS18B20, data transmission partly NRF2401 chips, display circuit using LCD1602 and PC-display. System procedures include the main program, temperature and collection procedures, data transmission process,...
