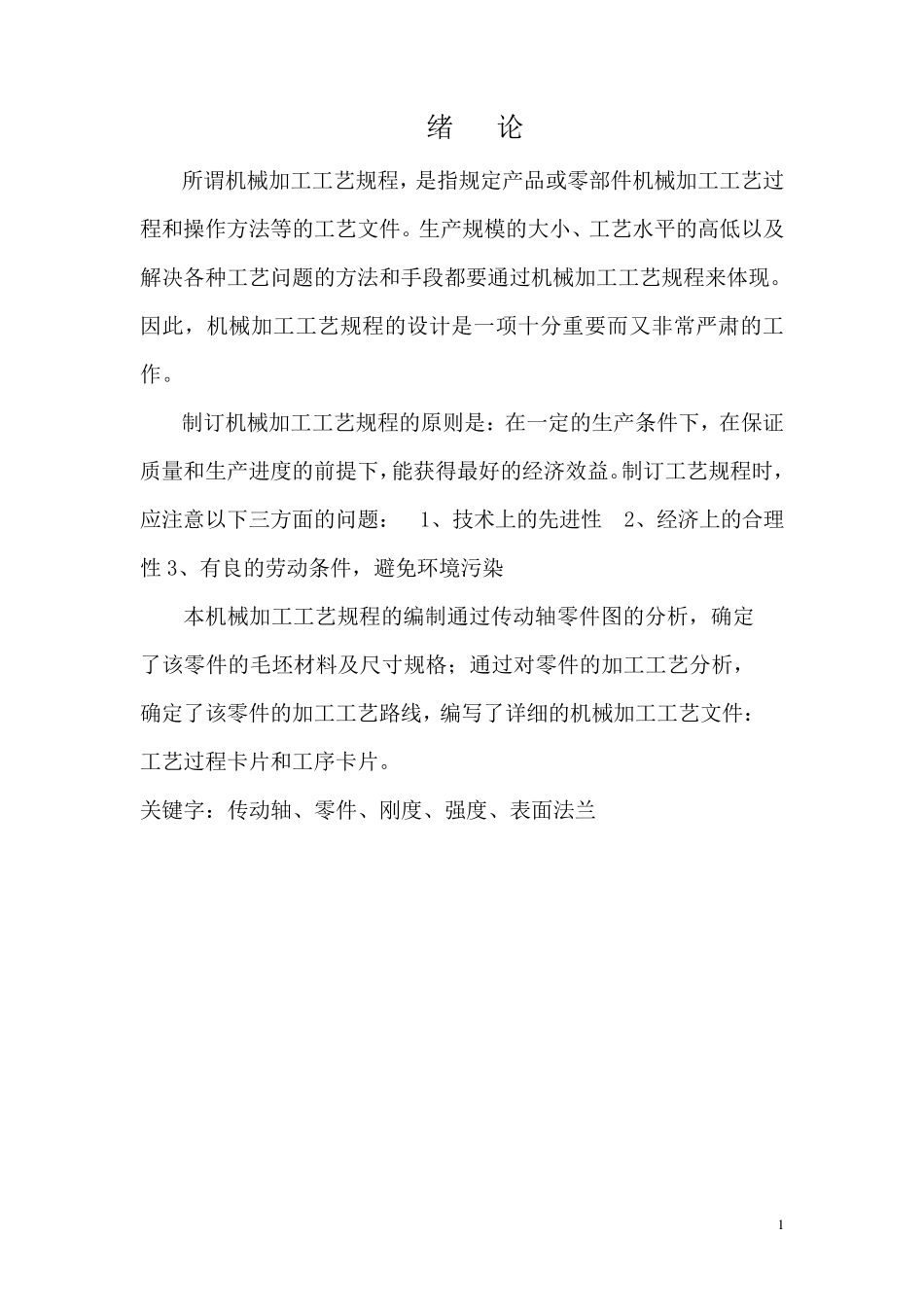

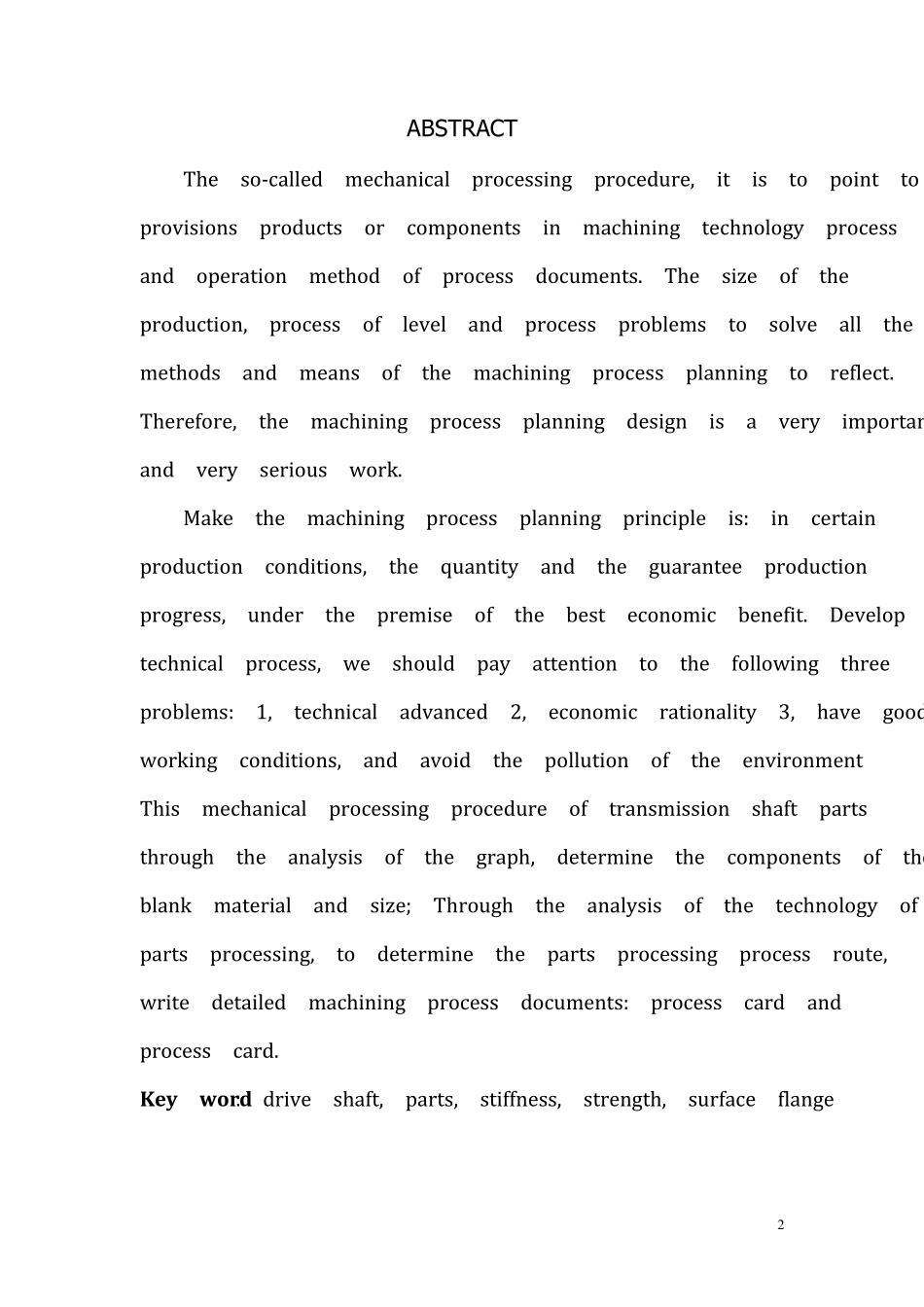

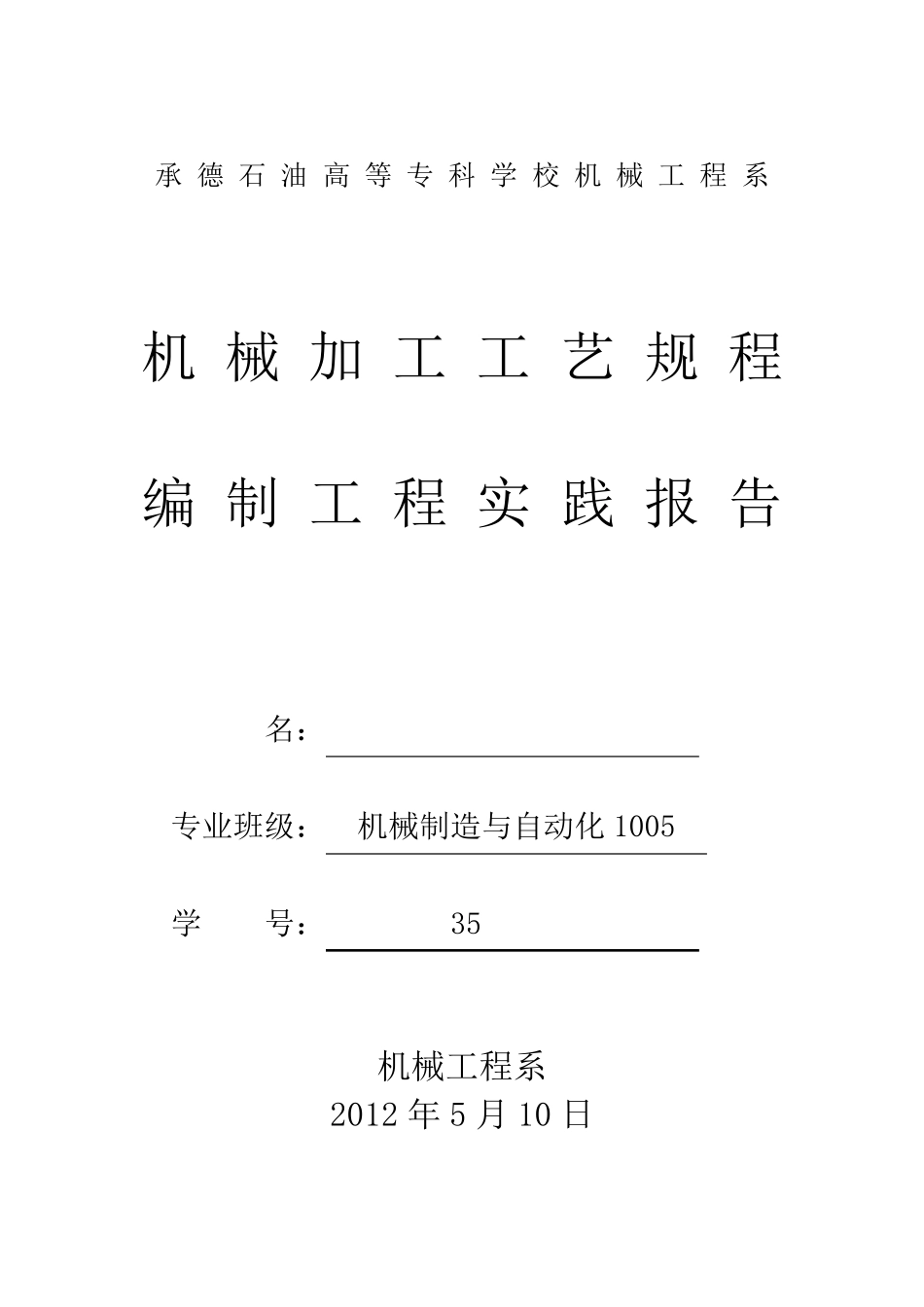

承 德 石 油 高 等 专 科 学 校 机 械 工 程 系 机 械 加 工 工 艺 规 程 编 制 工 程 实 践 报 告 * 名: *** 专业班级: 机械制造与自动化 1005 学 号: 35 机械工程系 2012 年 5 月 10 日 1 绪 论 所谓机械加工工艺规程,是指规定产品或零部件机械加工工艺过程和操作方法等的工艺文件。生产规模的大小、工艺水平的高低以及解决各种工艺问题的方法和手段都要通过机械加工工艺规程来体现。因此,机械加工工艺规程的设计是一项十分重要而又非常严肃的工作。 制订机械加工工艺规程的原则是:在一定的生产条件下,在保证质量和生产进度的前提下,能获得最好的经济效益。制订工艺规程时,应注意以下三方面的问题: 1、技术上的先进性 2、经济上的合理性 3、有良的劳动条件,避免环境污染 本机械加工工艺规程的编制通过传动轴零件图的分析,确定了该零件的毛坯材料及尺寸规格;通过对零件的加工工艺分析,确定了该零件的加工工艺路线,编写了详细的机械加工工艺文件:工艺过程卡片和工序卡片。 关键字:传动轴、零件、刚度、强度、表面法兰 2 ABSTRACT The so-called mechanical processing procedure, it is to point to provisions products or components in machining technology process and operation method of process documents. The size of the production, process of level and process problems to solve all the methods and means of the machining process planning to reflect. Therefore, the machining process planning design is a very important and very serious work. Make the machining process planning principle is: in certain production conditions, the quantity and the guarantee production progress, under the premise of the best economic benefit. Develop technical process, we should pay attention to the following three problems: 1, technical advanced 2, economic rationality 3, have good working conditions, and avoid the pollution of the environment This mechanical processing procedure of transmission shaft parts through the analysis of the graph, determine the compo...
