华为模拟器配置实例

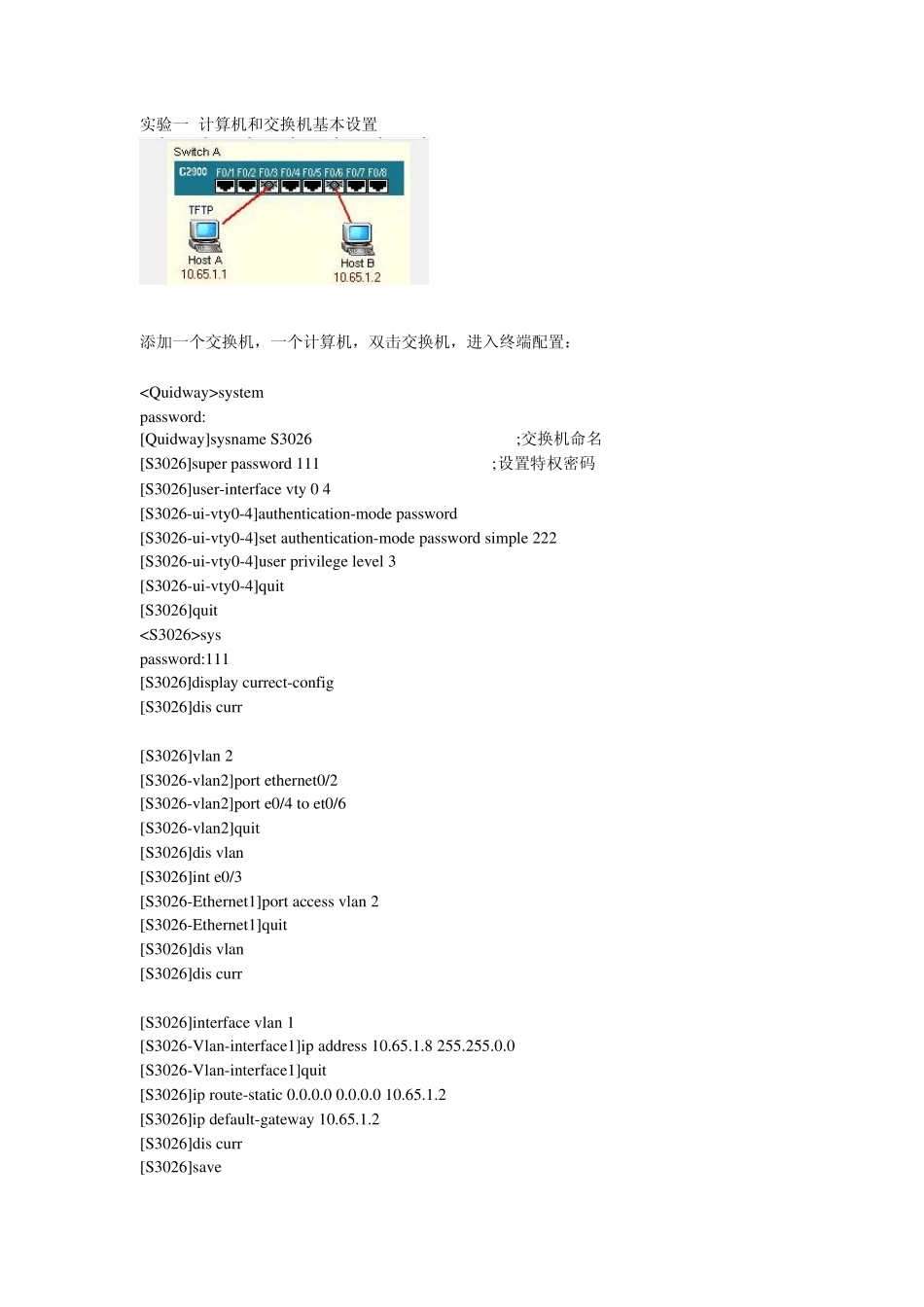

华为模拟器配置实例_第1页
1/16
华为模拟器配置实例_第2页
2/16
华为模拟器配置实例_第3页
3/16
实验一 计算机和交换机基本设置 添加一个交换机,一个计算机,双击交换机,进入终端配置: system password: [Quidway]sysname S3026 ;交换机命名 [S3026]super password 111 ;设置特权密码 [S3026]user-interface vty 0 4 [S3026-ui-vty0-4]authentication-mode password [S3026-ui-vty0-4]set authentication-mode password simple 222 [S3026-ui-vty0-4]user privilege level 3 [S3026-ui-vty0-4]quit [S3026]quit sys password:111 [S3026]display currect-config [S3026]dis curr [S3026]vlan 2 [S3026-vlan2]port ethernet0/2 [S3026-vlan2]port e0/4 to et0/6 [S3026-vlan2]quit [S3026]dis vlan [S3026]int e0/3 [S3026-Ethernet1]port access vlan 2 [S3026-Ethernet1]quit [S3026]dis vlan [S3026]dis curr [S3026]interface vlan 1 [S3026-Vlan-interface1]ip address 10.65.1.8 255.255.0.0 [S3026-Vlan-interface1]quit [S3026]ip route-static 0.0.0.0 0.0.0.0 10.65.1.2 [S3026]ip default-gateway 10.65.1.2 [S3026]dis curr [S3026]save 双击小电脑: login:root password:linux [root@PCA root]#ifconfig eth0 10.65.1.1 netmask 255.255.0.0 [root@PCA root]#ifconfig [root@PCA root]#route add default gw 10.65.1.2 [root@PCA root]#route [root@PCA root]#ping 10.65.1.8 [root@PCA root]#telnet 10.65.1.8 实验二 配置端口聚合 要求聚合的端口工作在全双工,速度一致,在同一槽口且连续。 参数:ingress:源 MAC, both:源和目的MAC 对于 SwitchA: [Quidway]sysname SwitchA [SwitchA]interface ethernet0/1 [SwitchA-Ethernet0/1]duplex full [SwitchA-Ethernet0/1]speed 100 [SwitchA-Ethernet0/1]port link-type trunk [SwitchA-Ethernet0/1]port trunk permit vlan all [SwitchA-Ethernet0/1]int e0/2 [SwitchA-Ethernet0/2]duplex full [SwitchA-Ethernet0/2]speed 100 [SwitchA-Ethernet0/2]port link-type trunk [SwitchA-Ethernet0/2]port trunk permit vlan all 对于 SwitchB: [Quidway]sysname SwitchB [SwitchB]interface ethernet0/1 [SwitchB-Ethernet0/1]duplex full [SwitchB-Ethernet0/1]speed 100 [SwitchB-Ethernet0/1]port li...
