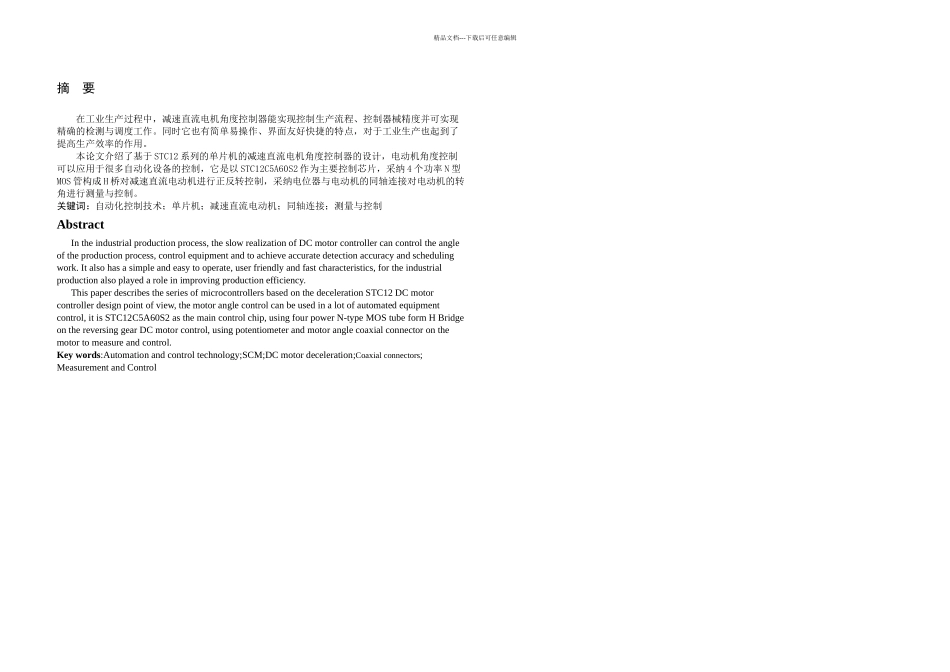

精品文档---下载后可任意编辑设计综合性实验报告课程名称: 减速直流电机角度控制 院 (系): 电子工程与自动化学院专 业:自 动 化 学生学号: 0800320242 学生姓名: 伍仲明 指导老师: 李 平赵 学 军 龙 超 2011 年 9 月 18 日精品文档---下载后可任意编辑摘 要在工业生产过程中,减速直流电机角度控制器能实现控制生产流程、控制器械精度并可实现精确的检测与调度工作。同时它也有简单易操作、界面友好快捷的特点,对于工业生产也起到了提高生产效率的作用。本论文介绍了基于 STC12 系列的单片机的减速直流电机角度控制器的设计,电动机角度控制可以应用于很多自动化设备的控制,它是以 STC12C5A60S2 作为主要控制芯片,采纳 4 个功率 N 型MOS 管构成 H 桥对减速直流电动机进行正反转控制,采纳电位器与电动机的同轴连接对电动机的转角进行测量与控制。关键词:自动化控制技术;单片机;减速直流电动机;同轴连接;测量与控制AbstractIn the industrial production process, the slow realization of DC motor controller can control the angle of the production process, control equipment and to achieve accurate detection accuracy and scheduling work. It also has a simple and easy to operate, user friendly and fast characteristics, for the industrial production also played a role in improving production efficiency.This paper describes the series of microcontrollers based on the deceleration STC12 DC motor controller design point of view, the motor angle control can be used in a lot of automated equipment control, it is STC12C5A60S2 as the main control chip, using four power N-type MOS tube form H Bridge on the reversing gear DC motor control, using potentiometer and motor angle coaxial connector on the motor to measure and control.Key words:Automation and control technology;SCM;DC motor deceleration;Coaxial connectors; Measurement and Control精品文档---下载后可任意编辑目 录引言 22 硬件电路原理及设计2.1 主控系统的设计单片机 STC12C5A32S2 介绍主控系统各部分电路设置...
