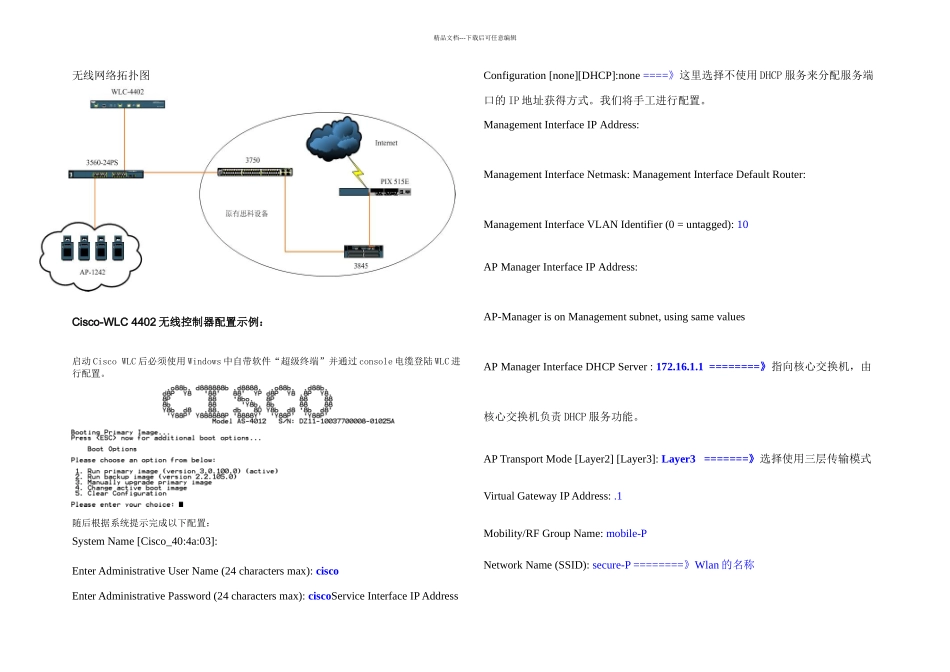

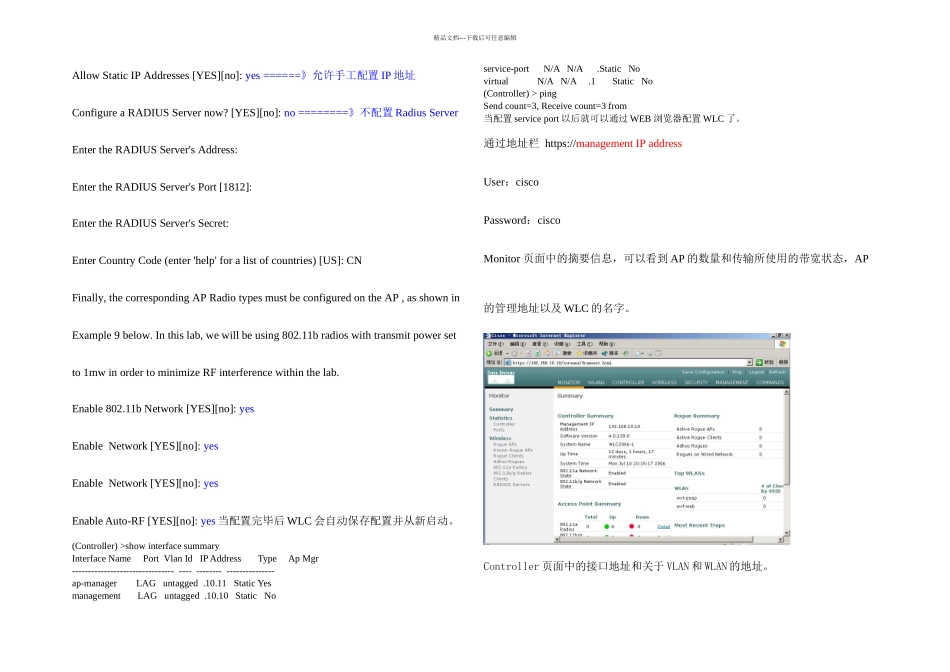

精品文档---下载后可任意编辑无线网络拓扑图Cisco-WLC 4402 无线控制器配置示例:启动 Cisco WLC 后必须使用 Windows 中自带软件“超级终端”并通过 console 电缆登陆 WLC 进行配置。随后根据系统提示完成以下配置:System Name [Cisco_40:4a:03]: Enter Administrative User Name (24 characters max): ciscoEnter Administrative Password (24 characters max): ciscoService Interface IP Address Configuration [none][DHCP]:none ====》这里选择不使用 DHCP 服务来分配服务端口的 IP 地址获得方式。我们将手工进行配置。Management Interface IP Address: Management Interface Netmask: Management Interface Default Router:Management Interface VLAN Identifier (0 = untagged): 10AP Manager Interface IP Address: AP-Manager is on Management subnet, using same valuesAP Manager Interface DHCP Server : 172.16.1.1 ========》指向核心交换机,由核心交换机负责 DHCP 服务功能。AP Transport Mode [Layer2] [Layer3]: Layer3 =======》选择使用三层传输模式Virtual Gateway IP Address: .1 Mobility/RF Group Name: mobile-P Network Name (SSID): secure-P ========》Wlan 的名称精品文档---下载后可任意编辑Allow Static IP Addresses [YES][no]: yes ======》允许手工配置 IP 地址Configure a RADIUS Server now? [YES][no]: no ========》不配置 Radius ServerEnter the RADIUS Server's Address: Enter the RADIUS Server's Port [1812]: Enter the RADIUS Server's Secret: Enter Country Code (enter 'help' for a list of countries) [US]: CNFinally, the corresponding AP Radio types must be configured on the AP , as shown in Example 9 below. In this lab, we will be using 802.11b radios with transmit power set to 1mw in order to minimize RF interference within the lab.Enable 802.11b Network [YES][no]: yesEnable Network [YES][no]: yesEnable Network [YES][no]: yesEnable Auto-RF [YES][no]: yes 当配置完毕后 WLC 会自动保存配置并从新启动。(Controller) >show interface summa...
