数字温计研究与设计

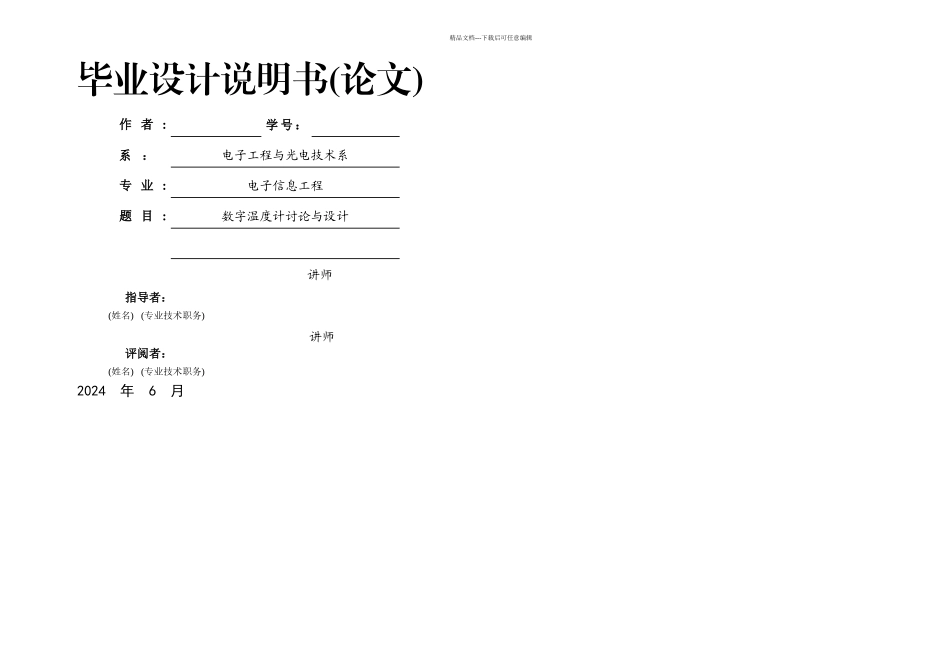

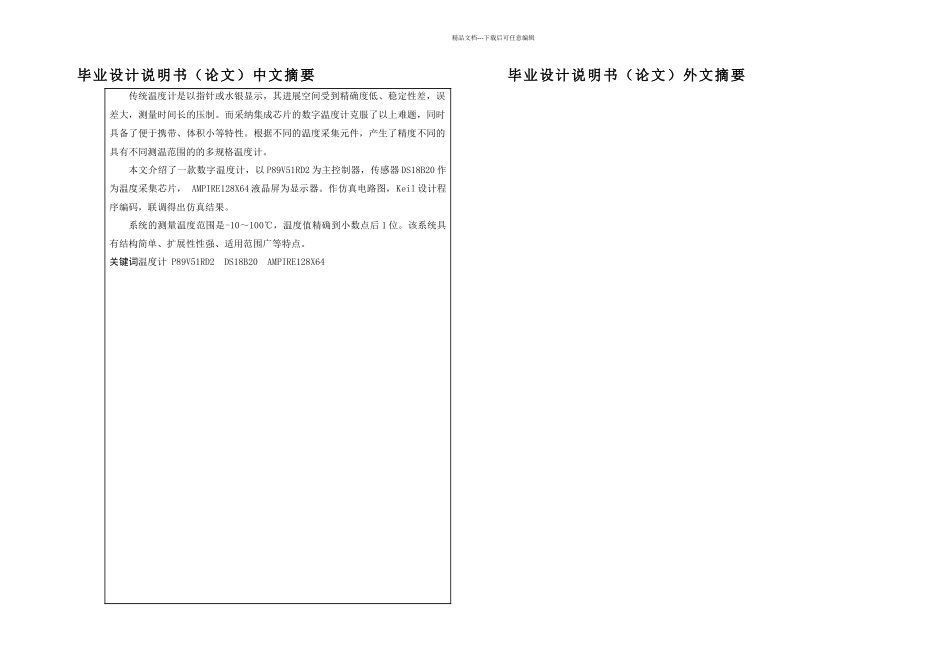

精品文档---下载后可任意编辑毕业设计说明书(论文)作 者 :学 号 ：系：电子工程与光电技术系专 业 :电子信息工程题 目 :数字温度计讨论与设计指导者：(姓名) (专业技术职务)评阅者：(姓名) (专业技术职务)2024 年 6 月 讲师讲师精品文档---下载后可任意编辑毕业设计说明书（论文）中文摘要传统温度计是以指针或水银显示，其进展空间受到精确度低、稳定性差，误差大，测量时间长的压制。而采纳集成芯片的数字温度计克服了以上难题，同时具备了便于携带、体积小等特性。根据不同的温度采集元件，产生了精度不同的具有不同测温范围的的多规格温度计。本文介绍了一款数字温度计，以 P89V51RD2 为主控制器，传感器 DS18B20 作为温度采集芯片， AMPIRE128X64 液晶屏为显示器。作仿真电路图，Keil 设计程序编码，联调得出仿真结果。系统的测量温度范围是-10～100℃，温度值精确到小数点后 1 位。该系统具有结构简单、扩展性性强、适用范围广等特点。关键词温度计 P89V51RD2 DS18B20 AMPIRE128X64毕业设计说明书（论文）外文摘要精品文档---下载后可任意编辑Title Research and Design of Digital ThermometerAbstractTraditional thermometer pointer or mercury thermometer, according to its development space of low precision, poor stability, large error, long-term measurements of suppression. Digital thermometer uses the integrated chip to overcome the above problems. Its major features are small volume, and conveniently portable.According to the different temperature acquisition device, more specifications thermometer ofthe different accuracy or temperature measurement range is produced.This paper introduces a portable digital thermometer, with P89V51RD2 as the main controller, sensor DS18B20 as a temperature acquisition chip, ampire128x64 LCD screen to display.Using Proteus simulation circuit diagram, Keil design program coding, alignment simulation results are obtained.Measurement of the temperature range of the system is -10 ～ 100 ℃, the temperature value is accurate to 1 decimal places. This system has...
