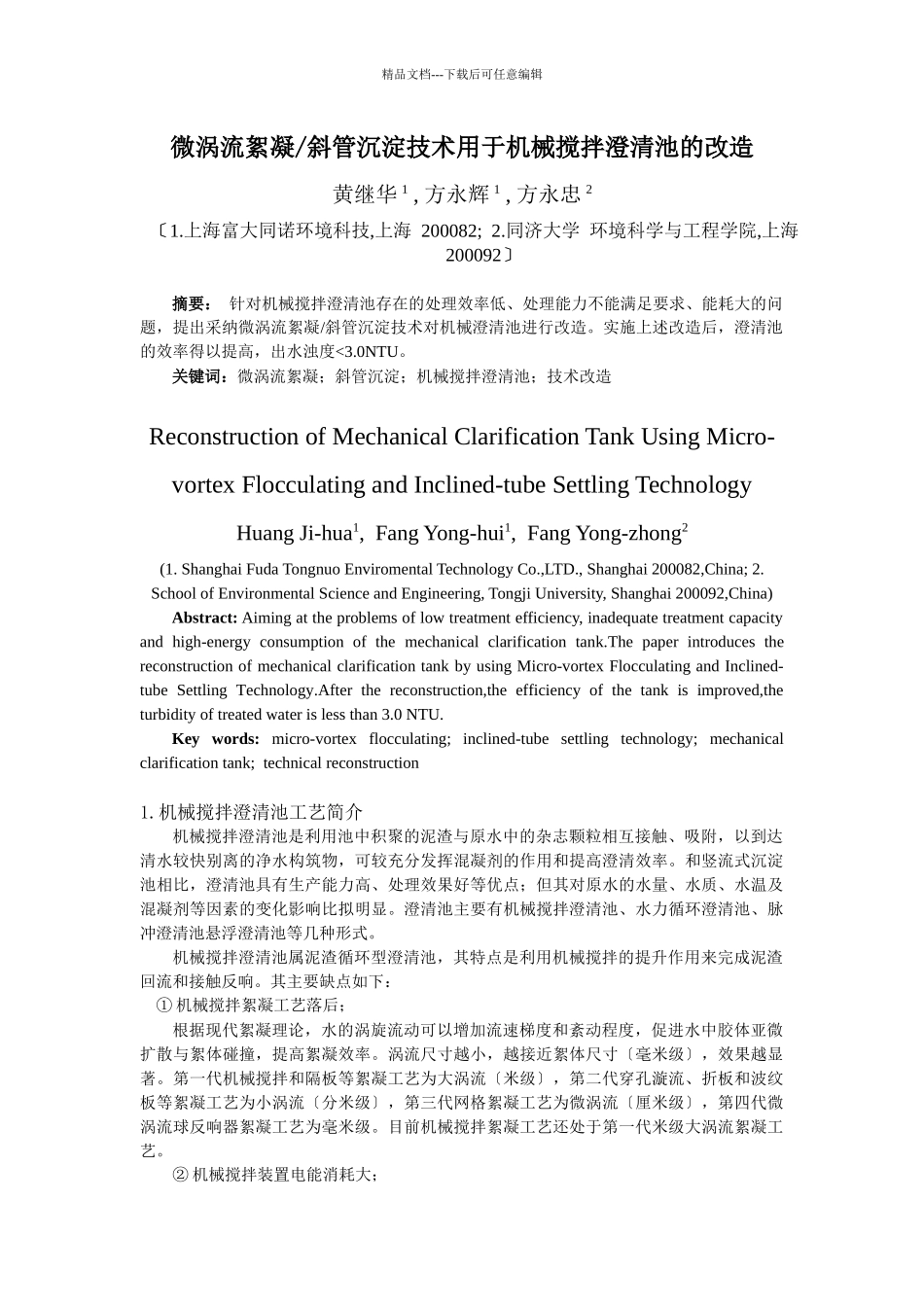

精品文档---下载后可任意编辑微涡流絮凝/斜管沉淀技术用于机械搅拌澄清池的改造黄继华 1 , 方永辉 1 , 方永忠 2〔1.上海富大同诺环境科技,上海 200082; 2.同济大学 环境科学与工程学院,上海 200092〕摘要： 针对机械搅拌澄清池存在的处理效率低、处理能力不能满足要求、能耗大的问题，提出采纳微涡流絮凝/斜管沉淀技术对机械澄清池进行改造。实施上述改造后，澄清池的效率得以提高，出水浊度<3.0NTU。关键词：微涡流絮凝；斜管沉淀；机械搅拌澄清池；技术改造Reconstruction of Mechanical Clarification Tank Using Micro-vortex Flocculating and Inclined-tube Settling TechnologyHuang Ji-hua1, Fang Yong-hui1, Fang Yong-zhong2(1. Shanghai Fuda Tongnuo Enviromental Technology Co.,LTD., Shanghai 200082,China; 2. School of Environmental Science and Engineering, Tongji University, Shanghai 200092,China)Abstract: Aiming at the problems of low treatment efficiency, inadequate treatment capacity and high-energy consumption of the mechanical clarification tank.The paper introduces the reconstruction of mechanical clarification tank by using Micro-vortex Flocculating and Inclined-tube Settling Technology.After the reconstruction,the efficiency of the tank is improved,the turbidity of treated water is less than 3.0 NTU.Key words: micro-vortex flocculating; inclined-tube settling technology; mechanical clarification tank; technical reconstruction1.机械搅拌澄清池工艺简介机械搅拌澄清池是利用池中积聚的泥渣与原水中的杂志颗粒相互接触、吸附，以到达清水较快别离的净水构筑物，可较充分发挥混凝剂的作用和提高澄清效率。和竖流式沉淀池相比，澄清池具有生产能力高、处理效果好等优点；但其对原水的水量、水质、水温及混凝剂等因素的变化影响比拟明显。澄清池主要有机械搅拌澄清池、水力循环澄清池、脉冲澄清池悬浮澄清池等几种形式。机械搅拌澄清池属泥渣循环型澄清池，其特点是利用机械搅拌的提升作用来完成泥渣回流和接触反响。其主要缺点如下： ① 机械搅拌絮凝工艺落后；根据现代絮凝理论，水的涡旋流动可以增加流速梯度和紊动程度，促进水中胶体亚微扩散...
