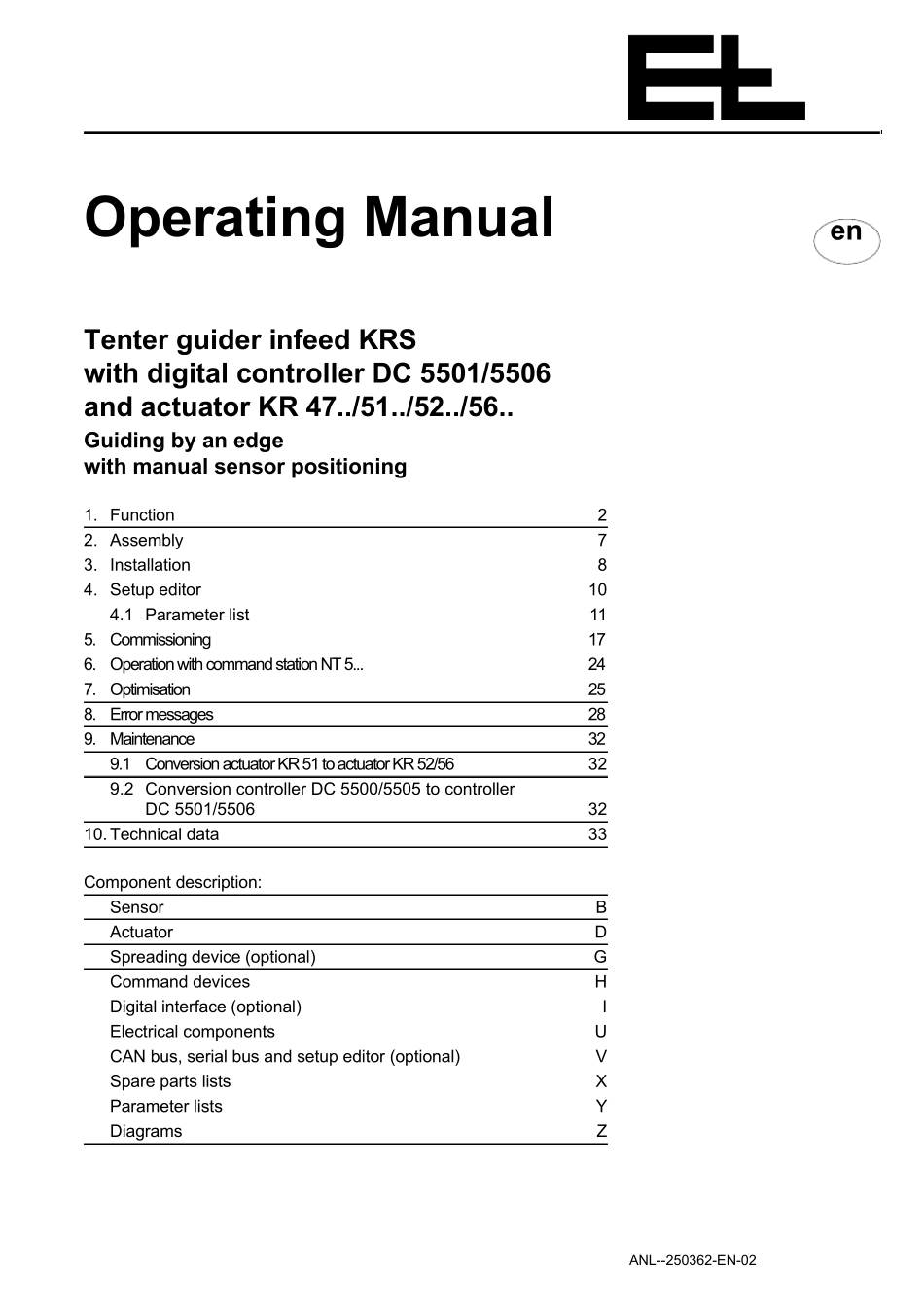

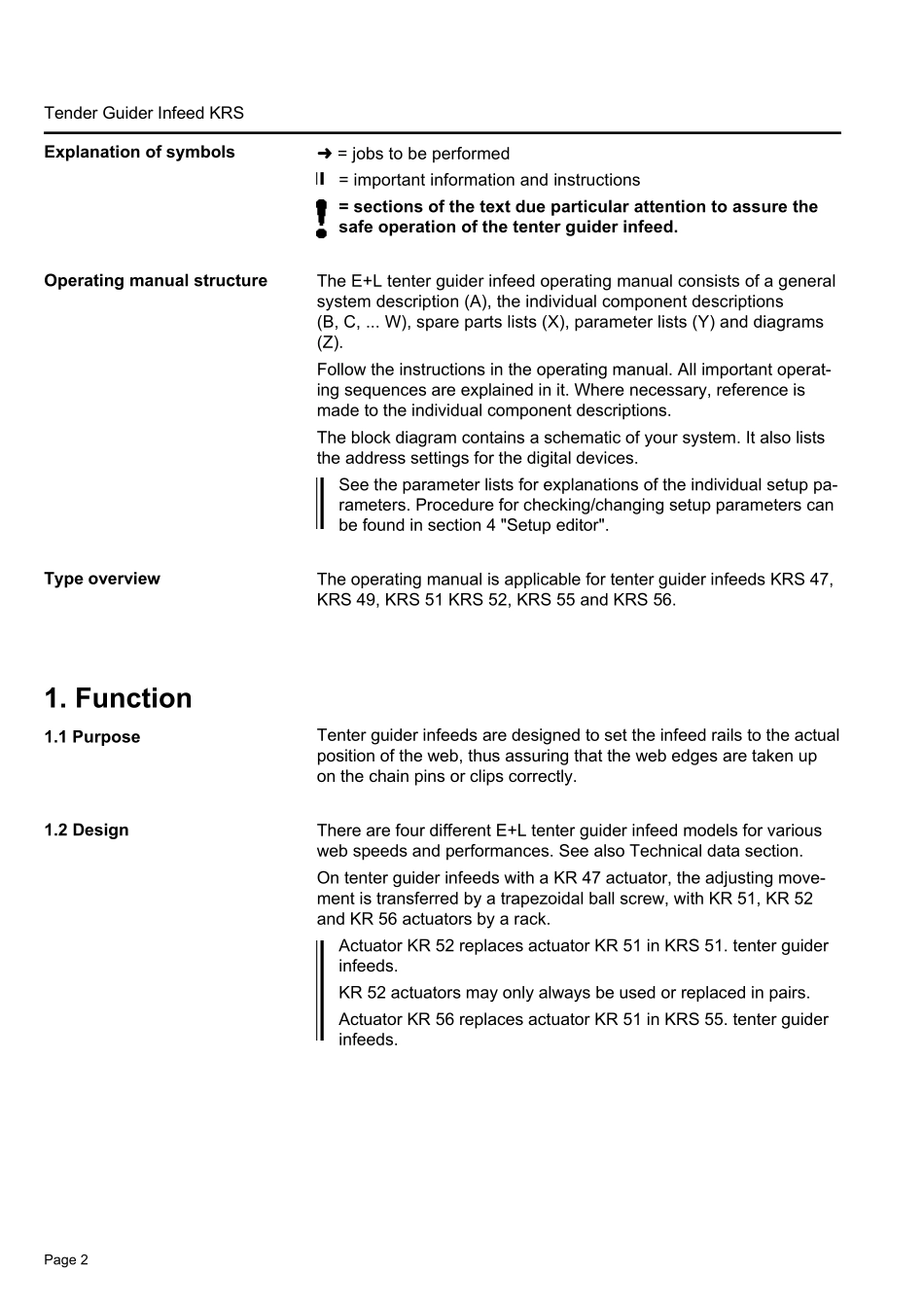

Operating ManualenANL--250362-EN-02Tenter guider infeed KRS with digital controller DC 5501/5506and actuator KR 47../51../52../56..Guiding by an edge with manual sensor positioningComponent description:Sensor BActuator DSpreading device (optional) GCommand devices HDigital interface (optional) IElectrical components UCAN bus, serial bus and setup editor (optional) VSpare parts lists XParameter lists YDiagrams Z1. Function 22. Assembly 73. Installation 84. Setup editor 104.1 Parameter list 115. Commissioning 176. Operation with command station NT 5... 247. Optimisation 258. Error messages 289. Maintenance 329.1 Conversion actuator KR 51 to actuator KR 52/56 329.2 Conversion controller DC 5500/5505 to controller DC 5501/5506 3210. Technical data 33Page 2Tender Guider Infeed KRS1. Function1.1 Purpose1.2 Design = jobs to be performed = important information and instructions = sections of the text due particular attention to assure the safe operation of the tenter guider infeed.The E+L tenter guider infeed operating manual consists of a general system description (A), the individual component descriptions (B, C, ... W), spare parts lists (X), parameter lists (Y) and diagrams (Z).Follow the instructions in the operating manual. All important operat-ing sequences are explained in it. Where necessary, reference is made to the individual component descriptions.The block diagram contains a schematic of your system. It also lists the address settings for the digital devices. See the parameter lists for explanations of the individual setup pa-rameters. Procedure for checking/changing setup parameters can be found in section 4 "Setup editor".The operating manual is applicable for tenter guider infeeds KRS 47, KRS 49, KRS 51 KRS 52, KR...
