直流系统调试大纲

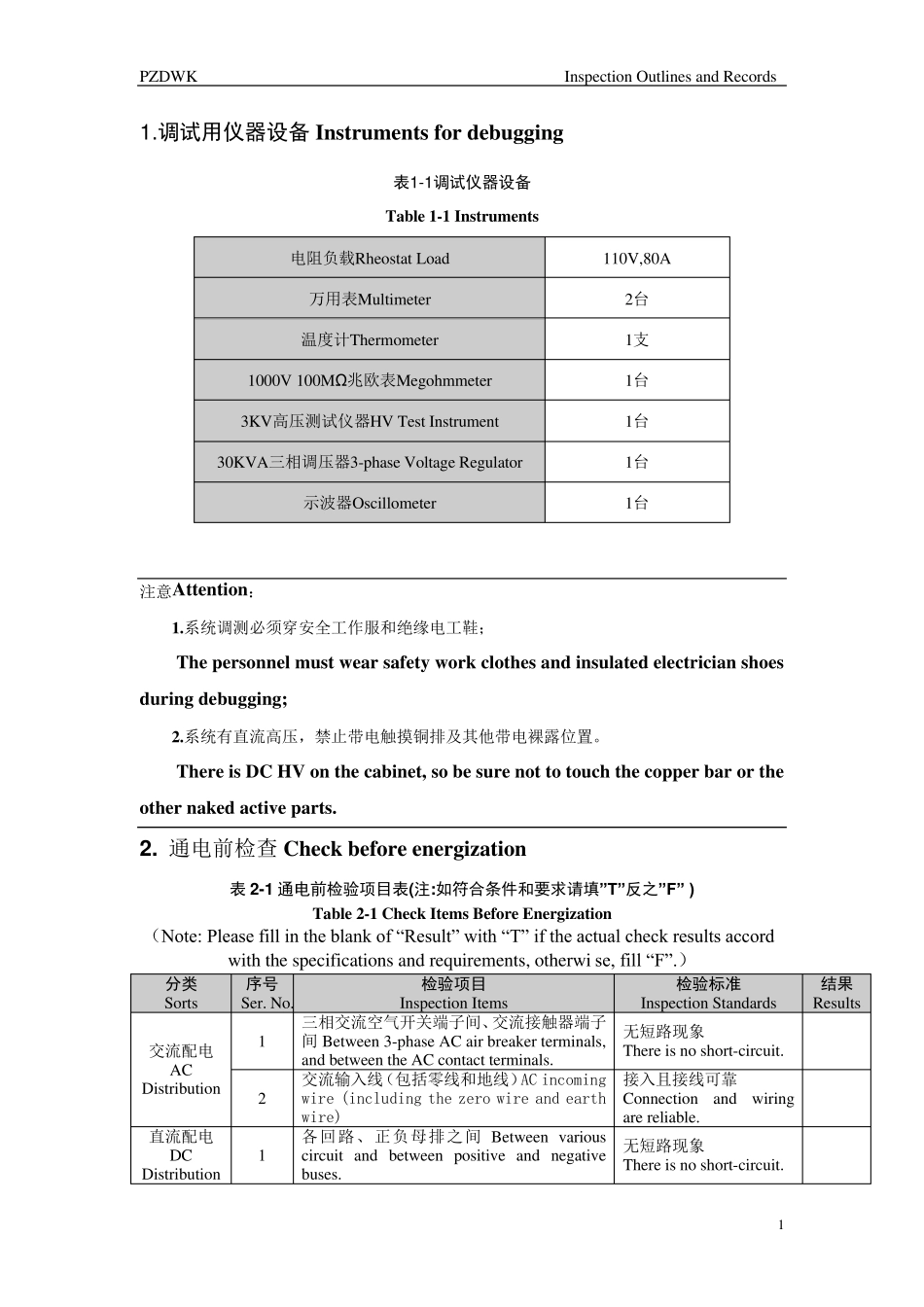

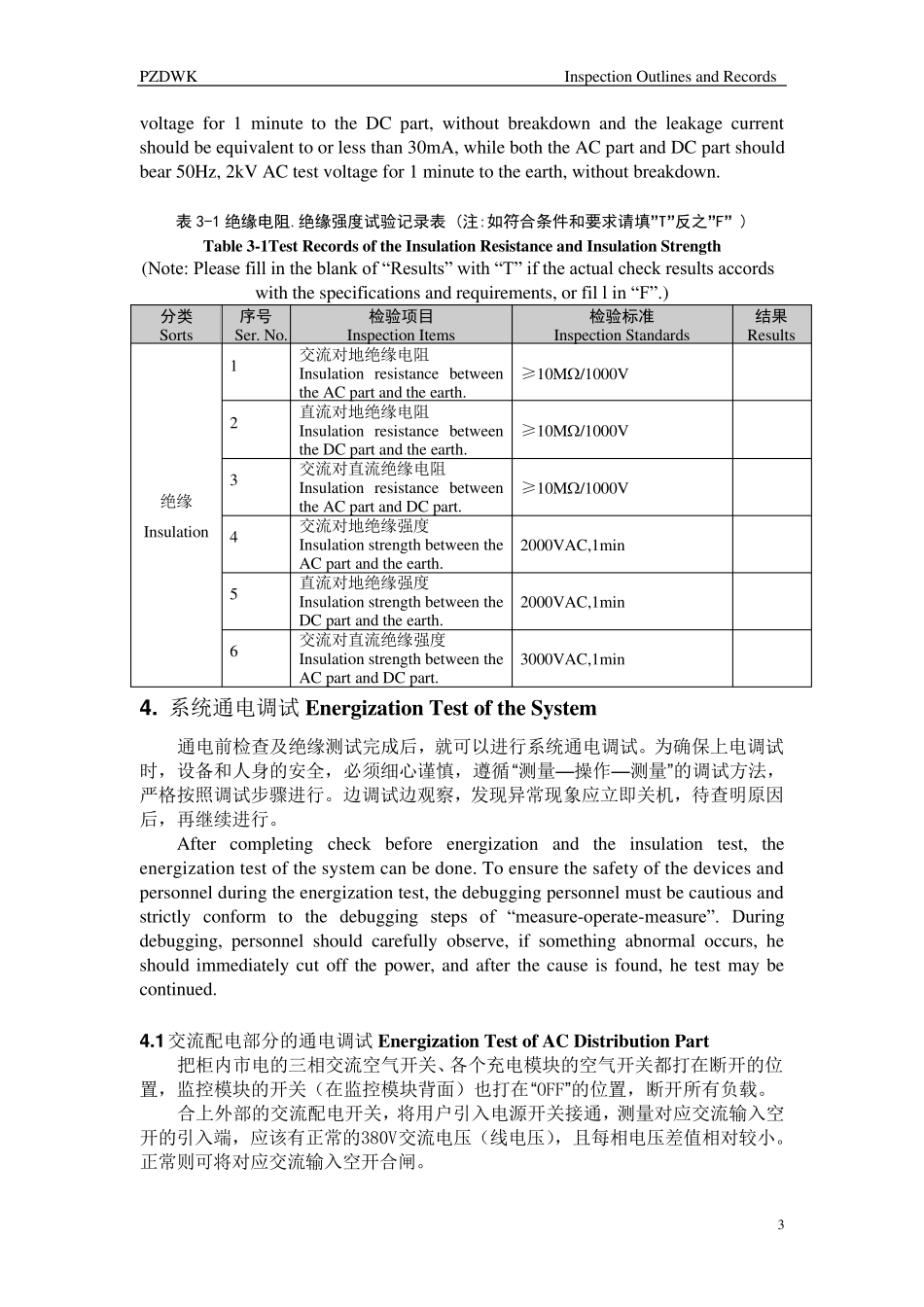

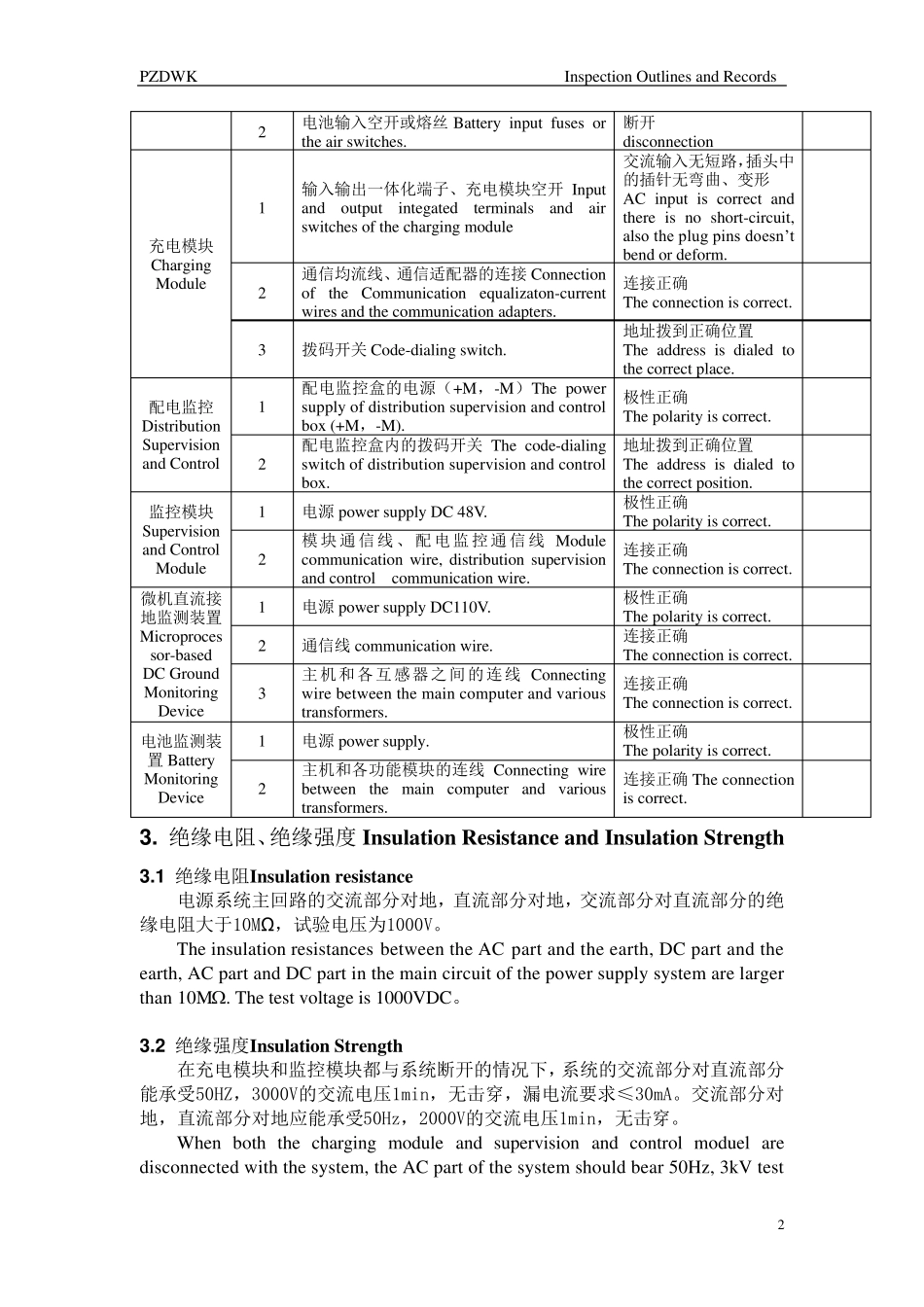

PZDWK Inspection Outlines and Records 1 1 .调试用仪器设备Instruments for debugging 表1 -1 调试仪器设备 Table 1-1 Instruments 电阻负载Rheostat Load 110V,80A 万用表Multimeter 2台 温度计Thermometer 1支 1000V 100MΩ兆欧表Megohmmeter 1台 3KV高压测试仪器HV Test Instrument 1台 30KVA三相调压器3-phase Voltage Regulator 1台 示波器Oscillometer 1台 注意Attention： 1.系统调测必须穿安全工作服和绝缘电工鞋； The personnel must wear safety work clothes and insulated electrician shoes during debugging; 2.系统有直流高压，禁止带电触摸铜排及其他带电裸露位置。 There is DC HV on the cabinet, so be sure not to touch the copper bar or the other naked active parts. 2. 通电前检查Check before energization 表2-1 通电前检验项目表(注:如符合条件和要求请填”T”反之”F” ) Table 2-1 Check Items Before Energization （Note: Please fill in the blank of “Result” with “T” if the actual check results accord w ith the specifications and requirements, otherw i se, fill “F”.） 分类 Sorts 序号 Ser. No. 检验项目 Inspection Items 检验标准 Inspection Standards 结果Results 交流配电 AC Distribution 1 三相交流空气开关端子间、交流接触器端子间Betw een 3-phase AC air breaker terminals, and betw een the AC contact terminals. 无短路现象 There is no short-circuit. 2 交流输入线（包括零线和地线）AC incoming wire (including the zero wire and earth wire) 接入且接线可靠 Connection and w iring are reliable. 直流配电DC Distribution 1 各回路、正负母排之间Betw een various circuit and betw een positive and negative buses. 无短路现象 There is no short-circuit. PZDWK Inspection Outlines and Records 2 2 电池输入空开或熔丝Battery input fuses or the air switches. 断开 disconnection 充电模块Charging Module 1 输入输出一体化端子、充电模块空开Input and output integated terminals and air switches of the charging module...
