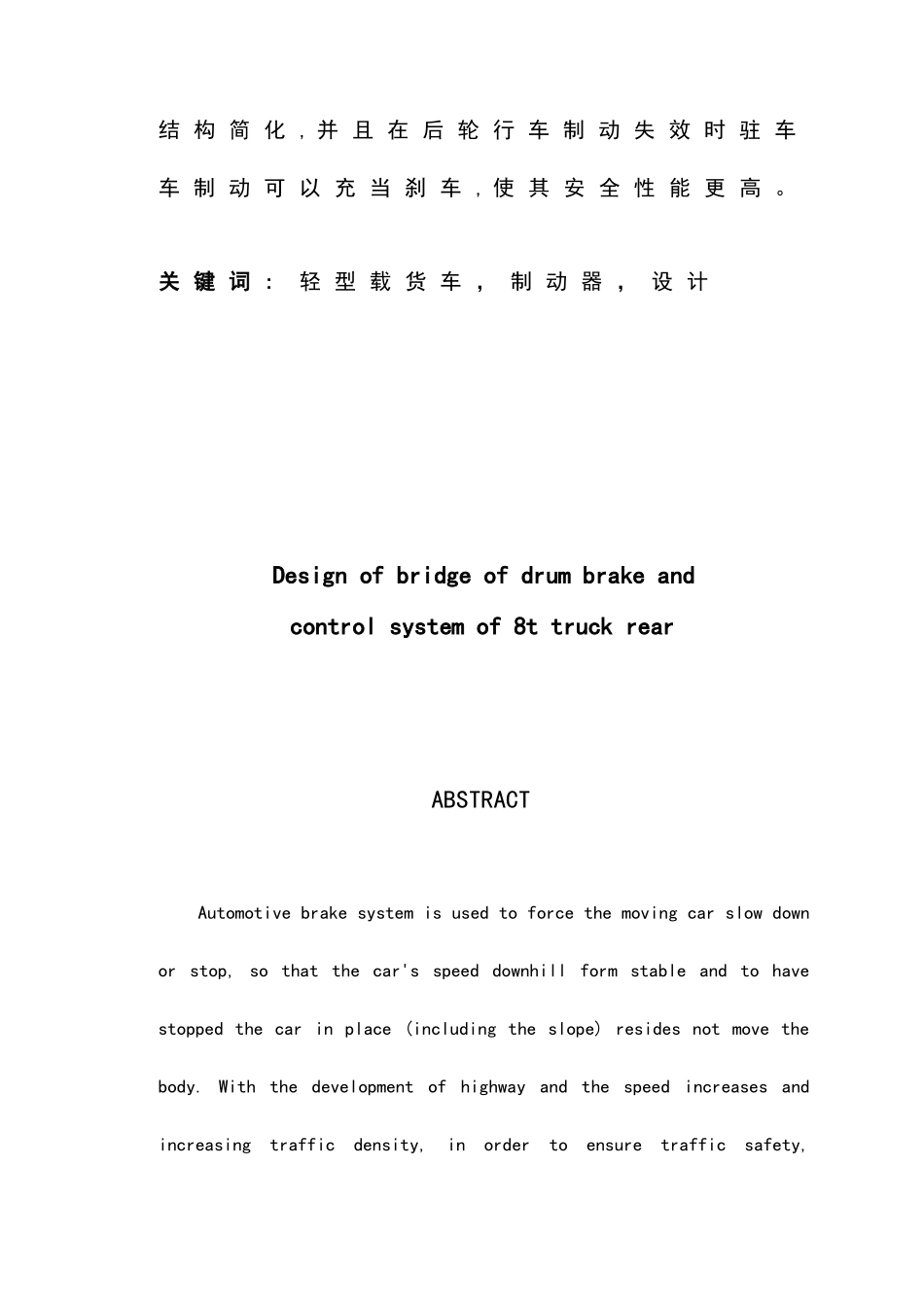

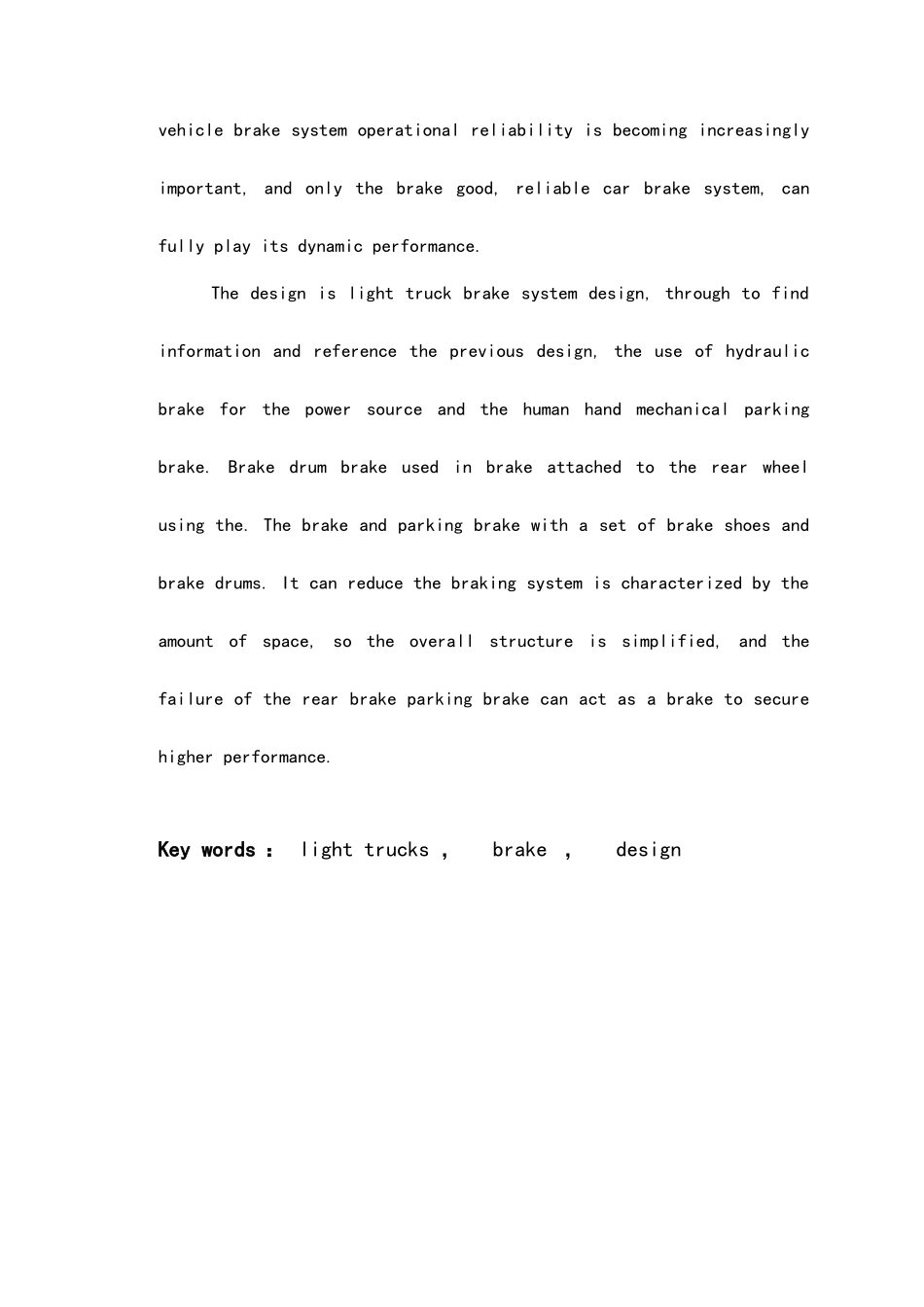

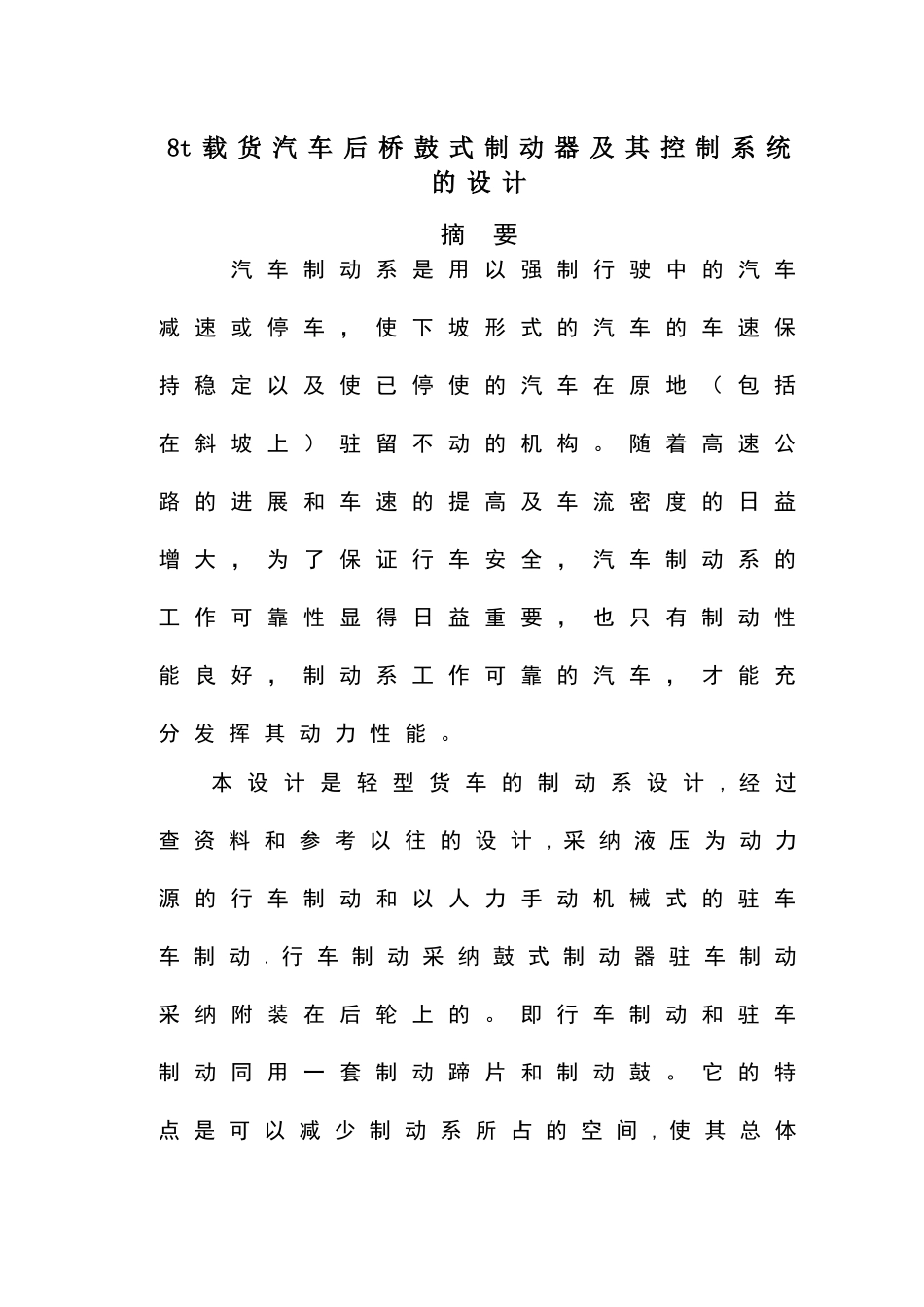

8t 载 货 汽 车 后 桥 鼓 式 制 动 器 及 其 控 制 系 统的 设 计摘 要 汽 车 制 动 系 是 用 以 强 制 行 驶 中 的 汽 车减 速 或 停 车 , 使 下 坡 形 式 的 汽 车 的 车 速 保持 稳 定 以 及 使 已 停 使 的 汽 车 在 原 地 ( 包 括在 斜 坡 上 ) 驻 留 不 动 的 机 构 。 随 着 高 速 公路 的 进 展 和 车 速 的 提 高 及 车 流 密 度 的 日 益增 大 , 为 了 保 证 行 车 安 全 , 汽 车 制 动 系 的工 作 可 靠 性 显 得 日 益 重 要 , 也 只 有 制 动 性能 良 好 , 制 动 系 工 作 可 靠 的 汽 车 , 才 能 充分 发 挥 其 动 力 性 能 。本 设 计 是 轻 型 货 车 的 制 动 系 设 计 , 经 过查 资 料 和 参 考 以 往 的 设 计 , 采 纳 液 压 为 动 力源 的 行 车 制 动 和 以 人 力 手 动 机 械 式 的 驻 车车 制 动 . 行 车 制 动 采 纳 鼓 式 制 动 器 驻 车 制 动采 纳 附 装 在 后 轮 上 的 。 即 行 车 制 动 和 驻 车制 动 同 用 一 套 制 动 蹄 片 和 制 动 鼓 。 它 的 特点 是 可 以 减 少 制 动 系 所 占 的 空 间 , 使 其 总 体结 构 简 化 , 并 且 在 后 轮 行 车 制 动 失 效 时 驻 车车 制 动 可 以 充 当 刹 车 , 使 其 安 全 性 能 更 高 。关 键 词 : 轻 型 载 货 车 , 制 动 器 , 设 计 Design of bridge of drum brake and control system of 8t truck rearABSTRACT Automotive brake system is used to force the moving car slow down or stop, so that the car's speed downhill form stable and to have stopped the car in place (including the slope) resides not move the body. With the development of highway and the speed increases and increasing traffic density, in order to ensure traffic safety, vehicle brake system operational reliability is becoming increasingly important, and only the brake good, reliable car brake syst...
