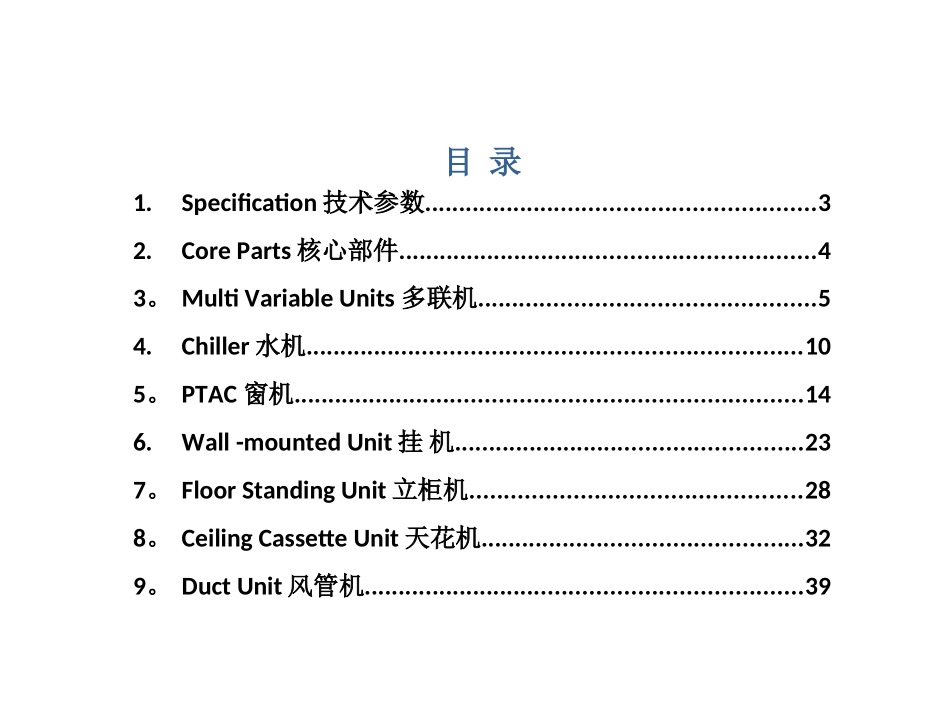

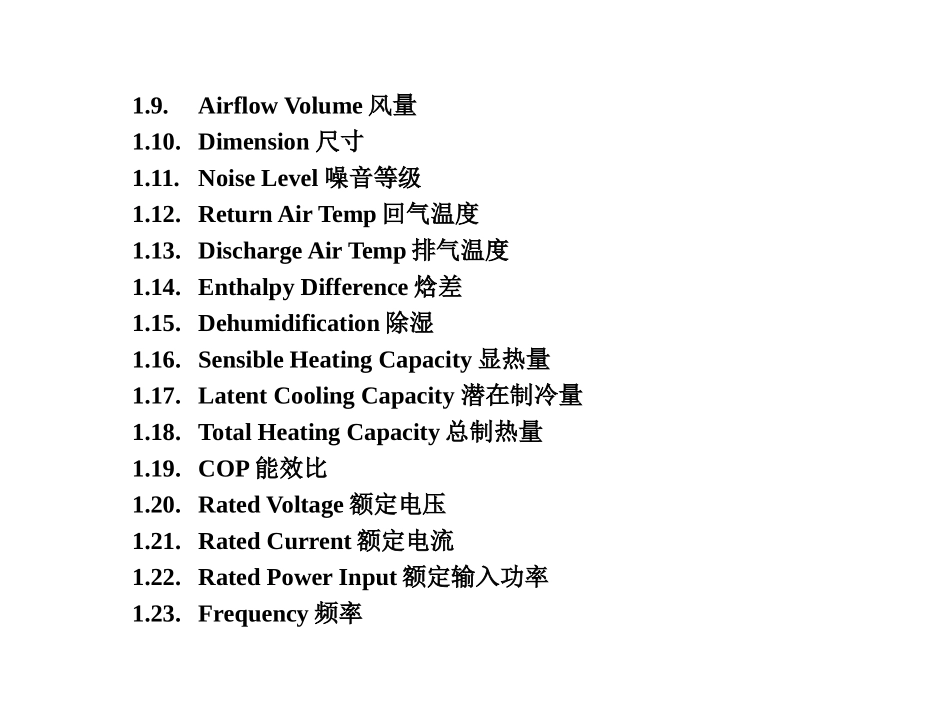

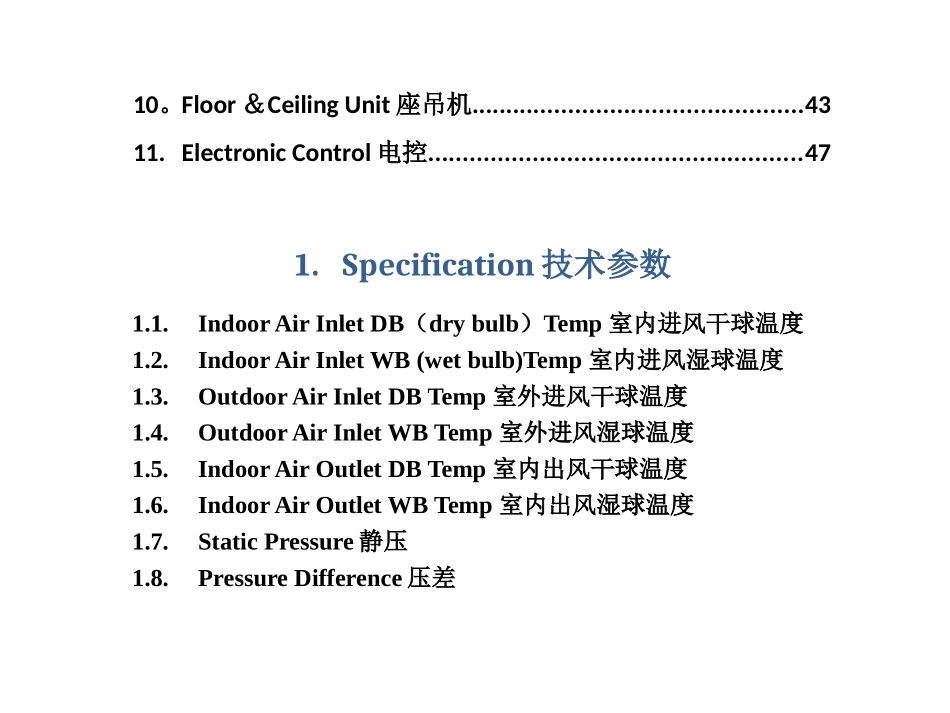

目 录1.Specification 技术参数.........................................................32.Core Parts 核心部件.............................................................43。 Multi Variable Units 多联机.................................................54.Chiller 水机........................................................................105。 PTAC 窗机..........................................................................146.Wall -mounted Unit 挂 机...................................................237。 Floor Standing Unit 立柜机................................................288。 Ceiling Cassette Unit 天花机...............................................329。 Duct Unit 风管机................................................................3910。Floor ＆Ceiling Unit 座吊机................................................4311. Electronic Control 电控......................................................471. Specification 技术参数1.1.Indoor Air Inlet DB（dry bulb）Temp 室内进风干球温度1.2.Indoor Air Inlet WB (wet bulb)Temp 室内进风湿球温度1.3.Outdoor Air Inlet DB Temp 室外进风干球温度1.4.Outdoor Air Inlet WB Temp 室外进风湿球温度1.5.Indoor Air Outlet DB Temp 室内出风干球温度1.6.Indoor Air Outlet WB Temp 室内出风湿球温度1.7.Static Pressure 静压1.8.Pressure Difference 压差1.9.Airflow Volume 风量1.10. Dimension 尺寸1.11. Noise Level 噪音等级1.12. Return Air Temp 回气温度1.13. Discharge Air Temp 排气温度1.14. Enthalpy Difference 焓差1.15. Dehumidification 除湿1.16. Sensible Heating Capacity 显热量1.17. Latent Cooling Capacity 潜在制冷量1.18. Total Heating Capacity 总制热量1.19. COP 能效比1.20. Rated Voltage 额定电压1.21. Rated Current 额定电流1.22. Rated Power Input 额定输入功率1.23. Frequency 频率1.24. Refrigerant Charge 冷媒充注1.25. Net Weight 净重1.26. Gross Weight 毛重1.27. Model 型号2. Core Parts 核心部件2.1.Compressor压缩机2.2.Condens...
