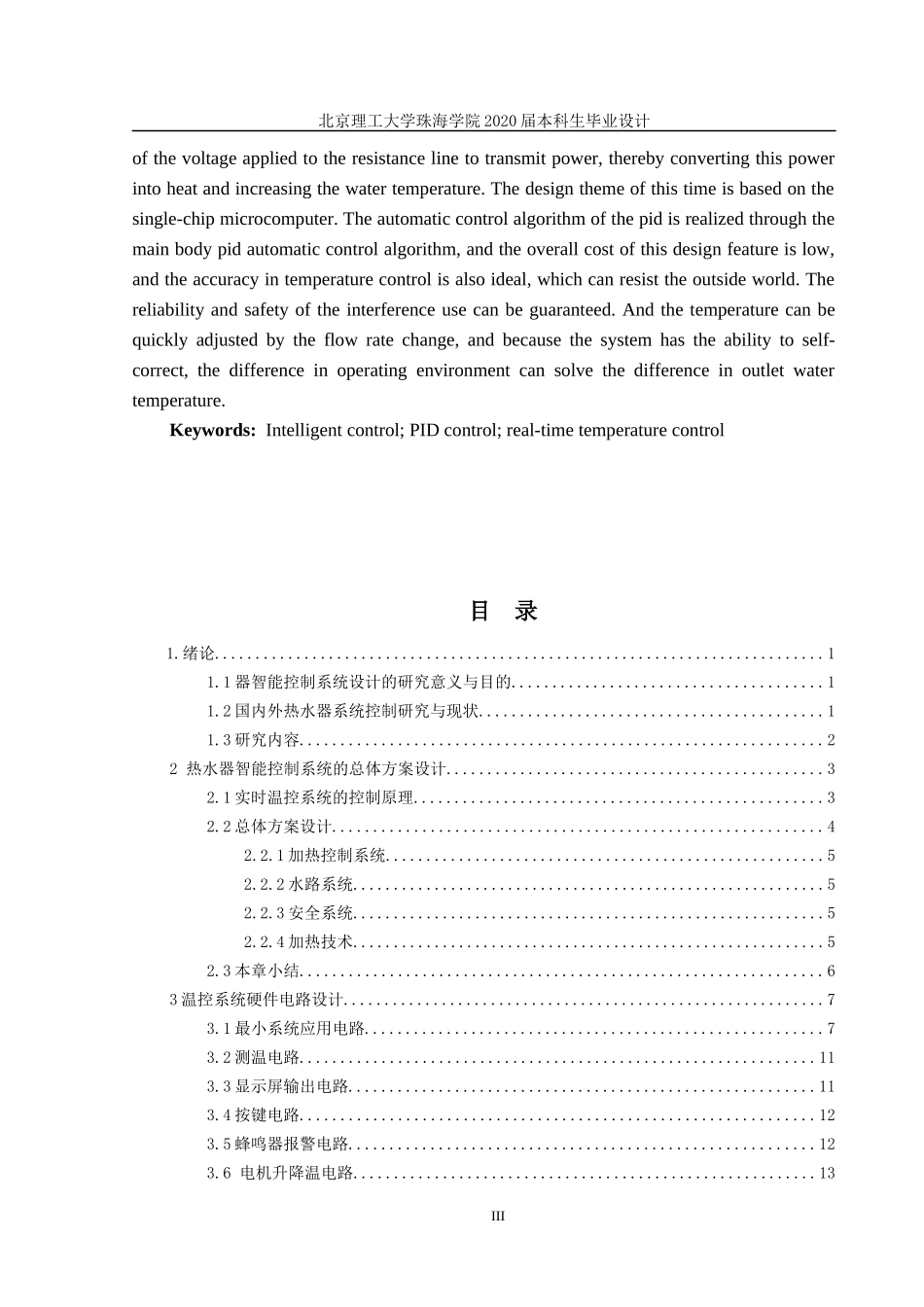

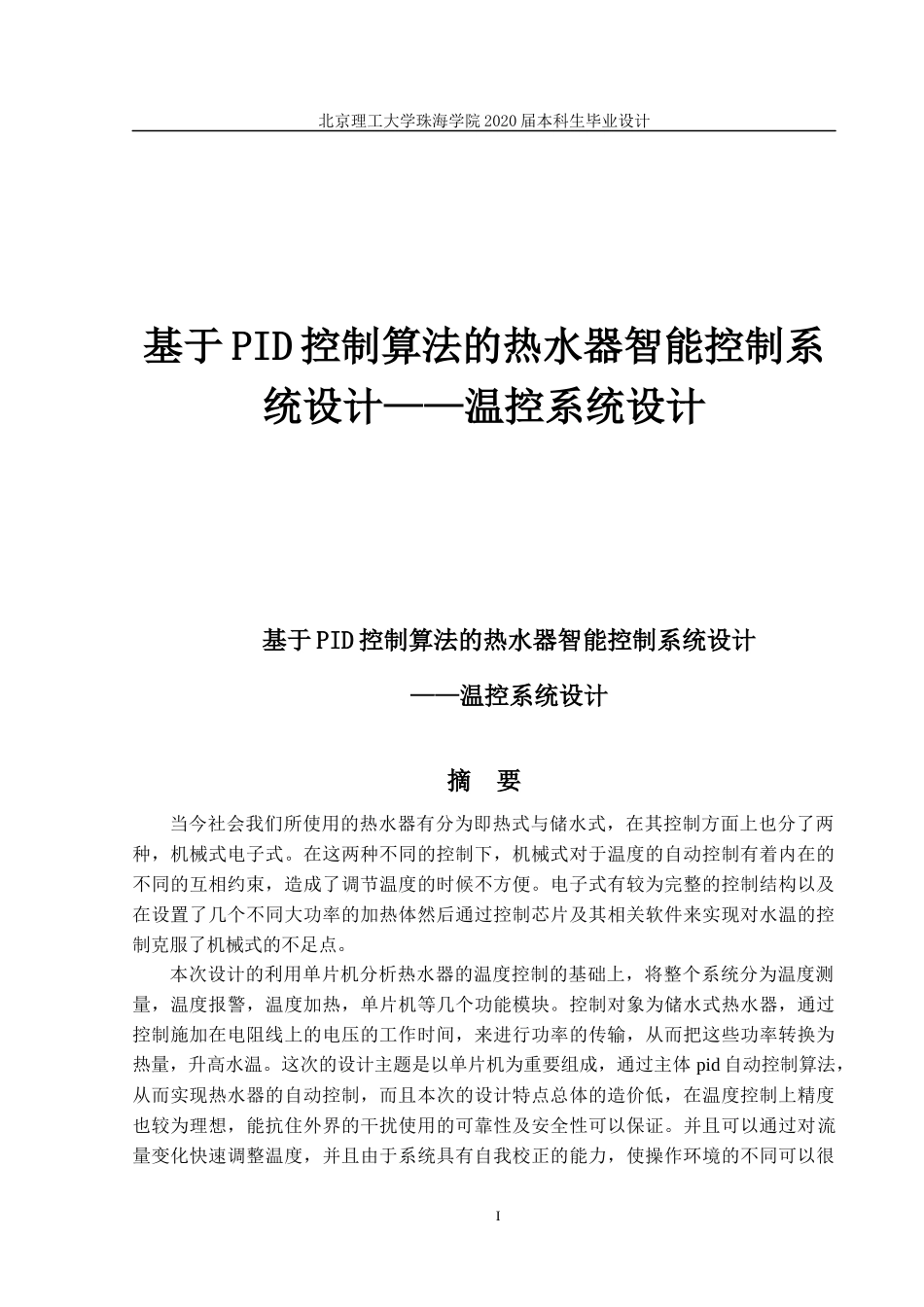

I北京理工大学珠海学院 2020 届本科生毕业设计基于 PID 控制算法的热水器智能控制系统设计——温控系统设计基于 PID 控制算法的热水器智能控制系统设计——温控系统设计摘 要当今社会我们所使用的热水器有分为即热式与储水式,在其控制方面上也分了两种,机械式电子式。在这两种不同的控制下,机械式对于温度的自动控制有着内在的不同的互相约束,造成了调节温度的时候不方便。电子式有较为完整的控制结构以及在设置了几个不同大功率的加热体然后通过控制芯片及其相关软件来实现对水温的控制克服了机械式的不足点。本次设计的利用单片机分析热水器的温度控制的基础上,将整个系统分为温度测量,温度报警,温度加热,单片机等几个功能模块。控制对象为储水式热水器,通过控制施加在电阻线上的电压的工作时间,来进行功率的传输,从而把这些功率转换为热量,升高水温。这次的设计主题是以单片机为重要组成,通过主体 pid 自动控制算法,从而实现热水器的自动控制,而且本次的设计特点总体的造价低,在温度控制上精度也较为理想,能抗住外界的干扰使用的可靠性及安全性可以保证。并且可以通过对流量变化快速调整温度,并且由于系统具有自我校正的能力,使操作环境的不同可以很II北京理工大学珠海学院 2020 届本科生毕业设计好地解决出口水温的差异。关键词:智能控制;PID 控制;实时温控Design of Intelligent Control System of Water Heater Based on PID Control Algorithm——Design of Temperature Control System AbstractIn today's society, the water heaters we use are divided into instant-heating type and water-storage type, and there are also two types in their control, mechanical electronic type. Under these two different controls, the mechanical type has inherently different mutual constraints on the automatic temperature control, which makes it inconvenient when adjusting the temperature. The electronic type has a relatively complete control structure and a number of different high-power heating bodies are installed, and then the water temperature control is achieved through the control chip and related software to overcome the mechanical shortcom...
