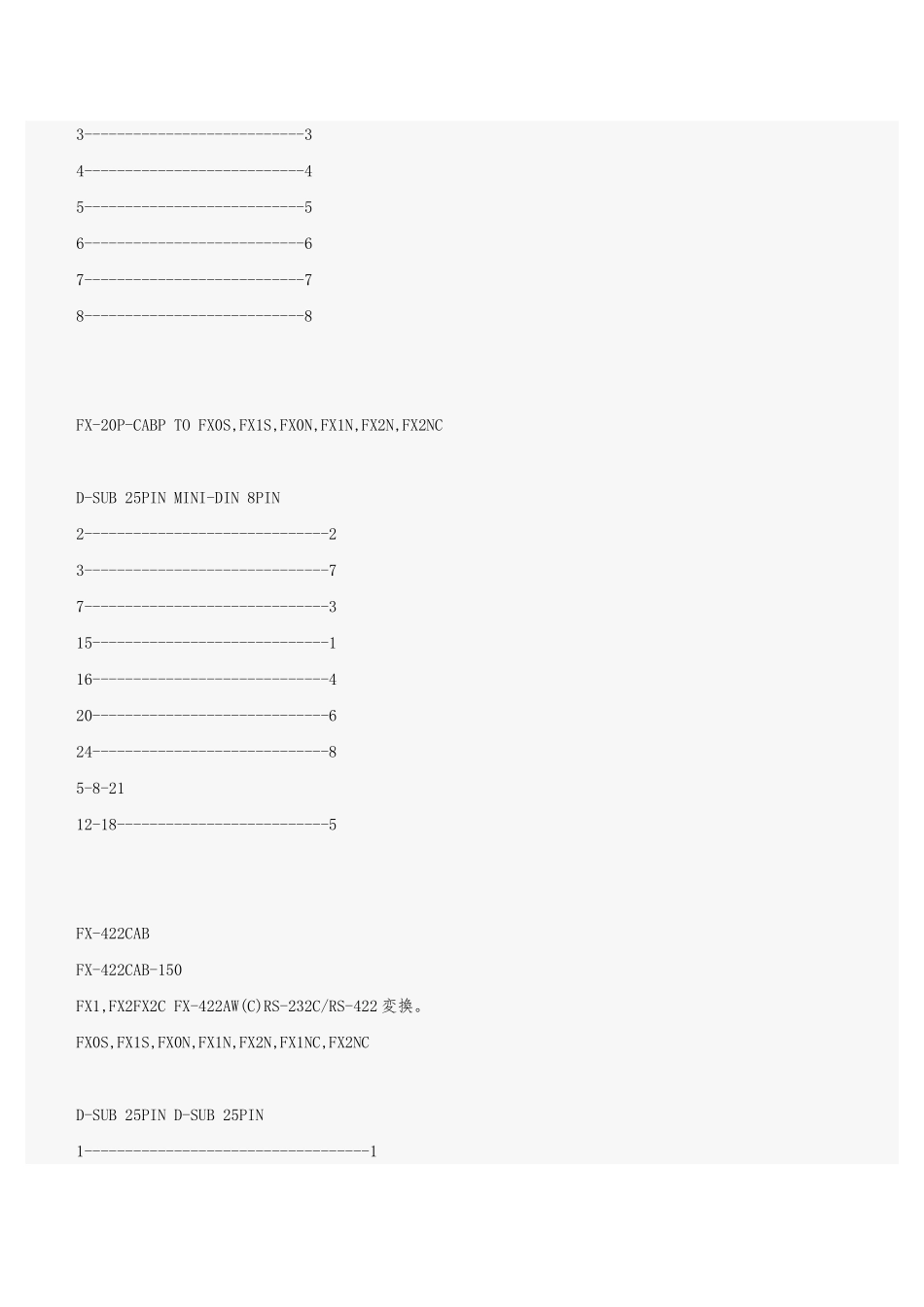

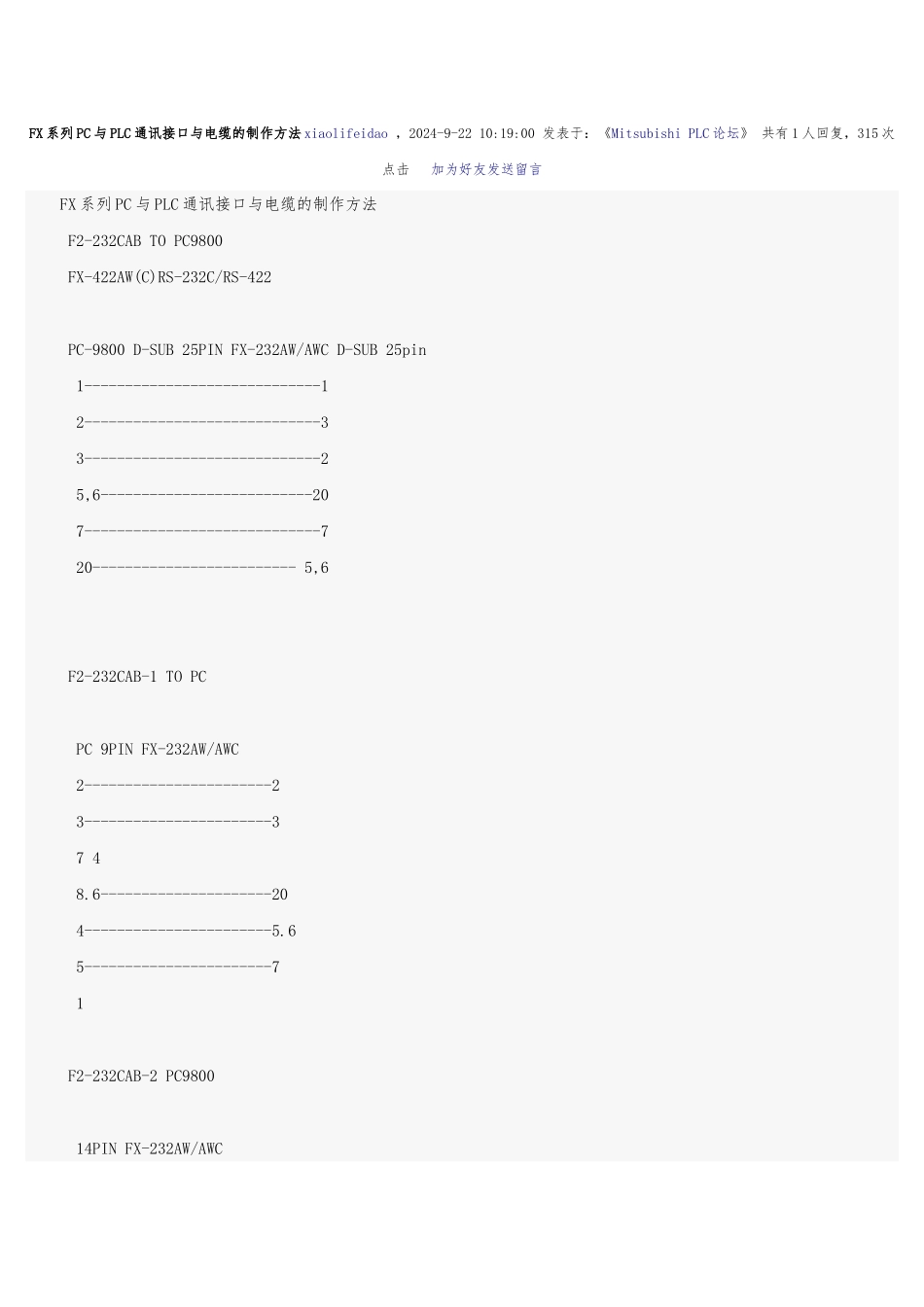

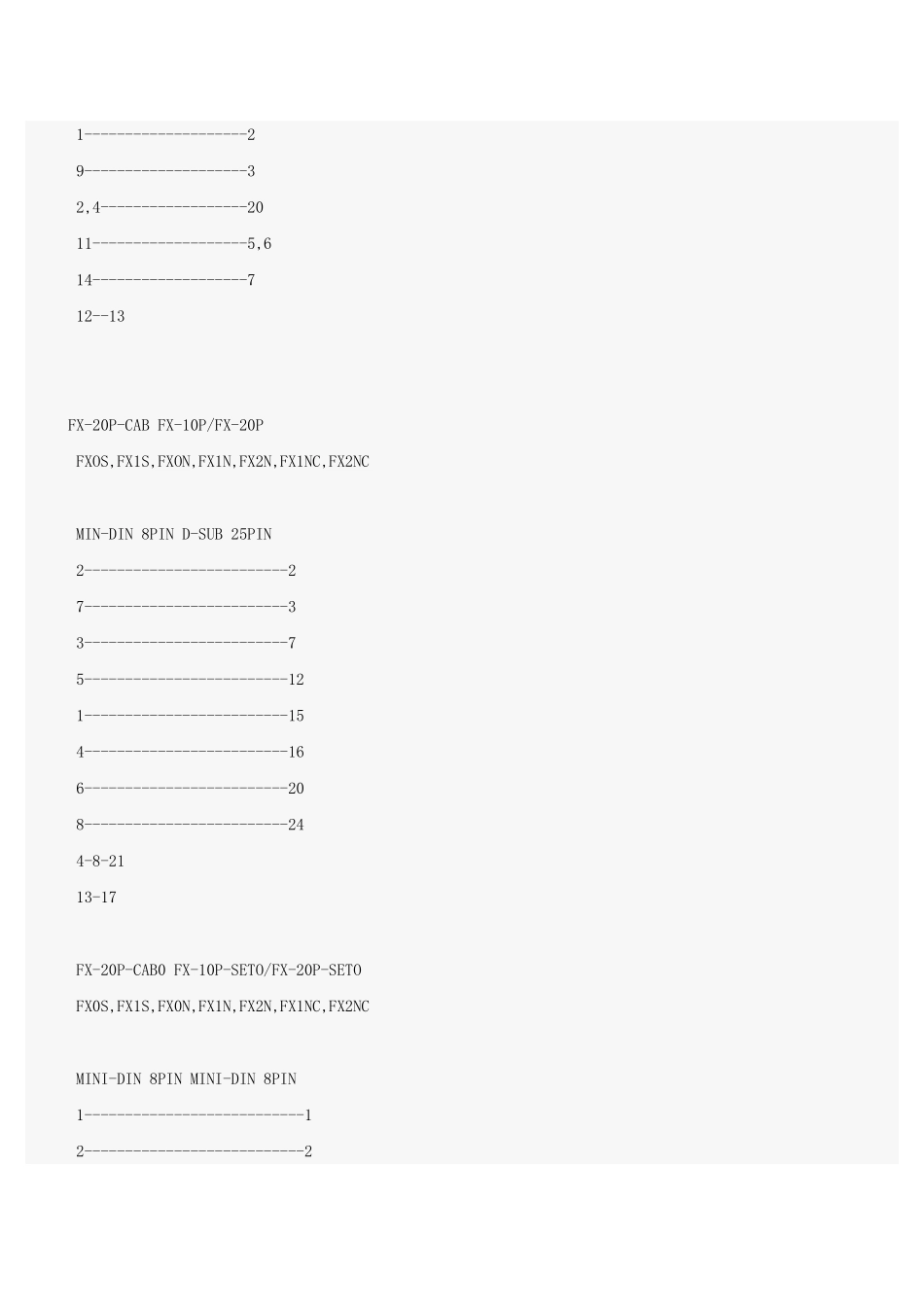

FX 系列 PC 与 PLC 通讯接口与电缆的制作方法 xiaolifeidao ，2024-9-22 10:19:00 发表于：《Mitsubishi PLC 论坛》 共有 1 人回复，315 次点击 加为好友发送留言 FX 系列 PC 与 PLC 通讯接口与电缆的制作方法 F2-232CAB TO PC9800 FX-422AW(C)RS-232C/RS-422 PC-9800 D-SUB 25PIN FX-232AW/AWC D-SUB 25pin 1-----------------------------1 2-----------------------------3 3-----------------------------2 5,6--------------------------20 7-----------------------------7 20------------------------- 5,6 F2-232CAB-1 TO PC PC 9PIN FX-232AW/AWC 2-----------------------2 3-----------------------3 7 4 8.6---------------------20 4-----------------------5.6 5-----------------------7 1 F2-232CAB-2 PC9800 14PIN FX-232AW/AWC 1--------------------2 9--------------------3 2,4------------------20 11-------------------5,6 14-------------------7 12--13 FX-20P-CAB FX-10P/FX-20P FXOS,FX1S,FXON,FX1N,FX2N,FX1NC,FX2NC MIN-DIN 8PIN D-SUB 25PIN 2-------------------------2 7-------------------------3 3-------------------------7 5-------------------------12 1-------------------------15 4-------------------------16 6-------------------------20 8-------------------------24 4-8-21 13-17 FX-20P-CAB0 FX-10P-SETO/FX-20P-SETO FX0S,FX1S,FX0N,FX1N,FX2N,FX1NC,FX2NC MINI-DIN 8PIN MINI-DIN 8PIN 1---------------------------1 2---------------------------2 3---------------------------3 4---------------------------4 5---------------------------5 6---------------------------6 7---------------------------7 8---------------------------8 FX-20P-CABP TO FX0S,FX1S,FX0N,FX1N,FX2N,FX2NC D-SUB 25PIN MINI-DIN 8PIN 2------------------------------2 3------------------------------7 7------------------------------3 15-----------------------------1 16-----------------------------4 20-----------------------------6 24-----------------------------8 5-8-21 12-18--------------------------5 FX-422CAB FX-422CAB-150 FX1,FX2FX2C FX-422AW(C)RS-...
