矢量控制的异步电动机调速系统的仿真设计说明

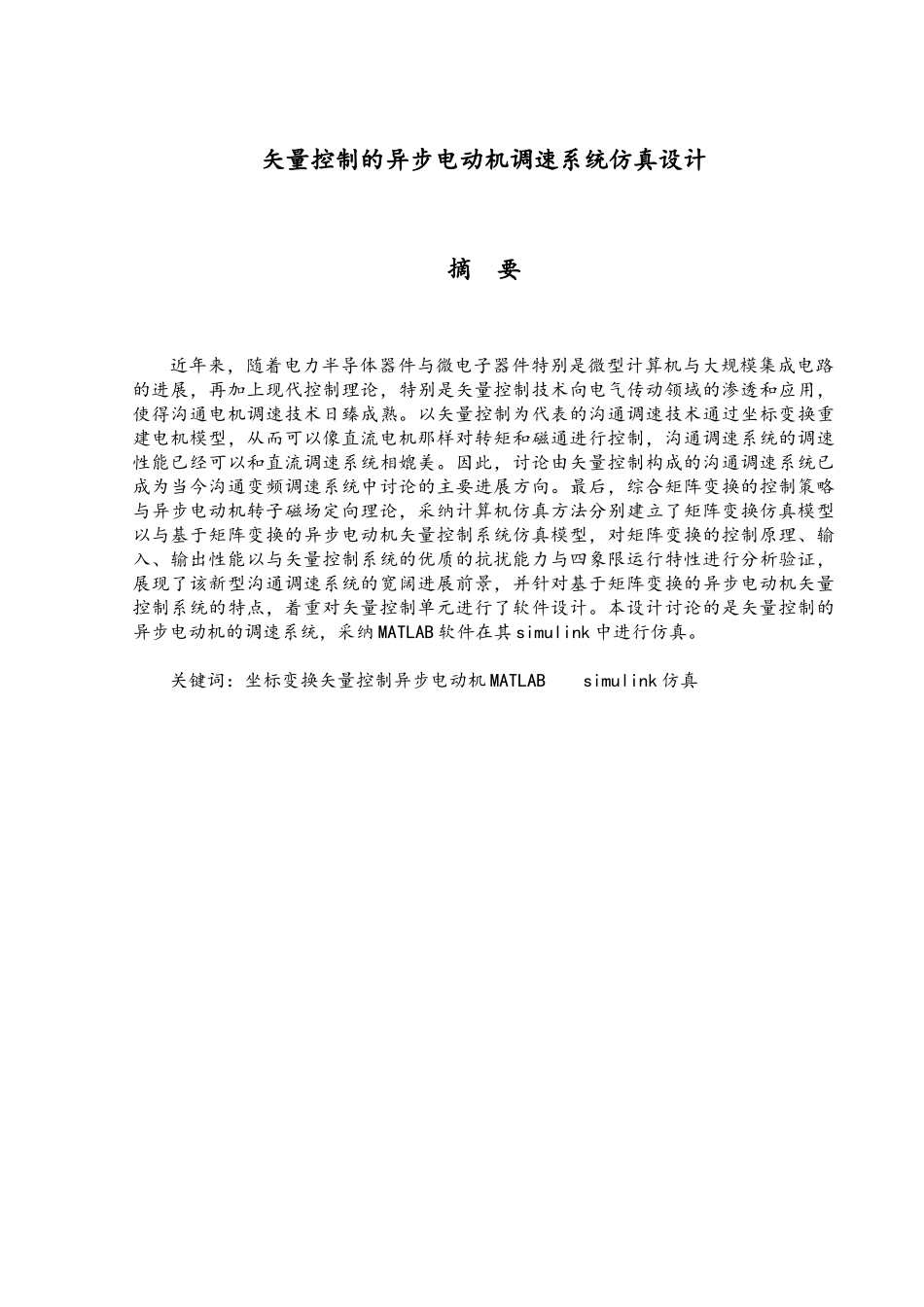

矢量控制的异步电动机调速系统的仿真设计说明_第1页
1/33

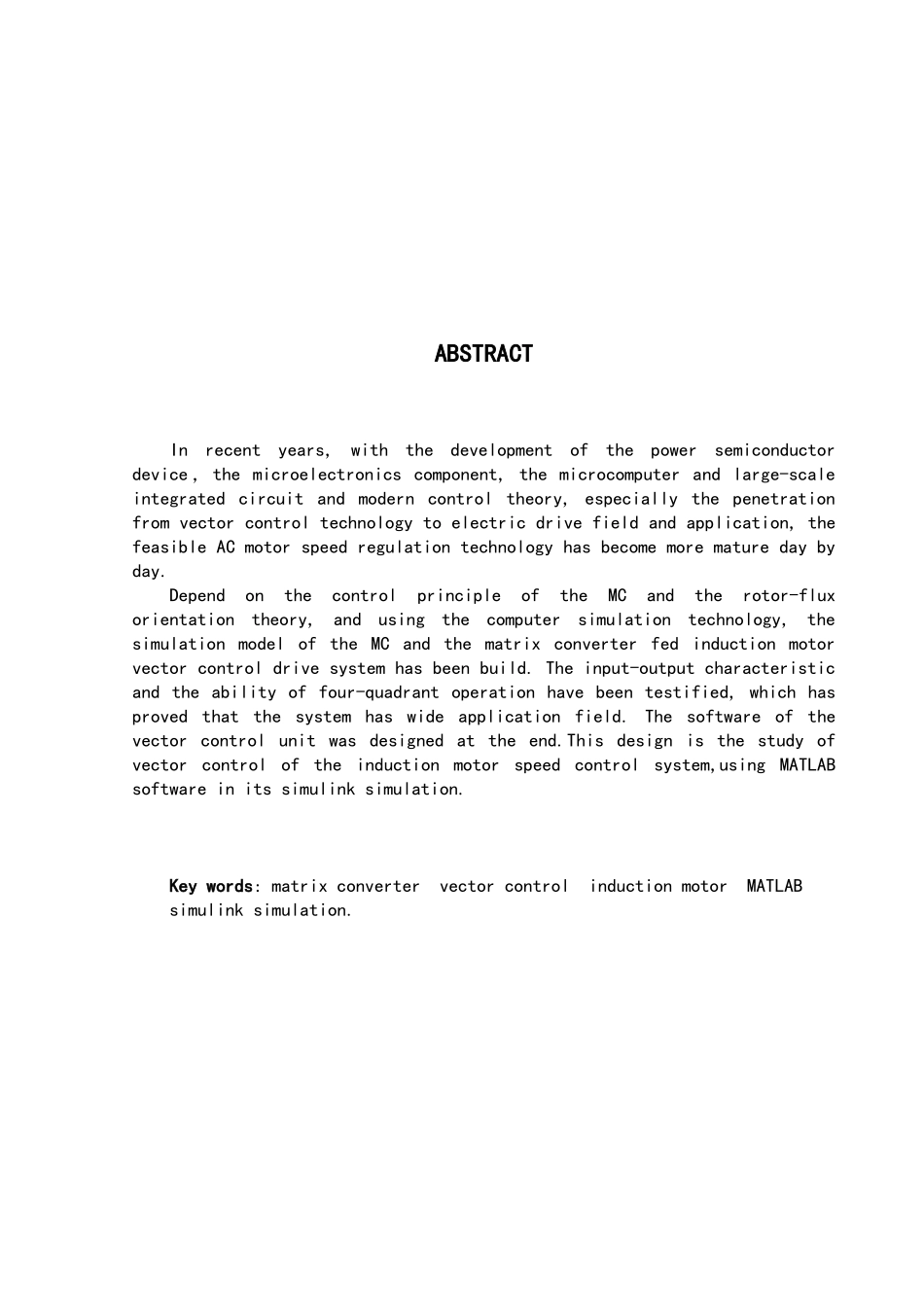

矢量控制的异步电动机调速系统的仿真设计说明_第2页
2/33

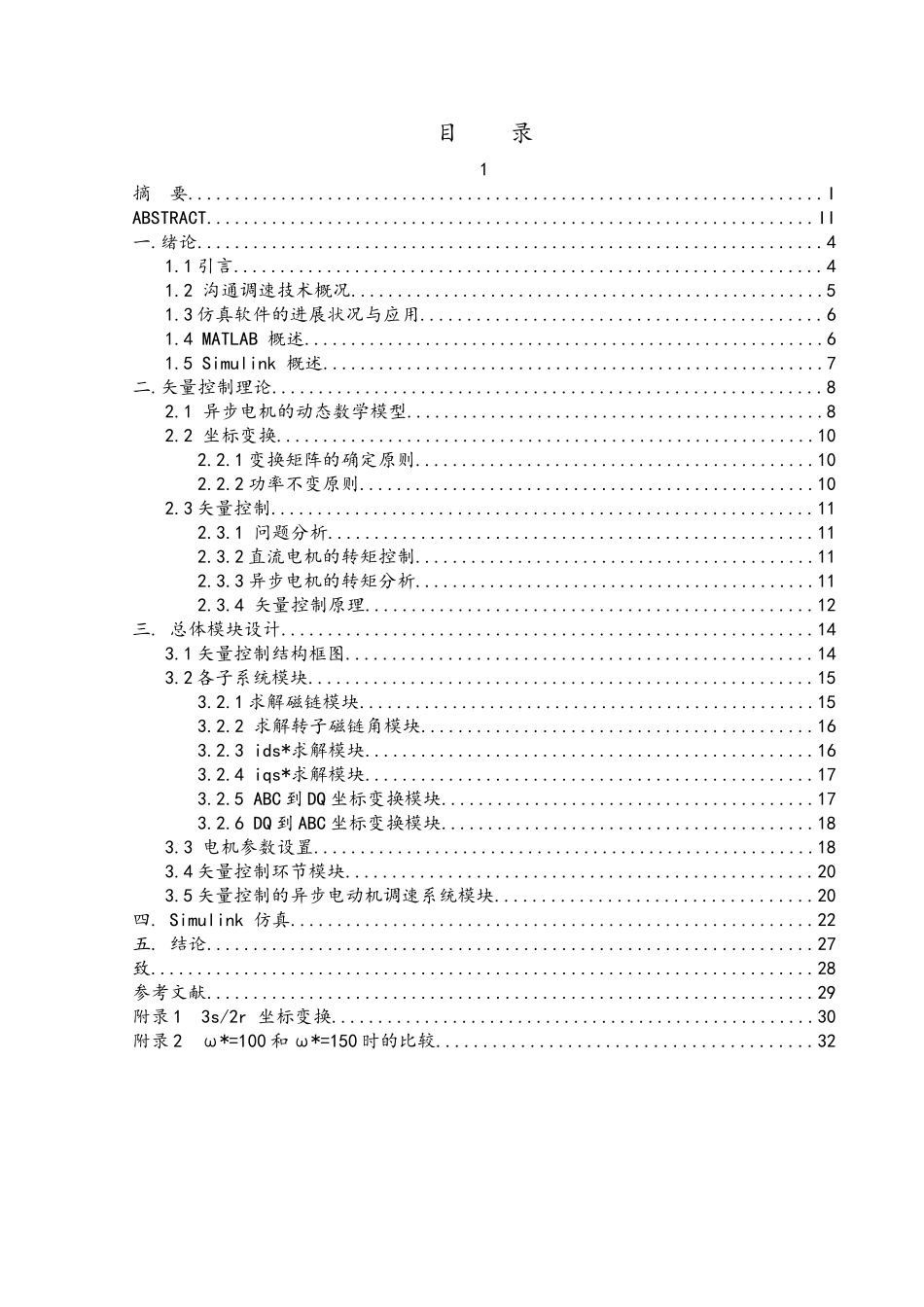

矢量控制的异步电动机调速系统的仿真设计说明_第3页
3/33
矢量控制的异步电动机调速系统仿真设计摘 要近年来,随着电力半导体器件与微电子器件特别是微型计算机与大规模集成电路的进展,再加上现代控制理论,特别是矢量控制技术向电气传动领域的渗透和应用,使得沟通电机调速技术日臻成熟。以矢量控制为代表的沟通调速技术通过坐标变换重建电机模型,从而可以像直流电机那样对转矩和磁通进行控制,沟通调速系统的调速性能已经可以和直流调速系统相媲美。因此,讨论由矢量控制构成的沟通调速系统已成为当今沟通变频调速系统中讨论的主要进展方向。最后,综合矩阵变换的控制策略与异步电动机转子磁场定向理论,采纳计算机仿真方法分别建立了矩阵变换仿真模型以与基于矩阵变换的异步电动机矢量控制系统仿真模型,对矩阵变换的控制原理、输入、输出性能以与矢量控制系统的优质的抗扰能力与四象限运行特性进行分析验证,展现了该新型沟通调速系统的宽阔进展前景,并针对基于矩阵变换的异步电动机矢量控制系统的特点,着重对矢量控制单元进行了软件设计。本设计讨论的是矢量控制的异步电动机的调速系统,采纳 MATLAB 软件在其 simulink 中进行仿真。关键词:坐标变换矢量控制异步电动机 MATLAB simulink 仿真ABSTRACTIn recent years, with the development of the power semiconductor device , the microelectronics component, the microcomputer and large-scale integrated circuit and modern control theory, especially the penetration from vector control technology to electric drive field and application, the feasible AC motor speed regulation technology has become more mature day by day.Depend on the control principle of the MC and the rotor-flux orientation theory, and using the computer simulation technology, the simulation model of the MC and the matrix converter fed induction motor vector control drive system has been build. The input-output characteristic and the ability of four-quadrant operation have been testified, which has proved that the system has wide application field. The software of the vector control unit was designed at the end.This design is the study of vector control...
