110kV商桥-柳村架空送电线路设计 电气自动化专业

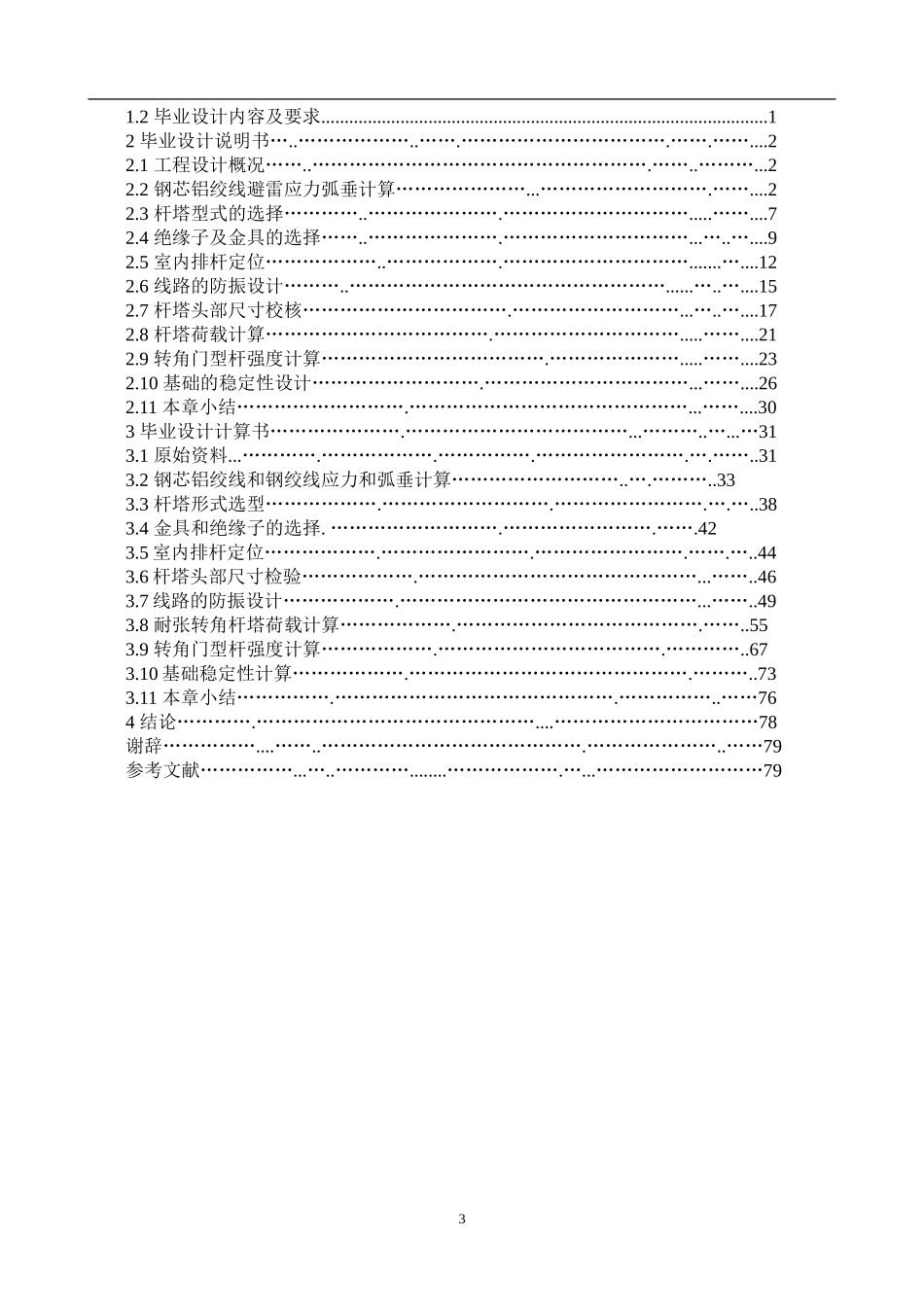

110kV商桥-柳村架空送电线路设计  电气自动化专业_第1页
1/61

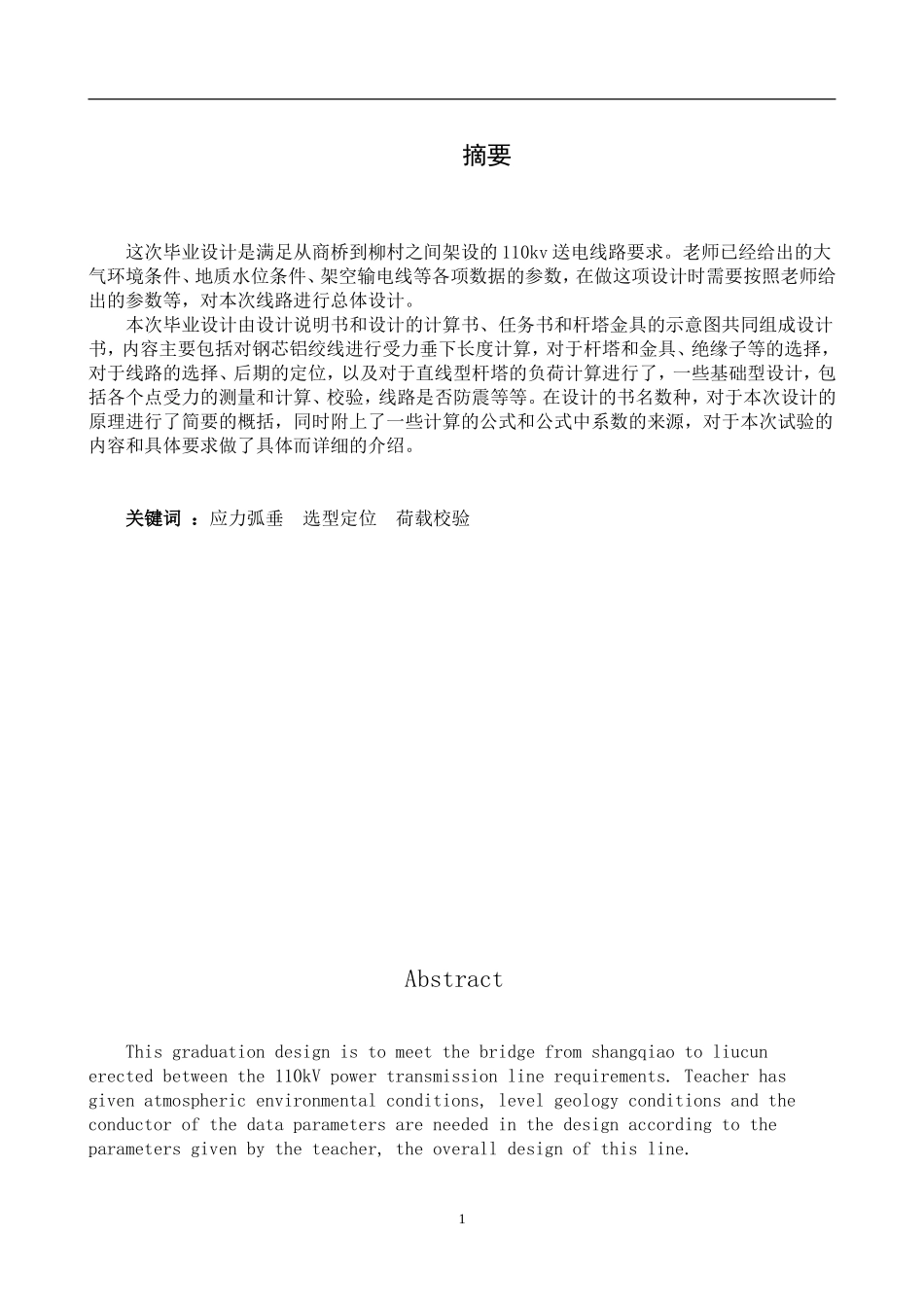

110kV商桥-柳村架空送电线路设计  电气自动化专业_第2页
2/61
110kV商桥-柳村架空送电线路设计  电气自动化专业_第3页
3/61
摘要这次毕业设计是满足从商桥到柳村之间架设的 110kv 送电线路要求。老师已经给出的大气环境条件、地质水位条件、架空输电线等各项数据的参数,在做这项设计时需要按照老师给出的参数等,对本次线路进行总体设计。本次毕业设计由设计说明书和设计的计算书、任务书和杆塔金具的示意图共同组成设计书,内容主要包括对钢芯铝绞线进行受力垂下长度计算,对于杆塔和金具、绝缘子等的选择,对于线路的选择、后期的定位,以及对于直线型杆塔的负荷计算进行了,一些基础型设计,包括各个点受力的测量和计算、校验,线路是否防震等等。在设计的书名数种,对于本次设计的原理进行了简要的概括,同时附上了一些计算的公式和公式中系数的来源,对于本次试验的内容和具体要求做了具体而详细的介绍。关键词 :应力弧垂 选型定位 荷载校验 AbstractThis graduation design is to meet the bridge from shangqiao to liucun erected between the 110kV power transmission line requirements. Teacher has given atmospheric environmental conditions, level geology conditions and the conductor of the data parameters are needed in the design according to the parameters given by the teacher, the overall design of this line.1This graduation design is composed by the design book and the design specification.. Calculations, the mission statement and tower hardware schematic diagram composed of book design, mainly including the leads should stress sag calculation for tower and fittings, choice, for line selection, the late positioning, and for tangent tower load calculation of, some basic design, including force measurement and calculation, check each point, the line is shockproof and so on. In the design of the title of a number, for the principle of the design were briefly, at the same time, attach the source of some computational formula and coefficient of, for the test contents and specific requirements for the detailed introduction.Key words: Stress camber Tower Location Load check...
