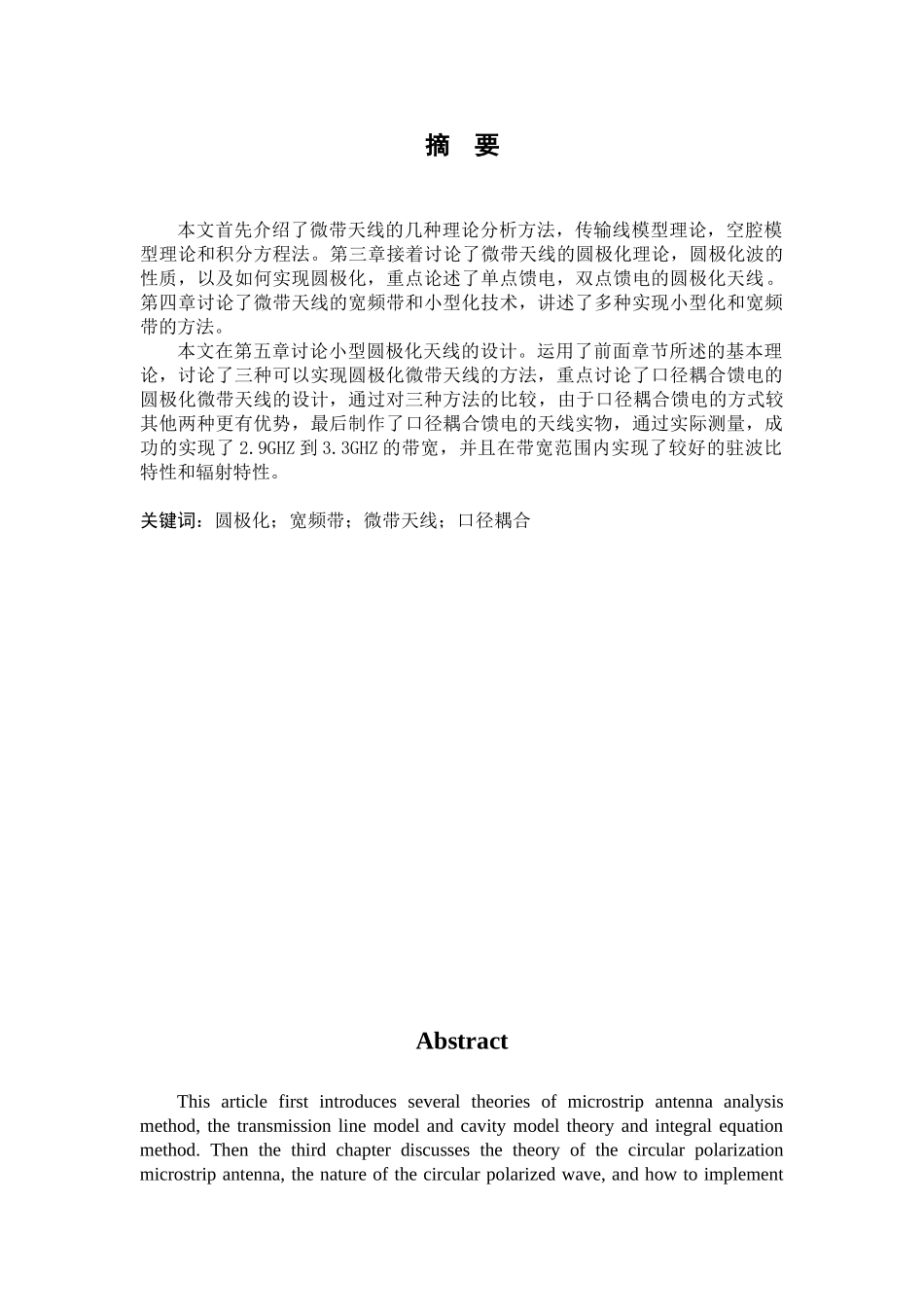

口径耦合宽频圆极化天线设计学士学位论文_第2页
2/33

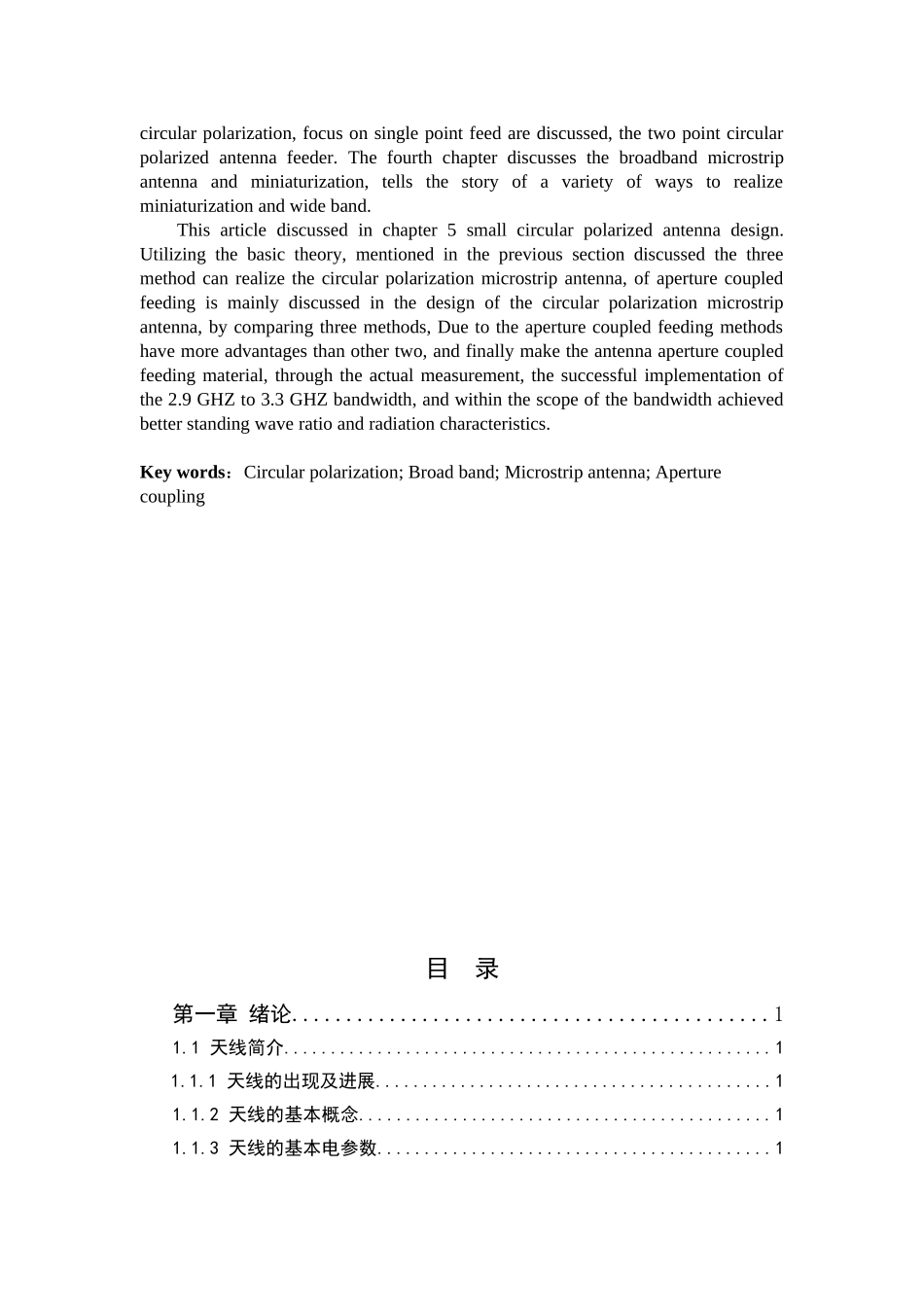

口径耦合宽频圆极化天线设计学士学位论文_第3页
3/33
提供全套毕业设计,各专业都有编号: 题 目: 口径耦合 圆极化微带天线设计 学 院: 专 业: 学生姓名: 学 号: 指导老师单位: 姓 名: 职 称: 题目类型: 理论讨论 实验讨论 √工程设计 工程技术讨论 软件开发 2025 年 12 月 25 日摘 要本文首先介绍了微带天线的几种理论分析方法,传输线模型理论,空腔模型理论和积分方程法。第三章接着讨论了微带天线的圆极化理论,圆极化波的性质,以及如何实现圆极化,重点论述了单点馈电,双点馈电的圆极化天线。第四章讨论了微带天线的宽频带和小型化技术,讲述了多种实现小型化和宽频带的方法。本文在第五章讨论小型圆极化天线的设计。运用了前面章节所述的基本理论,讨论了三种可以实现圆极化微带天线的方法,重点讨论了口径耦合馈电的圆极化微带天线的设计,通过对三种方法的比较,由于口径耦合馈电的方式较其他两种更有优势,最后制作了口径耦合馈电的天线实物,通过实际测量,成功的实现了 2.9GHZ 到 3.3GHZ 的带宽,并且在带宽范围内实现了较好的驻波比特性和辐射特性。关键词:圆极化;宽频带;微带天线;口径耦合AbstractThis article first introduces several theories of microstrip antenna analysis method, the transmission line model and cavity model theory and integral equation method. Then the third chapter discusses the theory of the circular polarization microstrip antenna, the nature of the circular polarized wave, and how to implement circular polarization, focus on single point feed are discussed, the two point circular polarized antenna feeder. The fourth chapter discusses the broadband microstrip antenna and miniaturization, tells the story of a variety of ways to realize miniaturization and wide band. This article discussed in chapter 5 small circular polarized antenna design. Utilizing the basic theory, mentioned in the previous section discussed the three method can realize the circular polarization microstrip antenna, of aperture coupled feeding is mainly discussed in the design of the circular polarization microstrip...
