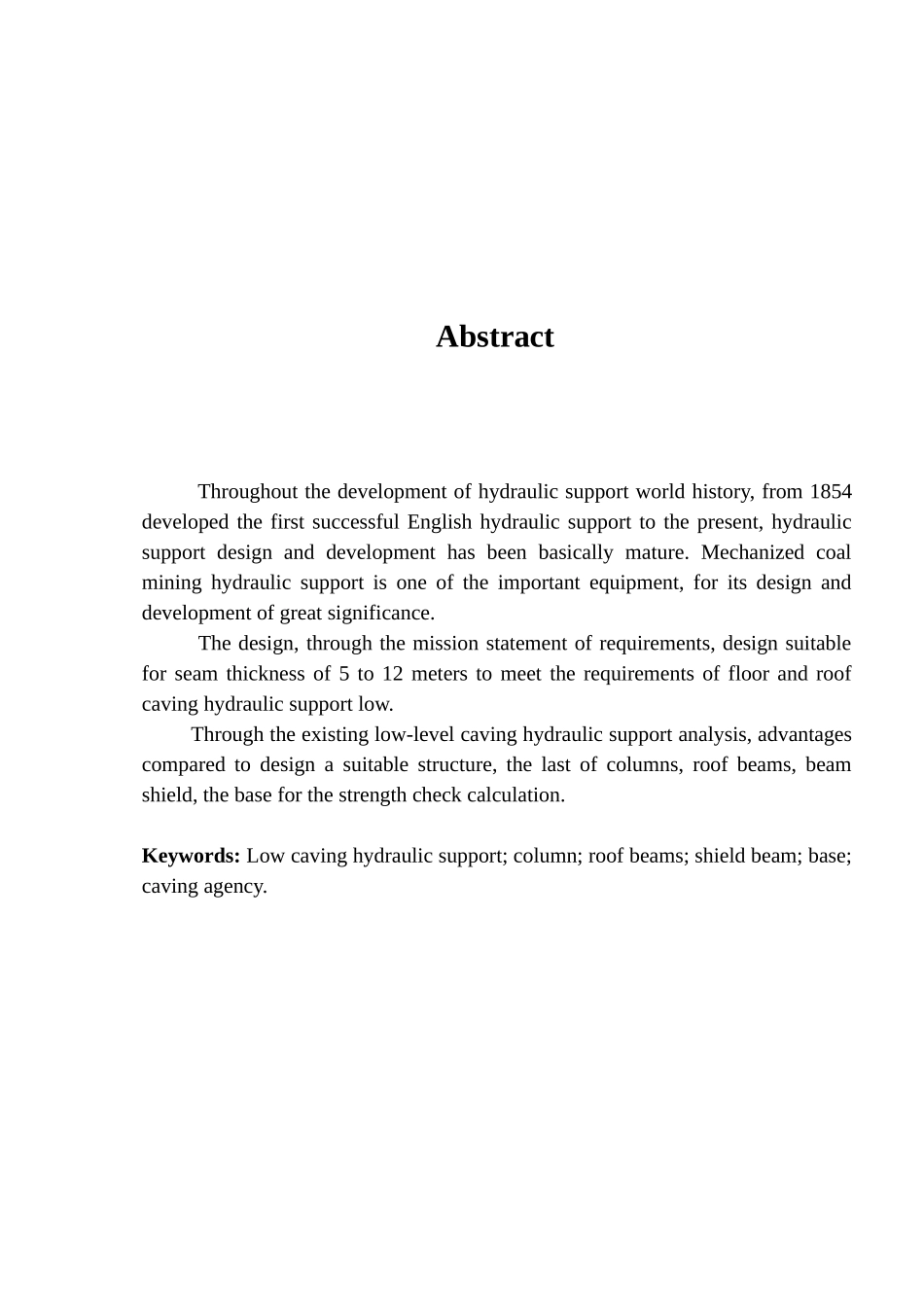

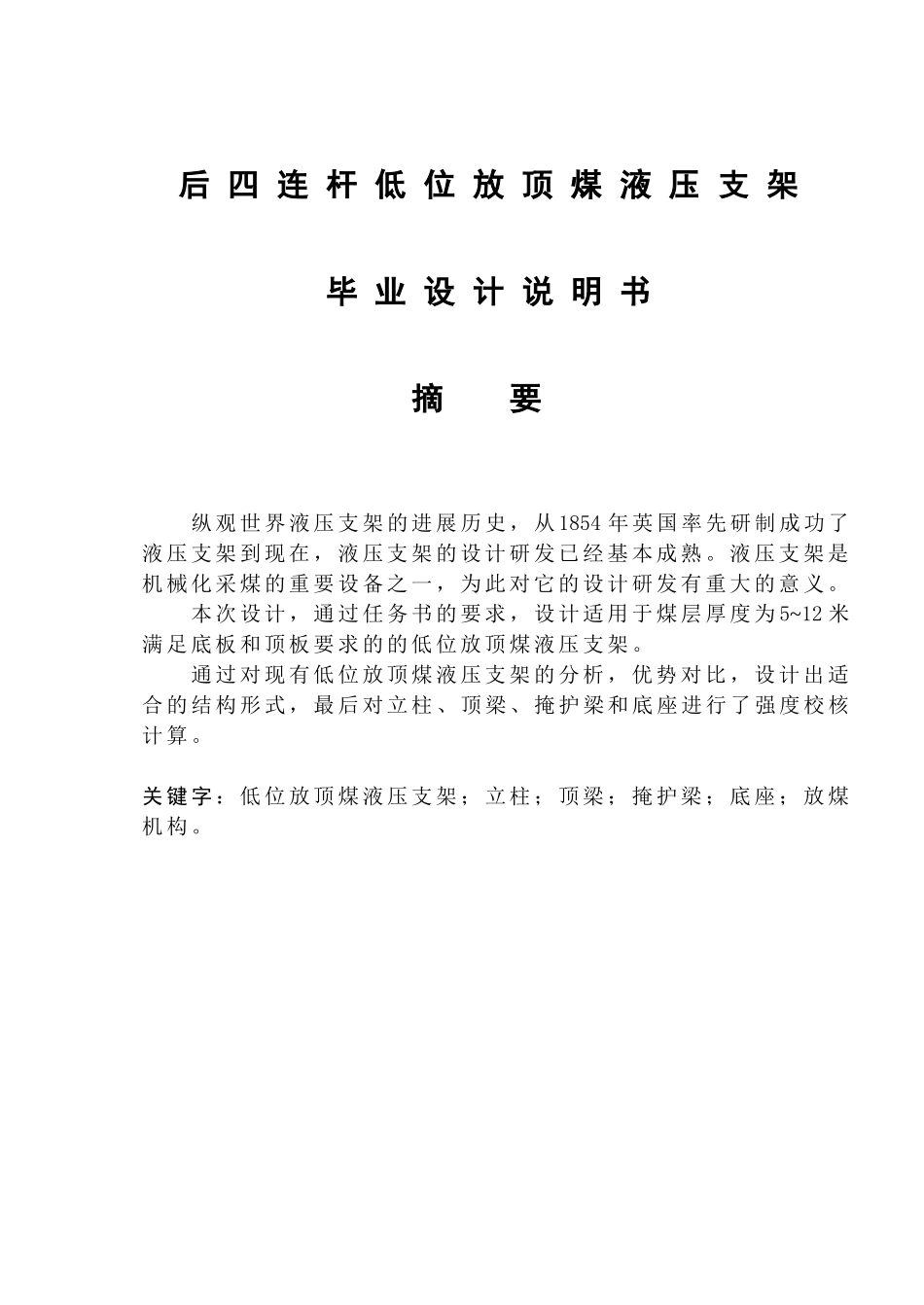

后 四 连 杆 低 位 放 顶 煤 液 压 支 架毕 业 设 计 说 明 书摘 要 纵 观 世 界 液 压 支 架 的 进 展 历 史 , 从 1854 年 英 国 率 先 研 制 成 功 了液 压 支 架 到 现 在 , 液 压 支 架 的 设 计 研 发 已 经 基 本 成 熟 。 液 压 支 架 是机 械 化 采 煤 的 重 要 设 备 之 一 , 为 此 对 它 的 设 计 研 发 有 重 大 的 意 义 。本 次 设 计 , 通 过 任 务 书 的 要 求 , 设 计 适 用 于 煤 层 厚 度 为 5~12 米满 足 底 板 和 顶 板 要 求 的 的 低 位 放 顶 煤 液 压 支 架 。通 过 对 现 有 低 位 放 顶 煤 液 压 支 架 的 分 析 , 优 势 对 比 , 设 计 出 适合 的 结 构 形 式 , 最 后 对 立 柱 、 顶 梁 、 掩 护 梁 和 底 座 进 行 了 强 度 校 核计 算 。关 键 字 : 低 位 放 顶 煤 液 压 支 架 ; 立 柱 ; 顶 梁 ; 掩 护 梁 ; 底 座 ; 放 煤机 构 。 Abstract Throughout the development of hydraulic support world history, from 1854 developed the first successful English hydraulic support to the present, hydraulic support design and development has been basically mature. Mechanized coal mining hydraulic support is one of the important equipment, for its design and development of great significance. The design, through the mission statement of requirements, design suitable for seam thickness of 5 to 12 meters to meet the requirements of floor and roof caving hydraulic support low.Through the existing low-level caving hydraulic support analysis, advantages compared to design a suitable structure, the last of columns, roof beams, beam shield, the base for the strength check calculation.Keywords: Low caving hydraulic support; column; roof beams; shield beam; base; caving agency.目 录 摘 要 .....................................................................
