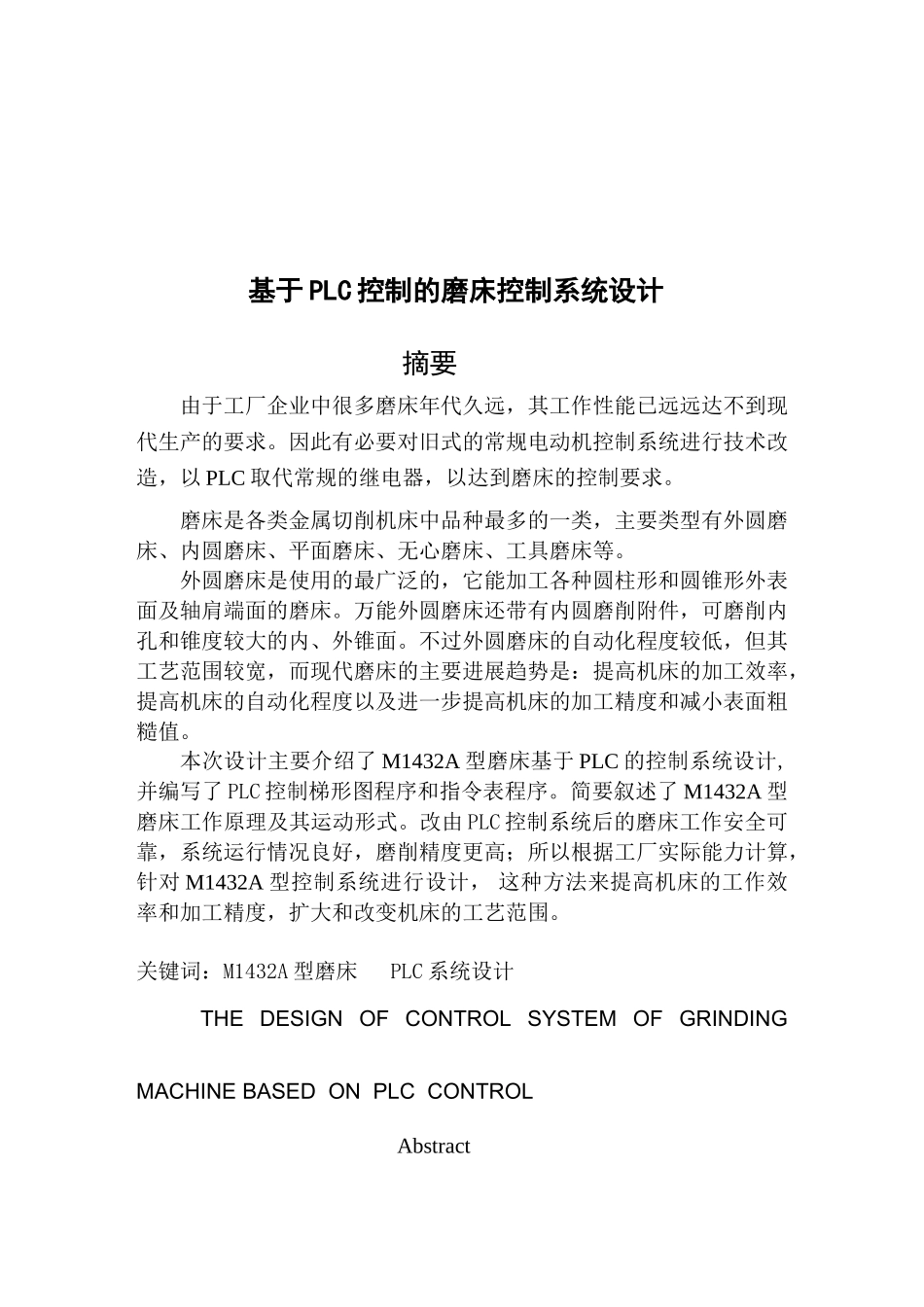

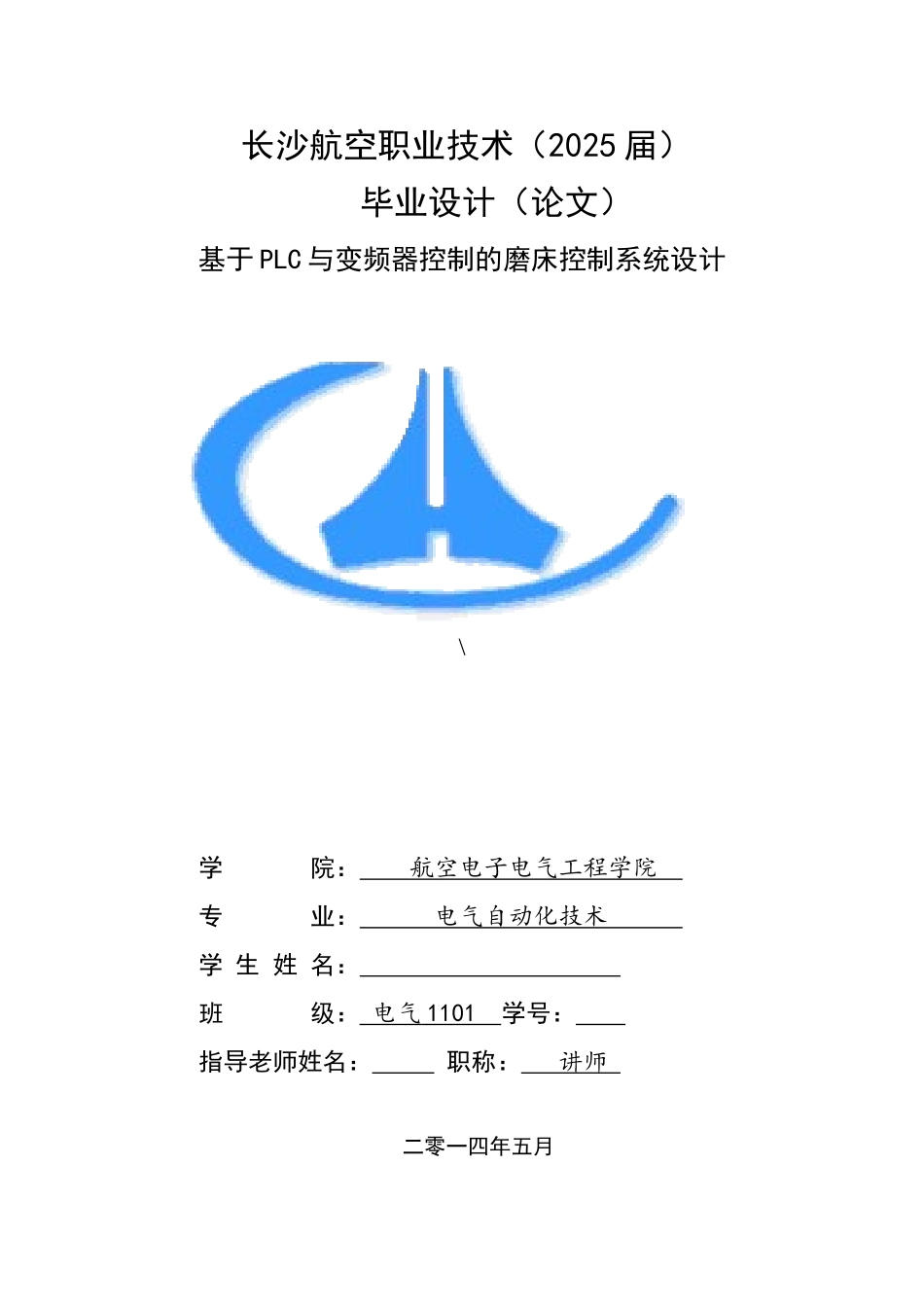

长沙航空职业技术(2025 届) 毕业设计(论文)基于 PLC 与变频器控制的磨床控制系统设计\ 学 院: 航空电子电气工程学院 专 业: 电气自动化技术 学 生 姓 名: 班 级: 电气 1101 学号: 指导老师姓名: 职称: 讲师 二零一四年五月基于 PLC 控制的磨床控制系统设计摘要由于工厂企业中很多磨床年代久远,其工作性能已远远达不到现代生产的要求。因此有必要对旧式的常规电动机控制系统进行技术改造,以 PLC 取代常规的继电器,以达到磨床的控制要求。磨床是各类金属切削机床中品种最多的一类,主要类型有外圆磨床、内圆磨床、平面磨床、无心磨床、工具磨床等。外圆磨床是使用的最广泛的,它能加工各种圆柱形和圆锥形外表面及轴肩端面的磨床。万能外圆磨床还带有内圆磨削附件,可磨削内孔和锥度较大的内、外锥面。不过外圆磨床的自动化程度较低,但其工艺范围较宽,而现代磨床的主要进展趋势是:提高机床的加工效率,提高机床的自动化程度以及进一步提高机床的加工精度和减小表面粗糙值。本次设计主要介绍了 M1432A 型磨床基于 PLC 的控制系统设计,并编写了 PLC 控制梯形图程序和指令表程序。简要叙述了 M1432A 型磨床工作原理及其运动形式。改由 PLC 控制系统后的磨床工作安全可靠,系统运行情况良好,磨削精度更高;所以根据工厂实际能力计算,针对 M1432A 型控制系统进行设计, 这种方法来提高机床的工作效率和加工精度,扩大和改变机床的工艺范围。关键词:M1432A 型磨床 PLC 系统设计 THE DESIGN OF CONTROL SYSTEM OF GRINDING MACHINE BASED ON PLC CONTROL AbstractSince many factories and enterprises in the machine age, its performance has been far from modern production requirements. So it is necessary to carry out technical transformation to the old conventional motor control system, instead of the conventional relay based on PLC, to achieve the grinding machine control requirements. All kinds of metal cutting machine tool grinder is a kind of most varieties, the main types of cylindrical grinder, internal grinder, surface grinder, centerless grinder, grinding machine etc.. Cylindrical grinding machine is the most widely used, it...
