基于PLC的矿井提升机变频调速系统设计

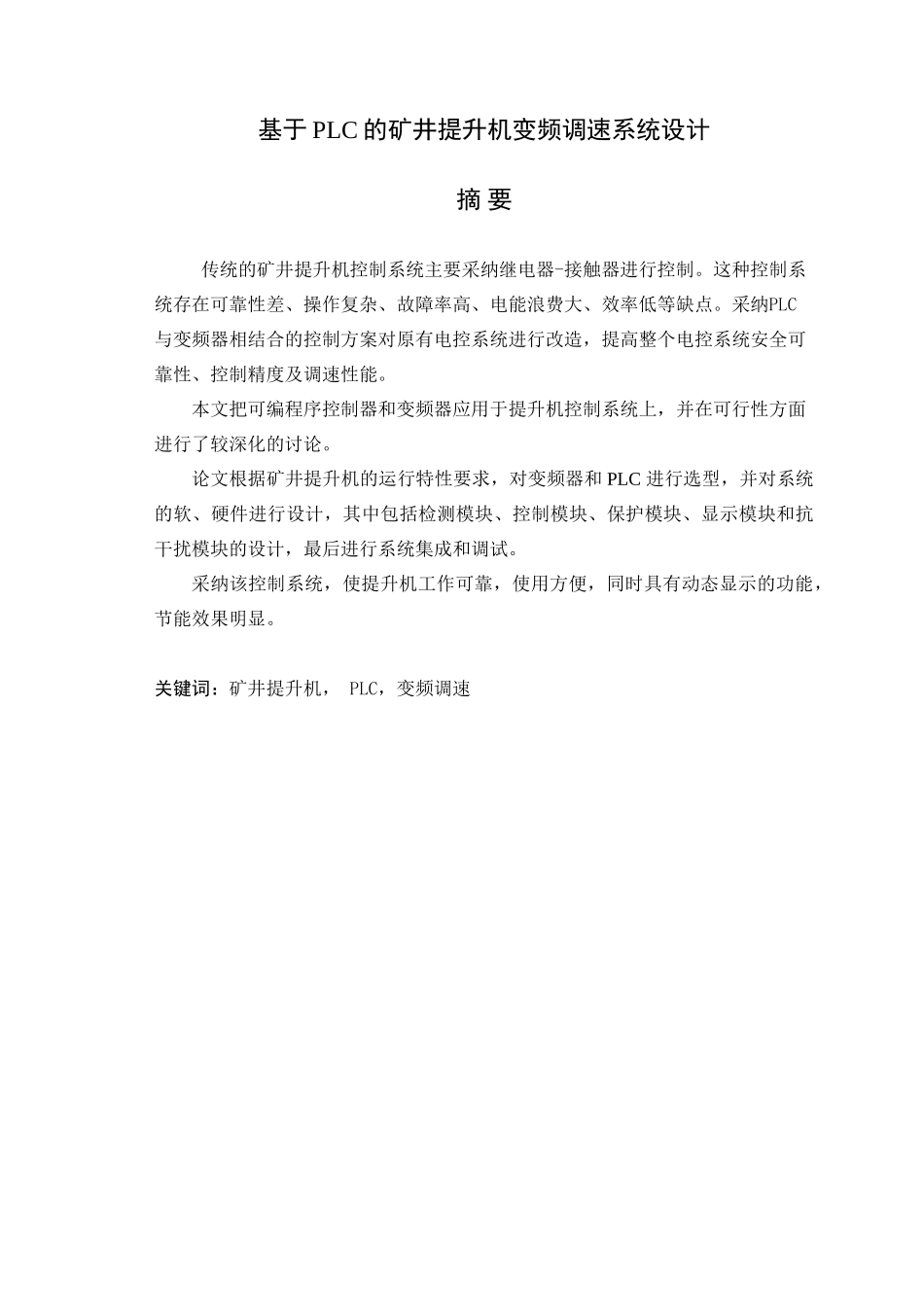

基于PLC的矿井提升机变频调速系统设计_第1页
1/47
基于PLC的矿井提升机变频调速系统设计_第2页
2/47
基于PLC的矿井提升机变频调速系统设计_第3页
3/47
基于 PLC 的矿井提升机变频调速系统设计摘 要 传统的矿井提升机控制系统主要采纳继电器-接触器进行控制。这种控制系统存在可靠性差、操作复杂、故障率高、电能浪费大、效率低等缺点。采纳PLC与变频器相结合的控制方案对原有电控系统进行改造,提高整个电控系统安全可靠性、控制精度及调速性能。本文把可编程序控制器和变频器应用于提升机控制系统上,并在可行性方面进行了较深化的讨论。论文根据矿井提升机的运行特性要求,对变频器和 PLC 进行选型,并对系统的软、硬件进行设计,其中包括检测模块、控制模块、保护模块、显示模块和抗干扰模块的设计,最后进行系统集成和调试。采纳该控制系统,使提升机工作可靠,使用方便,同时具有动态显示的功能,节能效果明显。关键词:矿井提升机, PLC,变频调速The Freouency Conversion Use on The Speed Adjustment of Shaft Hoist on The Basis of PLC ControlABSTRACTThe traditional shaft hoist control system is always controlled by the relay-contactor. The system has many disadvanges such as bad reliability , complicated operation,high fault rate,large energy –wasting and low efficiency. we adopt PLC and Transducer to reform for original control system, so as to raise the safety, reliability, control precision and speed regulation performance of the whole electric controlled system.The paper applied PLC(Programmable Logic Controller)and frequency converter to the system,and have carried on deeper research in feasibility.Paper based on the operation of mining properties hoist requirements , the selection of frequency converter and PLC , and the system software and hardware design. Including the detection module , control module , protect module , display module and anti-jamming module design,the final system integration and debug. Adopting control system,the shaft hoist works reliably,easy to use,energy-saving well,and have dynamical shown function.KEY WORDS: Shaft hoist,PLC,Frequency conversion目 录前 言...
