本科毕业设计-滚筒式泡罩包装机

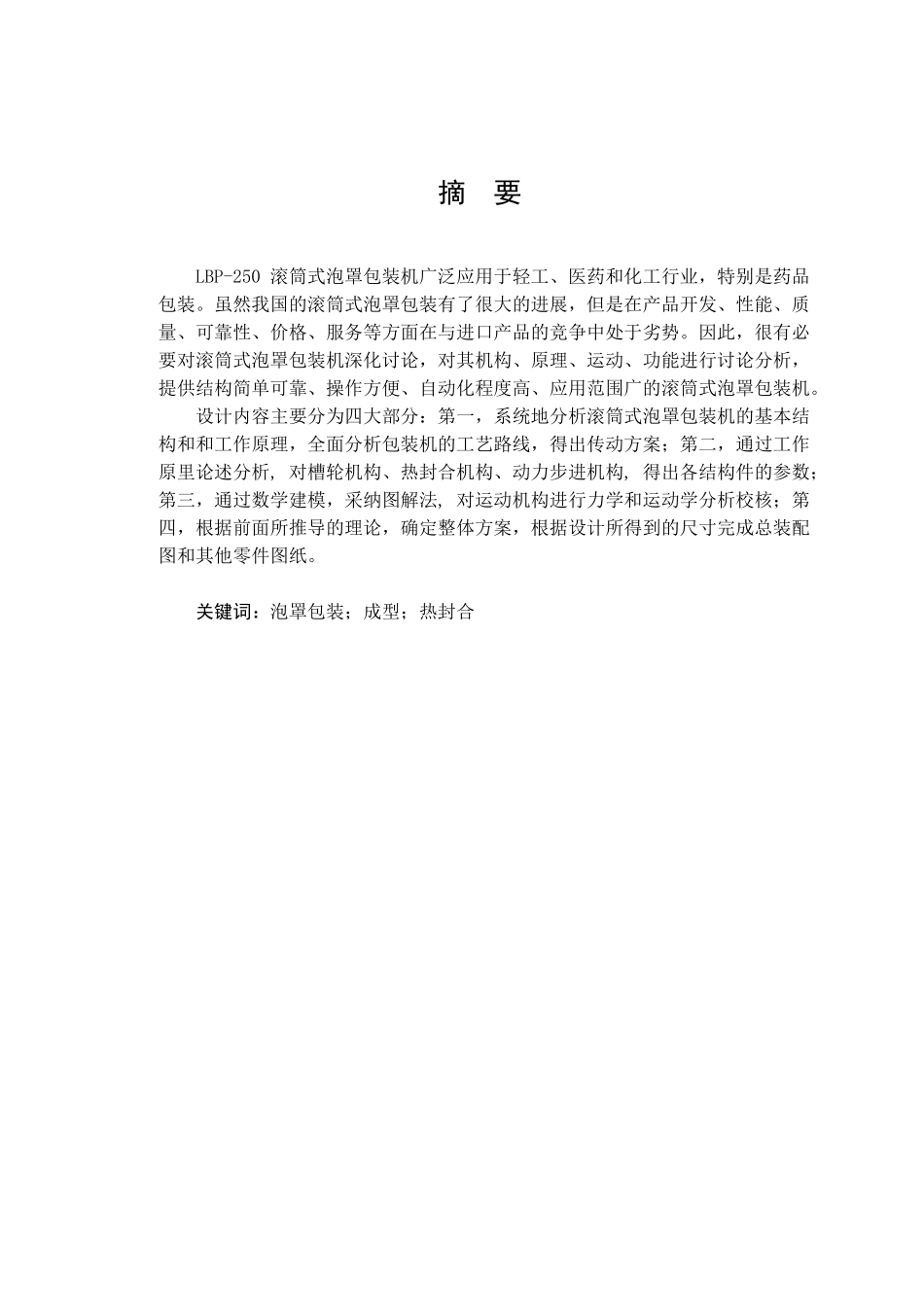

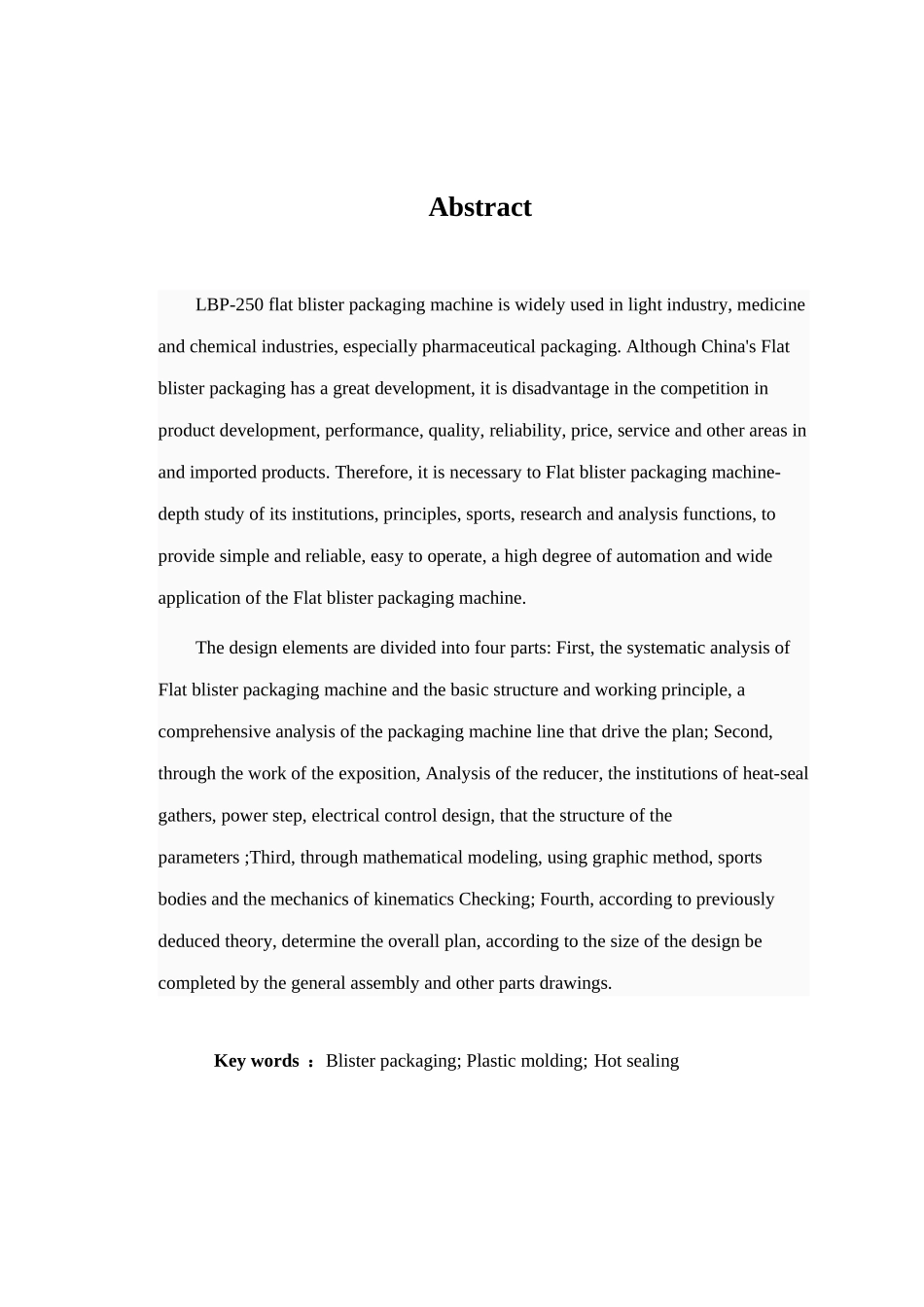

摘 要LBP-250 滚筒式泡罩包装机广泛应用于轻工、医药和化工行业，特别是药品包装。虽然我国的滚筒式泡罩包装有了很大的进展，但是在产品开发、性能、质量、可靠性、价格、服务等方面在与进口产品的竞争中处于劣势。因此，很有必要对滚筒式泡罩包装机深化讨论，对其机构、原理、运动、功能进行讨论分析，提供结构简单可靠、操作方便、自动化程度高、应用范围广的滚筒式泡罩包装机。设计内容主要分为四大部分：第一，系统地分析滚筒式泡罩包装机的基本结构和和工作原理，全面分析包装机的工艺路线，得出传动方案；第二，通过工作原里论述分析, 对槽轮机构、热封合机构、动力步进机构, 得出各结构件的参数；第三，通过数学建模，采纳图解法, 对运动机构进行力学和运动学分析校核；第四，根据前面所推导的理论，确定整体方案，根据设计所得到的尺寸完成总装配图和其他零件图纸。关键词：泡罩包装；成型；热封合AbstractLBP-250 flat blister packaging machine is widely used in light industry, medicine and chemical industries, especially pharmaceutical packaging. Although China's Flat blister packaging has a great development, it is disadvantage in the competition in product development, performance, quality, reliability, price, service and other areas in and imported products. Therefore, it is necessary to Flat blister packaging machine-depth study of its institutions, principles, sports, research and analysis functions, to provide simple and reliable, easy to operate, a high degree of automation and wide application of the Flat blister packaging machine.The design elements are divided into four parts: First, the systematic analysis of Flat blister packaging machine and the basic structure and working principle, a comprehensive analysis of the packaging machine line that drive the plan; Second, through the work of the exposition, Analysis of the reducer, the institutions of heat-seal gathers, power step, electrical control design, that the structure of the parameters ;Third, through...
