Jetson Xavier NX Data Sheet 原版完整文件

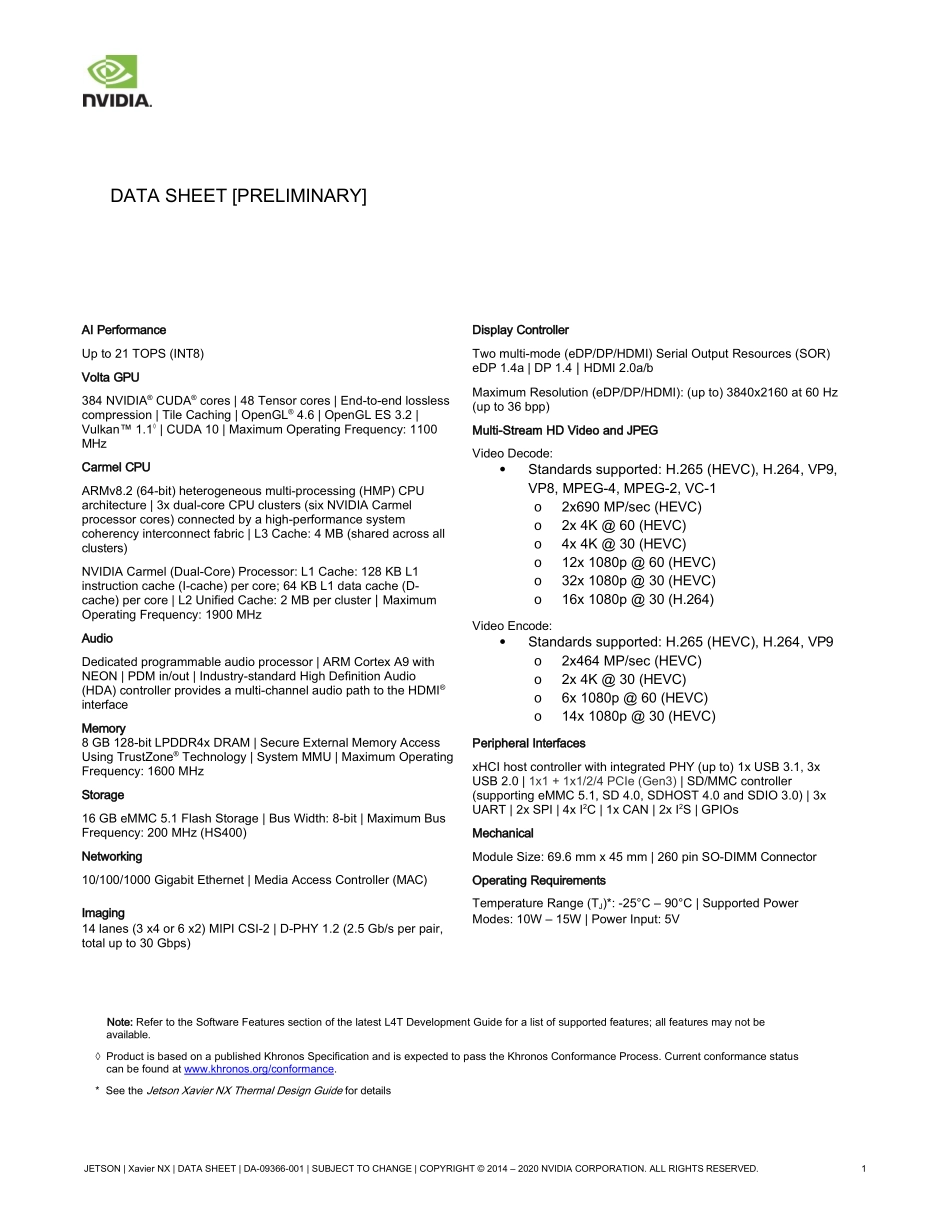

JETSON | Xavier NX | DATA SHEET | DA-09366-001 | SUBJECT TO CHANGE | COPYRIGHT © 2014 – 2020 NVIDIA CORPORATION. ALL RIGHTS RESERVED.1DATA SHEET [PRELIMINARY]NVIDIA Jetson Xavier NX System-on-ModuleVolta GPU + Carmel ARM + 8 GB LPDDR4x + 16 GB eMMC 5.1AI PerformanceUp to 21 TOPS (INT8)Volta GPU384 NVIDIA® CUDA® cores | 48 Tensor cores | End-to-end lossless compression | Tile Caching | OpenGL® 4.6 | OpenGL ES 3.2 | Vulkan™ 1.1◊ | CUDA 10 | Maximum Operating Frequency: 1100 MHzCarmel CPUARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | 3x dual-core CPU clusters (six NVIDIA Carmel processor cores) connected by a high-performance system coherency interconnect fabric | L3 Cache: 4 MB (shared across all clusters)NVIDIA Carmel (Dual-Core) Processor: L1 Cache: 128 KB L1 instruction cache (I-cache) per core; 64 KB L1 data cache (D- cache) per core | L2 Unified Cache: 2 MB per cluster | Maximum Operating Frequency: 1900 MHzAudioDedicated programmable audio processor | ARM Cortex A9 with NEON | PDM in/out | Industry-standard High Definition Audio (HDA) controller provides a multi-channel audio path to the HDMI® interfaceMemory8 GB 128-bit LPDDR4x DRAM | Secure External Memory Access Using TrustZone® Technology | System MMU | Maximum Operating Frequency: 1600 MHzStorage16 GB eMMC 5.1 Flash Storage | Bus Width: 8-bit | Maximum Bus Frequency: 200 MHz (HS400)Networking10/100/1000 Gigabit Ethernet | Media Access Controller (MAC)Imaging14 lanes (3 x4 or 6 x2) MIPI CSI-2 | D-PHY 1.2 (2.5 Gb/s per pair, total up to 30 Gbps)Display ControllerTwo multi-mode (eDP/DP/HDMI) Serial Output Resources (SOR) eDP 1.4a | DP 1.4 | HDMI 2.0a/bMaximum Resolution (eDP/DP/HDMI): (up to) 3840x2160 at 60 Hz...
