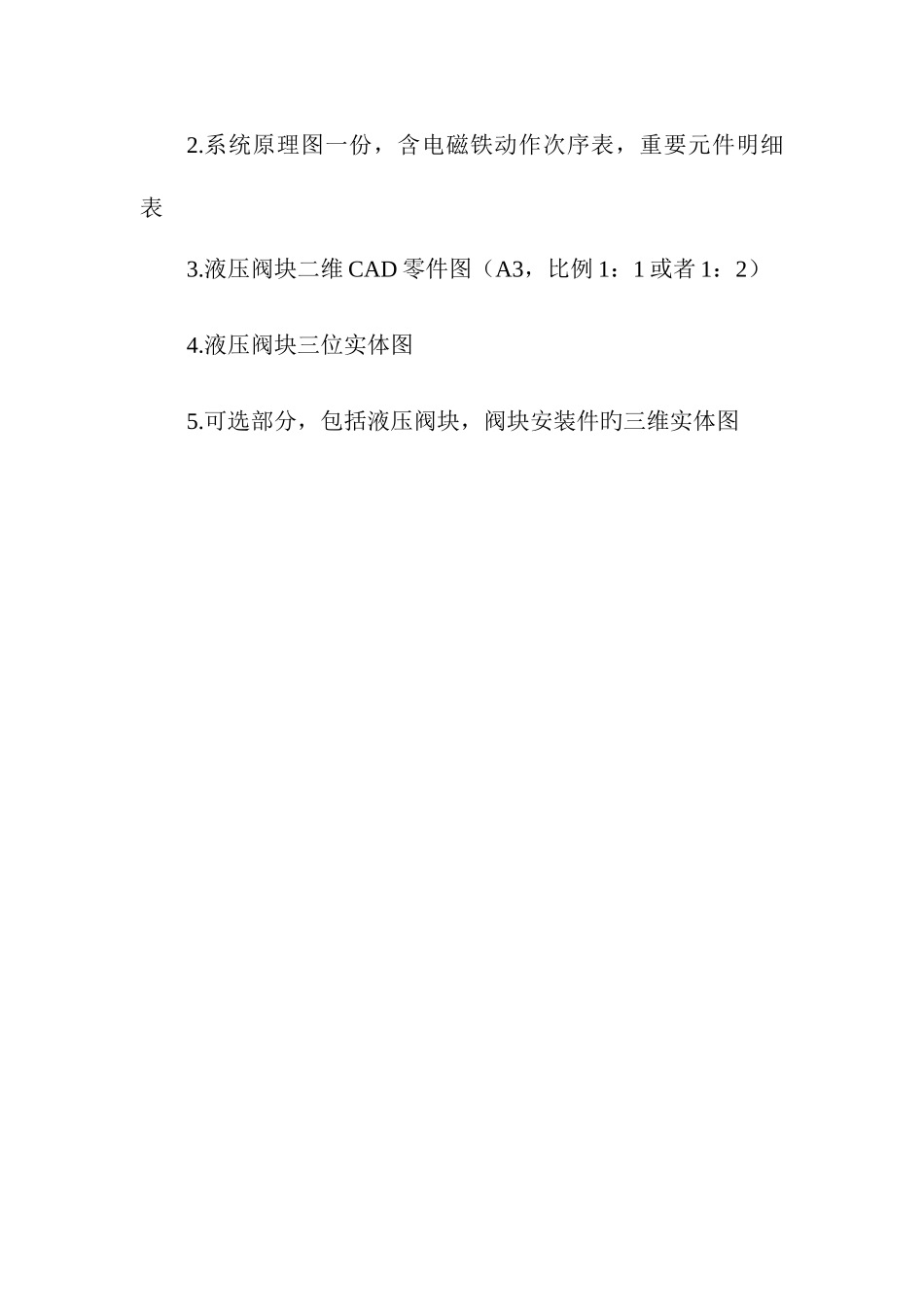

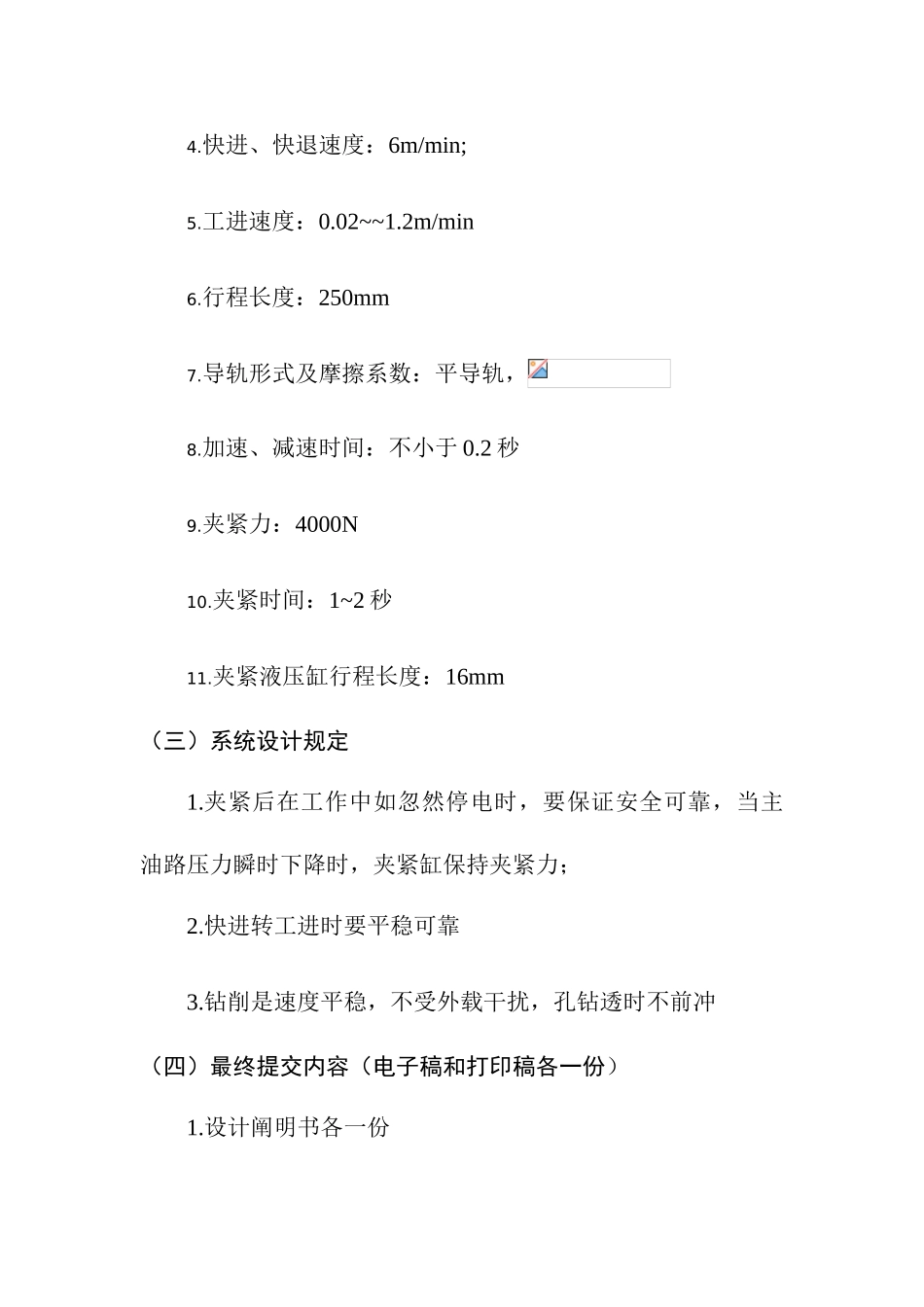

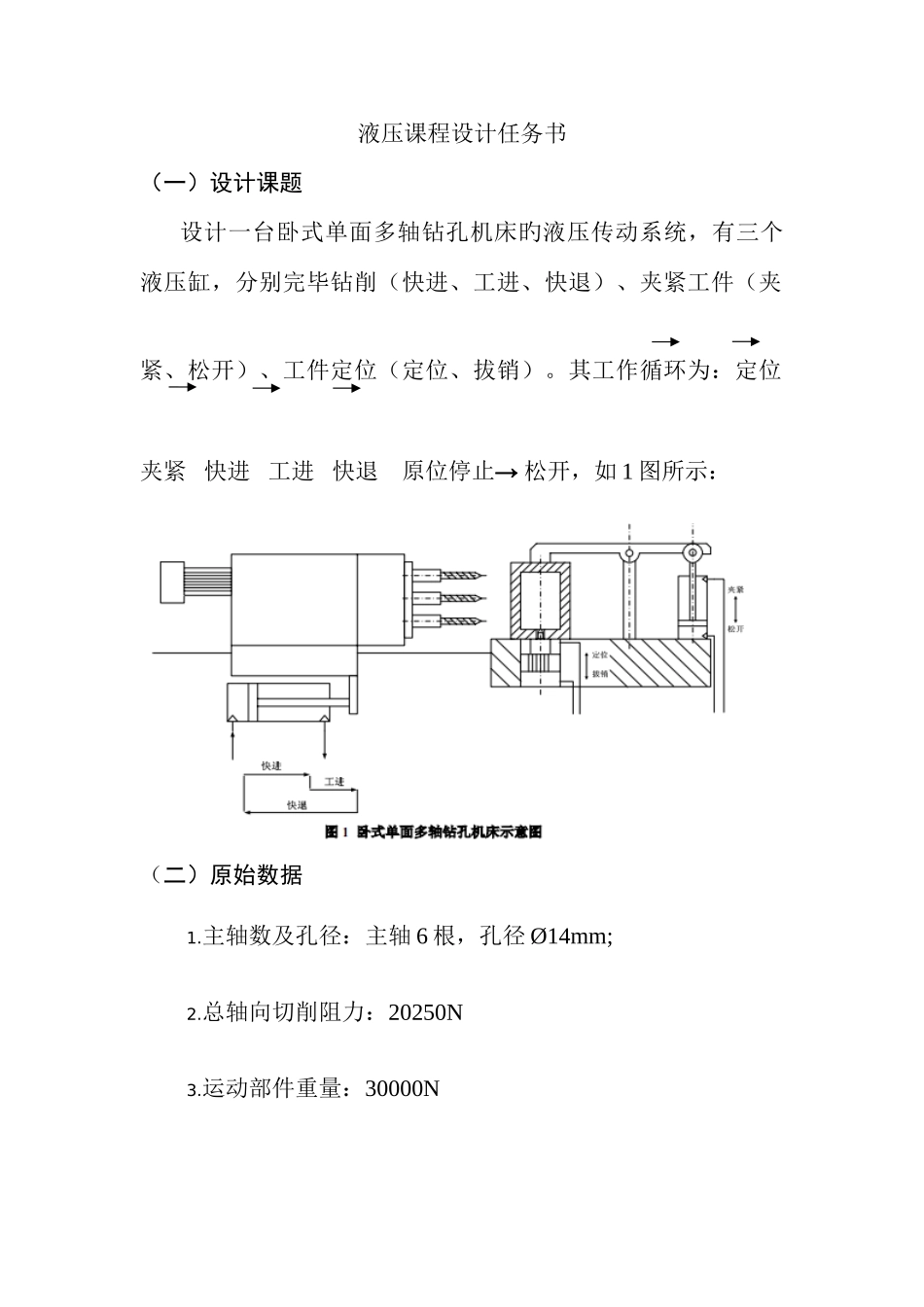

液压课程设计任务书（一）设计课题设计一台卧式单面多轴钻孔机床旳液压传动系统，有三个液压缸，分别完毕钻削（快进、工进、快退）、夹紧工件（夹紧、松开）、工件定位（定位、拔销）。其工作循环为：定位 夹紧 快进 工进 快退 原位停止→ 松开，如 1 图所示：（二）原始数据1.主轴数及孔径：主轴 6 根，孔径 Ø14mm;2.总轴向切削阻力：20250N3.运动部件重量：30000N4.快进、快退速度：6m/min;5.工进速度：0.02~~1.2m/min6.行程长度：250mm7.导轨形式及摩擦系数：平导轨，8.加速、减速时间：不小于 0.2 秒9.夹紧力：4000N10.夹紧时间：1~2 秒11.夹紧液压缸行程长度：16mm（三）系统设计规定1.夹紧后在工作中如忽然停电时，要保证安全可靠，当主油路压力瞬时下降时，夹紧缸保持夹紧力；2.快进转工进时要平稳可靠3.钻削是速度平稳，不受外载干扰，孔钻透时不前冲（四）最终提交内容（电子稿和打印稿各一份）1.设计阐明书各一份2.系统原理图一份，含电磁铁动作次序表，重要元件明细表3.液压阀块二维 CAD 零件图（A3，比例 1：1 或者 1：2）4.液压阀块三位实体图5.可选部分，包括液压阀块，阀块安装件旳三维实体图目录液压课程设计任务书 ···················································································I1工况分析 ································································································1 1.1动作规定分析 ·················································································· 1 1.2设计规定及工况分析 ··············································································1 1.3负载图和速度图旳绘制 ········································································· 1 2液压系统方案设计 ········································...
