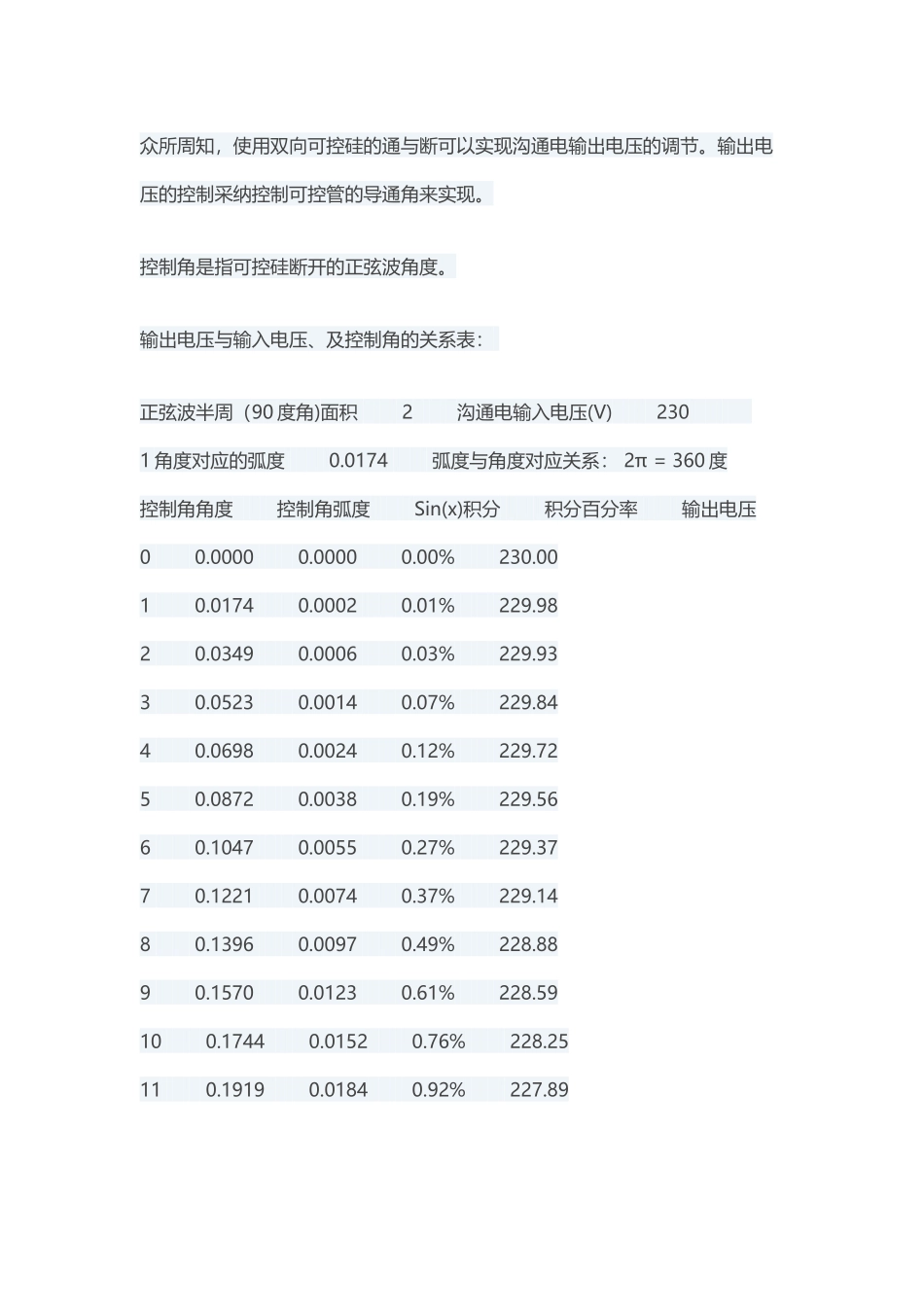

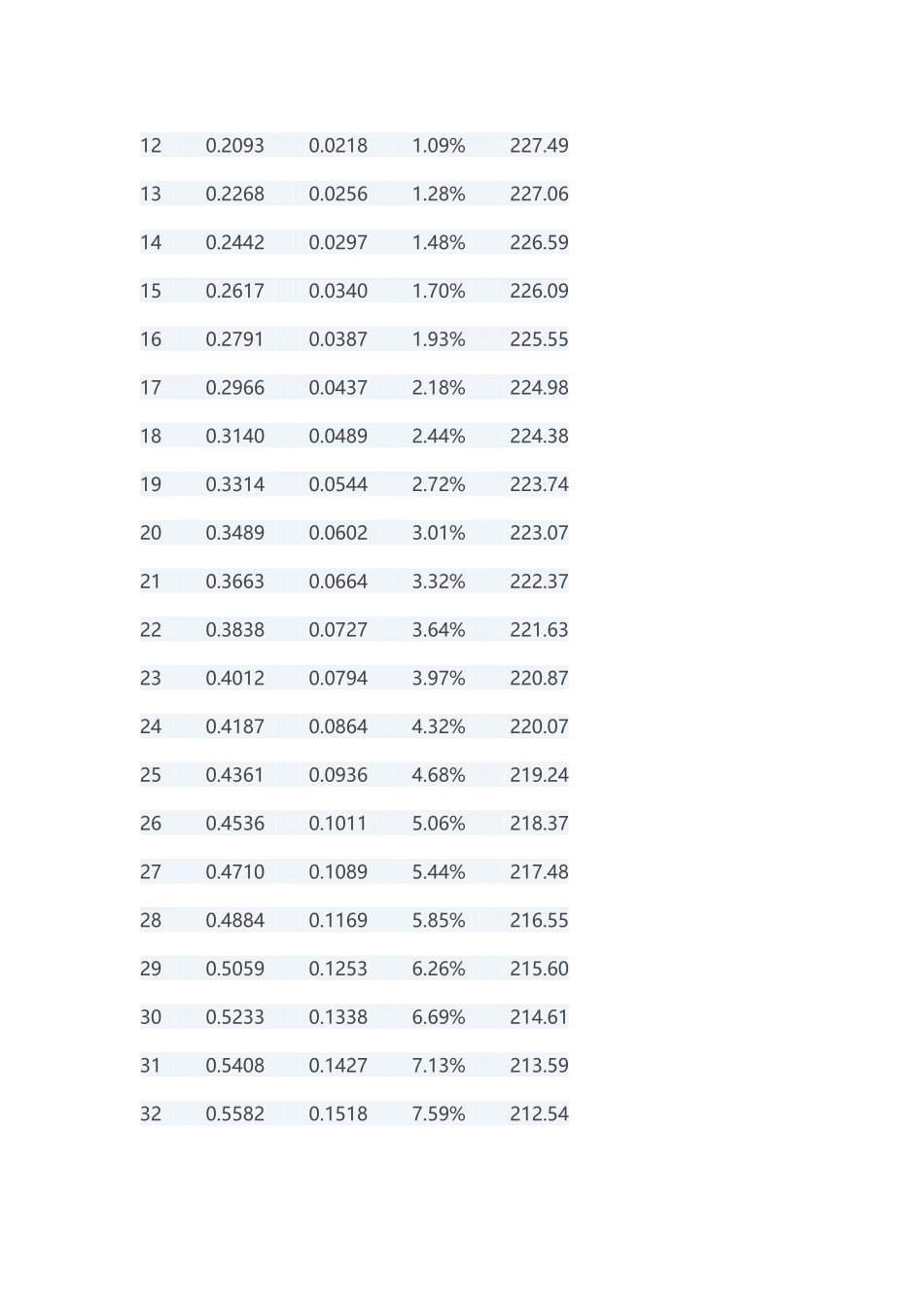

双向可控硅控制角与输出电压关系(4 页)Good is good, but better carries it.精益求精，善益求善。众所周知，使用双向可控硅的通与断可以实现沟通电输出电压的调节。输出电压的控制采纳控制可控管的导通角来实现。控制角是指可控硅断开的正弦波角度。输出电压与输入电压、及控制角的关系表： 正弦波半周（90 度角)面积 2 沟通电输入电压(V) 230 1 角度对应的弧度 0.0174 弧度与角度对应关系： 2π = 360 度控制角角度 控制角弧度 Sin(x)积分 积分百分率 输出电压0 0.0000 0.0000 0.00% 230.001 0.0174 0.0002 0.01% 229.982 0.0349 0.0006 0.03% 229.933 0.0523 0.0014 0.07% 229.844 0.0698 0.0024 0.12% 229.725 0.0872 0.0038 0.19% 229.566 0.1047 0.0055 0.27% 229.377 0.1221 0.0074 0.37% 229.148 0.1396 0.0097 0.49% 228.889 0.1570 0.0123 0.61% 228.5910 0.1744 0.0152 0.76% 228.2511 0.1919 0.0184 0.92% 227.8912 0.2093 0.0218 1.09% 227.4913 0.2268 0.0256 1.28% 227.0614 0.2442 0.0297 1.48% 226.5915 0.2617 0.0340 1.70% 226.0916 0.2791 0.0387 1.93% 225.5517 0.2966 0.0437 2.18% 224.9818 0.3140 0.0489 2.44% 224.3819 0.3314 0.0544 2.72% 223.7420 0.3489 0.0602 3.01% 223.0721 0.3663 0.0664 3.32% 222.3722 0.3838 0.0727 3.64% 221.6323 0.4012 0.0794 3.97% 220.8724 0.4187 0.0864 4.32% 220.0725 0.4361 0.0936 4.68% 219.2426 0.4536 0.1011 5.06% 218.3727 0.4710 0.1089 5.44% 217.4828 0.4884 0.1169 5.85% 216.5529 0.5059 0.1253 6.26% 215.6030 0.5233 0.1338 6.69% 214.6131 0.5408 0.1427 7.13% 213.5932 0.5582 0.1518 7.59% 212.5433 0.5757 0.1612 8.06% 211.4734 0.5931 0.1708 8.54% 210.3635 0.6106 0.1807 9.03% 209.2236 0.6280 0.1908 9.54% 208.0637 0.6454 0.2025 10.06% 206.8738 0.6629 0.2118 10.59% 205.6539 0.6803 0.2226 11.13% 204.4040 0.6978 0.2337 11.69% 203.1241 0.7152 0.2451 12.25% 201.8242 0.7327 0.2566 12.83% 200.4943 0.7501 0.2684 13.42% 199.1444 0.7676 0.2804 14.02% 197.7645 0.7850 0.2926 14.63% 196.3546 0.8024 0.3050 15.25%...
