钢丝编织液压胶管-GB-T3683-92

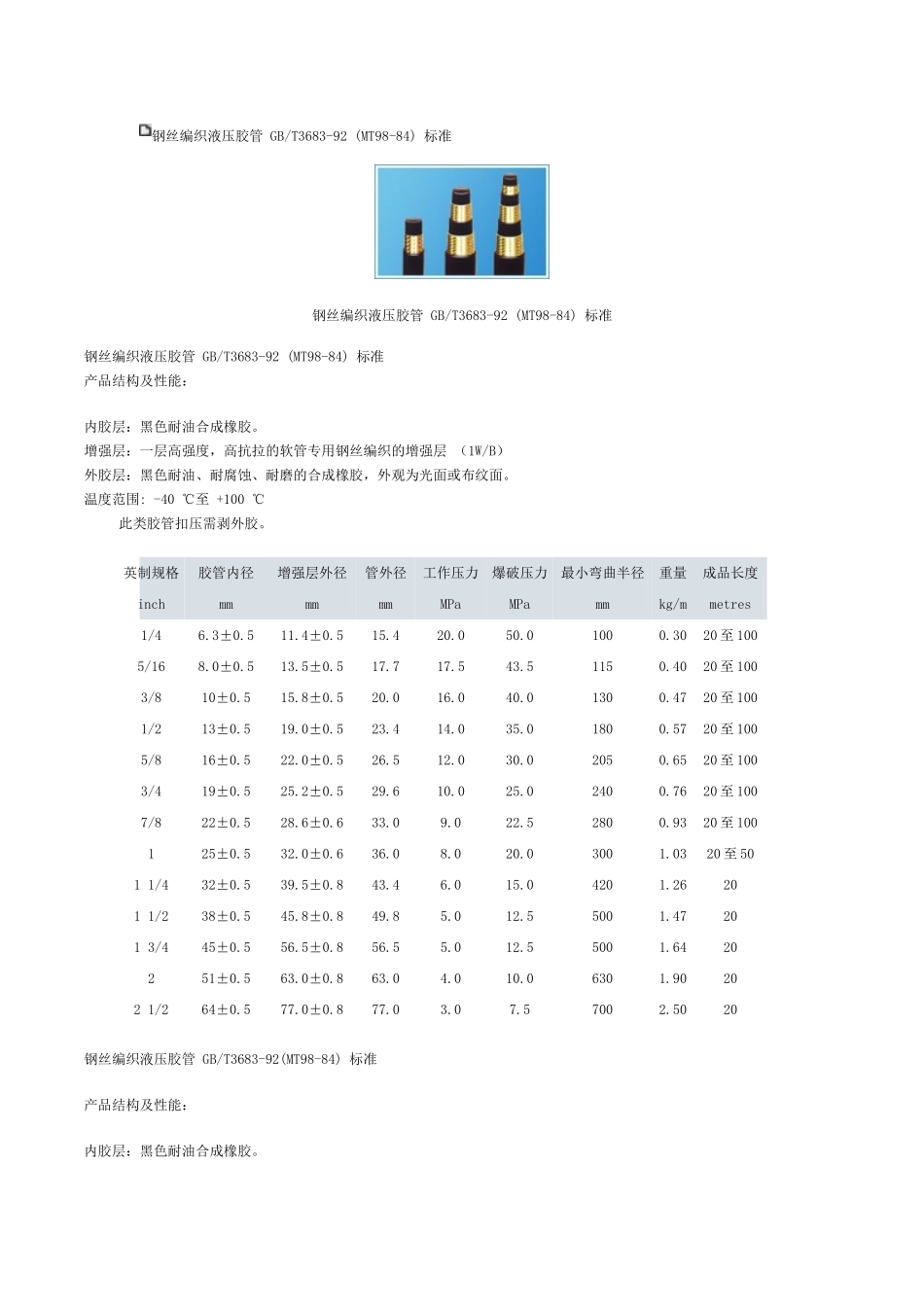

钢丝编织液压胶管 GB/T3683-92 (MT98-84) 标准钢丝编织液压胶管 GB/T3683-92 (MT98-84) 标准钢丝编织液压胶管 GB/T3683-92 (MT98-84) 标准产品结构及性能：内胶层：黑色耐油合成橡胶。增强层：一层高强度，高抗拉的软管专用钢丝编织的增强层 （1W/B）外胶层：黑色耐油、耐腐蚀、耐磨的合成橡胶，外观为光面或布纹面。 温度范围: -40 ℃至 +100 ℃此类胶管扣压需剥外胶。英制规格胶管内径增强层外径管外径工作压力爆破压力最小弯曲半径重量成品长度inchmmmmmmMPaMPammkg/mmetres1/46.3±0.511.4±0.515.420.050.01000.3020 至 1005/168.0±0.513.5±0.517.717.543.51150.4020 至 1003/810±0.515.8±0.520.016.040.01300.4720 至 1001/213±0.519.0±0.523.414.035.01800.5720 至 1005/816±0.522.0±0.526.512.030.02050.6520 至 1003/419±0.525.2±0.529.610.025.02400.7620 至 1007/822±0.528.6±0.633.09.022.52800.9320 至 100125±0.532.0±0.636.08.020.03001.0320 至 501 1/432±0.539.5±0.843.46.015.04201.26201 1/238±0.545.8±0.849.85.012.55001.47201 3/445±0.556.5±0.856.55.012.55001.6420251±0.563.0±0.863.04.010.06301.90202 1/264±0.577.0±0.877.03.07.57002.5020钢丝编织液压胶管 GB/T3683-92(MT98-84) 标准 产品结构及性能：内胶层：黑色耐油合成橡胶。增强层：二层高强度，高抗拉的软管专用钢丝编织的增强层 （ 2W/B） 外胶层：黑色耐油、耐腐蚀、耐磨的合成橡胶，外观为光面或布纹面。温度范围: -40 ℃至 +100 ℃适用于矿井液压支架及相关设备,管体具有阻燃,抗静电性能.此类胶管扣压需剥外胶。英制规格胶管内径增强层外径管外径工作压力爆破压力最小弯曲半径重量成品长度inchmmmmmmMPaMPammkg/mmetres1/46.3±0.513.0±0.517.060.0150.01000.4720 至 1005/168.0±0.515.5±0.519.448.0120.01150.5720 至 1003/810±0.517.5±0.521.740.0100.01300.720 至 1001/213±0.520.6±0.524.838.095.01800.8420 至 1005/816±0.523.8±0.528.034.085.02050.9620 至 1003/419±0.527.0±0.531.525.075.02401.0820 至 1007/822±0.530.5±0.634.822.055.02801.3120 至 100125±0.533.7±0.637.721.052.53001.4520 至 501 1/432±0.541.3±0.845.217.042.54201.72201 1/238±0.547.5±0.851.514.035.05001.95201 3/445±0.558.5±0.858.513.032.55002.17202...
