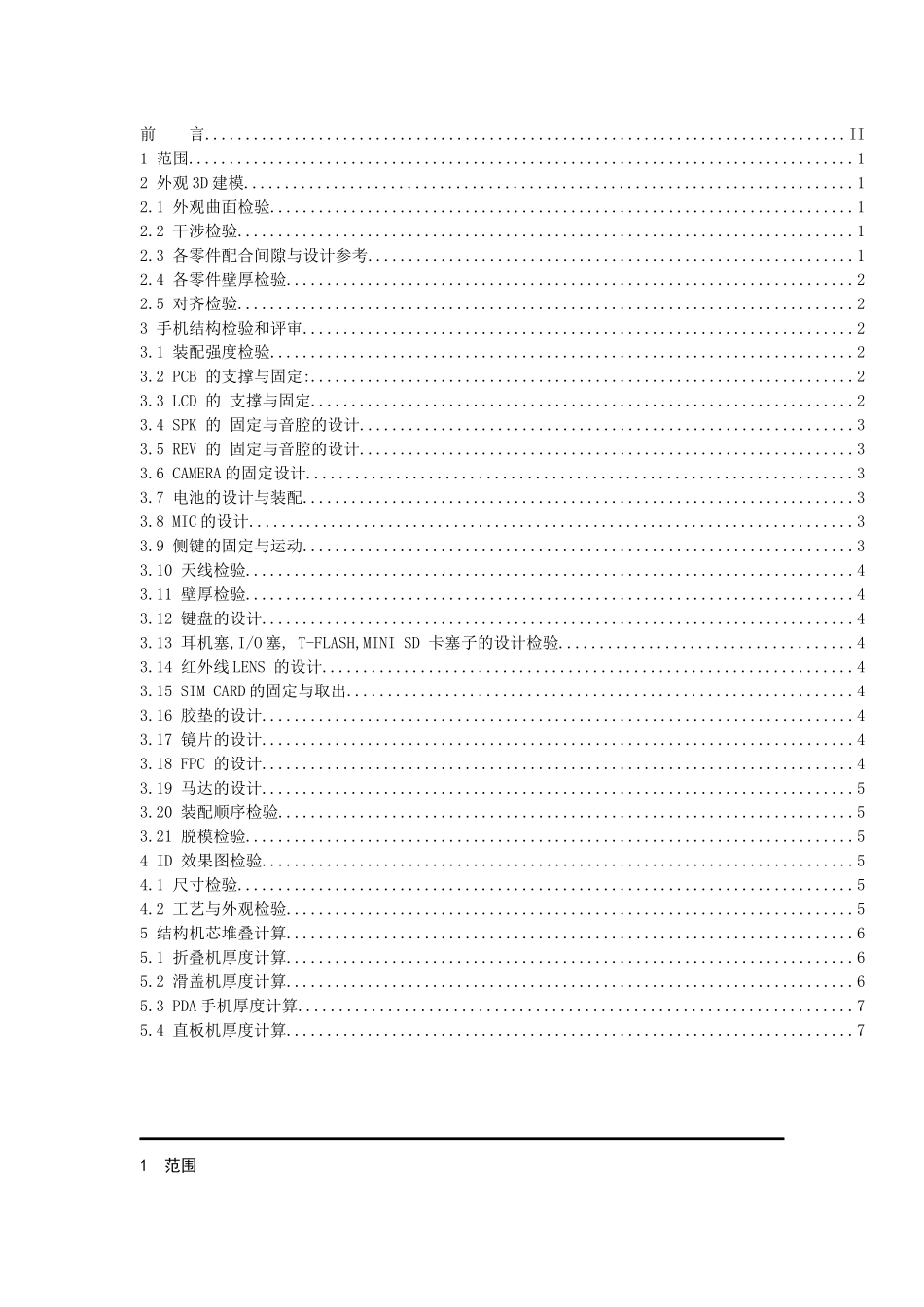

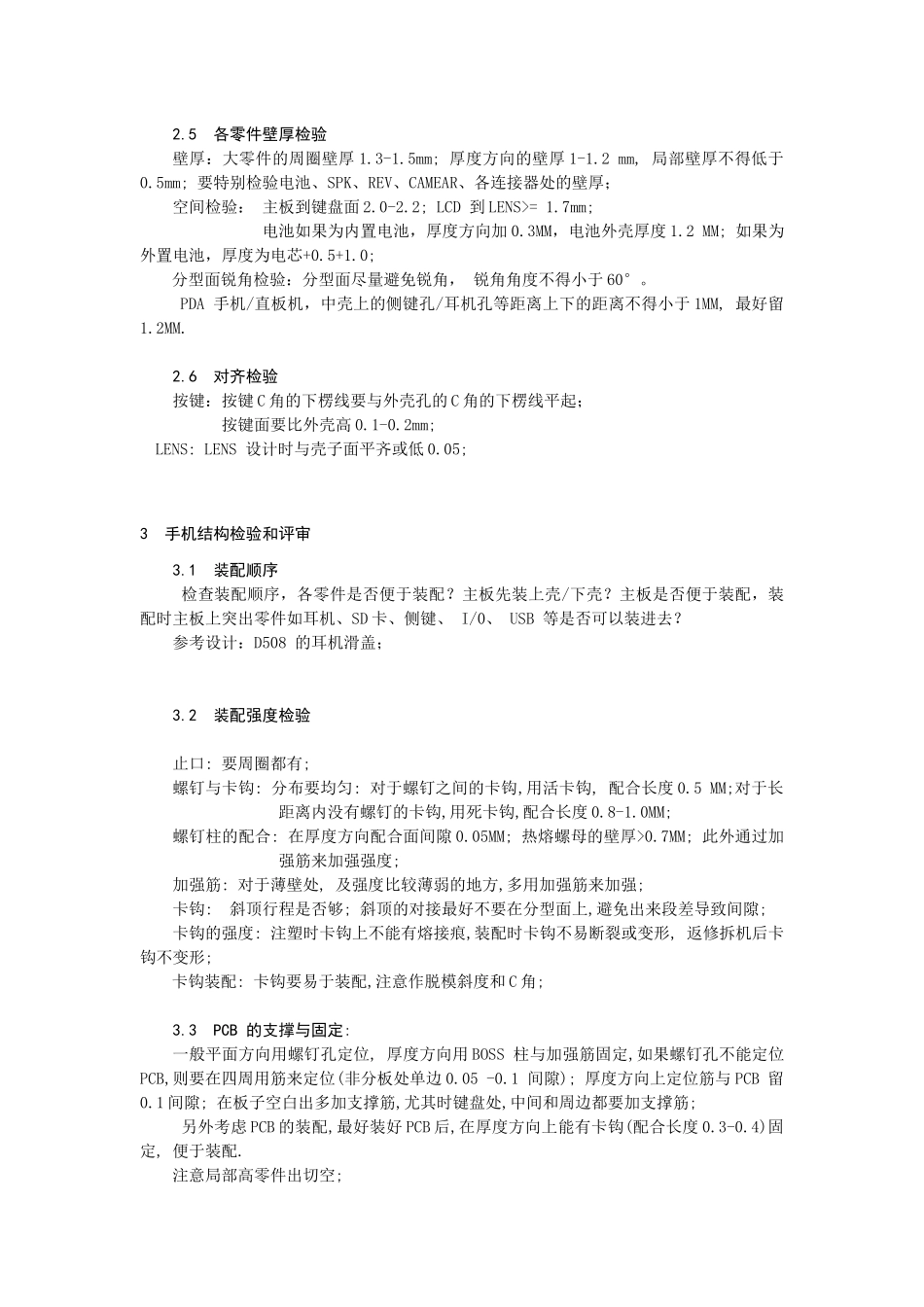

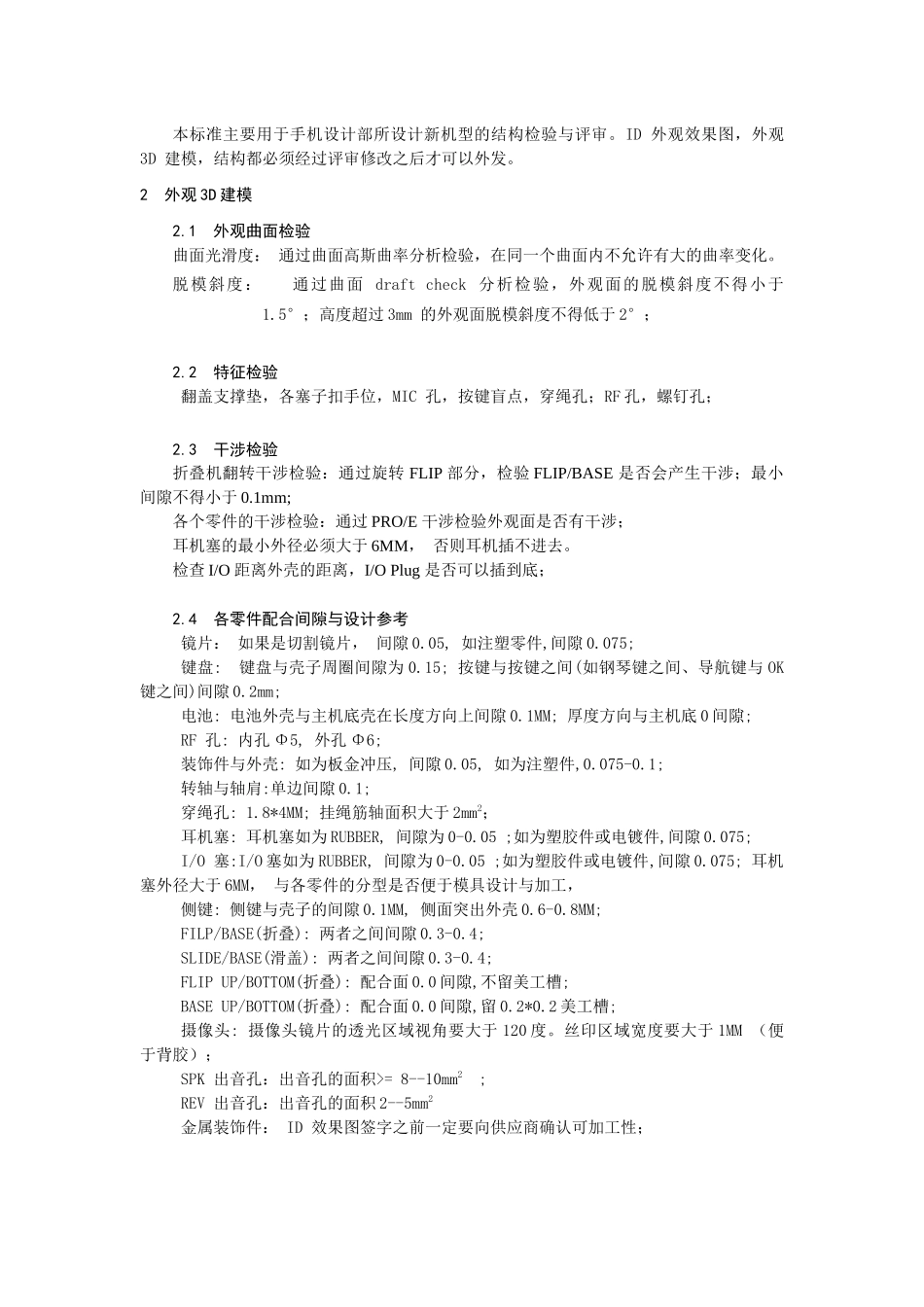

前言...............................................................................II1范围..................................................................................12外观3D建模...........................................................................12.1外观曲面检验........................................................................12.2干涉检验............................................................................12.3各零件配合间隙与设计参考............................................................12.4各零件壁厚检验......................................................................22.5对齐检验............................................................................23手机结构检验和评审....................................................................23.1装配强度检验........................................................................23.2PCB的支撑与固定:...................................................................23.3LCD的支撑与固定...................................................................23.4SPK的固定与音腔的设计.............................................................33.5REV的固定与音腔的设计.............................................................33.6CAMERA的固定设计...................................................................33.7电池的设计与装配....................................................................33.8MIC的设计..........................................................................33.9侧键的固定与运动....................................................................33.10天线检验...........................................................................43.11壁厚检验...........................................................................43.12键盘的设计.........................................................................43.13耳机塞,I/O塞,T-FLASH,MINISD卡塞子的设计检验....................................43.14红外线LENS的设计.................................................................43.15SIMCARD的固定与取出..............................................................43.16胶垫的设计.........................................................................43.17镜片的设计.........................................................................43.18FPC的设计.........................................................................43.19马达的设计.........................................................................53.20装配顺序检验.......................................................................53.21脱模检验...........................................................................54ID效果图检验.........................................................................54.1尺寸检验............................................................................54.2工艺与外观检验......................................................................55结构机芯堆叠计算......................................................................65.1折叠机厚度计算......................................................................65.2滑盖机厚度计算......................................................................65.3PDA手机厚度计算....................................................................75.4直板机厚度计算......................................................................71范围本标...
