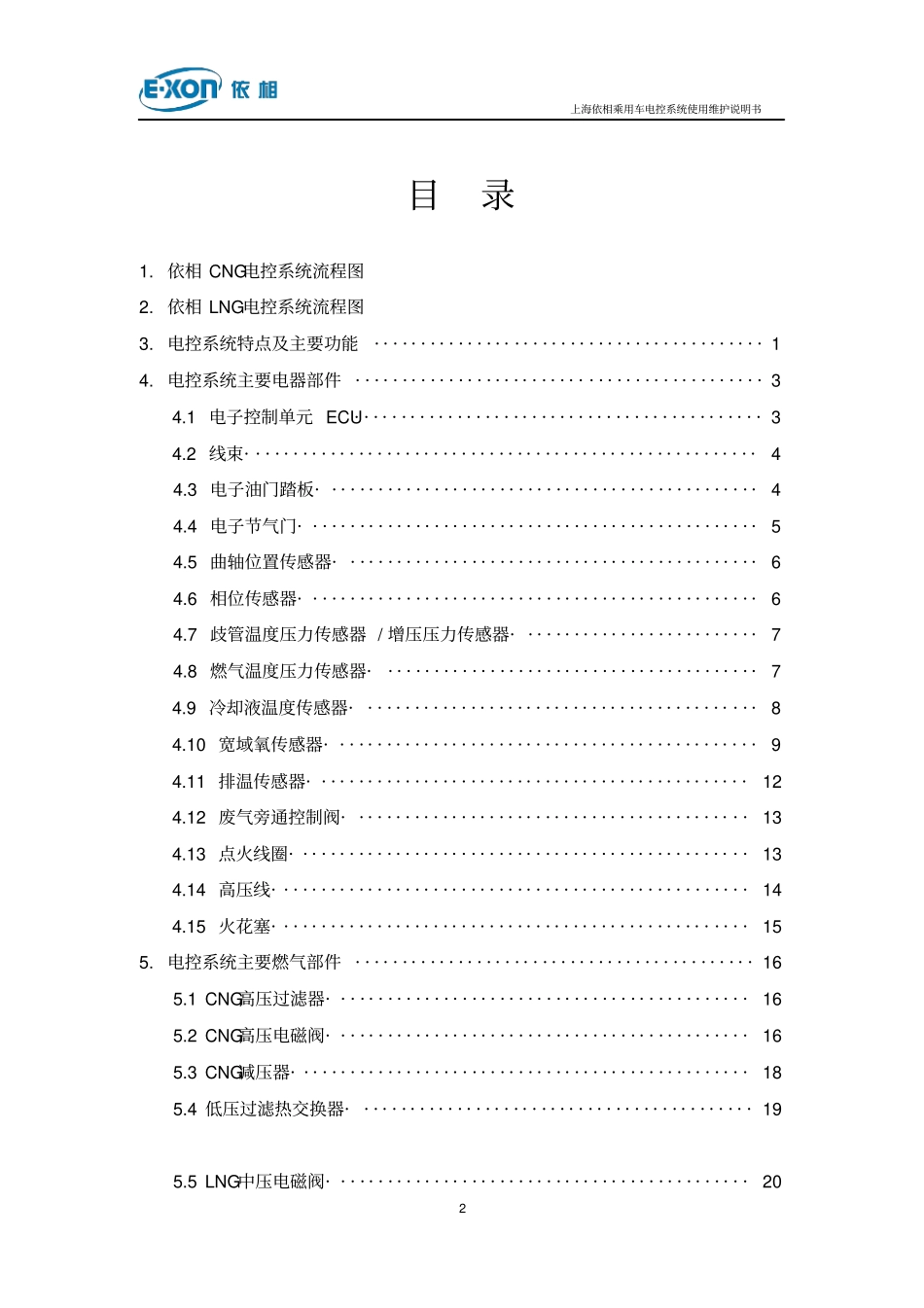

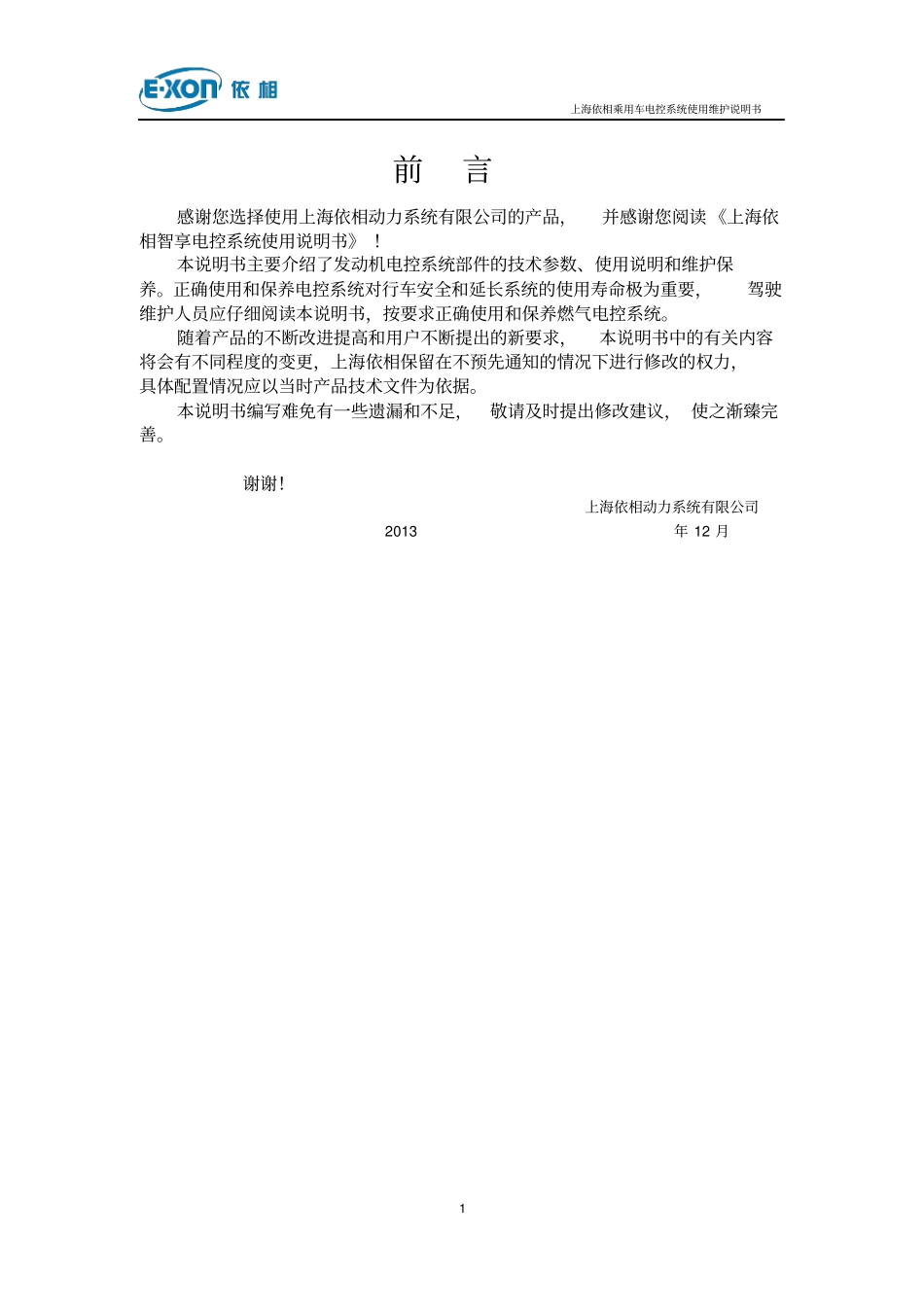

上海依相乘用车电控系统使用维护说明书1前言感谢您选择使用上海依相动力系统有限公司的产品，并感谢您阅读《上海依相智享电控系统使用说明书》！本说明书主要介绍了发动机电控系统部件的技术参数、使用说明和维护保养。正确使用和保养电控系统对行车安全和延长系统的使用寿命极为重要，驾驶维护人员应仔细阅读本说明书，按要求正确使用和保养燃气电控系统。随着产品的不断改进提高和用户不断提出的新要求，本说明书中的有关内容将会有不同程度的变更，上海依相保留在不预先通知的情况下进行修改的权力，具体配置情况应以当时产品技术文件为依据。本说明书编写难免有一些遗漏和不足，敬请及时提出修改建议，使之渐臻完善。谢谢！上海依相动力系统有限公司2013年12月上海依相乘用车电控系统使用维护说明书2目录1.依相CNG电控系统流程图2.依相LNG电控系统流程图3.电控系统特点及主要功能··········································14.电控系统主要电器部件············································34.1电子控制单元ECU············································34.2线束·······················································44.3电子油门踏板···············································44.4电子节气门·················································54.5曲轴位置传感器·············································64.6相位传感器·················································64.7歧管温度压力传感器/增压压力传感器··························74.8燃气温度压力传感器·········································74.9冷却液温度传感器···········································84.10宽域氧传感器··············································94.11排温传感器···············································124.12废气旁通控制阀···········································134.13点火线圈·················································134.14高压线···················································144.15火花塞···················································155.电控系统主要燃气部件···········································165.1CNG高压过滤器·············································165.2CNG高压电磁阀·············································165.3CNG减压器·················································185.4低压过滤热交换器···········································195.5LNG中压电磁阀·············································20上海依相乘用车电控系统使用维护说明书3第一章智享1.6系统介绍上海依相乘用车电控系统使用维护说明书41.依相CNG智享电控系统流程图...
