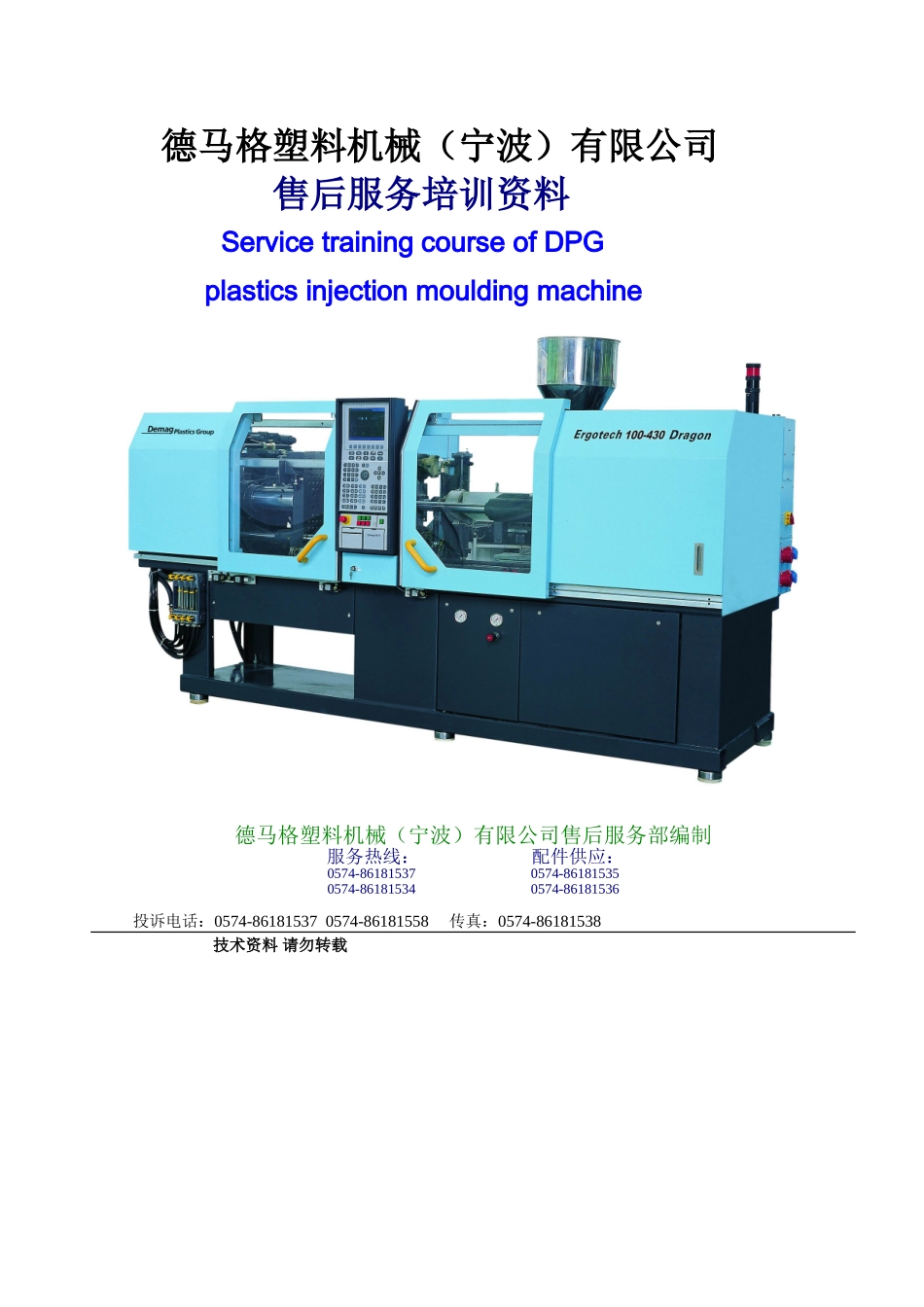

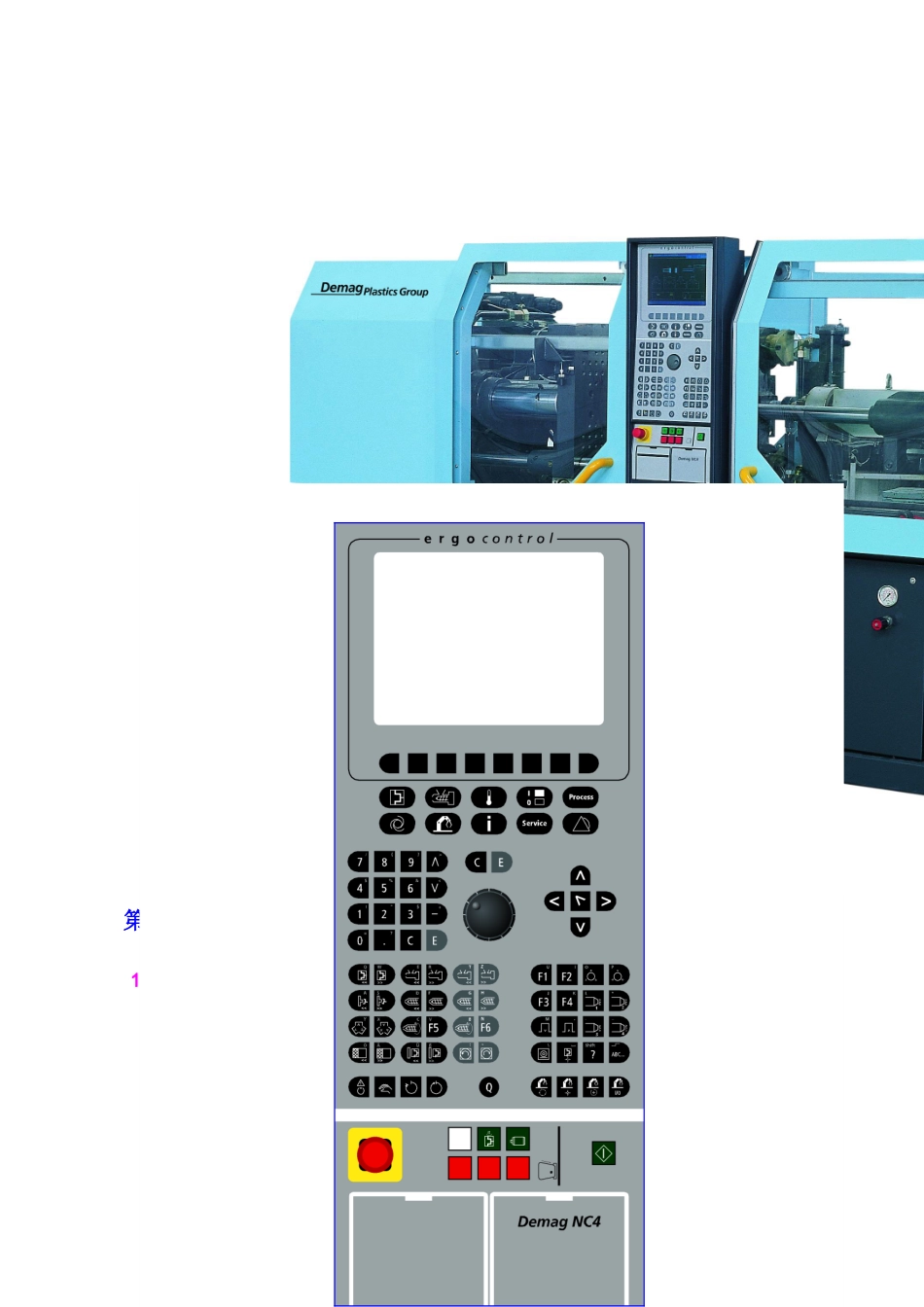

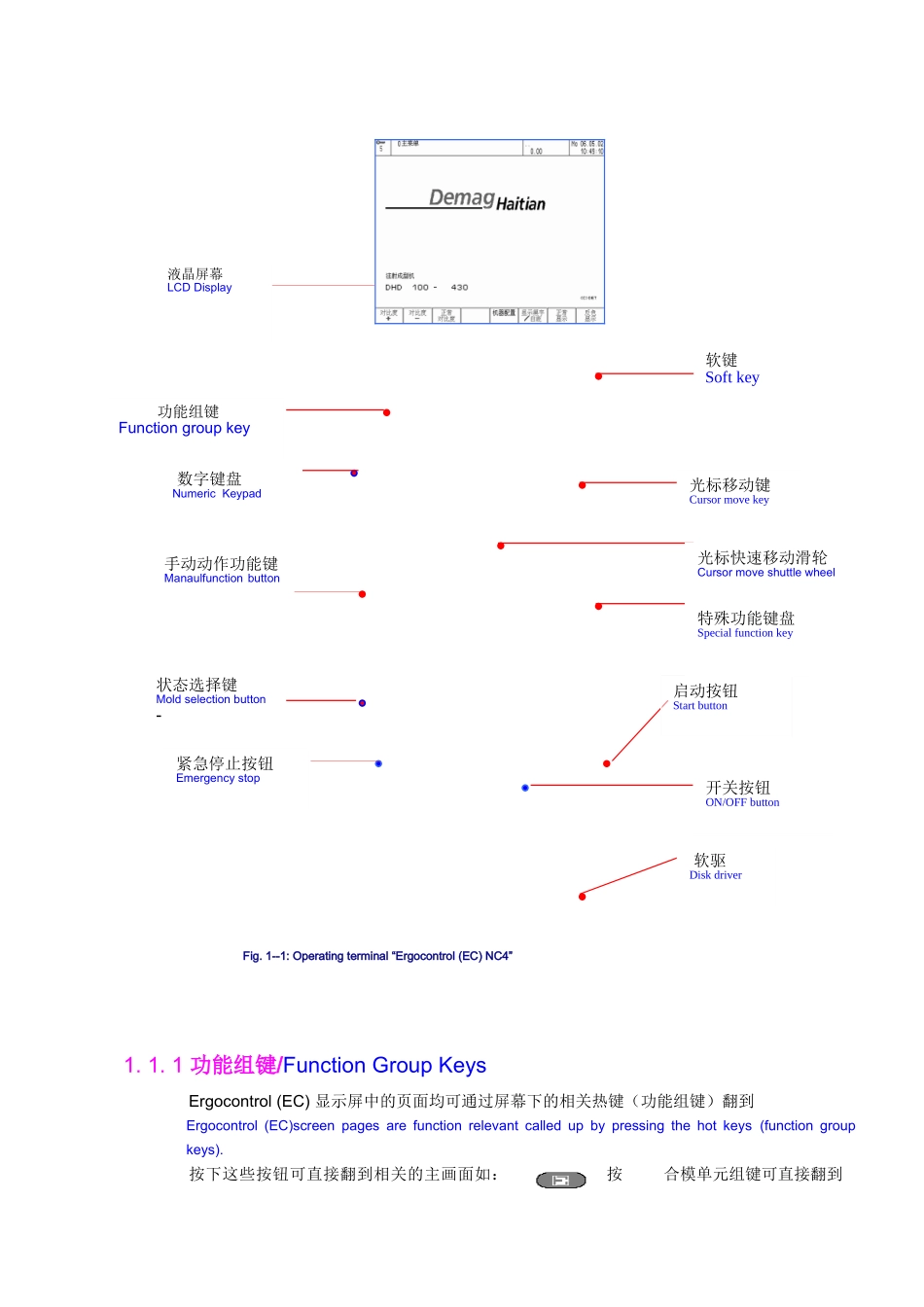

德马格塑料机械（宁波）有限公司售后服务培训资料ServicetrainingcourseofDPGplasticsinjectionmouldingmachine德马格塑料机械（宁波）有限公司售后服务部编制服务热线：配件供应：0574-861815370574-861815350574-861815340574-86181536投诉电话：0574-861815370574-86181558传真：0574-86181538技术资料请勿转载第一章显示器的操作原理EgocontroloperatingPhilosophy1.1操作终端“NC4控制器”OperatingTerminal“ErgocontrolNC4”Fig.1--1:Operatingterminal“Ergocontrol(EC)NC4”1.1.1功能组键/FunctionGroupKeysErgocontrol(EC)显示屏中的页面均可通过屏幕下的相关热键（功能组键）翻到Ergocontrol(EC)screenpagesarefunctionrelevantcalledupbypressingthehotkeys(functiongroupkeys).按下这些按钮可直接翻到相关的主画面如：按合模单元组键可直接翻到液晶屏幕LCDDisplay功能组键Functiongroupkey数字键盘NumericKeypad手动动作功能键Manaulfunctionbutton状态选择键Moldselectionbutton-紧急停止按钮Emergencystop开关按钮ON/OFFbutton启动按钮Startbutton软驱Diskdriver软件Softkey光标移动键Cursormovekey特殊功能键盘Specialfunctionkey光标快速移动滑轮Cursormoveshuttlewheel软键Softkey“10模具设置”页Bypressingthesebuttonsisdisplayedthemainpageoftheselectedfunctiongroup,e.g.ECscreenpage“10MOULD”infunctiongroup“clampingunit”.功能组键/Functiongroup合模单元/CLAMPINGUNIT功能组键/Functiongroup注射单元/INJECTIONUNIT功能组键/Functiongroup温度控制/TEMPERATURES功能组键/Functiongroup程序选择/PROGRAMS功能组键/Functiongroup加工控制/PROCESSCONTROFig.1--2:Meaningofthefunctiongroupkeys其它的一些功能键均可通过按屏幕下的软键来选取Furtherfunctiongrouprelevantscreenpagescanbeselectedbypressingtheappropriatesoftkeys(seealsochapter2.3and2.4.1).按软件中的“返回”可退回至原有的画面中Bypressingthesoftkey”return”canbereturnedtothepreviouslydisplayedscreenpage.软键图标：Softkey“return:1.2随机软盘的用法/HandlingoftheMachineDiskettes机器由于种种原因出现程序丢失时可通过重装随机软盘来恢复（详细的操作方法在后面的第七项有详细讲解）Themachineprogramshavetobereloadedonlywhentheprogramiscrashedforanyreason.注意：这些软盘“BootCPU(机器控制程序)”，”Bootfirmware(固化程序)”,”Bootpicture(画面程序)”，”BootDiagnostic—disk(清除程序)”均能在将软盘插入软驱后重开电源时自动将程序载入机器Note:Thediskettes“BootCPU”(machinecontrol),“BootErgocontrol”(firmwareandscreenlayout)and“Diagnostic--DISK”(diagnosisoffaults)areautomaticallyloadedintomachinecontrol,whensuchadiskisinthediskdriveunitwhilethemachineisswitchedon.1.2.1安装CPU盘/Diskette“BOOTCPU”。将CPU盘插入软驱Putthediskintothedriveunit;。关闭油泵电机Switchoffthepump;。关开机器总电源Switch(offand)onthemachinepower。开始读程序后显示屏里会出现以下画面；Autoexeo5.21SIGMATEKGMBH功能组键/Functiongroup自动化/AUTOMATIZATION功能组键/Functiongroup德马格机械手/HANDLING功能组键/Functiongroup页面列表/PAGELAYOUT功能组键/Functiongroup服务页面/SERVICE功能组键/Functiongroup警服页面/ALARMSProcess；DemagErgotechWieheGmbh；NC4ERGOCONTROL；machineprogram；DiskdonebyETPv7.03.07onXXXXX:XX；SPSRESETCAN/00CPUBOOTADRCAN/00LCM40CAN/00B:PRG__SGM\NDM303SPRSTATUS:READFILE:B:\****\.***ERRO:NOFig.1--3:CPUbootingpage。待软驱灯灭后,画面中会出现如下画面Followingpicturewillbedisplayedintheergocontrolunitaftertheindicatelightoffofthediskdriver.SIGMATEKGmbHHADWRERESETCAN–STATION25CAN–BAUDRATE:[615KB]00PROGSEG:[Mb]2.00PICSEG:[Mb]1.00KONTRAST:xxxFig.1--4:CPUbootingpage。待以下主画面出现时取出磁盘Takethediskoutoftheunitafterthe“mainmenu”layoutinergocontrol.Fig....
