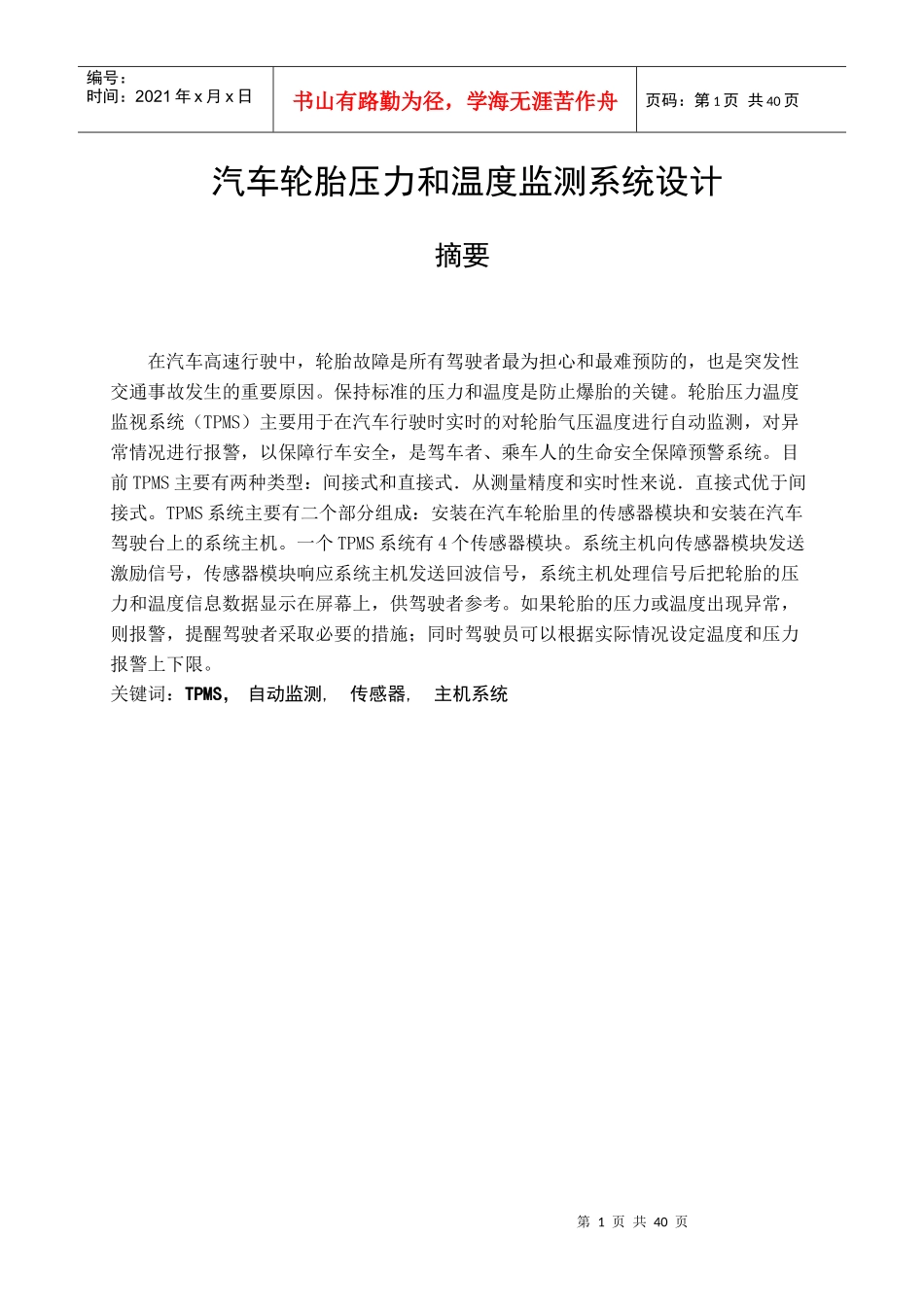

第1页共40页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第1页共40页汽车轮胎压力和温度监测系统设计摘要在汽车高速行驶中,轮胎故障是所有驾驶者最为担心和最难预防的,也是突发性交通事故发生的重要原因。保持标准的压力和温度是防止爆胎的关键。轮胎压力温度监视系统(TPMS)主要用于在汽车行驶时实时的对轮胎气压温度进行自动监测,对异常情况进行报警,以保障行车安全,是驾车者、乘车人的生命安全保障预警系统。目前TPMS主要有两种类型:间接式和直接式.从测量精度和实时性来说.直接式优于间接式。TPMS系统主要有二个部分组成:安装在汽车轮胎里的传感器模块和安装在汽车驾驶台上的系统主机。一个TPMS系统有4个传感器模块。系统主机向传感器模块发送激励信号,传感器模块响应系统主机发送回波信号,系统主机处理信号后把轮胎的压力和温度信息数据显示在屏幕上,供驾驶者参考。如果轮胎的压力或温度出现异常,则报警,提醒驾驶者采取必要的措施;同时驾驶员可以根据实际情况设定温度和压力报警上下限。关键词:TPMS,自动监测,传感器,主机系统第2页共40页第1页共40页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第2页共40页AbstractHigh-speeddrivinginthecar,tirefailurewasmostworriedaboutallthedriversandthemostdifficulttoprevent,anditisimportanttosuddencausestrafficaccidents.Maintainthestandardpressureandtemperaturearethekeytopreventpuncture.Tirepressureandtemperaturemonitoringsystem(TPMS)ismainlyusedinthecardrivingonthetirepressurewhenthereal-timeautomaticmonitoringoftemperature,warningofabnormalsituationstoensuretrafficsafety,isthedrivers,passengers,protectionoflifeandsafetyofearlywarningsystems.CurrentlytherearetwotypesofTPMS:indirectanddirectstyle.Accuracyandreal-timefromit.Directisbetterthanindirect.TPMSsystemhastwomainparts:theinstallationofsensorsinthecartiresinthemodulesandinstalledinthecaronthebridgeofthesystemhost.ATPMSsystemhasfoursensorsmodules.Systemofthehosttosendtheexcitationsignalsensormodule,sensormodulesendsechoresponsesystemhost,thehostprocessingsystem,signalthetirepressureandtemperatureinformationanddatadisplayedonthescreenforthedriverinformation.Ifthetirepressureortemperature,abnormal,thenthealarmtoalertthedrivertotakethenecessarymeasures;whilethedrivercansetthetemperatureandpressureoftheactualsituationofalarmlimits.Keywords:TPMS,automaticmonitoring,sensor,Hostsystem第3页共40页第2页共40页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第3页共40页目录摘要......................................................................1第1章引言..............................................................51.1课题背景...........................................................51.2课题研究的意义.....................................................51.3TPMS的历史、现状和发展趋势.......................................6第2章TPMS原理及分类....................................................72.1间接式TPMS系统....................................................72.2直接式TPMS系统...................................................7第3章系统设计要求......................................................93.1系统工作环境......................................................93.2系统功能要求......................................................93.3系统技术要求......................................................93.4报警阀值设定.....................................................10第4章系统设计.........................................................114.1声表面波传感器......................................
