网络系统总体规划设计VIP免费

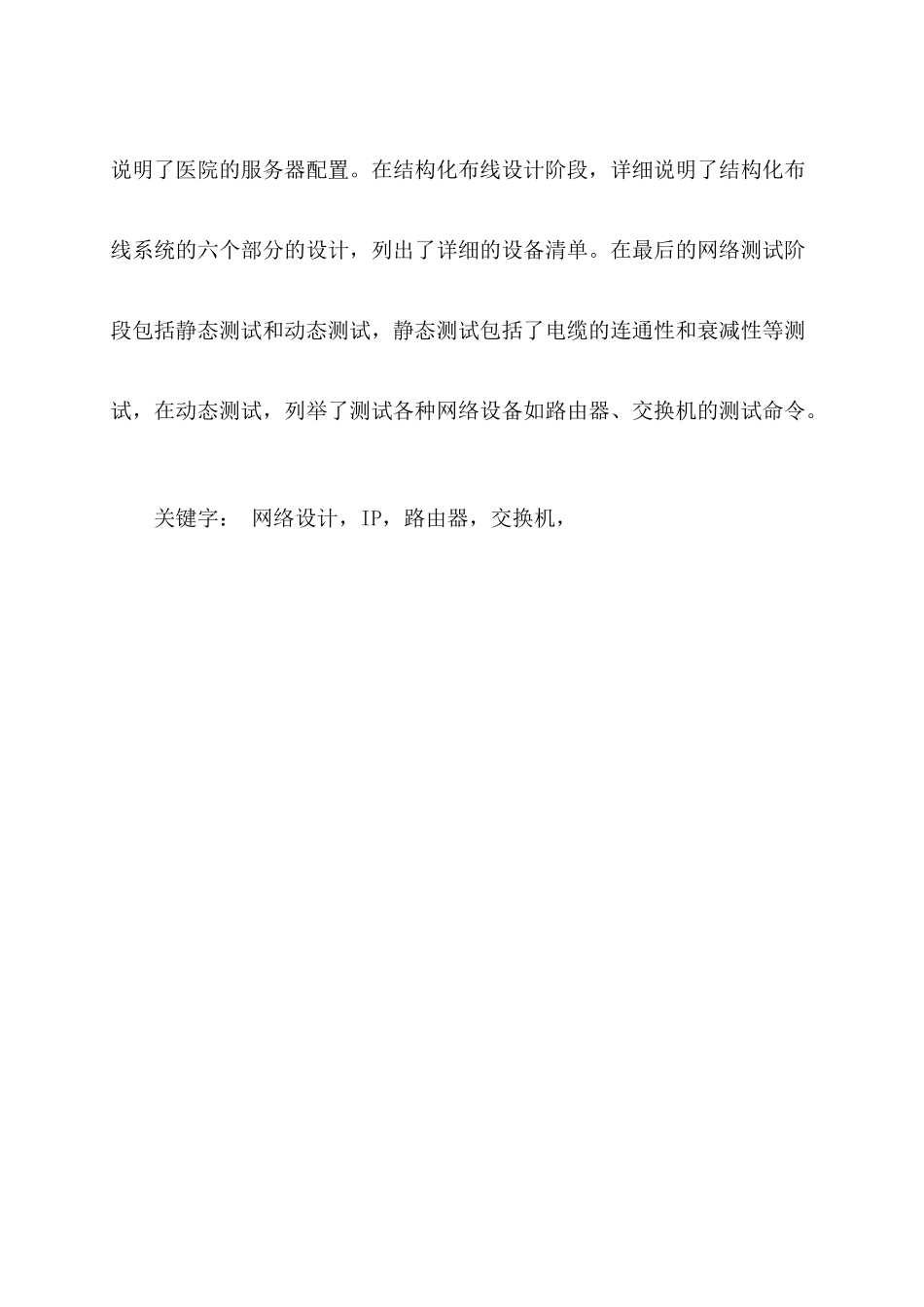

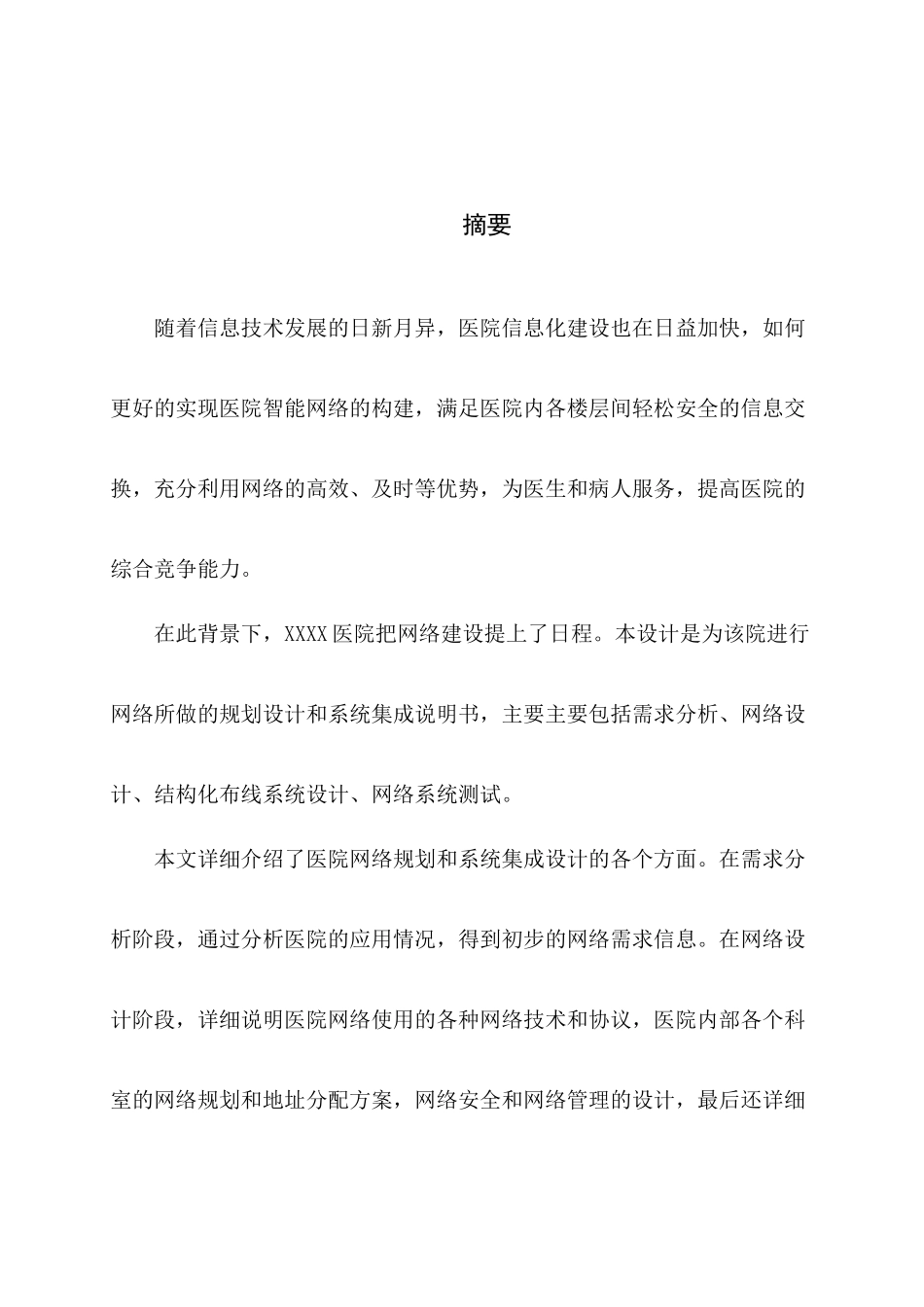

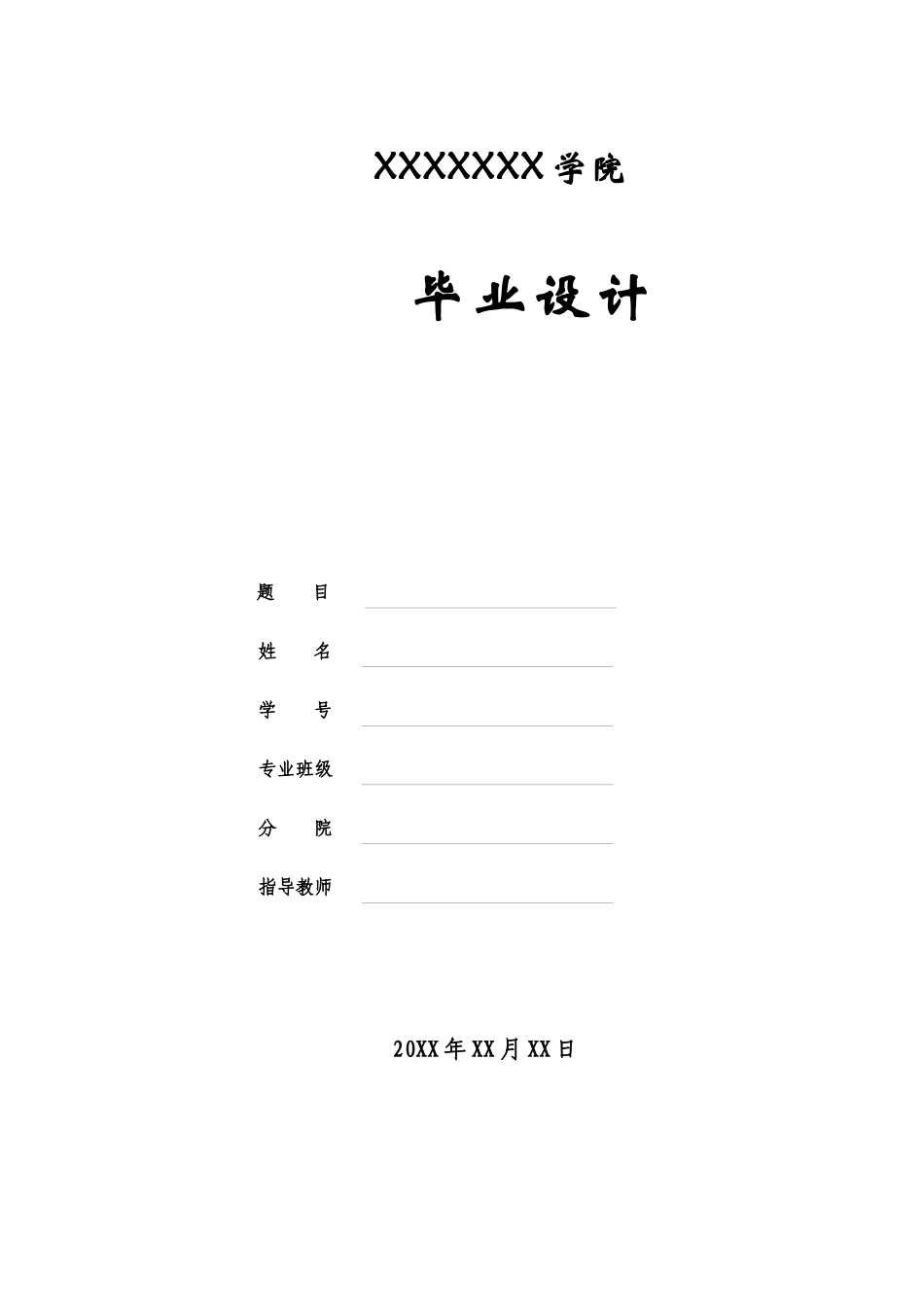

XXXXXXX学院毕业设计题目姓名学号专业班级分院指导教师20XX年XX月XX日摘要随着信息技术发展的日新月异，医院信息化建设也在日益加快，如何更好的实现医院智能网络的构建，满足医院内各楼层间轻松安全的信息交换，充分利用网络的高效、及时等优势，为医生和病人服务，提高医院的综合竞争能力。在此背景下，XXXX医院把网络建设提上了日程。本设计是为该院进行网络所做的规划设计和系统集成说明书，主要主要包括需求分析、网络设计、结构化布线系统设计、网络系统测试。本文详细介绍了医院网络规划和系统集成设计的各个方面。在需求分析阶段，通过分析医院的应用情况，得到初步的网络需求信息。在网络设计阶段，详细说明医院网络使用的各种网络技术和协议，医院内部各个科室的网络规划和地址分配方案，网络安全和网络管理的设计，最后还详细说明了医院的服务器配置。在结构化布线设计阶段，详细说明了结构化布线系统的六个部分的设计，列出了详细的设备清单。在最后的网络测试阶段包括静态测试和动态测试，静态测试包括了电缆的连通性和衰减性等测试，在动态测试，列举了测试各种网络设备如路由器、交换机的测试命令。关键字：网络设计，IP，路由器，交换机，ABSTRACTInformationtechniquechangeswitheachpassingday,asthedevelopmentofthis,hospitalinformation-basedconstructionalsodevelopswithahighspeed.Someproblemswereraisedoutaccordingly,suchas:howtosetupandcarryoutthehospitalnetwork;howtosatisfyandmakeinformationcommutationbecomesimpleandconvenientbetweeneachfloorsinthehospital;howtoraiseupthecomprehensivelycompetitiveabilityofthehospitalbymakinggooduseofthenetworkintheservicefordoctorsandpatient.Underthisbackground,XXXXXhospitalraiseoutthenetworkconstructiontoitsagenda.Thisdesignisforthehospitaltocarryonthenetworkprogrammingandintegratedsystemdesign,mainlyincludingneedinganalysis,networkdesign,lines’structuredesign,networksystemtest.Thistextintroducesthehospitalnetworkprogrammingandaspectsofintegratedsystem.Attheneedinganalysisstage,itwillgetabasicrequirementsofnetworksettingafteranalyzetheappliedcircumstanceofthehospital.Atthedesignstageofnetworksetting,itwillpointouttheseinformation:variousnetworktechniqueandagreementwhichelaboratesonthehospitalnetworkatitsharmonioususingstatus;italsodescribestheinternalprogrammingandaddressassignmentofeachsectionroominthehospital;thenetworksafetyandmanagementdesign,andfinally,theserverconfigurationofthehospital.Turntothestageofnetworkprojectassignmentanddesigning,itelaboratesonthedesignofthesixpartsinthenetworklines’assignments,itgivesthedetailedequipmentslistaswell.Thefinalnetworktestincludesthestatictestanddynamictest,thestatictestincludestheattenuationandconnexityoftheelectriccable,duringtheintroductionofdynamictest,itgivesoutallthetestingordersofvariousofnetworkequipments,suchastherouterandswitch.Keywords:networkdesign,ip,router,switch,networkmanag摘要..........................................................................................-1-ABSTRACT..................................................................................11需求分析...................................................................................4前言........................................................................41.1医院网络系统对网络性能的要求............................................51.2医院网络系统对主机系统的主要要求........................................61.3科室布局及信息点分布....................................................72网络系统总体设计...................................................................92.1网络设计和系统...
