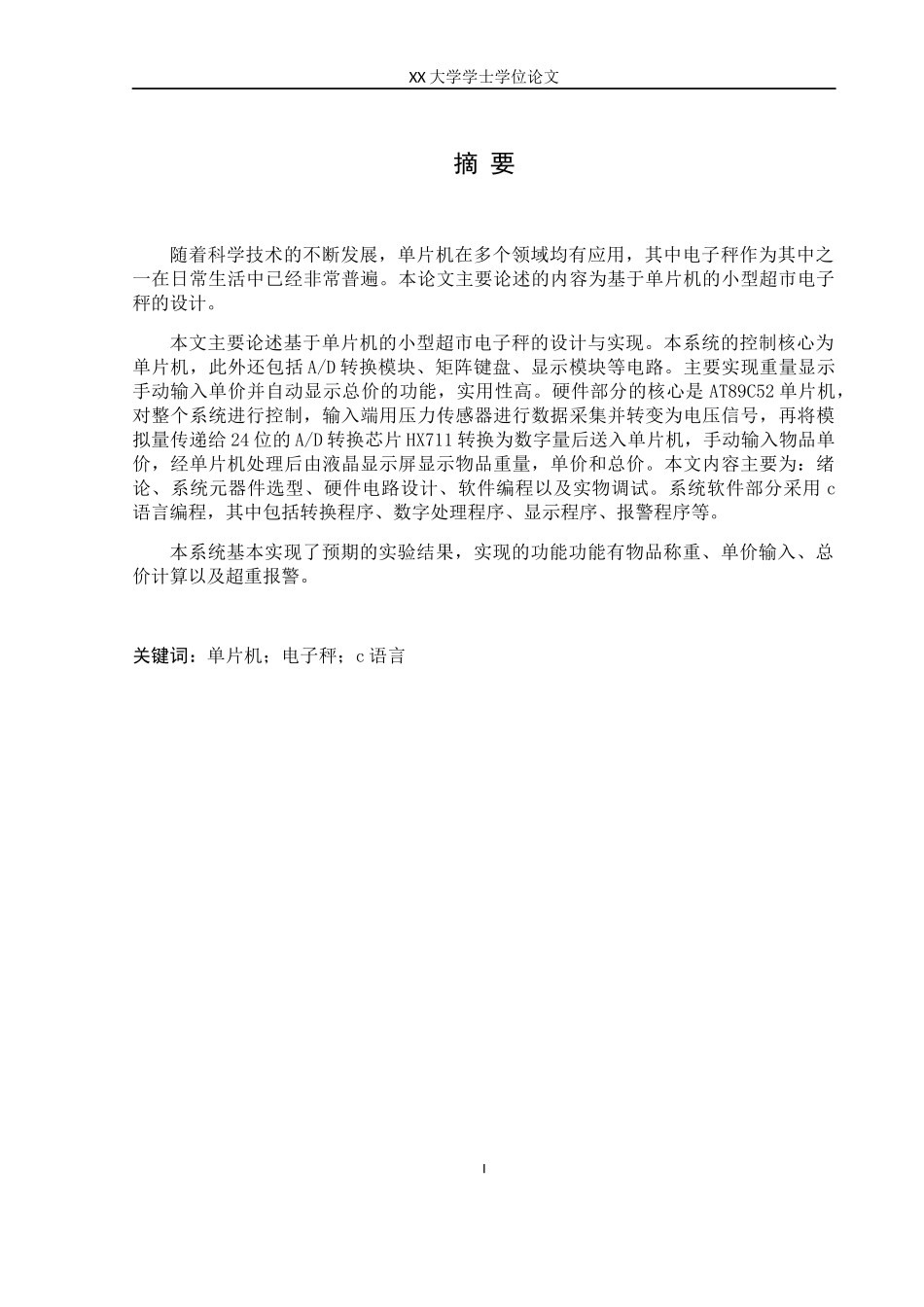

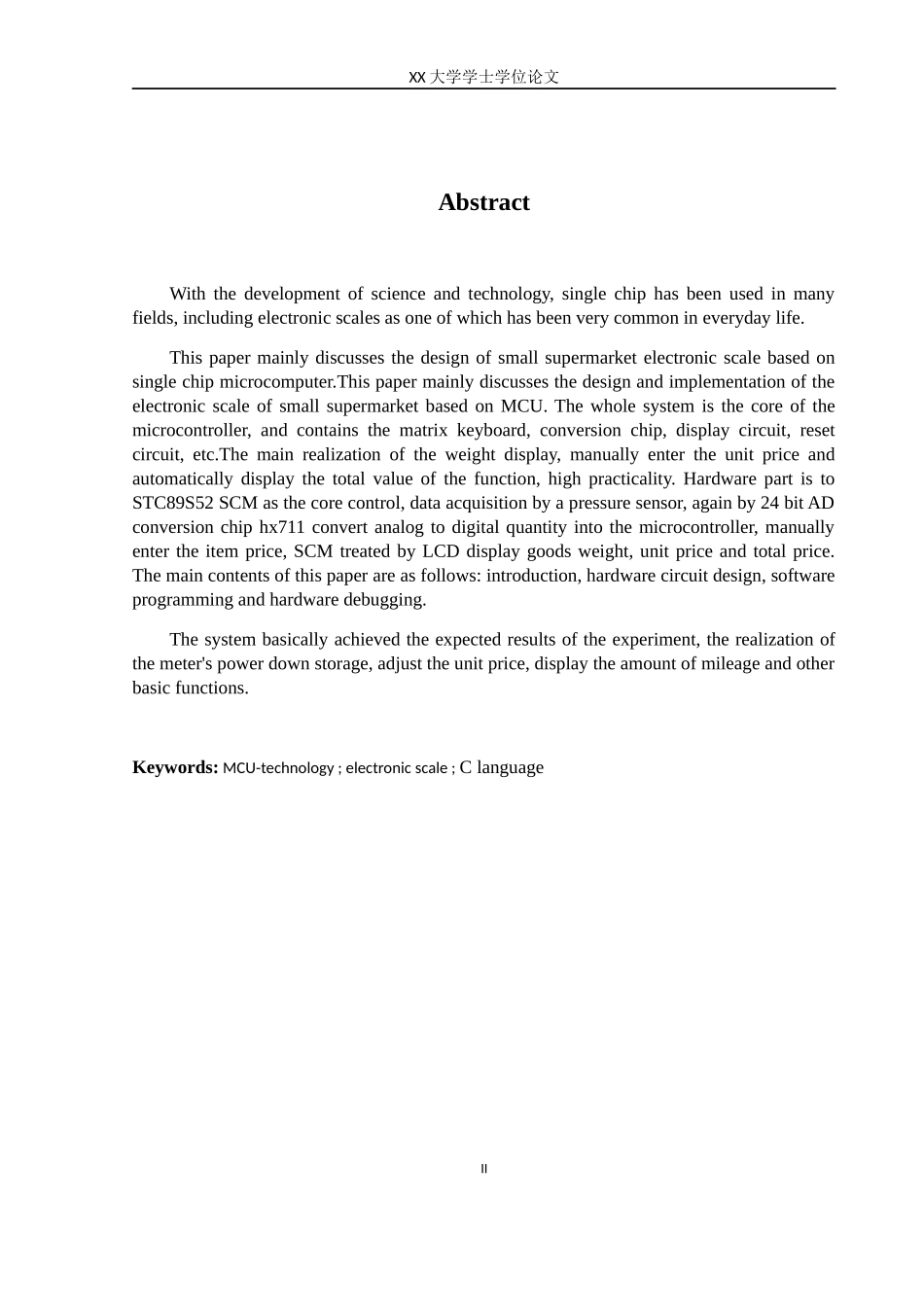

XX大学学士学位论文摘要随着科学技术的不断发展，单片机在多个领域均有应用，其中电子秤作为其中之一在日常生活中已经非常普遍。本论文主要论述的内容为基于单片机的小型超市电子秤的设计。本文主要论述基于单片机的小型超市电子秤的设计与实现。本系统的控制核心为单片机，此外还包括A/D转换模块、矩阵键盘、显示模块等电路。主要实现重量显示手动输入单价并自动显示总价的功能，实用性高。硬件部分的核心是AT89C52单片机，对整个系统进行控制，输入端用压力传感器进行数据采集并转变为电压信号，再将模拟量传递给24位的A/D转换芯片HX711转换为数字量后送入单片机，手动输入物品单价，经单片机处理后由液晶显示屏显示物品重量，单价和总价。本文内容主要为：绪论、系统元器件选型、硬件电路设计、软件编程以及实物调试。系统软件部分采用c语言编程，其中包括转换程序、数字处理程序、显示程序、报警程序等。本系统基本实现了预期的实验结果，实现的功能功能有物品称重、单价输入、总价计算以及超重报警。关键词：单片机；电子秤；c语言IXX大学学士学位论文AbstractWiththedevelopmentofscienceandtechnology,singlechiphasbeenusedinmanyfields,includingelectronicscalesasoneofwhichhasbeenverycommonineverydaylife.Thispapermainlydiscussesthedesignofsmallsupermarketelectronicscalebasedonsinglechipmicrocomputer.ThispapermainlydiscussesthedesignandimplementationoftheelectronicscaleofsmallsupermarketbasedonMCU.Thewholesystemisthecoreofthemicrocontroller,andcontainsthematrixkeyboard,conversionchip,displaycircuit,resetcircuit,etc.Themainrealizationoftheweightdisplay,manuallyentertheunitpriceandautomaticallydisplaythetotalvalueofthefunction,highpracticality.HardwarepartistoSTC89S52SCMasthecorecontrol,dataacquisitionbyapressuresensor,againby24bitADconversionchiphx711convertanalogtodigitalquantityintothemicrocontroller,manuallyentertheitemprice,SCMtreatedbyLCDdisplaygoodsweight,unitpriceandtotalprice.Themaincontentsofthispaperareasfollows:introduction,hardwarecircuitdesign,softwareprogrammingandhardwaredebugging.Thesystembasicallyachievedtheexpectedresultsoftheexperiment,therealizationofthemeter'spowerdownstorage,adjusttheunitprice,displaytheamountofmileageandotherbasicfunctions.Keywords:MCU-technology;electronicscale;ClanguageIIXX大学学士学位论文目录1绪论.............................................................................................................................................................11.1设计背景.......................................................................................................................................11.2国内外研究现状.........................................................................................................................31.3系统需求分析与总体设计.......................................................................................................42.系统元器件选型....................................................................................................................................52.1单片机选型..................................................................................................................................52.2压力传感器选型.........................................................................................................................62.3显示器选型..................................................................................................................................82.4A/D转换芯片选型........................................................................
