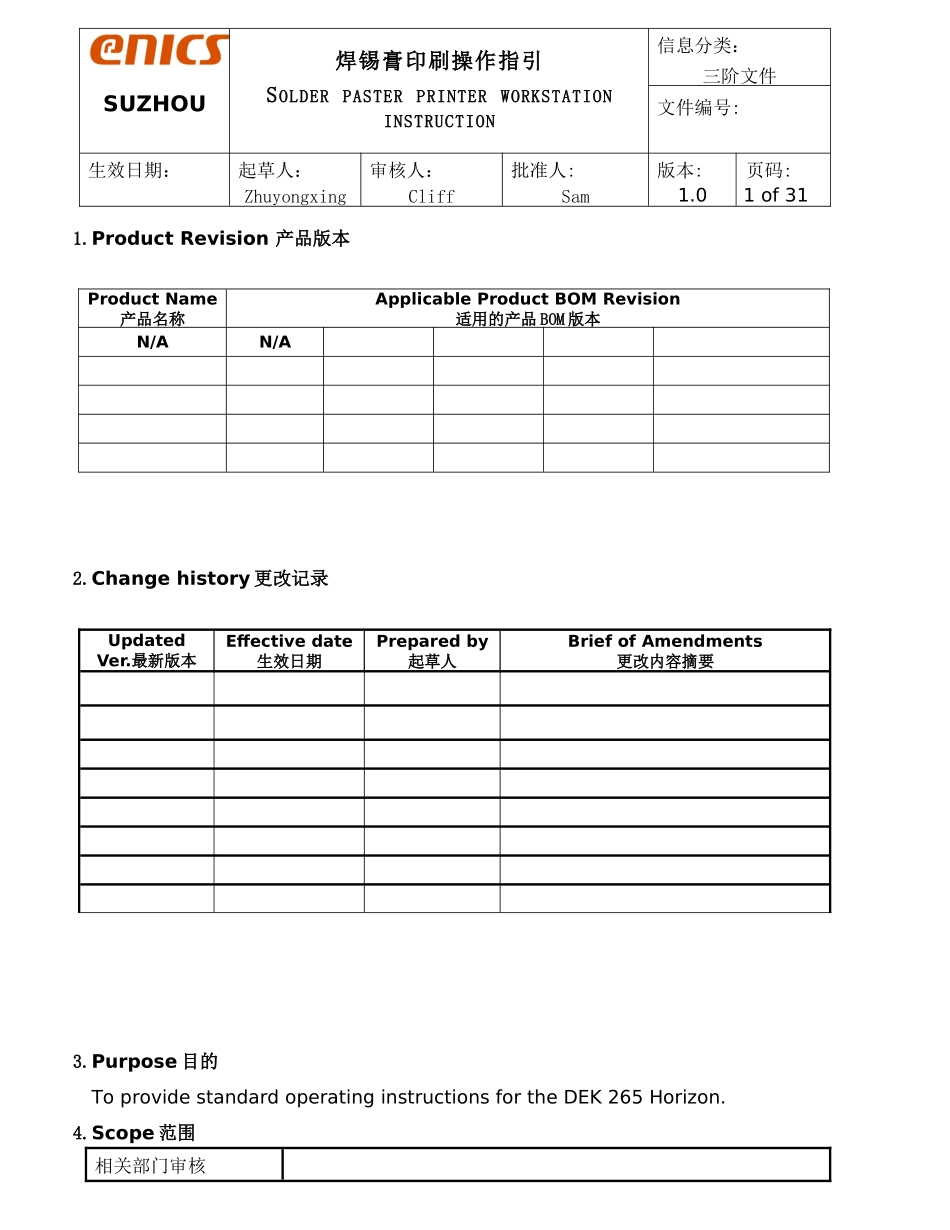

SUZHOU焊锡膏印刷操作指引SOLDERPASTERPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:生效日期：起草人：Zhuyongxing审核人：Cliff批准人:Sam版本:1.0页码:1of311.ProductRevision产品版本ProductName产品名称ApplicableProductBOMRevision适用的产品BOM版本N/AN/A2.Changehistory更改记录UpdatedVer.最新版本Effectivedate生效日期Preparedby起草人BriefofAmendments更改内容摘要3.Purpose目的ToprovidestandardoperatinginstructionsfortheDEK265Horizon.4.Scope范围相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:2of28ThisdocumentappliestoallmanufacturingsitesthatutilizetheDEK265Horizon.5.Definitions定义IPC-T-50-TermsandDefinitionsforInterconnectingandPackagingElectronicCircuits6.Responsibilities职责N/A7.Description描述1.1.ProcessFlow相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:3of28相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:4of281.2.MachineStart-Up1.2.1.EnsurethatallE-stopsareintheonposition.Themachinehas2E-stopsoneonsideofthefrontpanel.(SeeFigure1.0)Figure1.0:LocationofE-stops1.2.2.Turnmainpowerswitchclockwise¼turn.Indicatorshouldbepointedupward.(SeeFigure2.0)1.2.2.1.1.1.1.1.1.Figure2.0MainPowerSwitchonFrontonMachine相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:5of281.2.3.Tologontype:“ADMINISTRATOR”intheuserfieldand“administrator”inthepasswordfield(SeeFigure2.1)Figure2.1相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:6of281.2.4.WhenTheNetworklogonboxappearsclickontheOKbutton(Figure2.2)1.2.5.ClickontheDEKicontostarttheprinter1.2.6.Whenprompted,PressblueSystemButtonlocatedjustabovethekeyboard.(Figure3.0)Figure3.01.2.7.TouchtheMonitorsquareonthescreenorF7ontheKeyboard(SeeFigure4.0Location1).相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:7of28Figure4.0相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:8of281.2.8.TouchtheLogOnsquareonthescreenorF1onthekeyboard.(Figure5.0Location1)Figure5.01.2.9.TypeyournameintoOperatorLogonBox(SeeinFigure5.0)1.2.10.Touch“Exit”onthescreenorpressF8onthekeyboard(SeeFigure5.0Location2)相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:9of281.MACHINEOPERATION1.3.ProcessFlow相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:10of28相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:11of281.4.LoadingProgram1.4.1.PresstheSetupboxonthetouchscreenorF6onthekeyboard.(SeeFigure4.0Location2)1.4.2.PresstheLoadDataboxontheScreenorF2onthekeyboard.(SeeFigure6.0Location1)Figure6.0相关部门审核SUZHOUDEK印刷机操作指引DEKPRINTERWORKSTATIONINSTRUCTION信息分类：三阶文件文件编号:版本:1.0页码:12of281.4.3.Highlighttherequiredfilefortheassemblytoberun.ThecorrectfilenamefortheassemblytoberuncanbefoundinthelinefilesuppliedbytheCAMdepartment.(Seeinfigure7.0)Figure7.01.4.4.PresstheLoadboxonthescreenorF1onthekeyboard.(SeeFigure7.0Location1)1.4.5.PresstheExitboxonthescreenorF8onthekeyboard.(SeeFigure7.0Location...
