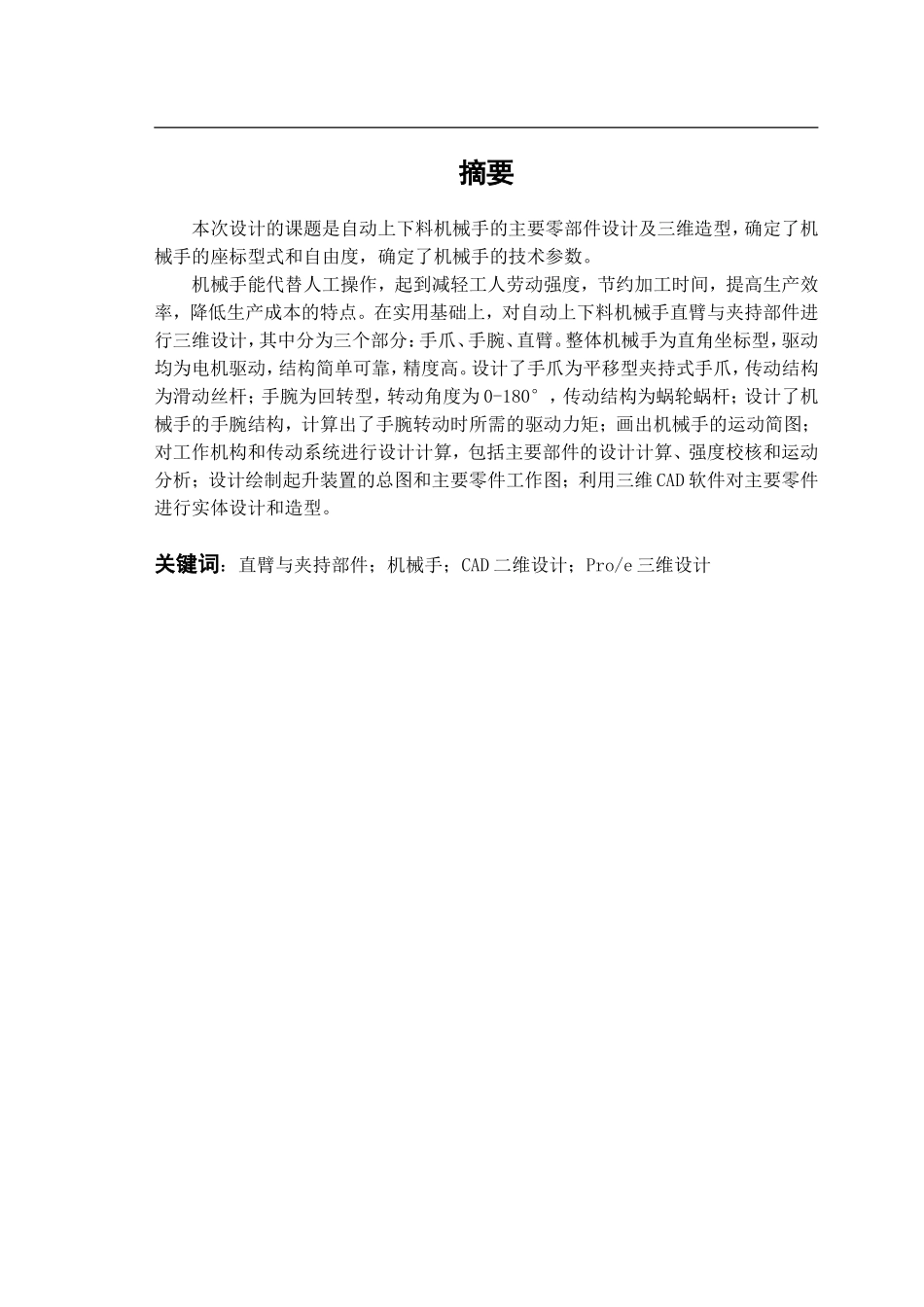

摘要本次设计的课题是自动上下料机械手的主要零部件设计及三维造型，确定了机械手的座标型式和自由度，确定了机械手的技术参数。机械手能代替人工操作，起到减轻工人劳动强度，节约加工时间，提高生产效率，降低生产成本的特点。在实用基础上，对自动上下料机械手直臂与夹持部件进行三维设计，其中分为三个部分：手爪、手腕、直臂。整体机械手为直角坐标型，驱动均为电机驱动，结构简单可靠，精度高。设计了手爪为平移型夹持式手爪，传动结构为滑动丝杆；手腕为回转型，转动角度为0-180°，传动结构为蜗轮蜗杆；设计了机械手的手腕结构，计算出了手腕转动时所需的驱动力矩；画出机械手的运动简图；对工作机构和传动系统进行设计计算，包括主要部件的设计计算、强度校核和运动分析；设计绘制起升装置的总图和主要零件工作图；利用三维CAD软件对主要零件进行实体设计和造型。关键词：直臂与夹持部件；机械手；CAD二维设计；Pro/e三维设计AbstractThetopicofthisdesignisthemaincomponentoftheautomaticup-downmaterialmanipulatordesignand3dmodelling,determinethecoordinatesofthemanipulatortypeanddegreeoffreedom,determinethetechnicalparametersofthemanipulator.Robotscanreplacemanualoperation,reducelaborintensity,saveprocessingtime,improvetheproductionefficiency,reducetheproductioncost.Onthebasisofpractical,automaticmanipulatorarmstraightupanddownandclampingpartsfor3ddesign,whichisdividedintothreeparts:hand,wrist,armstraight.Integraltypemanipulatorforrectangularcoordinates,driveformotordrive,structuresimple,reliableandhighprecision.Designhandclawclampingtypegripperfortranslation,thetransmissionstructureforslidingscrew;Wristfortransformation,rotationAngleof0-180°,forthewormgearandwormdrivestructure;Manipulatorwriststructurewasdesigned,calculatedthewristwhenthedrivingmoment;Drawthemanipulatorkinematicsketch;Theworkingmechanismandtransmissionsystemdesignandcalculation,includingdesigncalculation,intensityandthemovementofthemainpartsofanalysis;Designdrawinggenerallayoutandmainpartsofliftingdeviceworkingdrawing;Usingthree-dimensionalCADsoftwareforthemainpartsforphysicaldesignandmodelling.Keyword:Straightarmandclampingparts;Manipulator;2dCADdesign;Pro/e3ddesign目录摘要...............................................................................................................................................................IAbstract........................................................................................................................................................IIAbstract........................................................................................................................................................I1绪论..........................................................................................................................................................11.1前言和意义..................................................................................................................................11.2工业机械手的简史.....................................................................................................................11.3国内外研究现状和趋势.............................................................................................................32机械手直臂部分的总体设计..................................................................................................................52.1执行机构的选择.........................................................................................................
