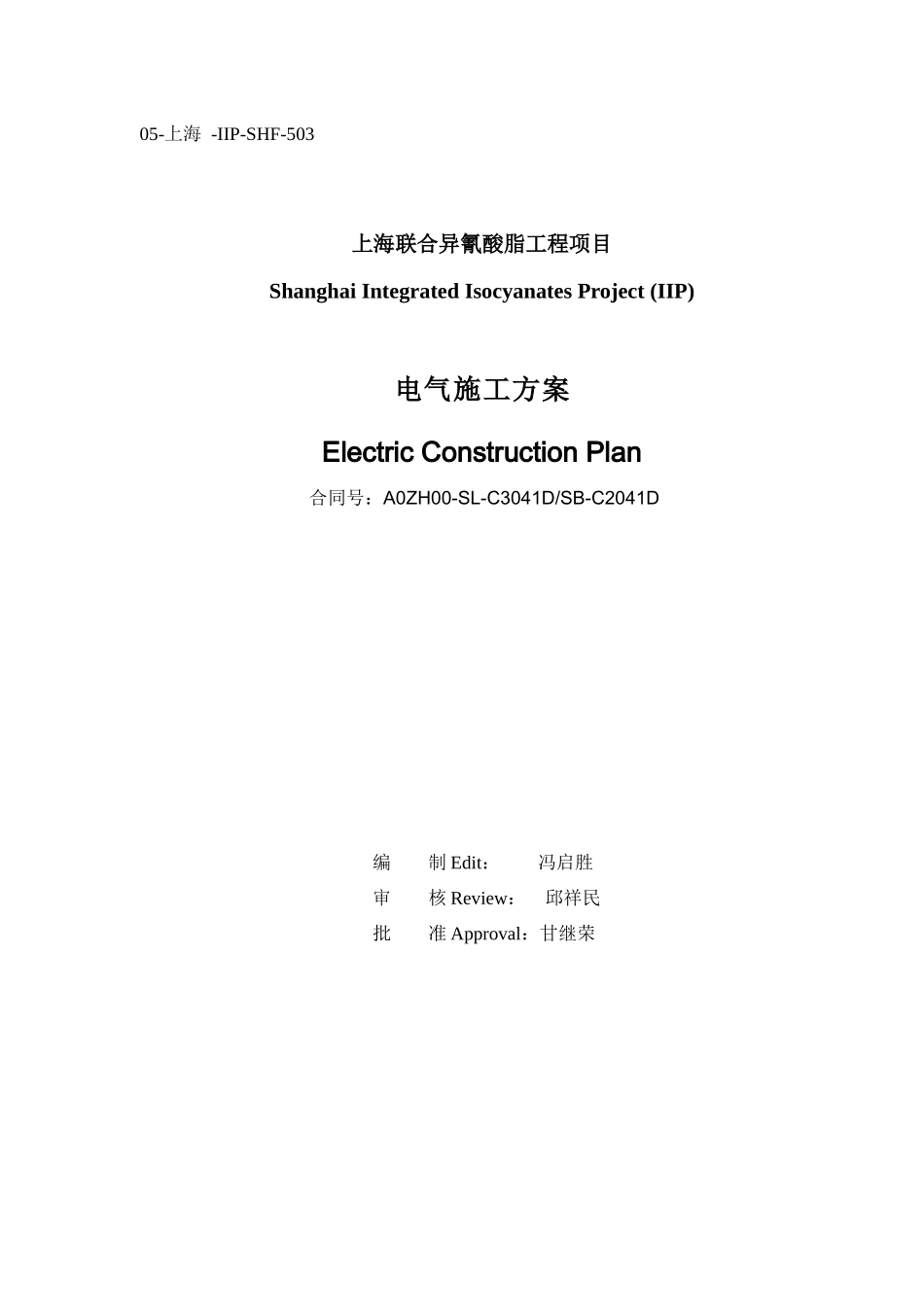

05-上海-IIP-SHF-503上海联合异氰酸脂工程项目ShanghaiIntegratedIsocyanatesProject(IIP)电气施工方案ElectricConstructionPlan合同号：A0ZH00-SL-C3041D/SB-C2041D编制Edit：冯启胜审核Review：邱祥民批准Approval：甘继荣第2页共16页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共16页南化集团建设公司上海工程项目部NCIGCCShanghaiProjectDepartmentMar2005目录CONTENTⅠ工程概况ChapterOneGeneralWorkDescription.......................................................................3Ⅱ编制依据ChapterTwoReference.....................................................................................................3Ⅲ施工程序及施工技术措施ChapterTreeConstructionProcedureandTechnicalMeasures....4Ⅳ电气施工安全措施ChapterFourSafetyMeasuresforElectricalConstruction........................16第3页共16页第2页共16页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第3页共16页Ⅰ工程概况ChapterOneGeneralWorkDescription上海IIP工程的电气分为SLIC北和SBPC两部分，SLIC北电气工作主要有：B341配电室的接地、电缆沟、桥架；B301,B321和B320区用电器到开关柜/配电盘的电缆端接.建筑群内非MEV的相关设备的配线系统、桥架、电伴热系统.；B325区应急集水池马达到开关柜的电缆端接、桥架.；B342区PM4980A/B到10KV开关柜的电缆端接、桥架；B330变压器的高压动力,接地和控制电缆；B342冷却水站工艺装置用电器的高压动力,接地和控制电缆；配电室B341到应急集水池泵马达的低压动力电缆；B320内安装GCC通讯系统；SLIC北的周边照明等。SBPC电气工作主要有：B541配电室的接地、冷却塔和基础装置的用电器到开关柜/配电盘的电缆端接，建筑群内非MEV的相关设备的配线系统以及相关电缆和电缆桥架、关于SPBC基础和A520工艺装置的照明系统和电伴热系统；配电室B545到应急集水池泵马达的低压动力电缆；配电室B545到A520冷却塔的低压马达的低压动力电缆；B609仓库内安装GCC通讯系统；B620维修间内安装GCC通讯系统；从配电室B541到达B601控制室进行分支的馈线；A545火炬中的电缆、桥架、拌热等。ElectricalworkforIIPwillcoverSLIC-NandSBPC.ThefollowingworksareinSLIC-N:B341PowerDistributionRoomearthing,cabletrenchandcabletray,B321andB320powerconsumerscableterminationtoswitchgear/powerdistributionpanel,cabling,cabletrayandelectricalheatingfornon-MEVequipment,B325cableterminationandcabletrayfromemergencypitmotortoswitchgear,B342cableterminationandcabletrayfromPM4980A/Bto10KVswitchgear,B330transformerHVpower,eathingandcontrolcable,B342coolingtowerHVpower,earthingandcontrolcable,B3414980A/B到10KVpowercablefromdistributionroomtoemergencypitpumpmotor,GCCinstallationforB320,andSLIC-Nperimeterlighting.ThefollowingworksareinSBPC:B541powerdistributionroomearthing,cableterminationfromcoolingtowertoswitchgear/distributionpanel,non-MEVequipmentcablingandcabletray,SPBCandA520lightingsystemandelectricalheatingsystem,LVpowercablefromB545powerdistributionroomtoemergencypitpumpmotor,LVpowercablefromB545powerdistributionroomtoA520coolingtowermotor,GCCinstallationinB609,GCCinstallationinB620maintenanceroom,branchfeederfromB541distributionroomtoB601controlroom,A545flarecable,cabletrayandelectricalheating.Ⅱ编制依据ChapterTwoReference第4页共16页第3页共16页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第4页共16页1.设计图纸及招标要求。DWGandRFPPackage2.《一般电气规范》GEN-0-ELEC-SP-0001。ProjectSpecification:GEN-0-ELEC-SP-00013.《电气装置安装工程高压电器施工及验收规范》GB3147-90。GB3147-90ConstructionandAcceptanceCodeforHVEquipment4.《电气装置安装工程母线装置施工及验收规范》GBJ149-90。GBJ149-90Constr...
